Kabeliai ir jungtys
Įprasta kaina
€440,34 be PVM
Įprasta kaina
Išpardavimo kaina
€440,34 be PVM
Nepavyko įkelti atsiėmimo galimybių

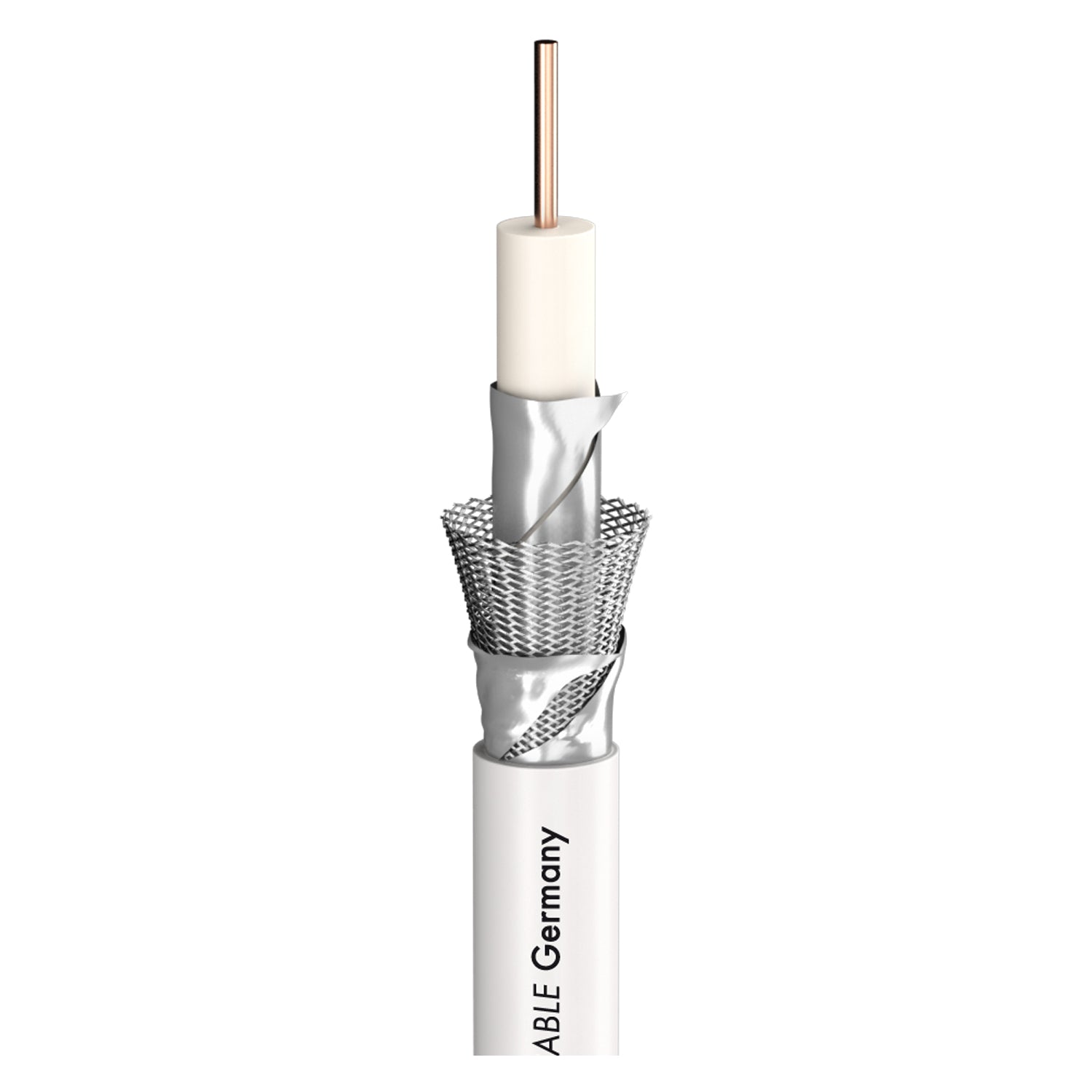

SDI kabelis SAT-CABLE HD/UHD/DIGI PRO SERIES SC-ASTRAL HD/UHDx 1,00; PVC Ø 6,80 mm; baltas; Eca - 200 m ritė
Parduodama 200 m ritė.
SC-ASTRAL HD/UHD
SAT-CABLE HD/UHD/DIGI PRO SERIES
Privalumai:
- Inner conductor of solid, oxygen-free copper (OFC Class 6N)
- High shielding factor, triple or quad shielding, low transfer impedances
- Gas-injected insulation, smoothed, heavy-duty AL/PT foil
- Trouble-free digital signal transmission with SAT/broadband cable/terrestrial systems
- Robust and flexible
- Simple and easy mounting
Pritaikymas:
- Professional satellite technology for indoor and outdoor applications
- Permanent installation in building and monitoring technology
Techniniai duomenys
| Prekės kodas |
601-0970C |
| Savybės |
Analog , Digital 75 Ω , Halogen-free / LSZH , In-ground / burial , OFC oxygen free copper , SDI/HD-SDI |
| Pritaikymo sritis |
ELA 100 V , Installation , Studio / Broadcast |
| Paskirtis |
SAT-CABLE HD/UHD/DIGI PRO SERIES |
| Spalva |
balta |
| Išorinio apvalkalo medžiaga |
PVC |
| Išorinis skersmuo [mm] |
6.80 |
| Jacket Ø (video) [mm] |
6,80 |
| Jacket Ø (video) ["] |
0.2677 |
| Vidinis laidininkas |
1 |
| Vidinis laidininkas (video) |
1 |
| Vidinis laidininkas Ø (video) [mm] |
1,00 |
| Vidinis laidininkas Ø (video) ["] |
0.0394 |
| AWG (video) |
18 |
| Ekranavimas |
AL foil + Cu mesh, tinned + 2nd AL foil |
| Laidininko izoliacijos medžiaga |
Foam / Skin-PE |
| Laidininko izoliacijos Ø [mm] |
4,65 |
| Laidininko izoliacijos Ø ["] |
0.1831 |
| Svoris 1 m [g] |
42.09 |
| Svoris 1000 ft. [lbs] |
34.9916 |
| Gaisrinė apkrova per 1 m [kWh] |
0,21 |
| Variantas |
apvalus |
| Pakuotė |
100 m , 500 m |
| Greičio koeficientas |
0,85 |
| Min. temperatūra [°C] |
-25 |
| Maks. temperatūra [°C] |
70 |
| RG-Type |
RG6 |
| Width [mm] |
6,8 |
| Width ["] |
0.2677 |
| Height [mm] |
6,8 |
| Height ["] |
0.2677 |
| Capacity wire/electic screen at 1m (video) [pF] |
52 , 55 |
| Capacity wire/electic screen at 1 ft. (video) [pF] |
15.8496 , 16.764 |
| Damping at 100 MHz (100m & 20° C) [dB] |
6,1 |
| Damping at 100 MHz (100 ft. & 20 °C / 68 °F) [dB] |
1.8593 |
| Damping at 200 MHz (100m & 20° C) [dB] |
8,7 |
| Damping at 200 MHz (100 ft. & 20 °C / 68 °F) [dB] |
2.6518 |
| Damping at 470 MHz (100m & 20° C) [dB] |
13,7 , 14 |
| Damping at 470 MHz (100 ft. & 20 °C / 68 °F) [dB] |
4.1758 , 4.2672 |
| Damping at 862 MHz (100m & 20° C) [dB] |
18,5 , 19,6 |
| Damping at 862 MHz (100 ft. & 20 °C / 68 °F) [dB] |
5.6388 , 5.9741 |
| Damping at 1000 MHz (100m & 20° C) [dB] |
20,5 , 21 |
| Damping at 1000 MHz (100 ft. & 20 °C / 68 °F) [dB] |
6.2484 , 6.4008 |
| Damping at 1485 MHz (100m & 20° C) [dB] |
23,9 |
| Damping at 1485 MHz (100 ft. & 20 °C / 68 °F) [dB] |
7.2847 |
| Damping at 1750 MHz (100m & 20° C) [dB] |
25,6 , 27,9 |
| Damping at 1750 MHz (100 ft. & 20 °C / 68 °F) [dB] |
7.8029 , 8.5039 |
| Damping at 2150 MHz (100m & 20° C) [dB] |
31,2 |
| Damping at 2150 MHz (100 ft. & 20 °C / 68 °F) [dB] |
9.5098 |
| Damping at 3000 MHz (100m & 20° C) [dB] |
36,9 |
| Damping at 3000 MHz (100 ft. & 20 °C / 68 °F) [dB] |
11.2471 |
| Impedance [Ω] |
75 |
| Shield. resistance per 1 km [Ω] |
22 |
| Shield. resistance per 1000 ft. [Ω] |
6.7056 |
| BPVo-Euroclass |
Eca |
