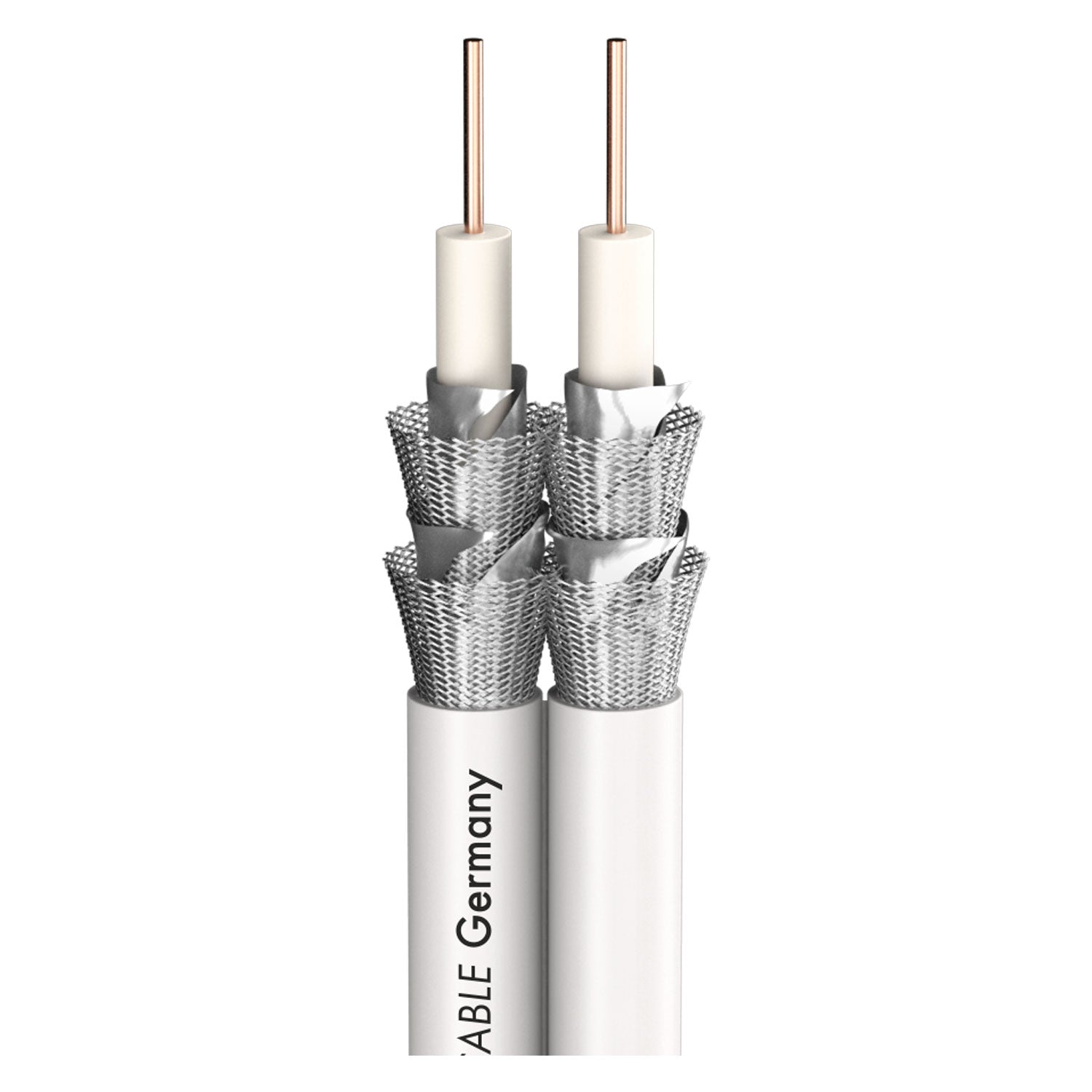

SDI kabelis SAT-CABLE HD/UHD/DIGI PRO SERIES SC-ASTRAL HD/UHD; 2 x 0,80; PVC; baltas

SDI kabelis SAT-CABLE HD/UHD/DIGI PRO SERIES SC-ASTRAL HD/UHD; 2 x 0,80; PVC; baltas

€3,49 be PVM
€3,49 be PVM
Išpardavimas Išparduota
Siuntimo išlaidos ir mokesčiai apskaičiuojami atsiskaitant.

SDI kabelis SAT-CABLE HD/UHD/DIGI PRO SERIES SC-ASTRAL HD/UHD; 2 x 0,80; PVC; baltas

Parduodama po 1 metrą.

SC-ASTRAL HD/UHD

SAT-CABLE HD/UHD/DIGI PRO SERIES

Privalumai:

- Inner conductor of solid, oxygen-free copper (OFC Class 6N)

- High shielding factor, triple or quad shielding, low transfer impedances

- Gas-injected insulation, smoothed, heavy-duty AL/PT foil

- Trouble-free digital signal transmission with SAT/broadband cable/terrestrial systems

- Robust and flexible

- Simple and easy mounting

Pritaikymas:

- Professional satellite technology for indoor and outdoor applications

- Permanent installation in building and monitoring technology

Techniniai duomenys

Prekės kodas 601-0960
Savybės Analog , Digital 75 Ω , Halogen-free / LSZH , In-ground / burial , OFC oxygen free copper , SDI/HD-SDI
Pritaikymo sritis ELA 100 V , Installation , Studio / Broadcast
Paskirtis SAT-CABLE HD/UHD/DIGI PRO SERIES
Spalva balta
Išorinio apvalkalo medžiaga PVC
Kanalų skaičius (video) 2
Vidinis laidininkas 1
Vidinis laidininkas (video) 1
Vidinis laidininkas Ø (video) [mm] 0,80
Vidinis laidininkas Ø (video) ["] 0.0315
AWG (video) 20
Ekranavimas Cu mesh, tinned + AL foil + 2nd cu mesh, tinned + 2nd AL foil
Laidininko izoliacijos medžiaga Foam / Skin-PE
Laidininko izoliacijos Ø [mm] 3.70
Laidininko izoliacijos Ø ["] 0.1457
Svoris 1 m [g] 113.73
Svoris 1000 ft. [lbs] 57.1979
Gaisrinė apkrova per 1 m [kWh] 0,35
Variantas twin
Pakuotė 100 m , 500 m
Min. temperatūra [°C] -25
Maks. temperatūra [°C] 70
RG-Type RG59
Width [mm] 13
Width ["] 0.5118
Height [mm] 5,6
Height ["] 0.2205
Capacity wire/electic screen at 1m (video) [pF] 55
Capacity wire/electic screen at 1 ft. (video) [pF] 16.764
Damping at 100 MHz (100m & 20° C) [dB] 7,2
Damping at 100 MHz (100 ft. & 20 °C / 68 °F) [dB] 2.1946
Damping at 200 MHz (100m & 20° C) [dB] 11,8
Damping at 200 MHz (100 ft. & 20 °C / 68 °F) [dB] 3.5966
Damping at 470 MHz (100m & 20° C) [dB] 17,8
Damping at 470 MHz (100 ft. & 20 °C / 68 °F) [dB] 5.4254
Damping at 862 MHz (100m & 20° C) [dB] 25,7
Damping at 862 MHz (100 ft. & 20 °C / 68 °F) [dB] 7.8334
Damping at 1000 MHz (100m & 20° C) [dB] 28,7
Damping at 1000 MHz (100 ft. & 20 °C / 68 °F) [dB] 8.7478
Damping at 1750 MHz (100m & 20° C) [dB] 38,6
Damping at 1750 MHz (100 ft. & 20 °C / 68 °F) [dB] 11.7653
Impedance [Ω] 75
BPVo-Euroclass Fca
