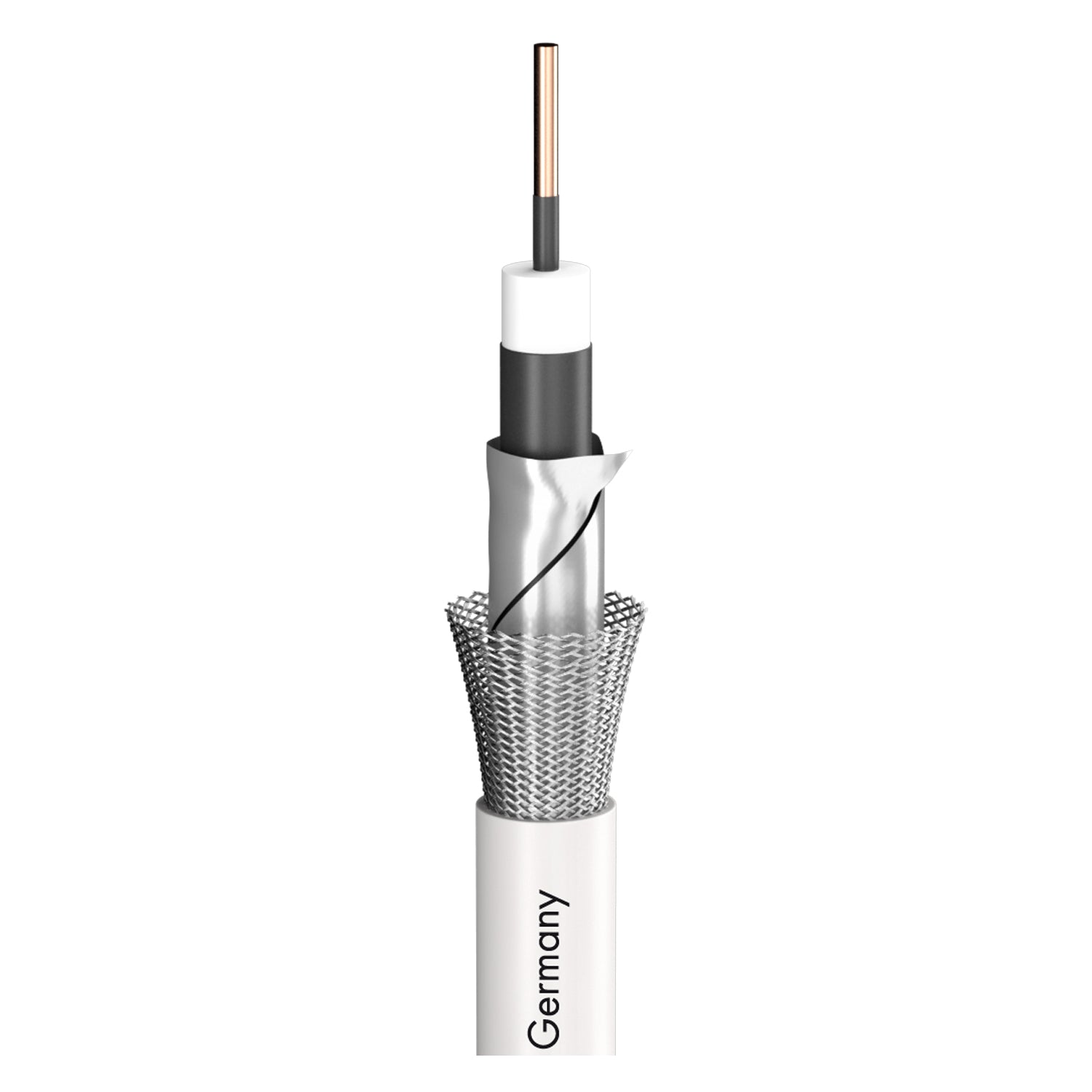

SDI kabelis SAT-cable HD, 120dB, longlife SC-Astral-LLX; 1 x 1,13; PVC Ø 6,80 mm; baltas - 200 m ritė
Parduodama 200 m ritė.
SC-Astral-LLX
SAT-cable HD, 120dB, longlife
Privalumai:
- Excellent transmission quality and damping values
- Consistent values even after installation for decades due to patented anti-aging construction
- For analog and digital applications, HD-SDI transmission quality
Pritaikymas:
- High-end cable for broadband cable TV and digital SAT equipment
- For professional HDTV applications
Techniniai duomenys
| Prekės kodas |
600-0960LLX |
| Savybės |
Analog , Digital 75 Ω , FRNC flame retardant , Halogen-free / LSZH , OFC oxygen free copper , SDI |
| Pritaikymo sritis |
Installation , Studio / Broadcast |
| Paskirtis |
SAT-cable HD, 120dB, longlife |
| Spalva |
balta |
| Konstrukcija |
(1.13/5.0) 120 dB |
| Išorinio apvalkalo medžiaga |
PVC |
| Išorinis skersmuo [mm] |
6.80 |
| Išorinis skersmuo ["] |
0.2677 |
| Kanalų skaičius (video) |
1 |
| Vidinis laidininkas |
1 |
| Vidinis laidininkas (video) |
1 |
| Vidinis laidininkas (video) [mm²] |
1,00 |
| Vidinis laidininkas (video) [sqin] |
0.0016 |
| Vidinis laidininkas Ø (video) [mm] |
1,13 |
| Vidinis laidininkas Ø (video) ["] |
0.0445 |
| AWG (video) |
17 |
| Ekranavimas |
Copper braiding tin-pl. + ALfoil + 2 x semiconductor |
| Ekranavimo koeficientas [%] |
100 |
| Vario gyslos (video) |
1 |
| Vario gyslos Ø (video) [mm] |
1,13 |
| Vario gyslos Ø (video) ["] |
0.0445 |
| Laidininko izoliacijos medžiaga |
Foam / Skin-PE , Skin-Foam-Skin-PE |
| Laidininko izoliacijos Ø [mm] |
5.00 |
| Laidininko izoliacijos Ø ["] |
0.1969 |
| Svoris 1 m [g] |
70 , 116 |
| Svoris 1000 ft. [lbs] |
47.1041 , 78.0583 |
| Gaisrinė apkrova per 1 m [kWh] |
0,24 |
| Variantas |
apvalus |
| Pakuotė |
100 m ring , 500 m spool |
| Greičio koeficientas |
0.82 |
| Min. temperatūra [°C] |
-20 |
| Maks. temperatūra [°C] |
70 , 80 |
| Width [mm] |
6,8 |
| Width ["] |
0.2677 |
| Height [mm] |
6,8 |
| Height ["] |
0.2677 |
| Capacity wire/electic screen at 1m (video) [pF] |
52 |
| Capacity wire/electic screen at 1 ft. (video) [pF] |
15.8496 |
| Damping at 100 MHz (100m & 20° C) [dB] |
5,5 |
| Damping at 100 MHz (100 ft. & 20 °C / 68 °F) [dB] |
1.6764 |
| Damping at 200 MHz (100m & 20° C) [dB] |
7,5 |
| Damping at 200 MHz (100 ft. & 20 °C / 68 °F) [dB] |
2.286 |
| Damping at 470 MHz (100m & 20° C) [dB] |
10,9 |
| Damping at 470 MHz (100 ft. & 20 °C / 68 °F) [dB] |
3.3223 |
| Damping at 862 MHz (100m & 20° C) [dB] |
15,5 |
| Damping at 862 MHz (100 ft. & 20 °C / 68 °F) [dB] |
4.7244 |
| Damping at 1000 MHz (100m & 20° C) [dB] |
17,5 |
| Damping at 1000 MHz (100 ft. & 20 °C / 68 °F) [dB] |
5.334 |
| Damping at 1485 MHz (100m & 20° C) [dB] |
21,9 |
| Damping at 1485 MHz (100 ft. & 20 °C / 68 °F) [dB] |
6.6751 |
| Damping at 1750 MHz (100m & 20° C) [dB] |
24,5 |
| Damping at 1750 MHz (100 ft. & 20 °C / 68 °F) [dB] |
7.4676 |
| Damping at 2150 MHz (100m & 20° C) [dB] |
27 |
| Damping at 2150 MHz (100 ft. & 20 °C / 68 °F) [dB] |
8.2296 |
| Damping at 3000 MHz (100m & 20° C) [dB] |
33 |
| Damping at 3000 MHz (100 ft. & 20 °C / 68 °F) [dB] |
10.0584 |
| Impedance [Ω] |
75 |
| Shield. resistance per 1 km [Ω] |
11 |
| Shield. resistance per 1000 ft. [Ω] |
3.3528 |
| BPVo-Euroclass |
Fca |
