Kabeliai ir jungtys
Įprasta kaina
€7.310,92 be PVM
Įprasta kaina
Išpardavimo kaina
€7.310,92 be PVM
Nepavyko įkelti atsiėmimo galimybių

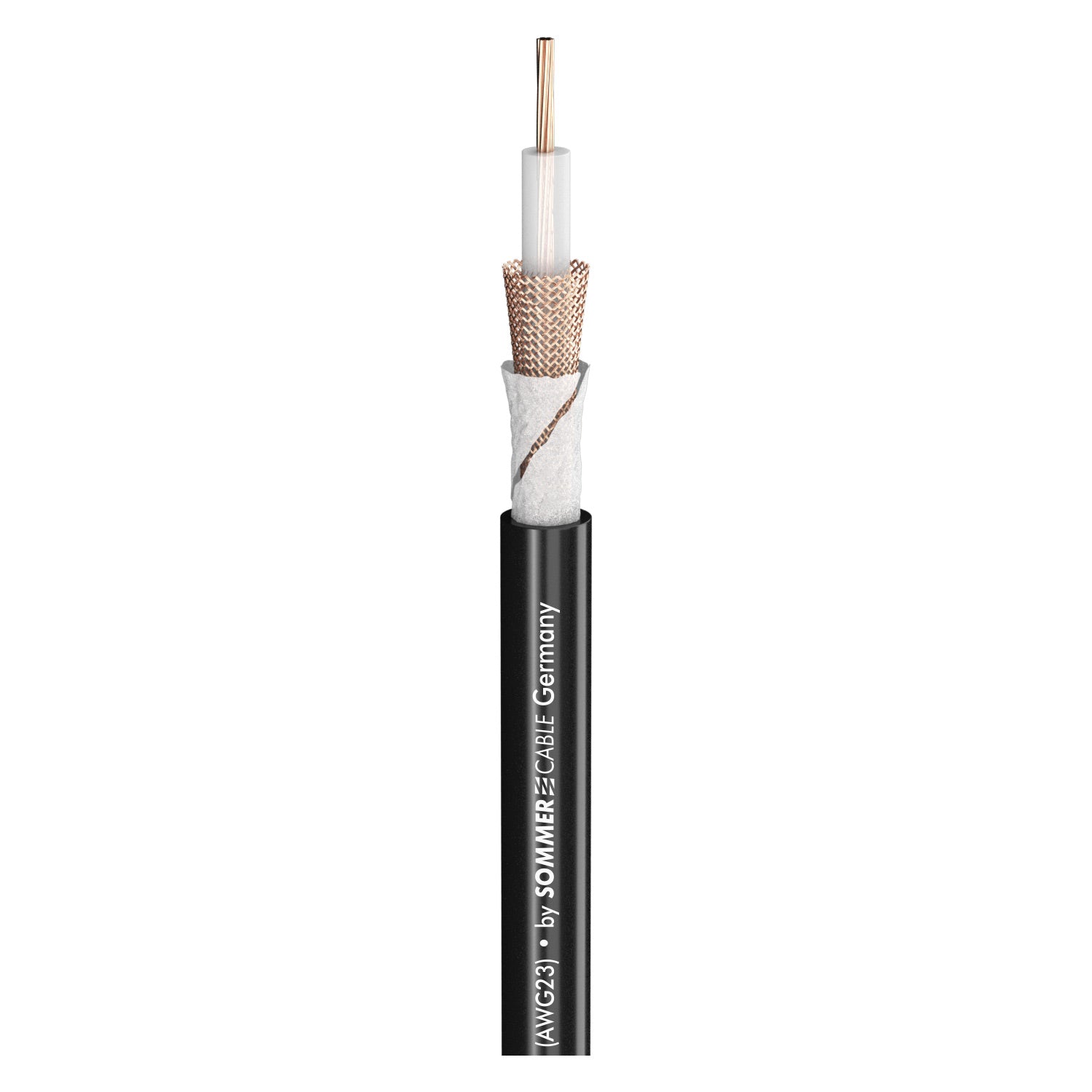

SDI kabelis 12G RG59 & Phono SC-AQUA MARINEX VIDEO 0.6L/3.7; 1 x 0,60/3,30; PUR-SR Ø 6,40 mm; juodas - 1000 m ritė
Parduodama 1000 m ritė.
SC-AQUA MARINEX VIDEO 0.6L/3.7
RG59 & Phono
Privalumai:
- Solid outer jacket and robust inner structure (PE insulation)
- Cable reel rollable
- Cost-efficient underwater variant
- Useable in great water depths
- Cold flexible
Pritaikymas:
- Video cable for permanent installation in shipbuilding, tunnel construction or in sports arenas
- Flexible video cable for the camera supply line on dive sessions
- High-quality phono/audio line for AF transmission
Techniniai duomenys
| Prekės kodas |
600-0241AQ |
| Savybės |
Analog , Digital 75 Ω , Halogen-free / LSZH , PUR , Underwater / submerged |
| Pritaikymo sritis |
Aqua , ELA 100 V , Installation , Mobile outdoor / indoor , Stage / live |
| Paskirtis |
RG59 & Phono |
| Spalva |
juoda |
| Išorinio apvalkalo medžiaga |
PUR-SR |
| Išorinis skersmuo [mm] |
6,40 |
| Išorinis skersmuo ["] |
0.252 |
| Kanalų skaičius (video) |
1 |
| Vidinis laidininkas |
1 |
| Vidinis laidininkas (video) |
1 |
| Vidinis laidininkas (video) [mm²] |
0,22 |
| Vidinis laidininkas (video) [sqin] |
0.0003 |
| Vidinis laidininkas Ø (video) [mm] |
0,60 |
| Vidinis laidininkas Ø (video) ["] |
0.0236 |
| AWG (video) |
23 |
| Ekranavimas |
Copper braiding + special protective banding |
| Ekranavimo koeficientas [%] |
90 |
| Vario gyslos (video) |
7 |
| Vario gyslos Ø (video) [mm] |
0,20 |
| Vario gyslos Ø (video) ["] |
0.0079 |
| Laidininko izoliacijos medžiaga |
PO |
| Laidininko izoliacijos Ø [mm] |
3,30 |
| Laidininko izoliacijos Ø ["] |
0.1299 |
| Conductor insulation Ø (video) [mm] |
3,30 |
| Conductor insulation Ø (video) ["] |
0.1299 |
| Svoris 1 m [g] |
58 |
| Svoris 1000 ft. [lbs] |
34.3187 |
| Atsparumas UV |
labai aukštas |
| Gaisrinė apkrova per 1 m [kWh] |
0,3 |
| Variantas |
apvalus |
| Pakuotė |
sandėlio metražas |
| Greičio koeficientas |
0,66 |
| Min. temperatūra [°C] |
-40 |
| Maks. temperatūra [°C] |
80 |
| Max. Transmission length (SMPTE 425M, 3G) (without connectors) [m] |
83 |
| Max. Transmission length (SMPTE 425M, 3G) (without connectors) [ft] |
272.3097 |
| Max. Transmission length (SMPTE 2081, 6G) (without connectors) [m] |
62 |
| Max. Transmission length (SMPTE 2081, 6G) (without connectors) [ft] |
203.4121 |
| Max. Transmission length (SMPTE 2082, 12G) (without connectors) [m] |
42 |
| Max. Transmission length (SMPTE 2082, 12G) (without connectors) [ft] |
137,7953 |
| Width [mm] |
6,4 |
| Width ["] |
0.252 |
| Height [mm] |
6,4 |
| Height ["] |
0.252 |
| Capacity wire/electic screen at 1m (video) [pF] |
70 |
| Capacity wire/electic screen at 1 ft. (video) [pF] |
21.336 |
| Damping at 100 MHz (100m & 20° C) [dB] |
11,2 |
| Damping at 100 MHz (100 ft. & 20 °C / 68 °F) [dB] |
3.4138 |
| Damping at 200 MHz (100m & 20° C) [dB] |
16,1 |
| Damping at 200 MHz (100 ft. & 20 °C / 68 °F) [dB] |
4.9073 |
| Damping at 1000 MHz (100m & 20° C) [dB] |
39,4 |
| Damping at 1000 MHz (100 ft. & 20 °C / 68 °F) [dB] |
12.0091 |
| Impedance [Ω] |
75 |
| Laidininko varža per 1 km [Ω] |
89 |
| Laidininko varža per 1000 ft. [Ω] |
27.1272 |
| Laidininko varža per 1 km (video) [Ω] |
89 |
| Laidininko varža per 1000 ft. (video) [Ω] |
27.1272 |
| Shield. resistance per 1 km [Ω] |
12,5 |
| Shield. resistance per 1000 ft. [Ω] |
3.81 |
| BPVo-Euroclass |
Fca |
