Kabeliai ir jungtys
Įprasta kaina
€7,31 be PVM
Įprasta kaina
Išpardavimo kaina
€7,31 be PVM
Nepavyko įkelti atsiėmimo galimybių

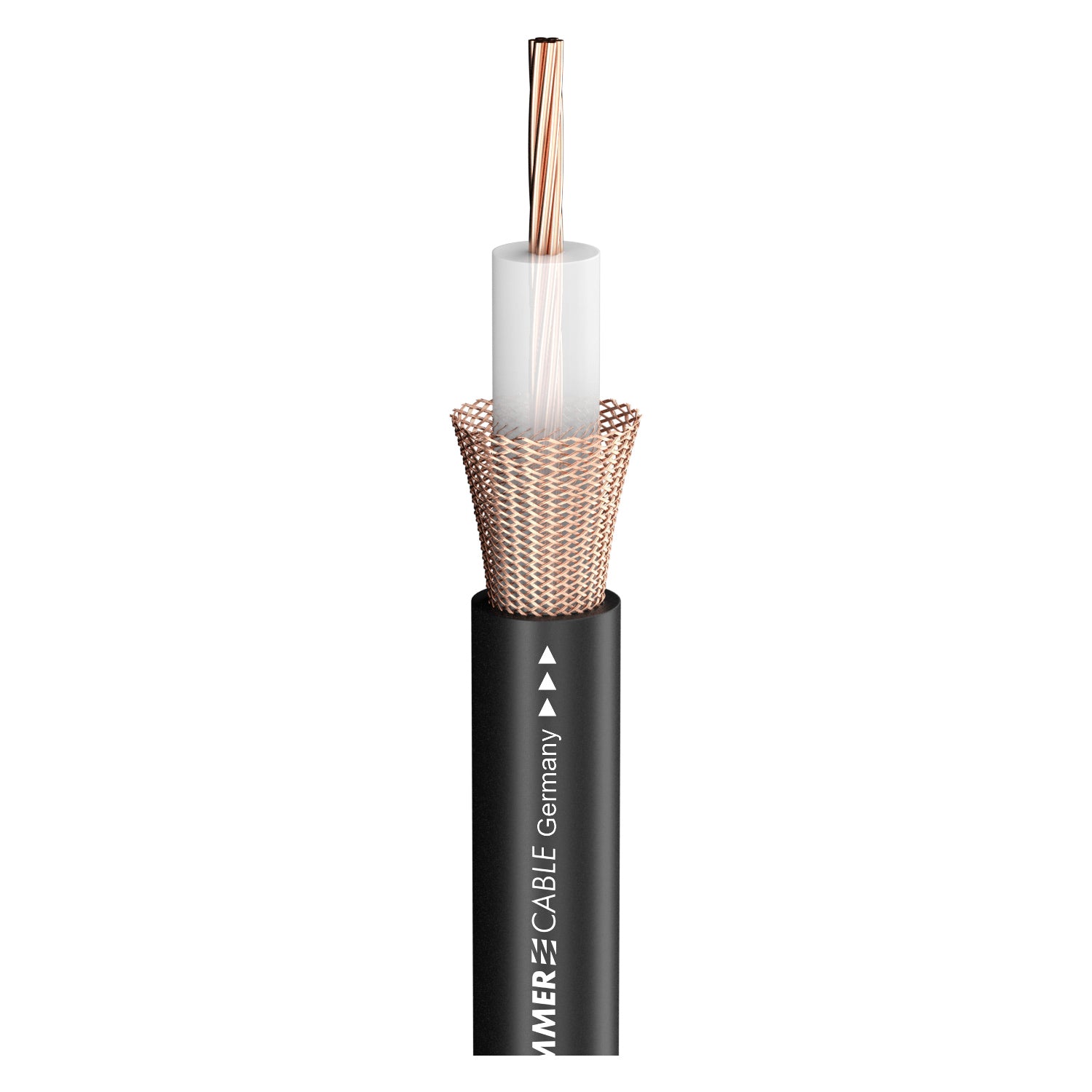

RG/U Coax SC-Classic Series MKII; 1 x 1,98; PVC Ø 10,30 mm; juodas
Techniniai duomenys
| Prekės kodas |
600-0551 |
| Savybės |
Analog , OFC oxygen free copper |
| Pritaikymo sritis |
ELA 100 V , Installation , Studio / Broadcast |
| Paskirtis |
RG/U Coax |
| Spalva |
juoda |
| Konstrukcija |
02YSCY |
| Išorinio apvalkalo medžiaga |
PVC |
| Išorinis skersmuo [mm] |
10.30 |
| Išorinis skersmuo ["] |
0.4055 |
| Kanalų skaičius (video) |
1 |
| Vidinis laidininkas |
1 |
| Vidinis laidininkas (video) |
1 |
| Vidinis laidininkas (video) [mm²] |
3,09 |
| Vidinis laidininkas (video) [sqin] |
0.0048 |
| Vidinis laidininkas Ø (video) [mm] |
1,98 |
| Vidinis laidininkas Ø (video) ["] |
0.078 |
| AWG (video) |
12 |
| Ekranavimas |
Copper braiding, bare |
| Ekranavimo koeficientas [%] |
92 |
| Vario gyslos (video) |
7 |
| Vario gyslos Ø (video) [mm] |
0,75 |
| Vario gyslos Ø (video) ["] |
0.0295 |
| Laidininko izoliacijos medžiaga |
PE |
| Laidininko izoliacijos Ø [mm] |
7,30 |
| Laidininko izoliacijos Ø ["] |
0.2874 |
| Svoris 1 m [g] |
142.52 |
| Svoris 1000 ft. [lbs] |
106.9936 |
| Atsparumas UV |
aukštas |
| Gaisrinė apkrova per 1 m [kWh] |
0,7 |
| Variantas |
apvalus |
| Pakuotė |
100 m ring , 500 m spool |
| Greičio koeficientas |
0,66 |
| Min. temperatūra [°C] |
-25 |
| Maks. temperatūra [°C] |
70 |
| RG-Type |
RG213/U |
| Width [mm] |
10,3 |
| Width ["] |
0.4055 |
| Height [mm] |
10,3 |
| Height ["] |
0.4055 |
| Capacity wire/electic screen at 1m (video) [pF] |
99 |
| Capacity wire/electic screen at 1 ft. (video) [pF] |
30.1752 |
| Damping at 50 MHz (100m & 20° C) [dB] |
4,8 |
| Damping at 50 MHz (100 ft. & 20 °C / 68 °F) [dB] |
1.463 |
| Damping at 100 MHz (100m & 20° C) [dB] |
7,2 |
| Damping at 100 MHz (100 ft. & 20 °C / 68 °F) [dB] |
2.1946 |
| Damping at 200 MHz (100m & 20° C) [dB] |
9,7 |
| Damping at 200 MHz (100 ft. & 20 °C / 68 °F) [dB] |
2.9566 |
| Damping at 470 MHz (100m & 20° C) [dB] |
15,3 |
| Damping at 470 MHz (100 ft. & 20 °C / 68 °F) [dB] |
4.6634 |
| Damping at 862 MHz (100m & 20° C) [dB] |
22,3 |
| Damping at 862 MHz (100 ft. & 20 °C / 68 °F) [dB] |
6.797 |
| Damping at 1000 MHz (100m & 20° C) [dB] |
24,5 |
| Damping at 1000 MHz (100 ft. & 20 °C / 68 °F) [dB] |
7.4676 |
| Damping at 1485 MHz (100m & 20° C) [dB] |
30,3 |
| Damping at 1485 MHz (100 ft. & 20 °C / 68 °F) [dB] |
9.2354 |
| Damping at 1750 MHz (100m & 20° C) [dB] |
32,7 |
| Damping at 1750 MHz (100 ft. & 20 °C / 68 °F) [dB] |
9.967 |
| Damping at 2150 MHz (100m & 20° C) [dB] |
35,7 |
| Damping at 2150 MHz (100 ft. & 20 °C / 68 °F) [dB] |
10.8814 |
| Damping at 3000 MHz (100m & 20° C) [dB] |
40,6 |
| Damping at 3000 MHz (100 ft. & 20 °C / 68 °F) [dB] |
12.3749 |
| Impedance [Ω] |
50 |
| Insulation resist. per 1 km [GΩ] |
5 |
| Insulation resist. per 1000 feet [GΩ] |
1.524 |
| Shield. resistance per 1 km [Ω] |
5,9 |
| Shield. resistance per 1000 ft. [Ω] |
1.7983 |
| BPVo-Euroclass |
Fca |
