Kabeliai ir jungtys
Įprasta kaina
€11,01 be PVM
Įprasta kaina
Išpardavimo kaina
€11,01 be PVM
Nepavyko įkelti atsiėmimo galimybių

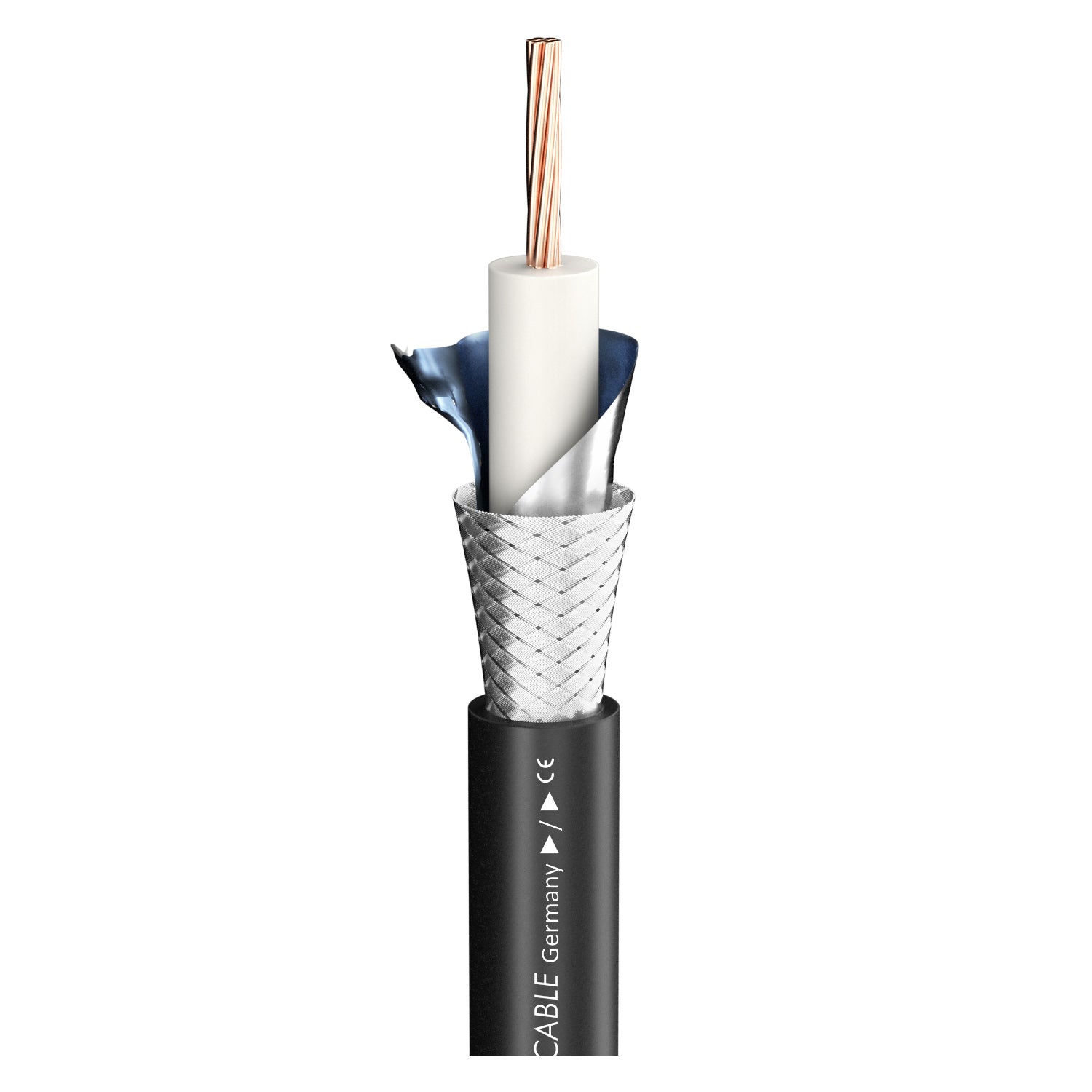

RG/U Coax Coaxflex 10 / RG213 LL; 1 x 2,52; PVC Ø 10,30 mm; juodas
Techniniai duomenys
| Prekės kodas |
600-0291 |
| Savybės |
Analog , OFC oxygen free copper |
| Pritaikymo sritis |
ELA 100 V , Installation , Studio / Broadcast |
| Paskirtis |
HF400Flex , RG/U Coax |
| Spalva |
juoda |
| Išorinio apvalkalo medžiaga |
PVC |
| Išorinis skersmuo [mm] |
10.30 |
| Išorinis skersmuo ["] |
0.4055 |
| Kanalų skaičius (video) |
1 |
| Vidinis laidininkas |
1 |
| Vidinis laidininkas (video) |
1 |
| Vidinis laidininkas (video) [mm²] |
4,98 |
| Vidinis laidininkas (video) [sqin] |
0.0077 |
| Vidinis laidininkas Ø (video) [mm] |
2,52 |
| Vidinis laidininkas Ø (video) ["] |
0.0992 |
| AWG (video) |
10 |
| Ekranavimas |
Copper braiding tin-plated + AL / PT foil |
| Ekranavimo koeficientas [%] |
100 |
| Vario gyslos (video) |
7 |
| Vario gyslos Ø (video) [mm] |
0,95 |
| Vario gyslos Ø (video) ["] |
0.0374 |
| Laidininko izoliacijos medžiaga |
Gas-injected Foam / Skin-PE |
| Laidininko izoliacijos Ø [mm] |
7,25 |
| Laidininko izoliacijos Ø ["] |
0.2854 |
| Svoris 1 m [g] |
144.5 |
| Variantas |
apvalus |
| Pakuotė |
100 m ring , 500 m spool |
| Greičio koeficientas |
0.84 |
| Min. temperatūra [°C] |
-30 |
| Maks. temperatūra [°C] |
70 |
| RG-Type |
HF400Flex |
| Width [mm] |
10,3 |
| Width ["] |
0.4055 |
| Height [mm] |
10,3 |
| Height ["] |
0.4055 |
| Capacity wire/electic screen at 1m (video) [pF] |
80 |
| Capacity wire/electic screen at 1 ft. (video) [pF] |
24.384 |
| Damping at 5 MHz (100m & 20° C) [dB] |
1,1 |
| Damping at 5 MHz (100 ft. & 20 °C / 68 °F) [dB] |
0.3353 |
| Damping at 50 MHz (100m & 20° C) [dB] |
3 |
| Damping at 50 MHz (100 ft. & 20 °C / 68 °F) [dB] |
0.9144 |
| Damping at 100 MHz (100m & 20° C) [dB] |
4,2 |
| Damping at 100 MHz (100 ft. & 20 °C / 68 °F) [dB] |
1.2802 |
| Damping at 200 MHz (100m & 20° C) [dB] |
5,8 |
| Damping at 200 MHz (100 ft. & 20 °C / 68 °F) [dB] |
1.7678 |
| Damping at 470 MHz (100m & 20° C) [dB] |
9,2 |
| Damping at 470 MHz (100 ft. & 20 °C / 68 °F) [dB] |
2.8042 |
| Damping at 862 MHz (100m & 20° C) [dB] |
13 |
| Damping at 862 MHz (100 ft. & 20 °C / 68 °F) [dB] |
3.9624 |
| Damping at 1000 MHz (100m & 20° C) [dB] |
14,1 |
| Damping at 1000 MHz (100 ft. & 20 °C / 68 °F) [dB] |
4.2977 |
| Damping at 1485 MHz (100m & 20° C) [dB] |
17,3 |
| Damping at 1485 MHz (100 ft. & 20 °C / 68 °F) [dB] |
5.273 |
| Damping at 1750 MHz (100m & 20° C) [dB] |
19 |
| Damping at 1750 MHz (100 ft. & 20 °C / 68 °F) [dB] |
5.7912 |
| Damping at 2150 MHz (100m & 20° C) [dB] |
21,4 |
| Damping at 2150 MHz (100 ft. & 20 °C / 68 °F) [dB] |
6.5227 |
| Damping at 3000 MHz (100m & 20° C) [dB] |
25,8 |
| Damping at 3000 MHz (100 ft. & 20 °C / 68 °F) [dB] |
7.8638 |
| Impedance [Ω] |
50 |
| Laidininko varža per 1 km [Ω] |
4 |
| Laidininko varža per 1000 ft. [Ω] |
1.2192 |
| Shield. resistance per 1 km [Ω] |
7,4 |
| Shield. resistance per 1000 ft. [Ω] |
2.2555 |
| Old article number |
999-0001-564 |
| BPVo-Euroclass |
Eca |
