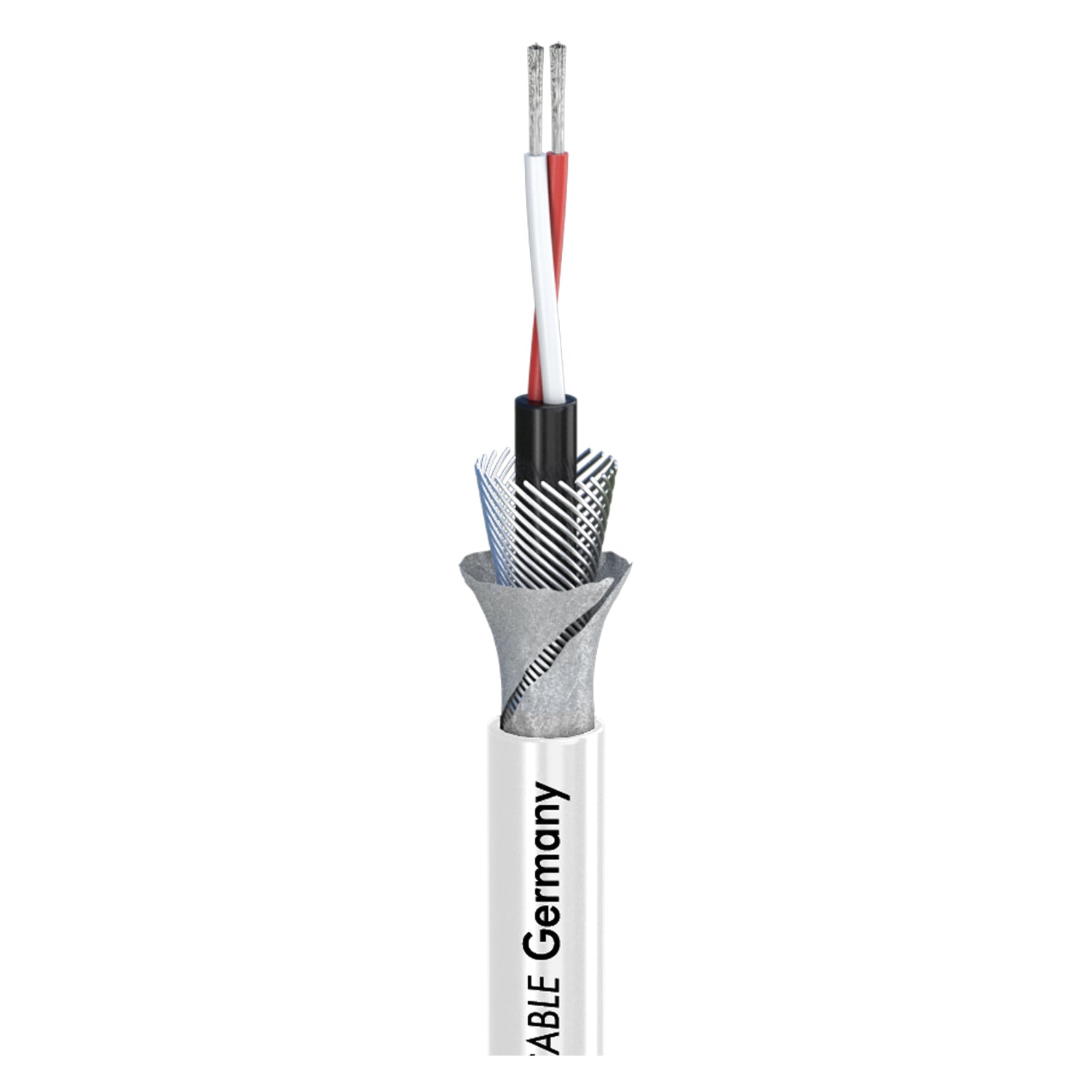

Mikrofono kabelis SC-AQUA MARINEX MIKRO; 2 x 0,14 mm²; baltas

Name: Mikrofono kabelis SC-AQUA MARINEX MIKRO; 2 x 0,14 mm²; baltas
Brand: Kabeliai
SKU: 200-0140AQ
Price: 5.09 EUR
Availability: InStock

€5,09 be PVM

Išpardavimas Išparduota

Siuntimo išlaidos ir mokesčiai apskaičiuojami atsiskaitant.

Mikrofono kabelis SC-AQUA MARINEX MIKRO; 2 x 0,14 mm²; baltas

Techniniai duomenys

Prekės kodas	200-0140AQ
Savybės	Analog , Digital 110 Ω AES / EBU , Halogen-free / LSZH , PUR , Underwater / submerged
Pritaikymo sritis	Aqua , ELA 100 V , Installation , Mobile outdoor / indoor , Stage / live
Paskirtis	Microphone Cable
Spalva	balta
Jacket material (AES/EBU, DMX)	PUR-SR
Jacket Ø (AES/EBU, DMX) [mm]	4,60
Jacket Ø (AES/EBU, DMX) ["]	0.1811
Vidinis laidininkas	2
Vidinis laidininkas (AES/EBU, DMX)	2
Vidinis laidininkas (AES/EBU, DMX) [mm²]	0,14
Vidinis laidininkas (AES/EBU, DMX) [sqin]	0.0002
Shielding (AES/EBU, DMX)	Copper spiral + special protective bandage
Ekranavimo koeficientas [%]	95
Vario gyslos (AES/EBU, DMX)	18
Vario gyslos Ø (AES/EBU, DMX) [mm]	0,10
Vario gyslos Ø (AES/EBU, DMX) ["]	0.0039
Conductor insulation material (AES/EBU, DMX)	PVC
Svoris 1 m [g]	33
Svoris 1000 ft. [lbs]	20.1875
Gaisrinė apkrova per 1 m [kWh]	0,18
Pakuotė	sandėlio metražas
Min. temperatūra [°C]	-40
Maks. temperatūra [°C]	80
Max. water depth [m]	20
Max. water depth [ft]	65.6168
Max. water pressure [bar]	2
Capac. cond./cond. per 1 m (AES/EBU, DMX) [pF]	65
Capacity wire/wire at 1 ft. (AES/EBU, DMX) [pF]	19.812
Capac. cond./shield. per 1 m (AES/EBU, DMX) [pF]	190
Capacity wire/electic screen at 1 ft. (AES/EBU, DMX) [pF]	57.912
Surge impedance (AES/EBU, DMX) [Ω]	110
Insulation resist. per 1 km (AES/EBU, DMX) [GΩ]	1
Insulation resist. per 1000 feet (AES/EBU, DMX) [GΩ]	0.3048
Laidininko varža per 1 km (AES/EBU, DMX) [Ω]	141
Laidininko varža per 1000 ft. (AES/EBU, DMX) [Ω]	42.9768
Shield. resistance per 1 km [Ω]	29,1
Shield. resistance per 1000 ft. [Ω]	8.8697
Available since	V07.1
BPVo-Euroclass	Fca
