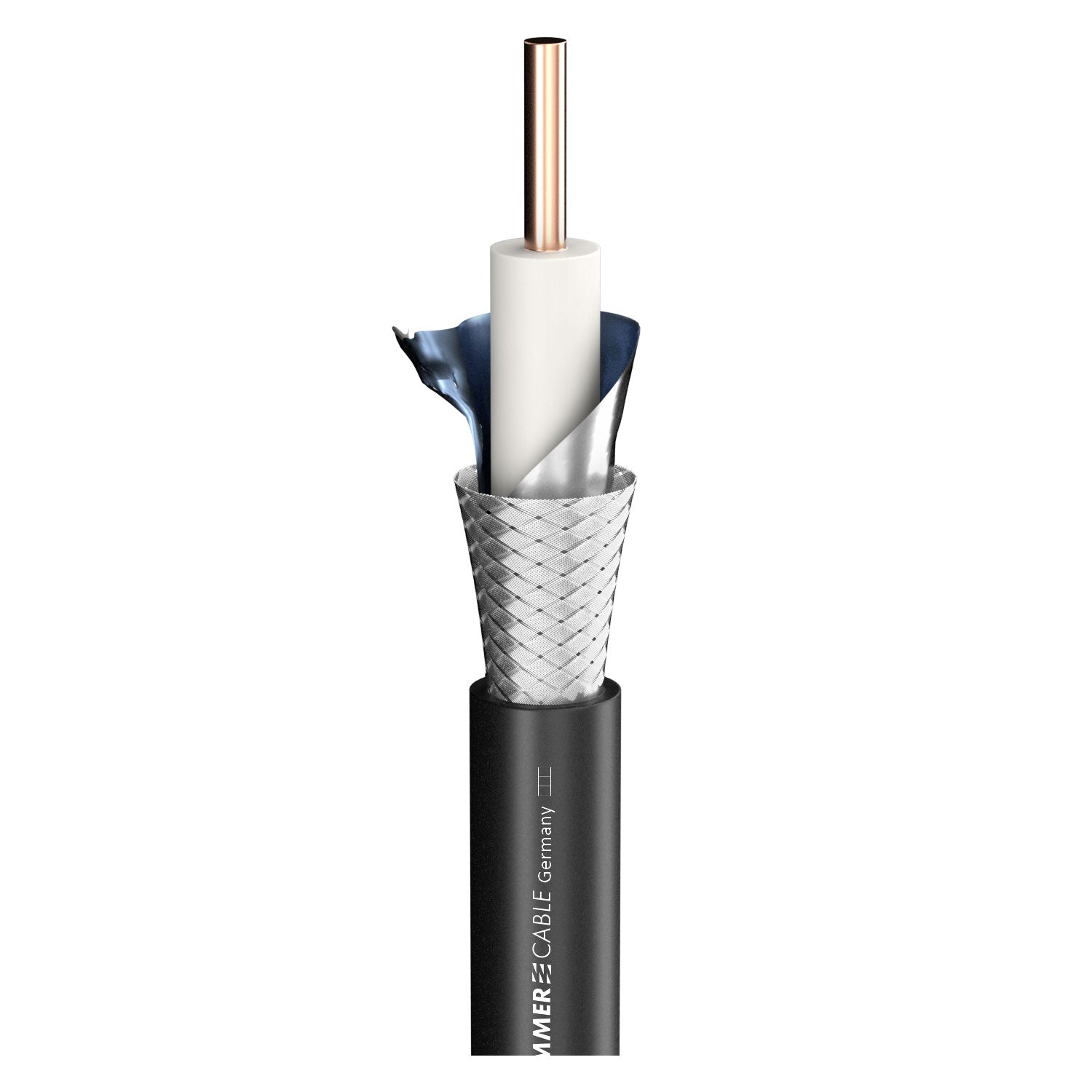

HF400TT SC-Classic Series MKII Low Loss; 1 x 2,74; PE Ø 10,30 mm; juodas
Techniniai duomenys
| Prekės kodas |
600-0551HF |
| Savybės |
Analog , OFC oxygen free copper |
| Pritaikymo sritis |
ELA 100 V , Installation , Studio / Broadcast |
| Paskirtis |
HF400TT , RG/U Coax |
| Spalva |
juoda |
| Konstrukcija |
02YS(ST)CY |
| Išorinio apvalkalo medžiaga |
PE , PE halogen-free |
| Išorinis skersmuo [mm] |
10.30 |
| Išorinis skersmuo ["] |
0.4055 |
| Kanalų skaičius (video) |
1 |
| Vidinis laidininkas |
1 |
| Vidinis laidininkas (video) |
1 |
| Vidinis laidininkas Ø (video) [mm] |
2,74 |
| Vidinis laidininkas Ø (video) ["] |
0.1079 |
| AWG (video) |
10 |
| Ekranavimas |
Copper braiding tin-plated + AL / PT foil |
| Ekranavimo koeficientas [%] |
100 |
| Laidininko izoliacijos medžiaga |
Foam / Skin-PE |
| Laidininko izoliacijos Ø [mm] |
7,25 |
| Laidininko izoliacijos Ø ["] |
0.2854 |
| Svoris 1 m [g] |
107.5 |
| Svoris 1000 ft. [lbs] |
72.002 |
| Gaisrinė apkrova per 1 m [kWh] |
0,71 |
| Variantas |
apvalus |
| Pakuotė |
100 m ring , 500 m spool |
| Greičio koeficientas |
0.84 |
| Min. temperatūra [°C] |
-40 |
| Maks. temperatūra [°C] |
75 |
| RG-Type |
HF400TT , RG213/LL |
| Width [mm] |
10,3 |
| Width ["] |
0.4055 |
| Height [mm] |
10,3 |
| Height ["] |
0.4055 |
| Capacity wire/electic screen at 1m (video) [pF] |
80 |
| Capacity wire/electic screen at 1 ft. (video) [pF] |
24.384 |
| Damping at 100 MHz (100m & 20° C) [dB] |
3,6 |
| Damping at 100 MHz (100 ft. & 20 °C / 68 °F) [dB] |
1.0973 |
| Damping at 200 MHz (100m & 20° C) [dB] |
5,3 |
| Damping at 200 MHz (100 ft. & 20 °C / 68 °F) [dB] |
1.6154 |
| Damping at 470 MHz (100m & 20° C) [dB] |
8,8 |
| Damping at 470 MHz (100 ft. & 20 °C / 68 °F) [dB] |
2.6822 |
| Damping at 862 MHz (100m & 20° C) [dB] |
12,3 |
| Damping at 862 MHz (100 ft. & 20 °C / 68 °F) [dB] |
3.749 |
| Damping at 1000 MHz (100m & 20° C) [dB] |
13,2 |
| Damping at 1000 MHz (100 ft. & 20 °C / 68 °F) [dB] |
4.0234 |
| Damping at 1485 MHz (100m & 20° C) [dB] |
16,5 |
| Damping at 1485 MHz (100 ft. & 20 °C / 68 °F) [dB] |
5.0292 |
| Damping at 1750 MHz (100m & 20° C) [dB] |
18,7 |
| Damping at 1750 MHz (100 ft. & 20 °C / 68 °F) [dB] |
5.6998 |
| Damping at 2150 MHz (100m & 20° C) [dB] |
21 |
| Damping at 2150 MHz (100 ft. & 20 °C / 68 °F) [dB] |
6.4008 |
| Damping at 3000 MHz (100m & 20° C) [dB] |
23,6 |
| Damping at 3000 MHz (100 ft. & 20 °C / 68 °F) [dB] |
7.1933 |
| Impedance [Ω] |
50 |
| Laidininko varža per 1 km [Ω] |
4,7 |
| Laidininko varža per 1000 ft. [Ω] |
1.4326 |
| Shield. resistance per 1 km [Ω] |
5 |
| Shield. resistance per 1000 ft. [Ω] |
1.524 |
| BPVo-Euroclass |
Fca |
