200W high load, 2 minutes hot-swap, countdown seconds display, CNC housing
B-mount Hotswap Plate for MINI / MINI LF
Official Features

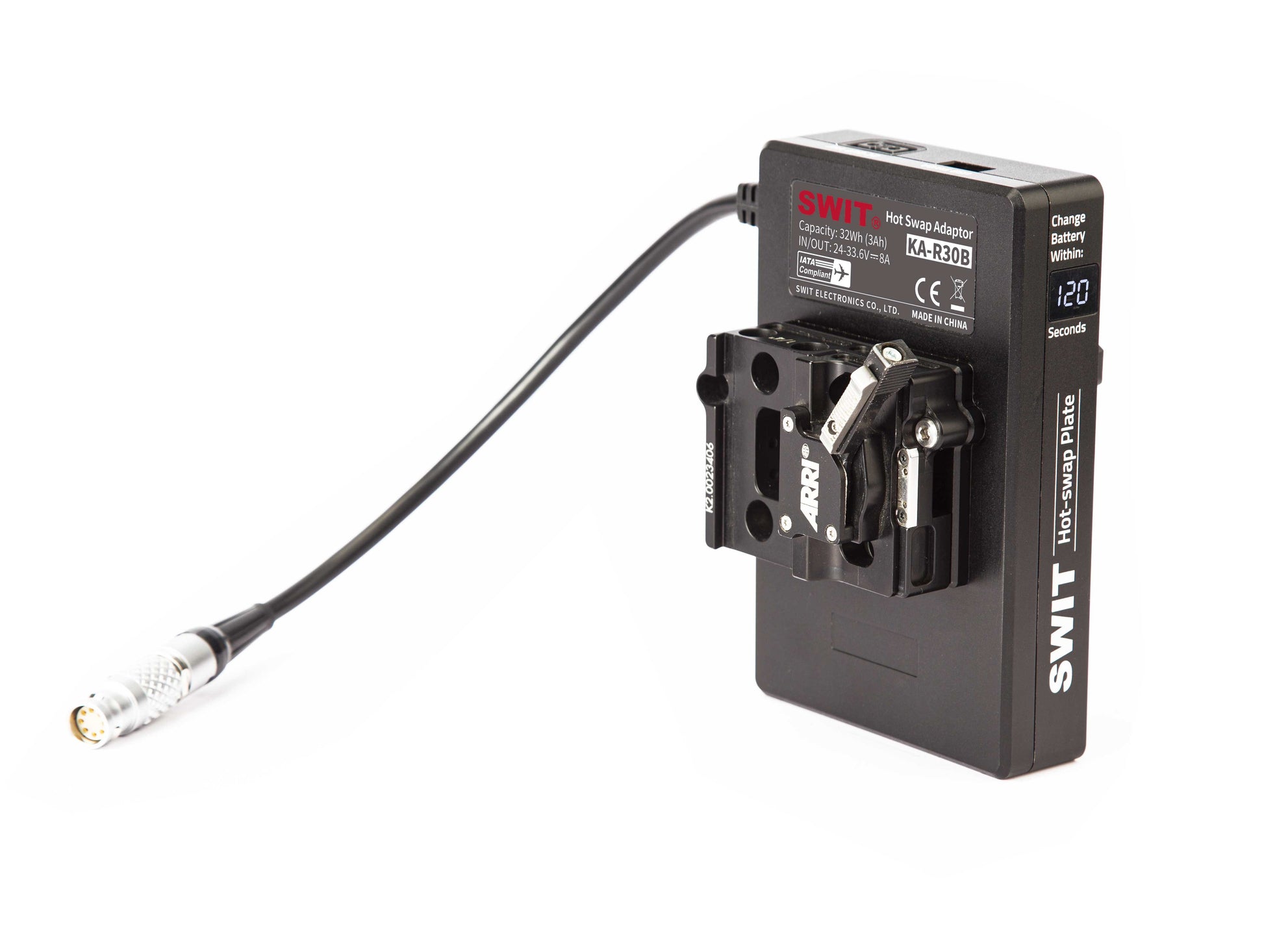

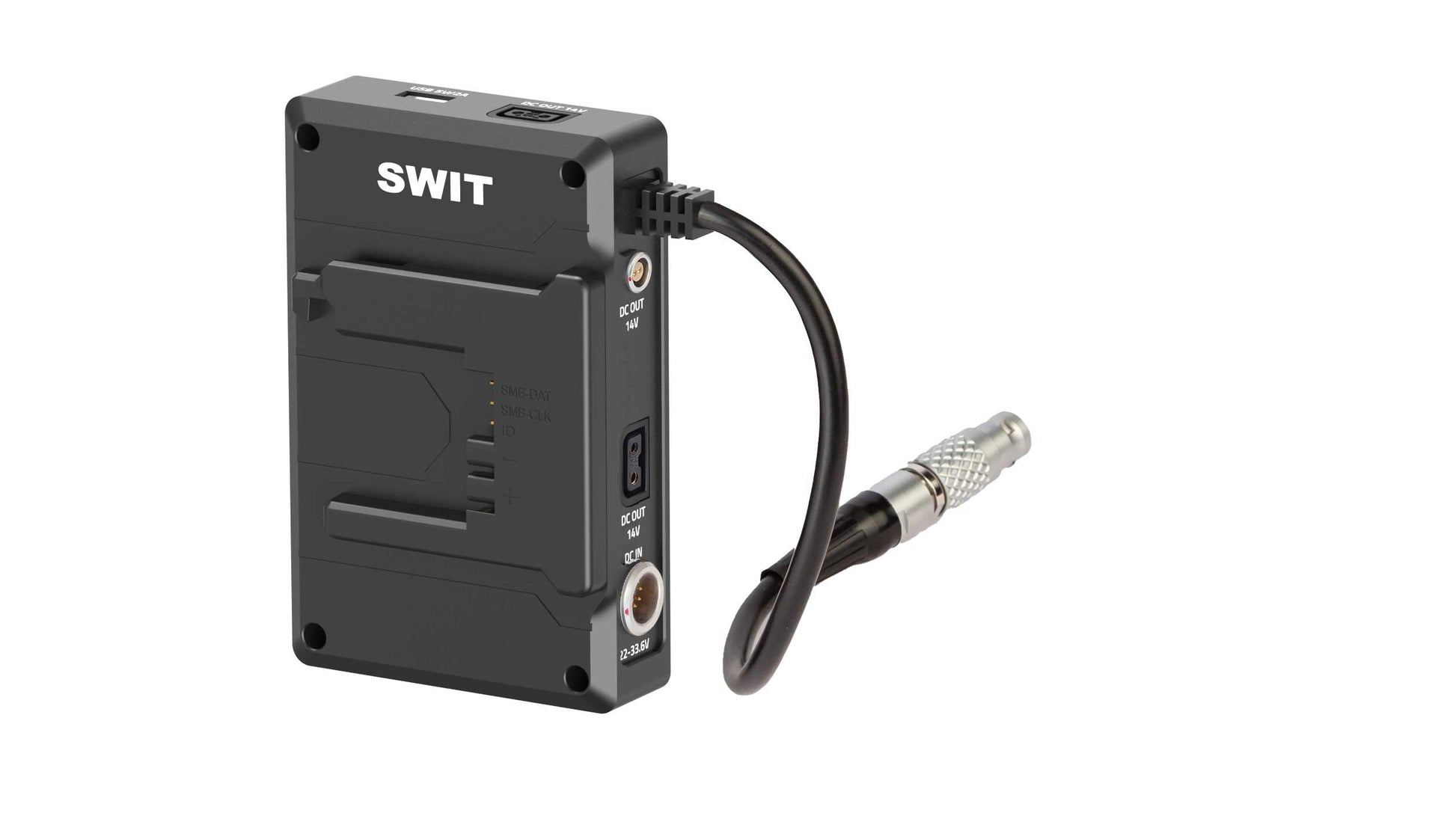

B-mount Hot-swap Plate
KA-R30B is a B-mount hot-swap plate for ARRI Alexa MINI / MINI LF install, power cameras at 28.8V (22-33.6V) by 8-pin DC-IN. When remove the B-mount battery, 8-pin DC output Reg. 28V for hotswapping. You don’ t need to switch off the camera when changing battery.

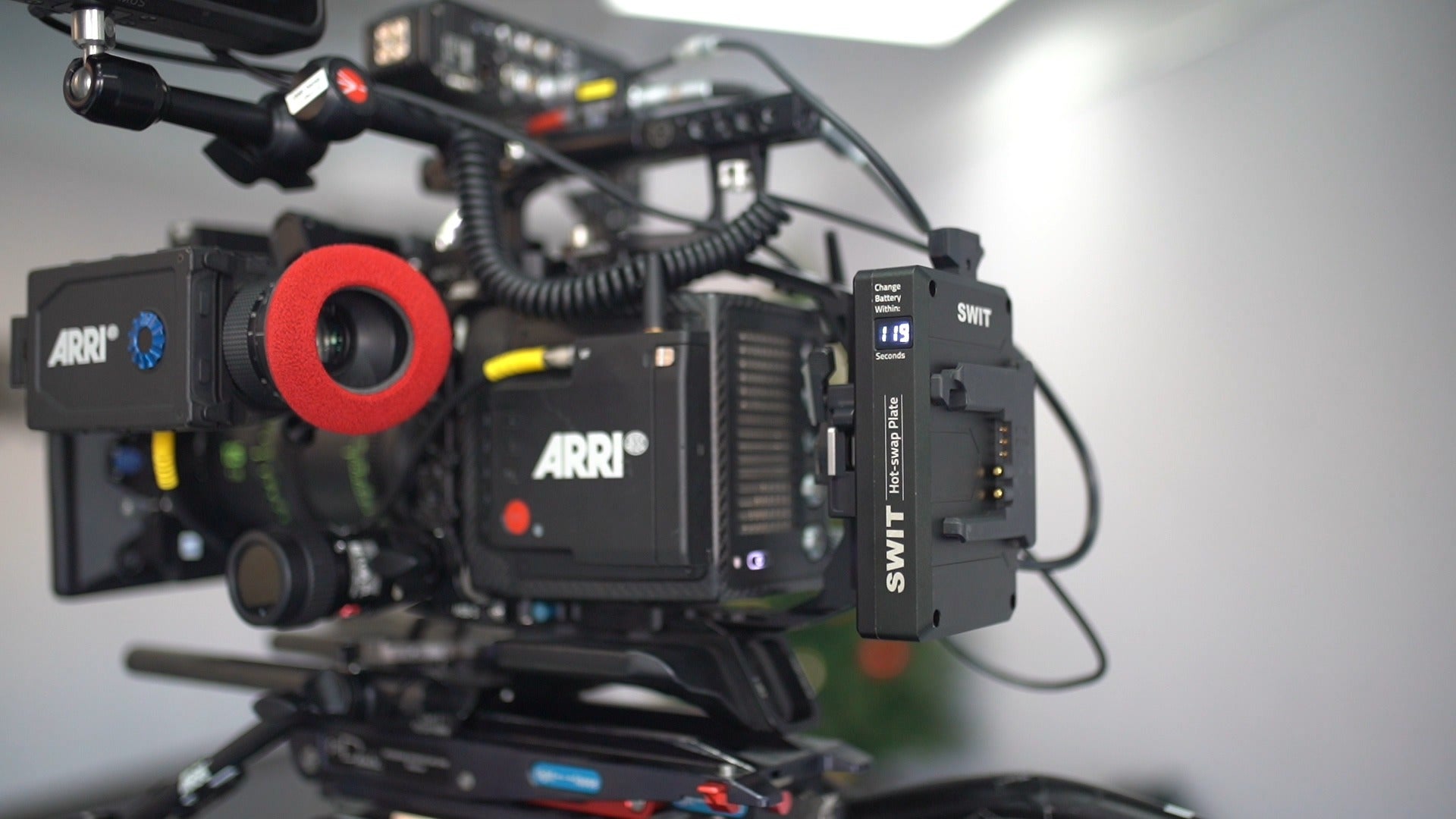

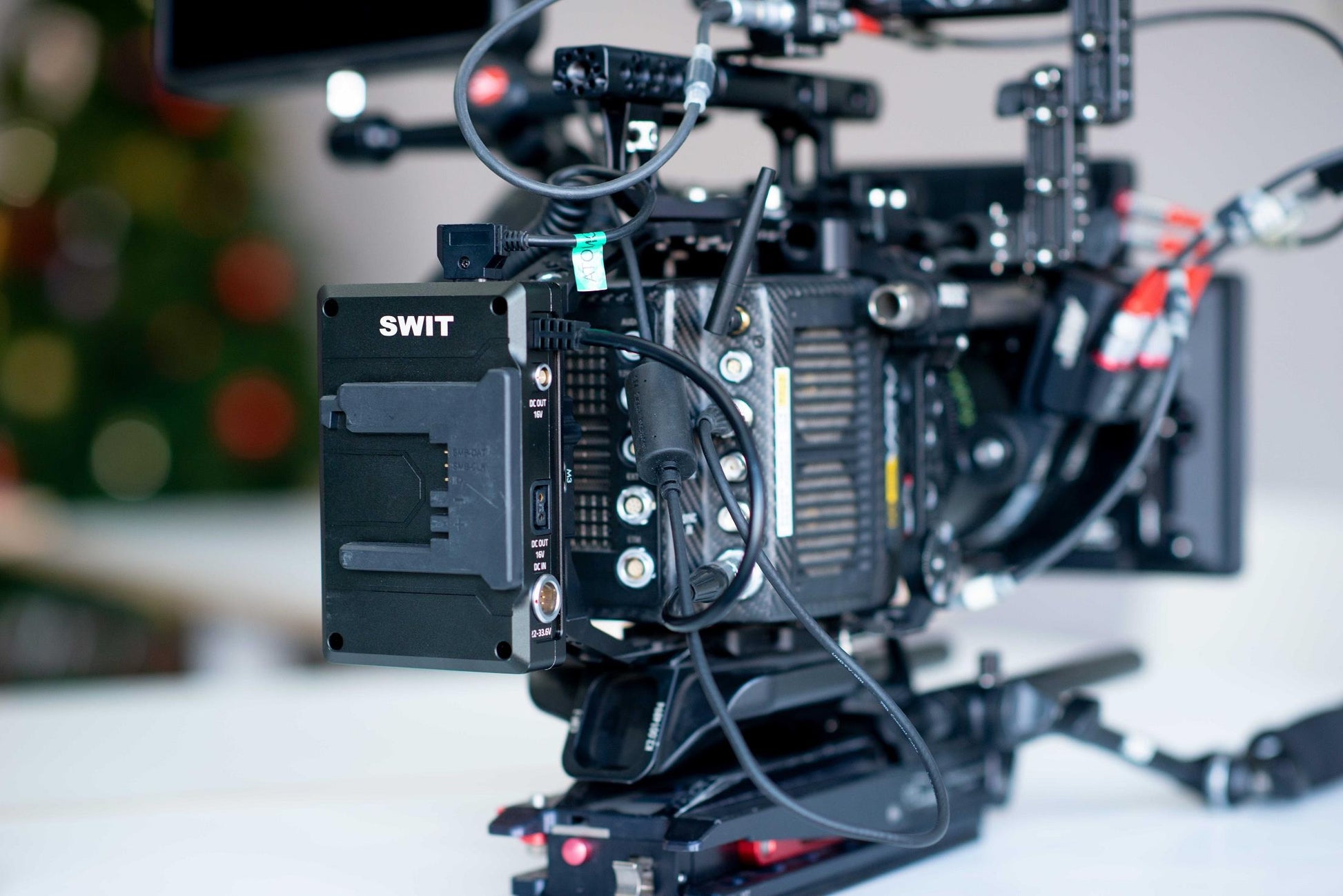

ALEXA MINI/MINI LF install
KA-R30B matches with ARRI original MINI / MINI LF support system by connection with RAB-1 Clamp 2 (K2.0023406). * KA-R30B doesn’ t include the K2.0023406 clamp.
2mins at 200W load
KA-R30B has 32Wh/3Ah battery cells inside, 200W constant high load, even after 1000 cycle times, the plate can still ensure 2 minutes hot swap time for changing battery.
120s Countdown Display
KA-R30B provides an LCD screen to display countdown seconds when changing battery. When battery is removed, the screen will countdown from 120 seconds. You just need to put on a new battery before it count down to 0. The new battery will charge the hotswap plate as well. You can see the countdown seconds will go back to 120 after a period of time.

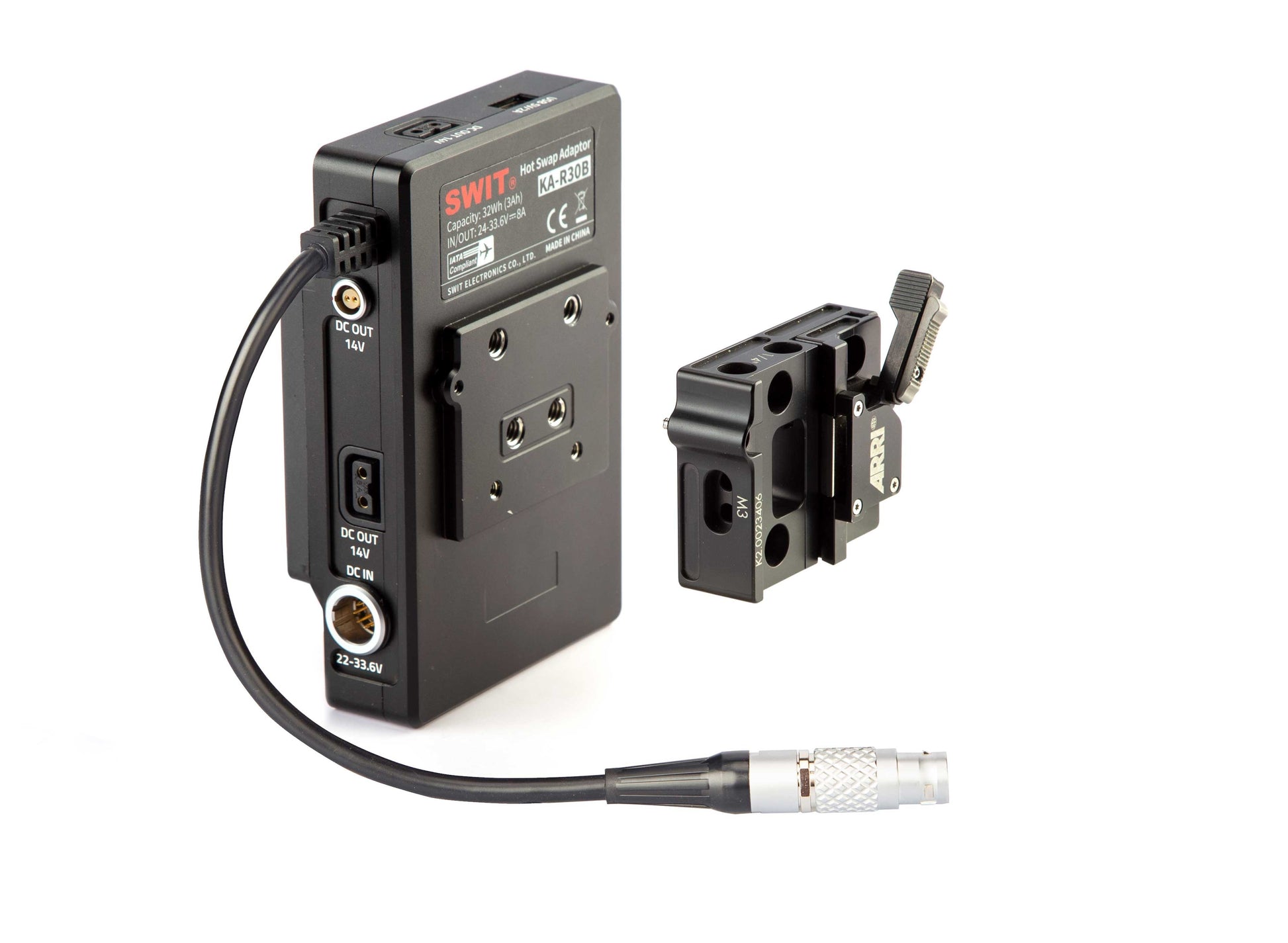

Power Interfaces
KA-R30B provides: 1x 8-pin 28V to ALEXA MINI/MINILF 2x D-tap 14V Reg. output 1x 2-pin LEMO 14V Reg. output 1x USB-A 5V/2A output 1x 8-pin 22-33.6V input (For power station hotswap)
15mm Rod Adaptor
KA-R30B provides with a free 15mm Rod Adaptor in the package, to install on the old style ALEXA MINI 15mm rig system.
Official Product Data
-
Model SPU: KA-R30B
-
Division: Power
-
Big Category: Accessory
-
Small Category: HotSwap Plate
-
Power: 32Wh
-
Weight (kg): 0.95
-
Plate Type: B-Mount;LEMO Mini
-
Lifecycle: 2022New
