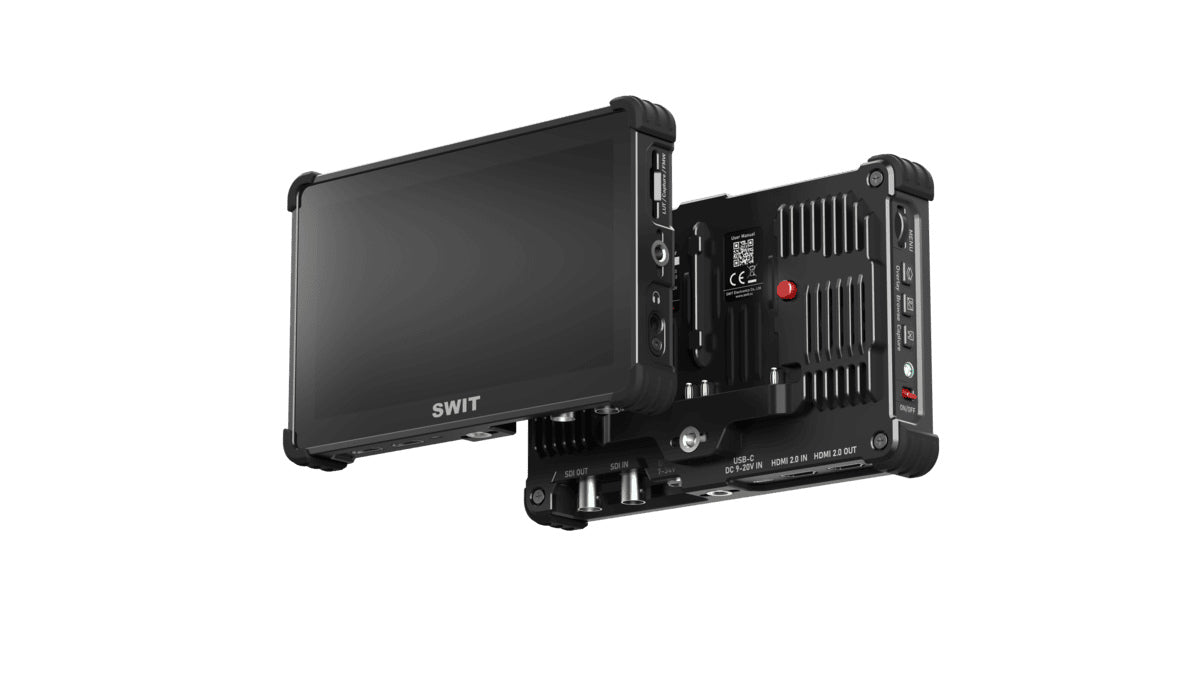

K7-LUX Tactics Package

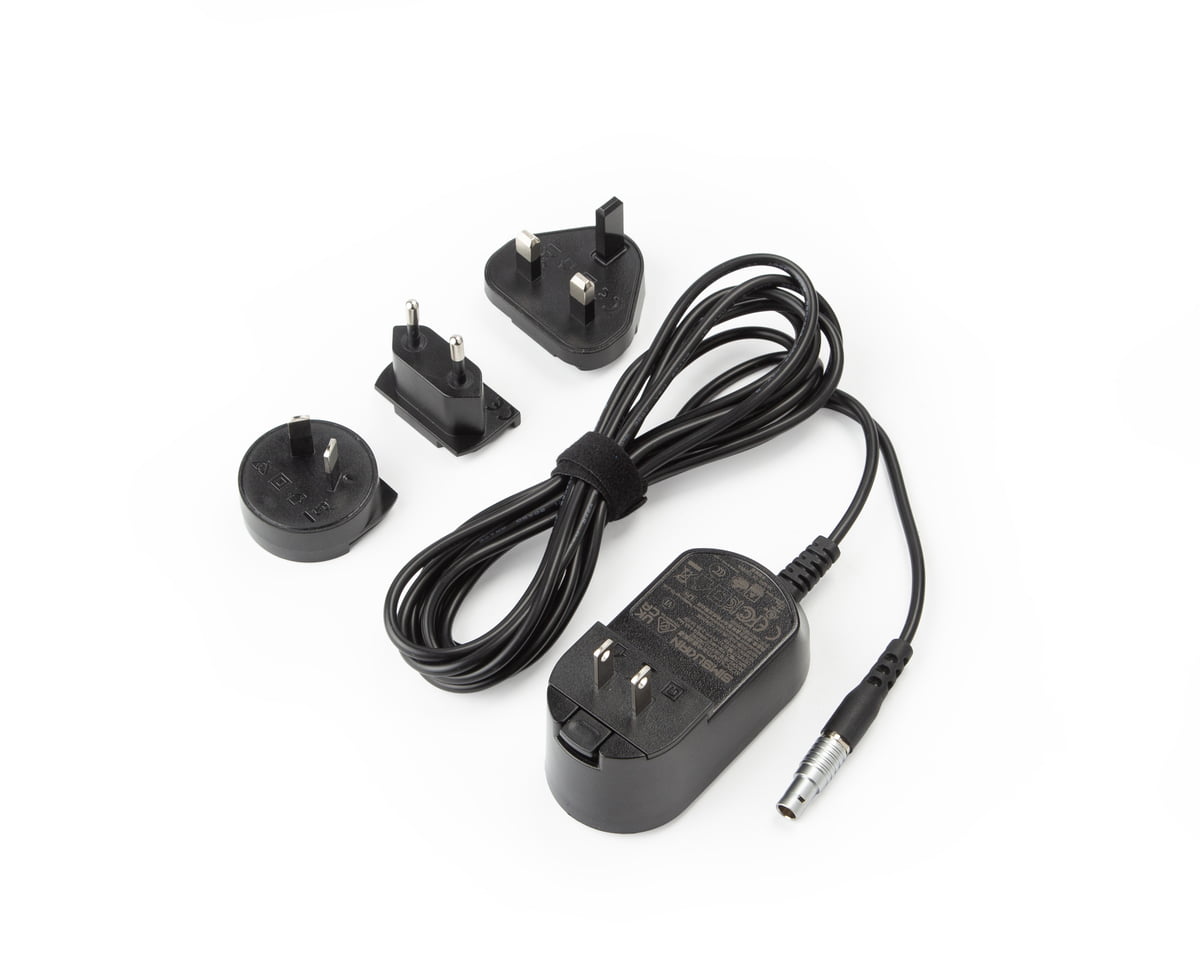

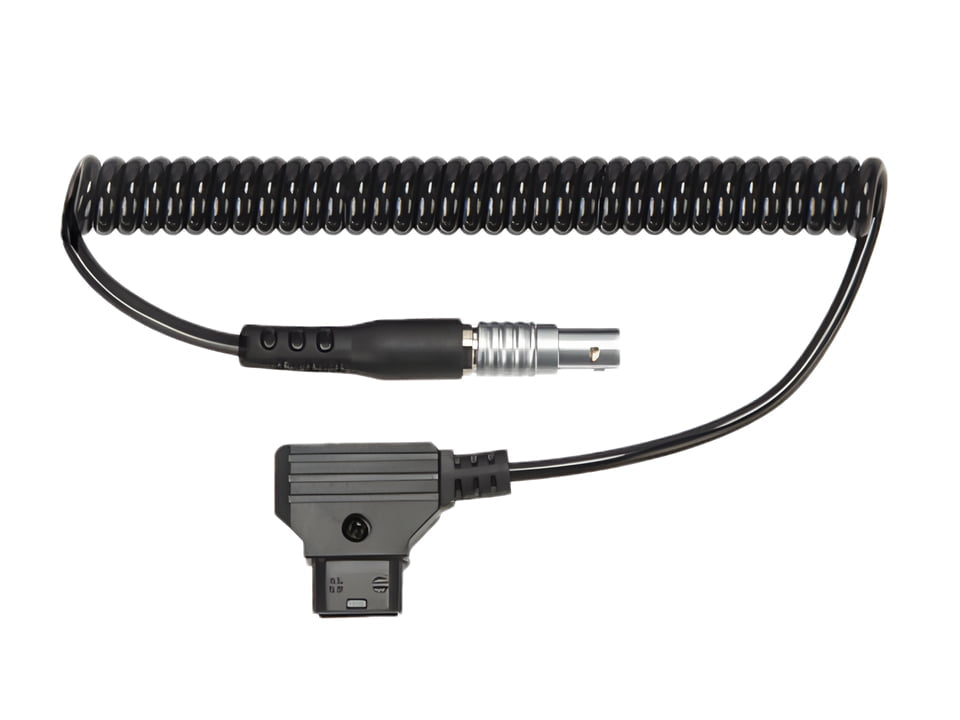

K7-LUX is the K7 monitor supplied as the Tactics Package, not the standalone K7. The official SWIT Europe package gallery shows the monitor cage and sunhood, AC power adaptor, D-tap to 2-pin LEMO power cable and 4GB SD card. Batteries are not included.
7-inch 2800nits Touch
3G-SDI and HDMI 2.0

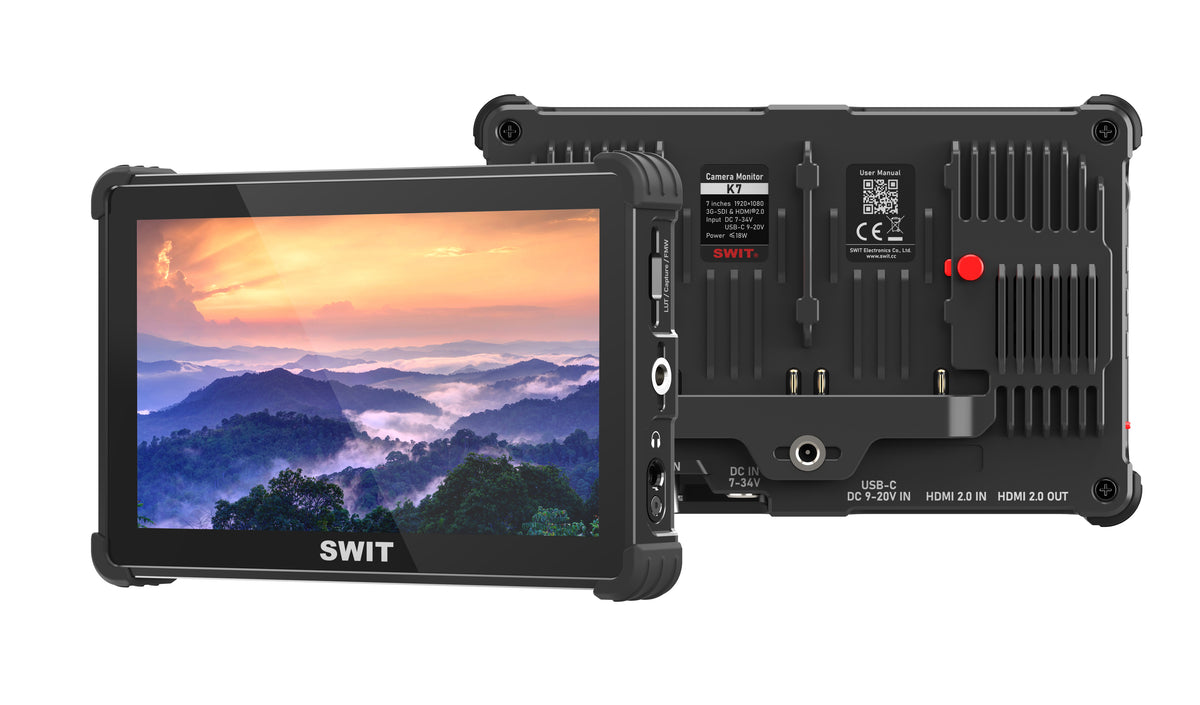

The K7 is a professional 7-inch on-camera monitor built for filmmakers. Featuring a FHD display with ultra-bright 2,800 nits, a rugged full-metal body with rubber corner protections, and both 3G-SDI and HDMI 2.0 (4K60P) connectivity, it delivers exceptional visibility, durability, and versatility—making it the ideal monitoring companion on set.
Rugged Durability
The K7 is built with a precision-CNC full-metal aluminum body for rigidity and heat management, plus four rubber corner guards that absorb shock from drops and collisions. This rugged construction ensures reliable protection on hectic sets, giving you peace of mind in any shooting environment.

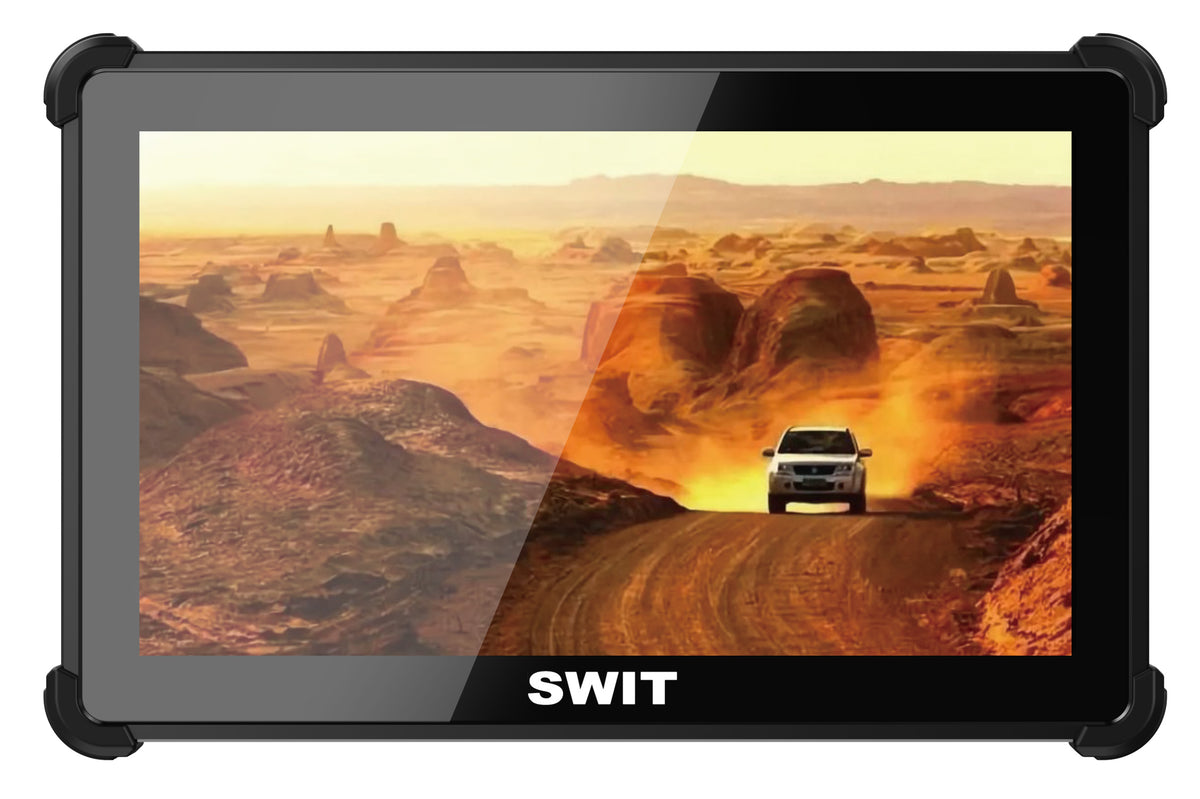

2,800nits Ultra Bright
The K7 delivers a crystal-clear image with its 2,800nits ultra-bright screen, ensuring easy monitoring even in direct sunlight.
Intuitive Touch Control
The K7 features a fully laminated multi-touch screen for responsive, intuitive control. Gesture shortcuts like double-tap, swipe up, and two-finger pinch allow quick access to focus zoom, settings, and menu navigation without distracting button presses.

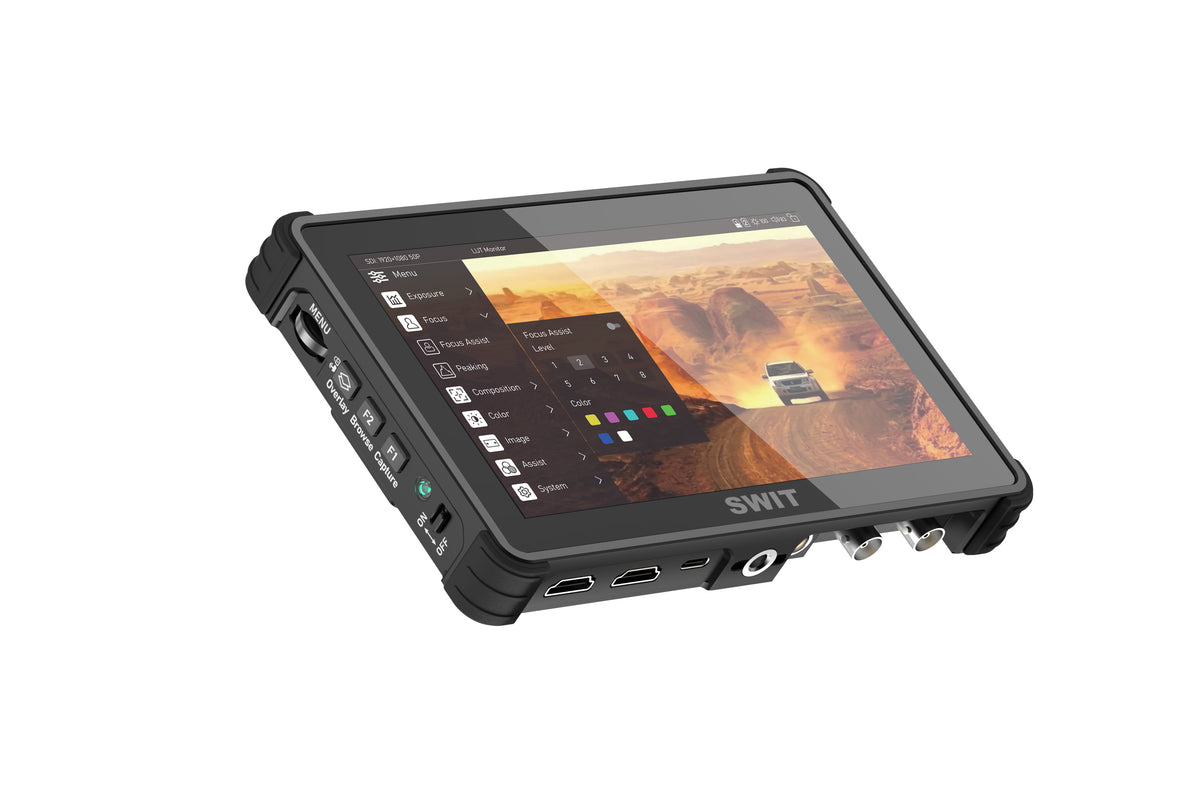

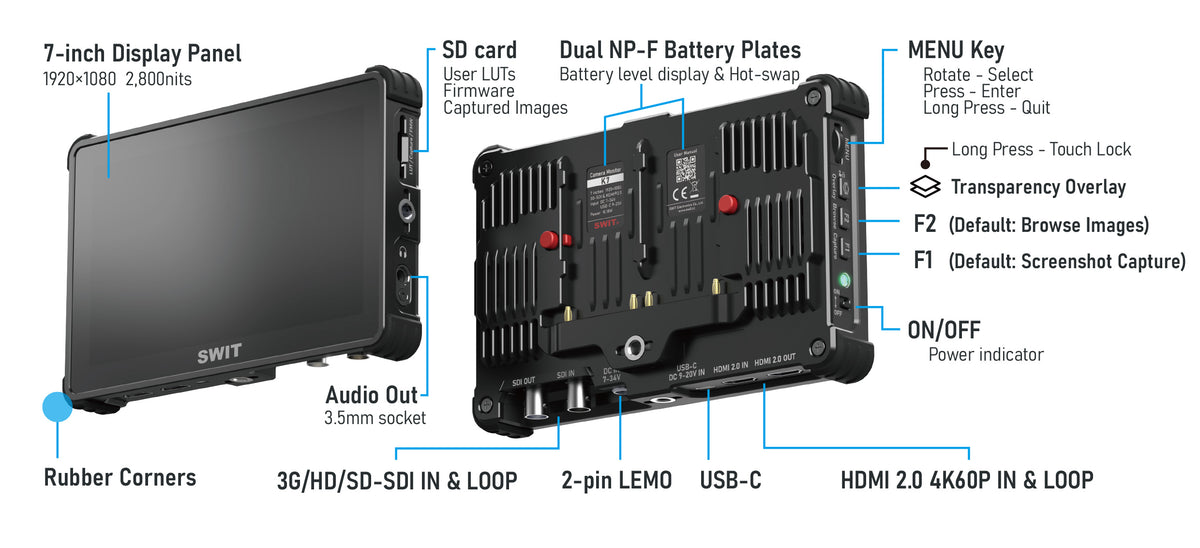

Button Controls
The K7 offers more than just touch—physical controls are here for users who demand tactile precision. A scroll wheel enables speedy menu navigation, two customizable function keys put your most-used tools at your fingertips, and a dedicated button lets you instantly lock or unlock the touchscreen to prevent accidental inputs during critical takes.

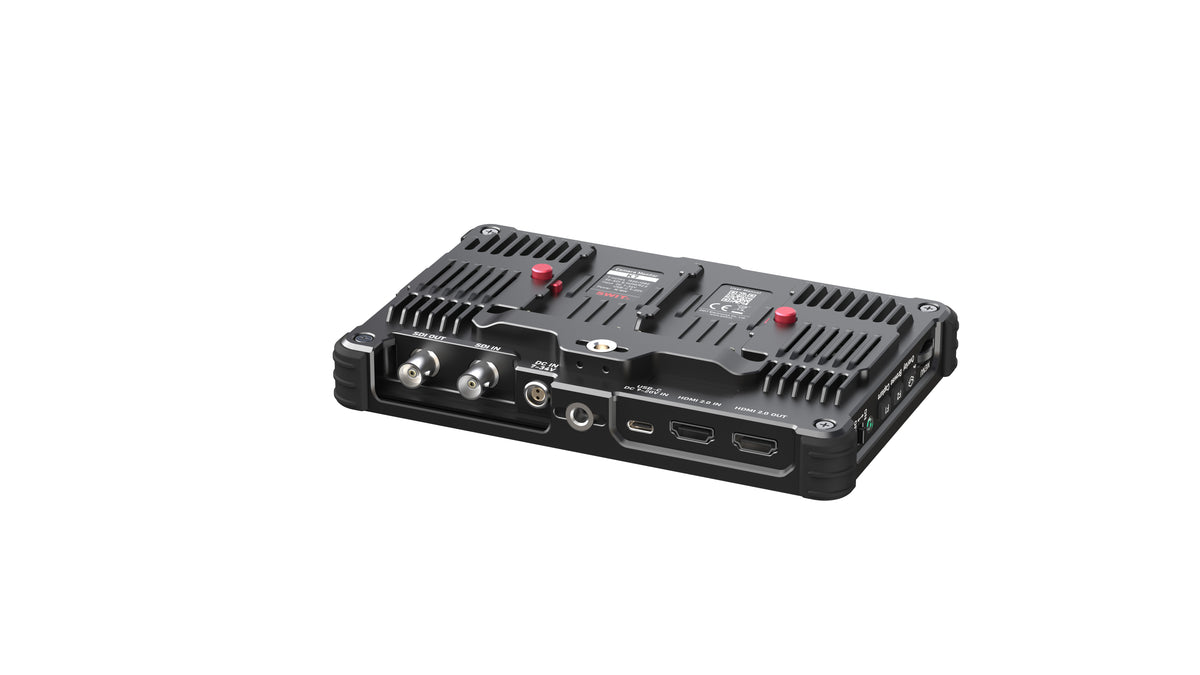

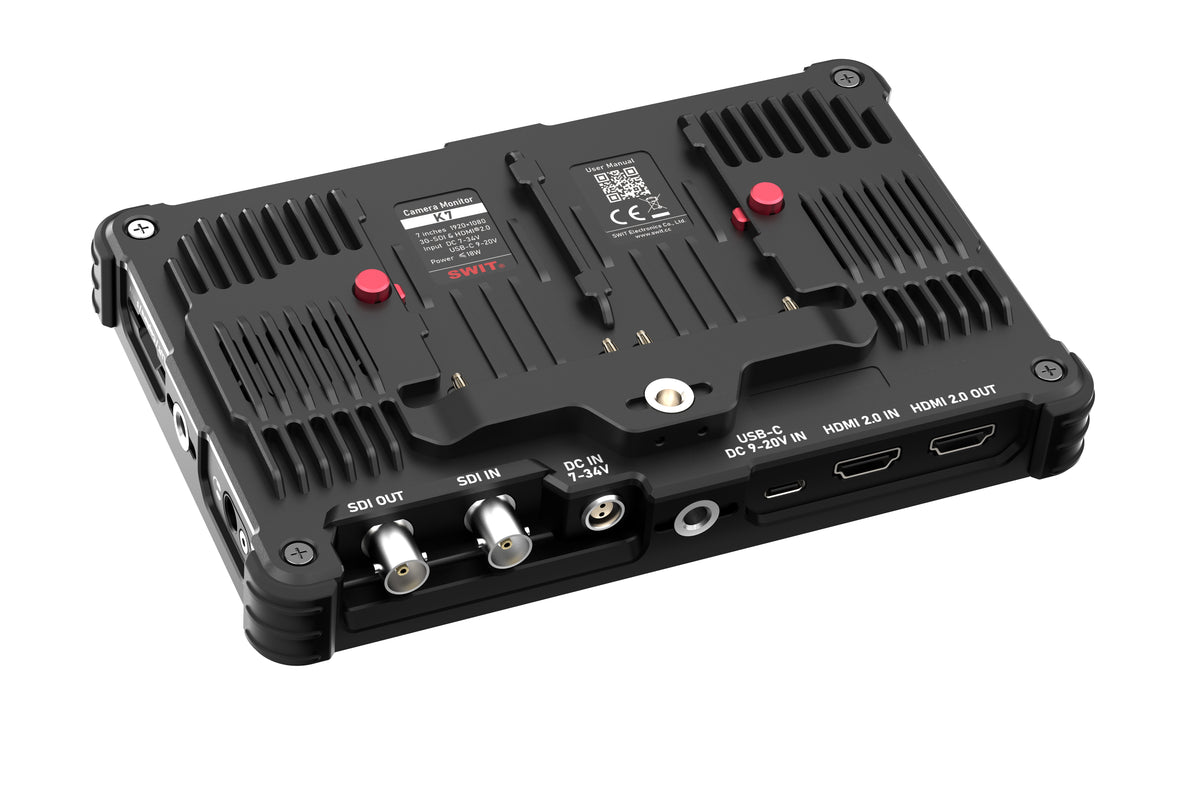

3G-SDI and HDMI 2.0, Cross-Conversion, Out with LUT
Both 3G-SDI and HDMI 2.0 (4K60P) input and loop out are provided for maximum connectivity, with support for SDI/HDMI cross conversion to bridge different camera systems and external devices seamlessly. Moreover, you can choose whether to apply the LUT to the SDI or HDMI output, perfect for sending a graded signal to monitors that don't support internal LUTs.
Delog LUTs and User LUTs

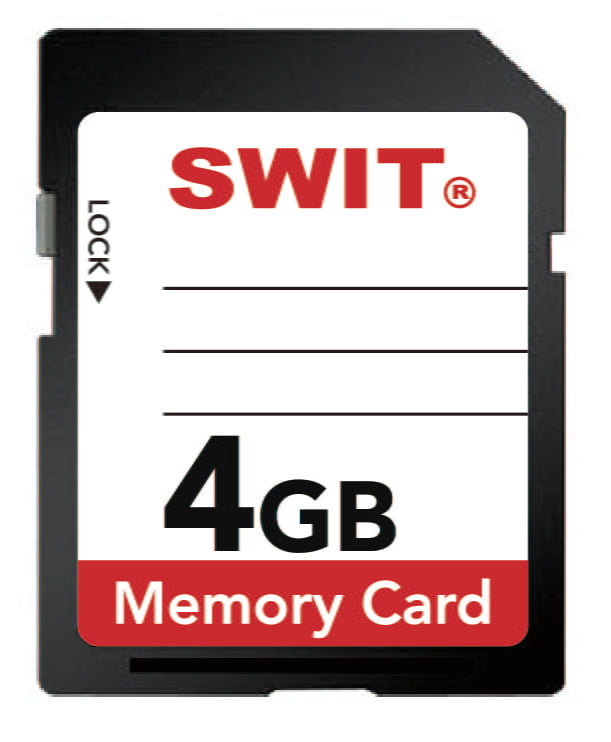

The K7 comes preloaded with delog LUTs for SONY S-Log2/3, Canon C-Log2/3, ARRI LogC3/C4, RED Log3G10 to Rec.709, allowing accurate color preview on set. It also supports User 3DLUTs import via SD card of variety 17/32/33/64/65 formats. A 4GB SD card is included, so you can upload your custom LUTs immediately and take full creative control of your monitoring workflow.
Capture and Overlay
You can capture a still image of the current frame and overlay it with adjustable transparency over the live camera video, which allows you to perfectly match a camera move, reposition a subject, or recreate a previous framing by matching the semi-transparent reference image with the live action.
Anamorphic De-squeeze
The K7 supports a full range of anamorphic de-squeeze ratios, including 1.25x, 1.33x, 1.5x, 1.6x, 1.8x, 2.0x, and 2.0x MAG. Whether you're shooting with classic 2x anamorphic lenses or modern lightweight options, the K7 restores the correct aspect ratio on screen.
Support 0.5x Reverse De-squeeze
The K7 supports custom anamorphic de-squeeze ratios for ultimate flexibility (0.5x-2x contineously adjust), along with a 0.5x reverse de-squeeze mode designed for vertically mounted 2x anamorphic lenses. This produces an 8:9 near-square frame that is exceptionally friendly for both landscape and portrait cropping, perfect for content destined for multiple platforms.
More Practical Camera Tools
The K7 is packed with a rich set of professional tools for composition, focus, and exposure assist. Most tools support flexible custom parameters, so you can adjust sensitivity and intensity to suit your workflow.
Rotatable OSD Menu
You can adjust the K7 menu orientation to ±90° rotate or 180° flip. Whether you mount the monitor vertically for portrait shooting or upside down in tight rigging setups, the menu always stays readable and easy to navigate, ensuring smooth operation in any mounting orientation.

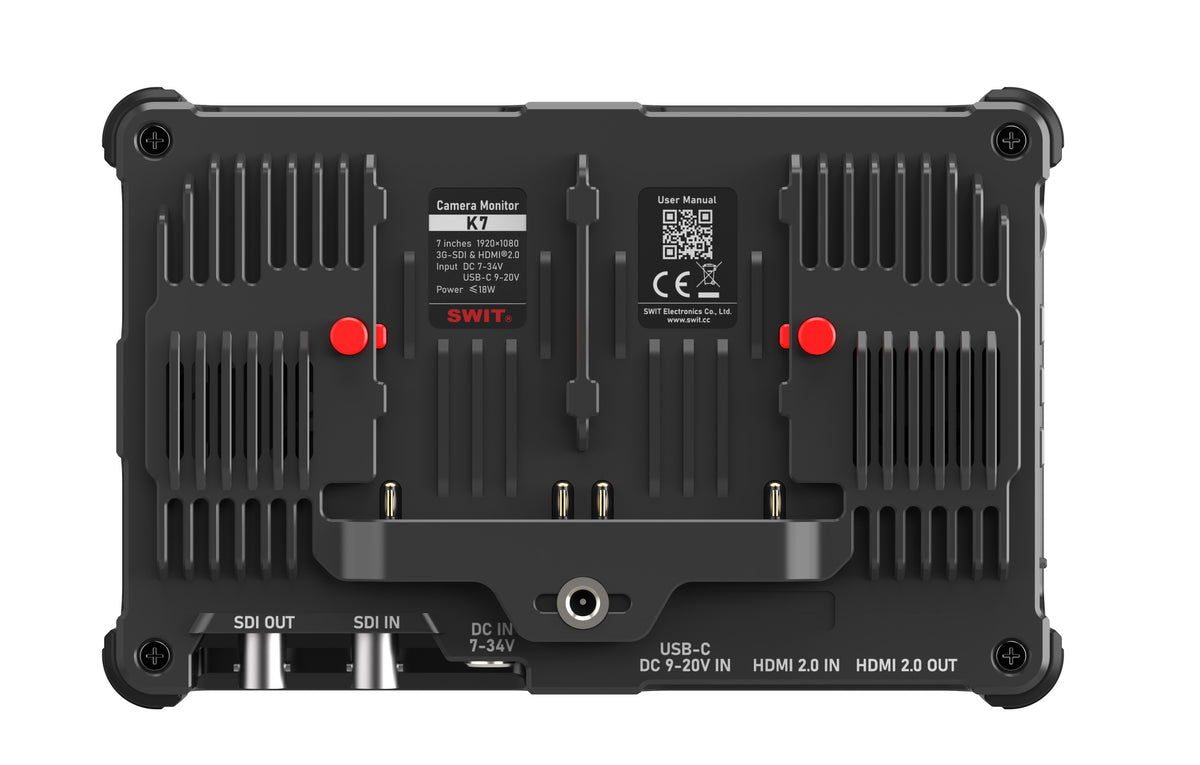

Versatile Power Options
2-pin LEMO, USB-C and Dual NP-F
The K7 supports 2-pin LEMO DC input, USB-C PD (9-20V), and dual built-in NP-F battery slots with hot-swap capability. Real-time battery levels for both slots are displayed on the screen, giving you full visibility of your power status at all times.

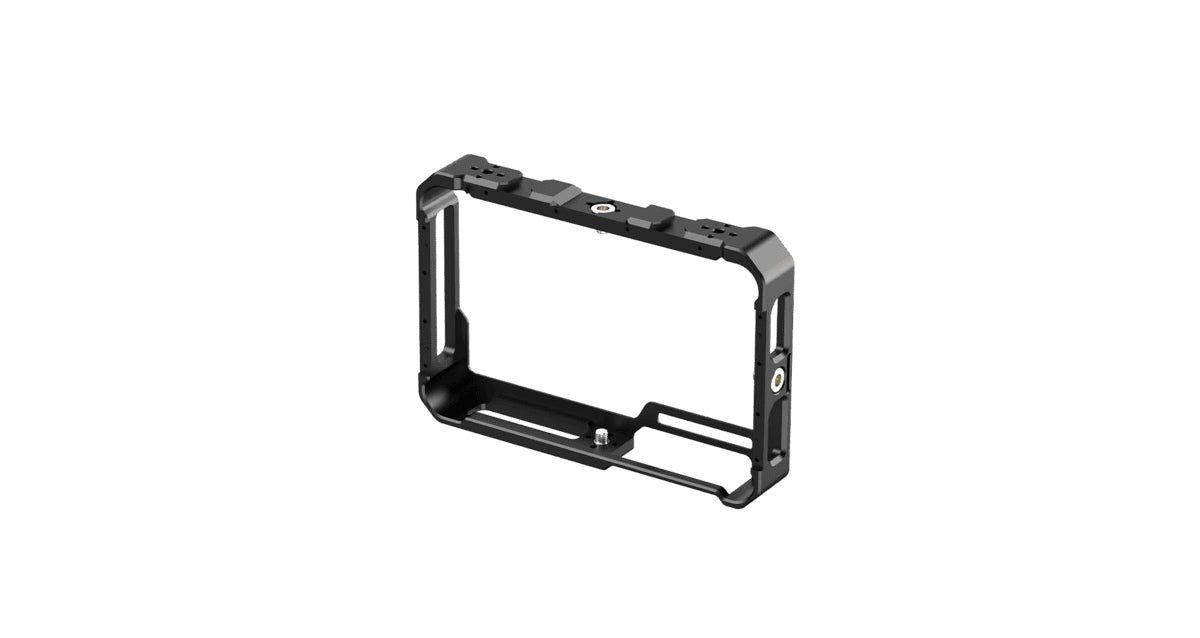

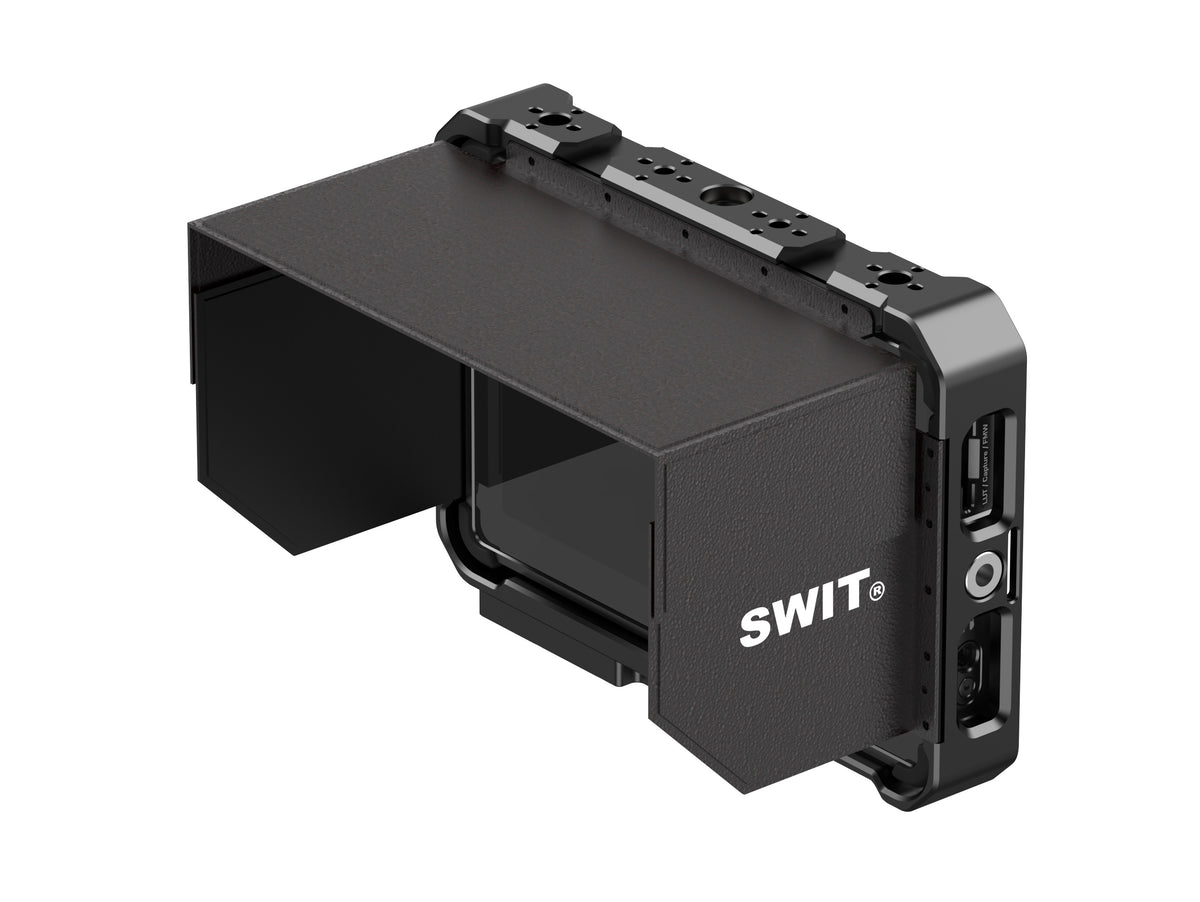

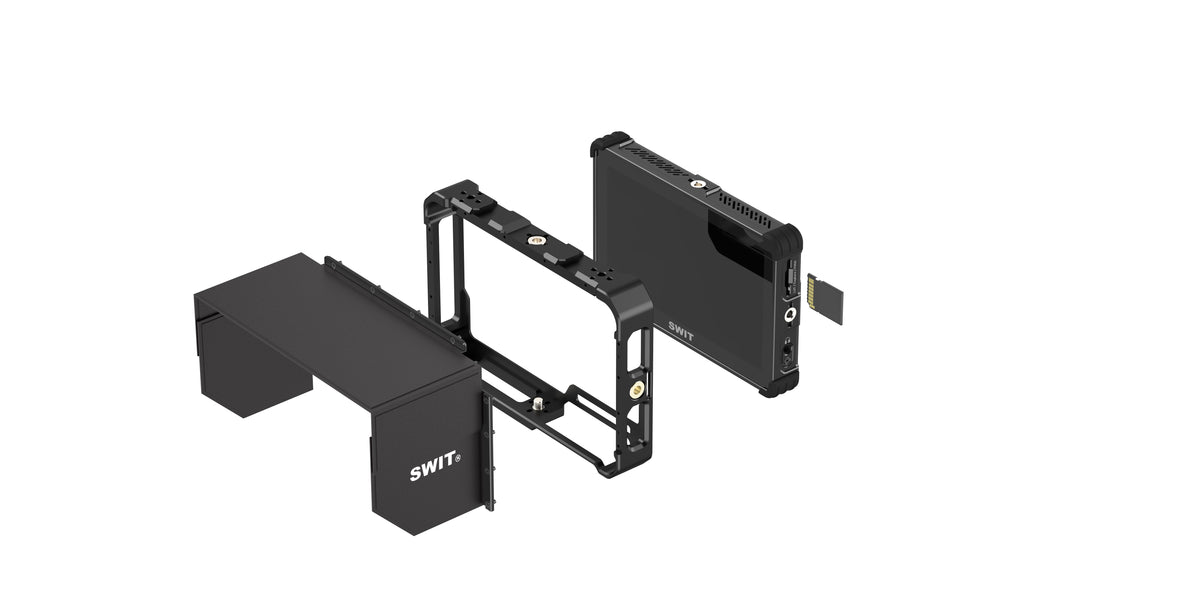

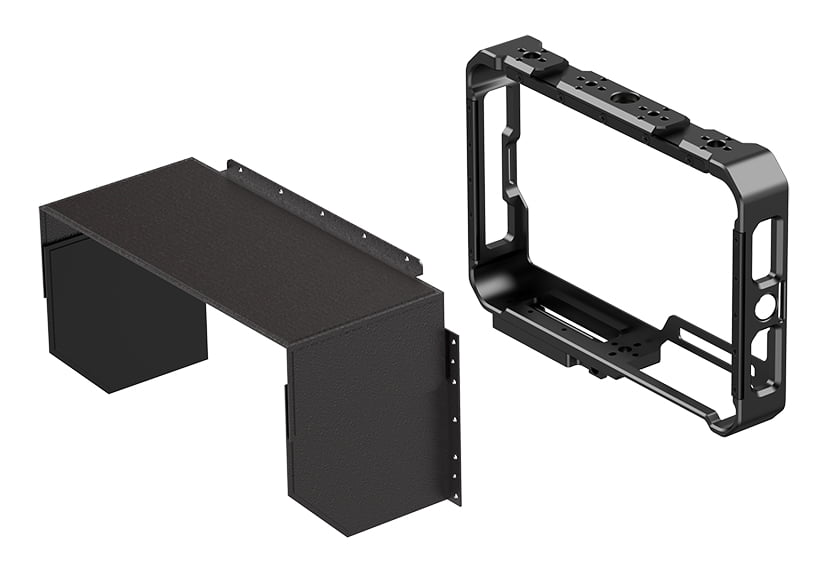

Monitor Cage and Sunhood
The K7 features a CNC high-strength monitor cage (SKU: MA-K7CAGE) for enhanced protection in demanding environments. The cage includes a leather foldable sunhood for extra glare reduction when needed. Designed for filmmakers who want maximum durability without compromising functionality.
Professional Kit Option
The K7 monitor offers a Professional Kit for expert users, packaged in an engineering carrying case and containing all accessories that may be needed.
Technical Specifications
| Size |
7 inches |
| Display area |
154.4×86.8mm |
| Resolution |
1920×1080, 16:9 |
| Brightness |
2800nits Max |
| Contrast |
1000:1 |
| Color depth |
8-bit 16.77M colors |
| Viewing angle |
160°(H) /160°(V) |
| BNC ×1 |
3G/HD-SDI input |
| HDMI® type A ×1 |
HDMI® 2.0 input |
| SD card ×1 |
LUT, firmware input |
| BNC ×1 |
3G/HD-SDI output |
| HDMI® type A ×1 |
HDMI® 2.0 output |
| 3.5mm ×1 |
Embedded audio output |
| SDI |
2048×1080p (60 / 59.94 / 50 / 30 / 29.97 / 25 / 24 / 23.98) |
| 1080p (60 / 59.94 / 50 / 30 / 29.97 / 25 / 24 / 23.98) |
| 1080psf (30 / 29.97 / 25 / 24 / 23.98) |
| 1080i (60 / 59.94 / 50) |
| 720p (60 / 59.94 / 50) |
| HDMI |
4096×2160p (60 / 59.94 / 50 / 30 / 29.97 / 25 / 24 / 23.98) |
| 3840×2160p (60 / 59.94 /50 / 30 / 29.97 / 25 / 24 / 23.98) |
| 2048×1080p (60 / 59.94 / 50 / 30 / 29.97 / 25 / 24 / 23.98) |
| 1080p (60 / 59.94 / 50 / 30 / 29.97 / 25 / 24 / 23.98) |
| 1080psf (30 / 29.97 / 25 / 24 / 23.98) |
| 1080i (60 / 59.94 / 50) |
| 720p (60 / 59.94 / 50) |
| DC Input |
2-pin LEMO 7-34V in USB-C PD 9V/12V/15V/20V in |
| Battery Power |
Dual NP-F slots 6.5-8.4V in, hot-swapable |
| Power Consumption |
≤18W |
| Working temperature |
0°C～+40°C |
| Working humidity |
10%～90% |
| Net weight(without packaging) |
0.575kg |
| Product dimensions(without packaging) |
187×121×32mm |
| Gross weight(with packaging) |
0.9kg |
| Package dimensions |
240×180×45mm |
