LCX10-POE

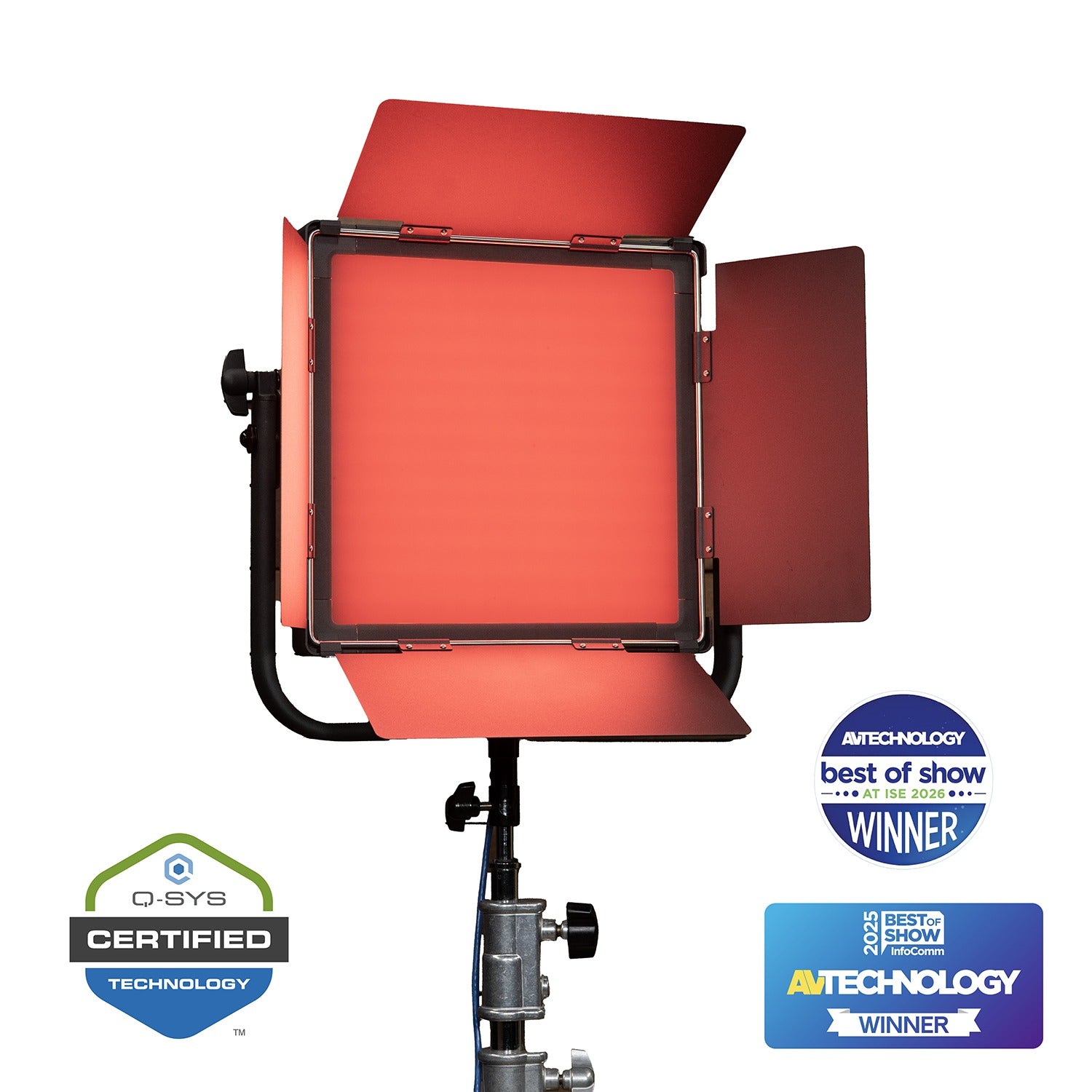

The Ikan LCX10-POE is a cutting-edge 1×1 soft panel LED light that is simultaneously powered (via PoE++) and DMX controlled (via ArtNet or sACN) through a single Cat6 RJ45 Ethernet cable. Making them perfect to be used in many environments such as broadcast studios, podcast, studios, and conference rooms. For seamless integration into Q-SYS ecosystems, the LCX10-POE is compatible with the Q-SYS Designer Plugin, offering enhanced control and efficiency alongside ArtNet and sACN protocols. These PoE++ lights redefine simplicity, allowing quick and easy connectivity through an Ethernet cable. Boasting high CRI LED chips and a soft panel, the LCX10-POE emits a gentle, wraparound light that creates artifact-free shadows. Its comprehensive RGBWA color system delivers full spectrum lighting capabilities, from vibrant saturated colors to precise white balance control, making it an ideal choice for creative lighting productions and professional applications. With a generous 110-degree beam angle, ample coverage is ensured. The sturdy yoke, featuring tension knobs, facilitates easy adjustments and secure placement at any angle. Plus, the inclusion of a baby 5/8″ and junior 1 1/8″ combo pin expands compatibility, allowing seamless use on standard light stands. Elevate your lighting experience with the Ikan LCX10-POE. (Patent No.: 12,477,643)
Full Spectrum Freedom
The RGBWA color system delivers unlimited creative possibilities, from vibrant saturated colors for dynamic productions to precise white balance control for professional studio work. This comprehensive full-spectrum capability transforms your workhorse studio light into a versatile creative tool—maintain perfect high-CRI whites when you need them, then seamlessly add color splash for creative impact.

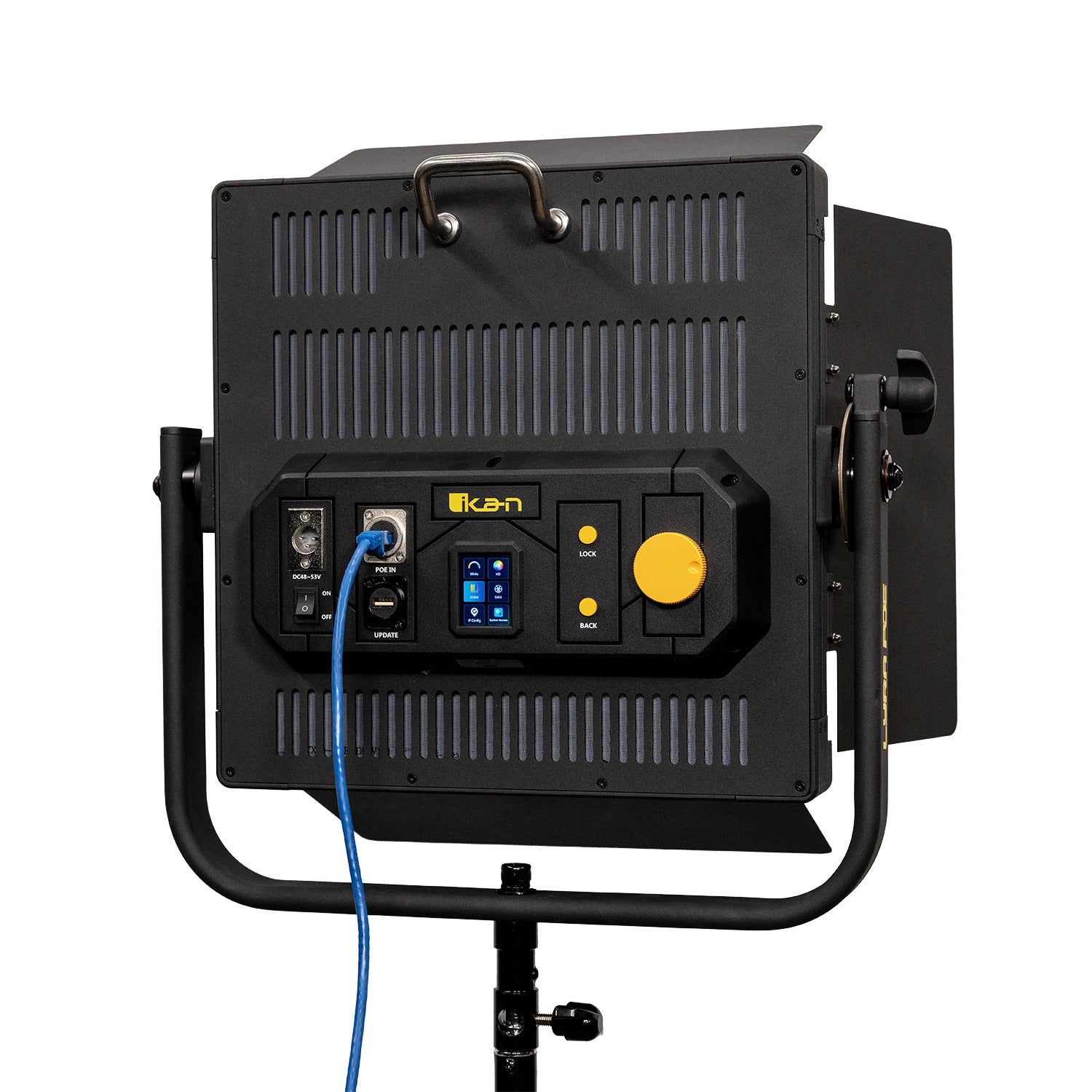

Power Over Ethernet PoE++
The LCX10-POE is powered through a single Ethernet cable (Cat6 RJ45 24AWG or better). This eliminates the necessity for additional wiring or power outlets, saving both time and reducing installation costs on obtaining permits or hiring electricians to install new ceiling outlets. The LCX10-POE supports IEEE 802.3bt Type 4 PoE++, ensuring efficient power delivery over the network.
(IEEE 802.3bt Type 4 switch is required)
Q-SYS Designer Plugin Integration
Easily integrate Ikan Lyra PoE Lights into your Q-SYS ecosystem with the Q-SYS plugin, available in the Q-SYS Designer Asset Manager. This plugin allows users to control light intensity and color temperature for up to 256 lights per universe directly within Q-SYS Designer. Designed for streamlined workflows in spaces like conference rooms, the plugin eliminates the need for specialized lighting knowledge. With the press of a button, all lights can be set to optimal, pre-configured settings, ensuring a seamless and user-friendly experience for any environment.
ArtNet and sACN Compatibility
The LCX10-POE supports both ArtNet and sACN DMX protocols. A single RJ45 cable can be used for both power and DMX. This versatility empowers users to integrate the light seamlessly into their preferred DMX control systems.

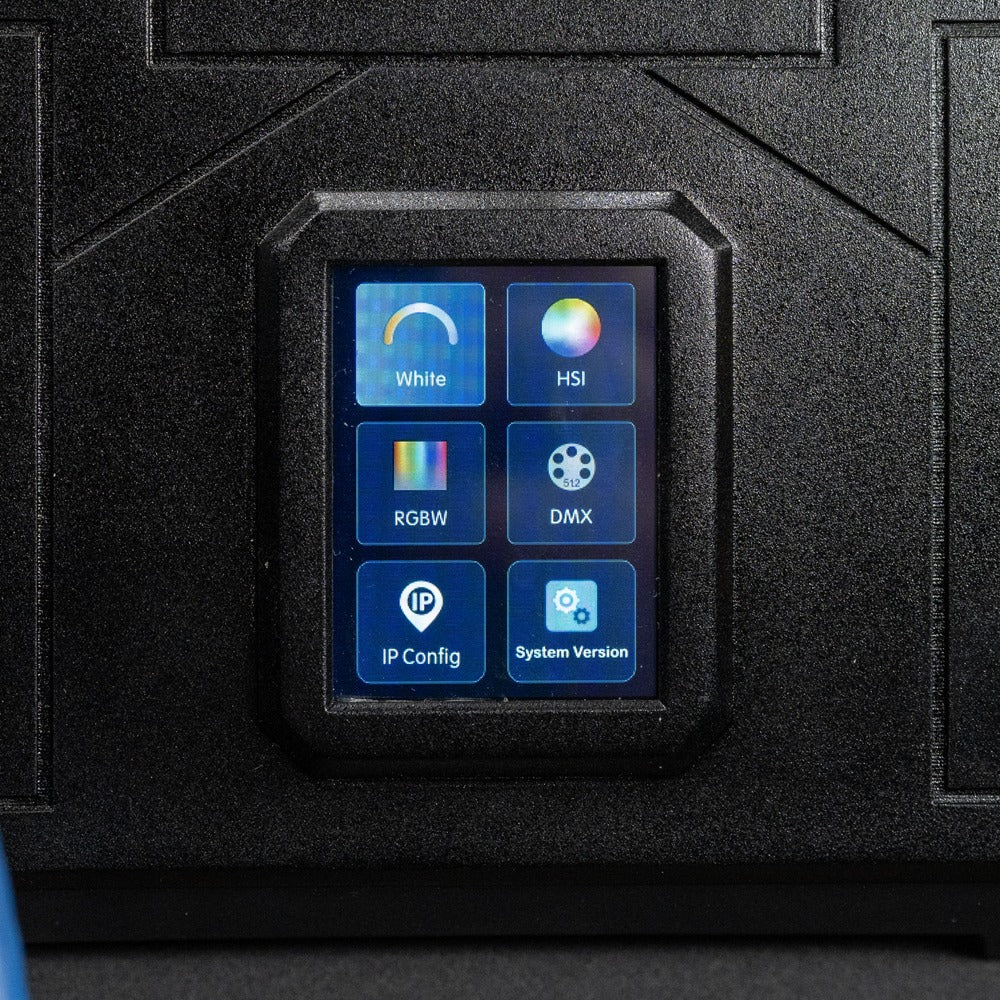

Web GUI
Utilize the web GUI to modify ArtNet & sACN settings, including DMX addresses and universes, as well as access configured IP address settings.
| SKU | Fixture Type | CCT | Beam Angle | CRI | Panel Dimesnions | Fixture Dimensions | Fixture Weight | Mounting Options | DMX | Watt Equivalent | Power Consumption | IEEE 802bt | PoE++ Ports |
| LBX8-POE | Panel | 3200K-5600K | 110° | 97 | 20 x 4” | 24.5 x 7 x 1.9” | 4.9 lbs | Baby 5/8” Junior 1-1/8” Combo Pin | ArtNet & sACN | 500W | 50W | Type 3 | 1 |
| LBX8-POE-WH | Panel | 3200K-5600K | 110° | 97 | 20 x 4” | 24.5 x 7 x 1.9” | 4.9 lbs | Baby 5/8” Junior 1-1/8” Combo Pin | ArtNet & sACN | 500W | 50W | Type 3 | 1 |
| LBX10-POE | Panel | 3200K-5600K | 110° | 97 | 12 x 12” | 14 x 14 x 3” | 6 lbs | Baby 5/8” Junior 1-1/8” Combo Pin | DMX512 5-Pin, ArtNet & sACN | 850W | 85W | Type 4 | 1 |
| LBX20-POE | Panel | 3200K-5600K | 110° | 97 | 21.5 x 12” | 29 x 20 5” | 18 lbs | Baby 5/8” Junior 1-1/8” Combo Pin | DMX512 5-Pin, ArtNet & sACN | 1.5KW | 170W | Type 4 | 2 |
| LBF60-POE | Fresnel | 2800K-6500K | 30° or 60° | 97 | 3.25” | 11.3 x 4.16 x 5.8” | 2.7 lbs | Baby 5/8” Junior 1-1/8” Combo Pin | ArtNet & sACN | 600W | 60W | Type 3 | 1 |
| LBF60Z-POE | Fresnel | 2800K-6500K | 30° to 60° | 97 | 3.25” | 11.3 x 4.16 x 5.8” | 3.6 lbs | Baby 5/8” Junior 1-1/8” Combo Pin | ArtNet & sACN | 600W | 60W | Type 3 | 1 |
| LBF60Z-POE-WH | Fresnel | 2800K-6500K | 30° to 60° | 97 | 3.25” | 11.3 x 4.16 x 5.8” | 3.6 lbs | Baby 5/8” Junior 1-1/8” Combo Pin | ArtNet & sACN | 600W | 60W | Type 3 | 1 |
| LBF60B-POE | Fresnel | 2800K-6500K | Softbox | 97 | Softbox | 11.3 x 4.16 x 5.8” | 2.9 lbs | Baby 5/8” Junior 1-1/8” Combo Pin | ArtNet & sACN | 600W | 60W | Type 3 | 1 |
| LCX10-POE | Panel | 2700K-6500K | 110° | 97 | 12 x 12” | 14 x 14 x 3” | 6 lbs | Baby 5/8” Junior 1-1/8” Combo Pin | ArtNet & sACN | 800W | 85W | Type 4 | 1 |
| LBX16-POE | Panel | 2800K-5600K | 110° | 97 | 40 x 4” | 44 x 7 x 1.9” | 10 lbs | Baby 5/8” Junior 1-1/8” Combo Pin | ArtNet & sACN | 850W | 85W | Type 4 | 1 |
