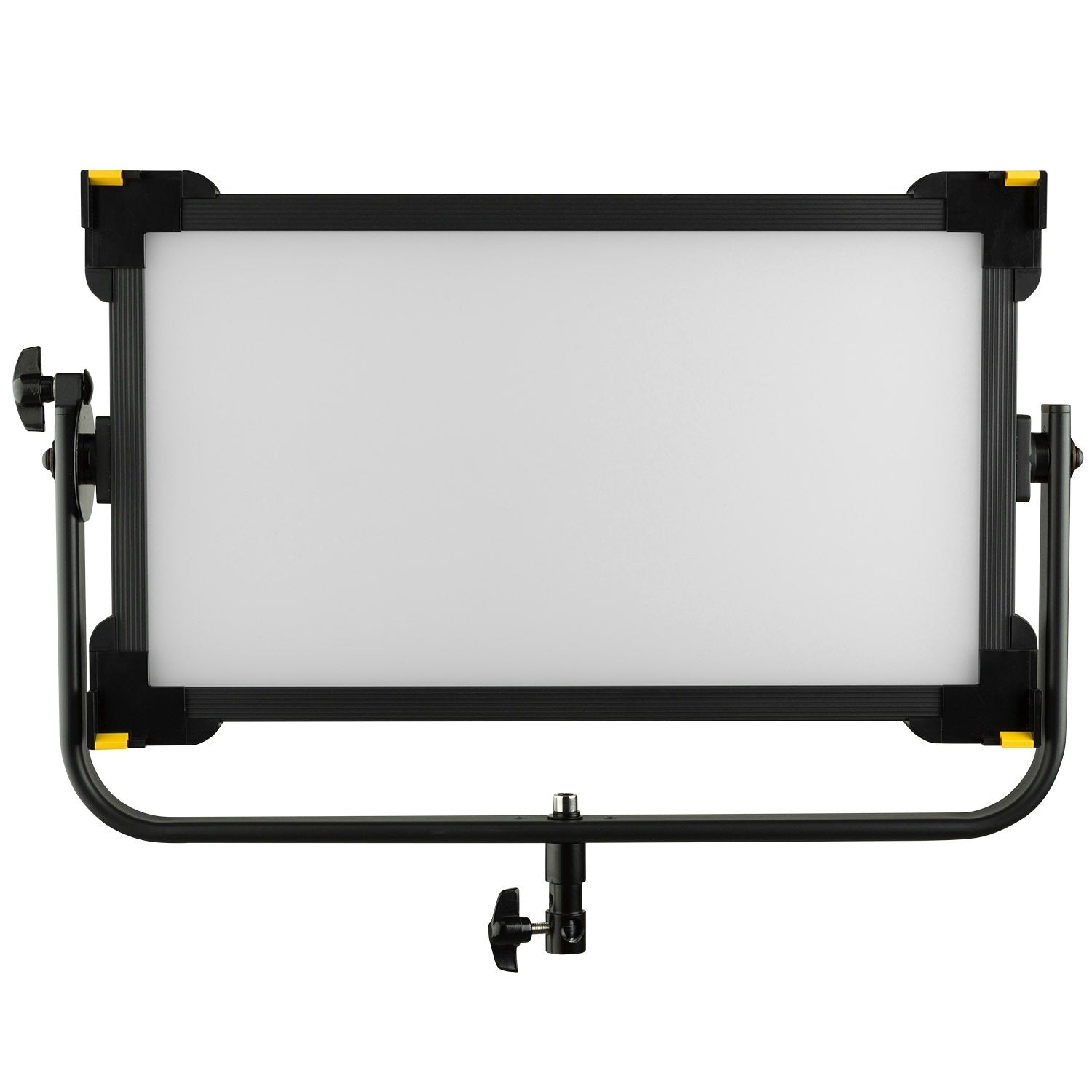

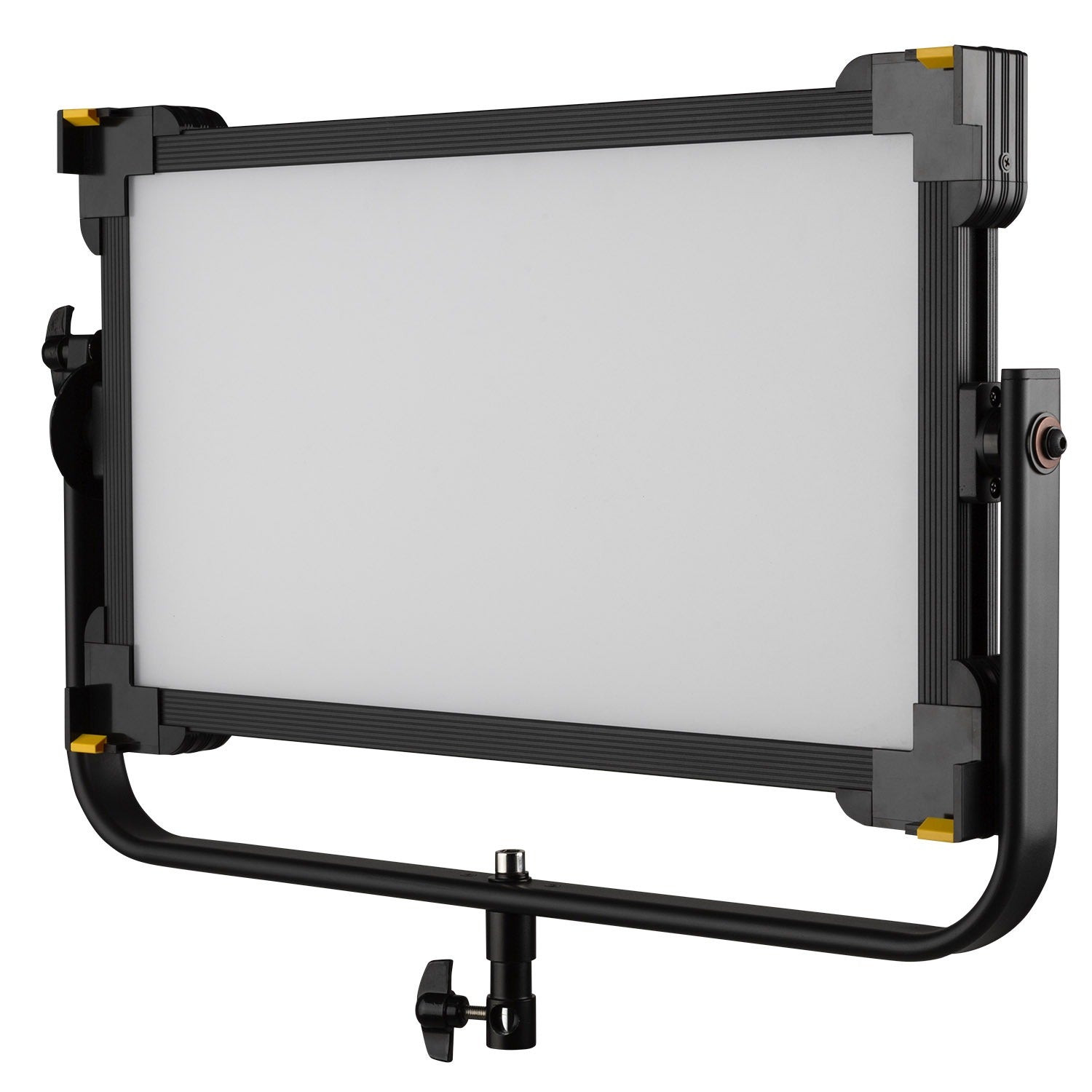

Ikan Lyra 1 x 2 Bi-Color Studio Soft Panel LED Light w/ DMX Control

Ikan Lyra 1 x 2 Bi-Color Studio Soft Panel LED Light w/ DMX Control

Įprasta kaina €1.480,14 be PVM
Įprasta kaina Išpardavimo kaina €1.480,14 be PVM
Išpardavimas Išparduota
Siuntimo išlaidos ir mokesčiai apskaičiuojami atsiskaitant.
Kiekis

Model: LBX20

  • 97 CRI Chip LEDs paired with 1/2 stop soft diffusion panel
  • Bi-Color adjustable from 3200K-5600K
  • Non-removable soft diffuser allow bright consistent light across all color temperatures
  • Beam Angle of Soft panel 110 degrees
  • A Clean single shadow without the artifacts
  • DMX512 In and Out (5 Pin)
  • Fixture DMX Profile is available on ETC EOS and Carallon Database
  • Baby 5/8 inch/Junior 1-1/8 Combo Pin adapter with right angle receiver hole
  • Quick set disk locking system for positioning the light
  • Single knob control for adjusting color, brightness or DMX
  • New LED Readout screen giving you precise adjustments
  • Fan switch to enable active cooling

Bi-Color Variations

1 x 2 Fixture 1 x 3 Fixture 1 x 4 Fixture

Daylight Variations

1 x 2 Fixture

LBX20

Ikan’s Lyra Studio DMX brand of soft lights have high CRI chip LEDs paired with a soft diffusion panel, giving you a very soft wrapping light.  The 1/2-stop soft diffusion panel is permanently attached to the light and is designed to be placed at the optimal distance from the COB (chip on board) LEDs to create a soft and evenly diffused light source.  Its Bi-color adjustability from 3200K-5600K is great for any light setup. Also, the brightness of the light is consistent across all color temperatures. The beam angle of the light is a wide 110 degrees, making it possible to light a large area with a single fixture. The best thing about a Lyra soft light is the nice clean shadow you get from the light itself. The heavy duty yoke and baby 5/8″ /junior 1 1/8″ combo pin allow you to attach to any stand or use in any studio configurations. The quick set disk locking system allows professionals to lock the light in place when aiming the fixture. The large yellow knob on the back allows you to control the light with a few simple clicks. You can control the brightness, color temperature, and the DMX channel, making adjustments as needed. The LED readout gives you the ability to have very precise measurements. The 1 x 2 LED soft panel is an extremely bright soft light that gives the end user the control to light sets or any scene on a stage. These lights are great for any talk show or broadcast news shows.

High CRI LED’s

The high CRI LEDs give you a strong output and has an integrated 1/2-stop soft diffusion panel allowing for very bright diffused light.  The 1/2-stop soft diffusion panel is permanently attached to the light and installed at an optimal distance from the COB LEDs.  Please note that the light will not operate correctly if the diffusion panel is damaged or removed.

Industry Standard Combo Pin

The Baby 5/8″ / Junior 1-1/8″ combo pin adaptor with a right angle receiver hole allows for the use of any grip stand.

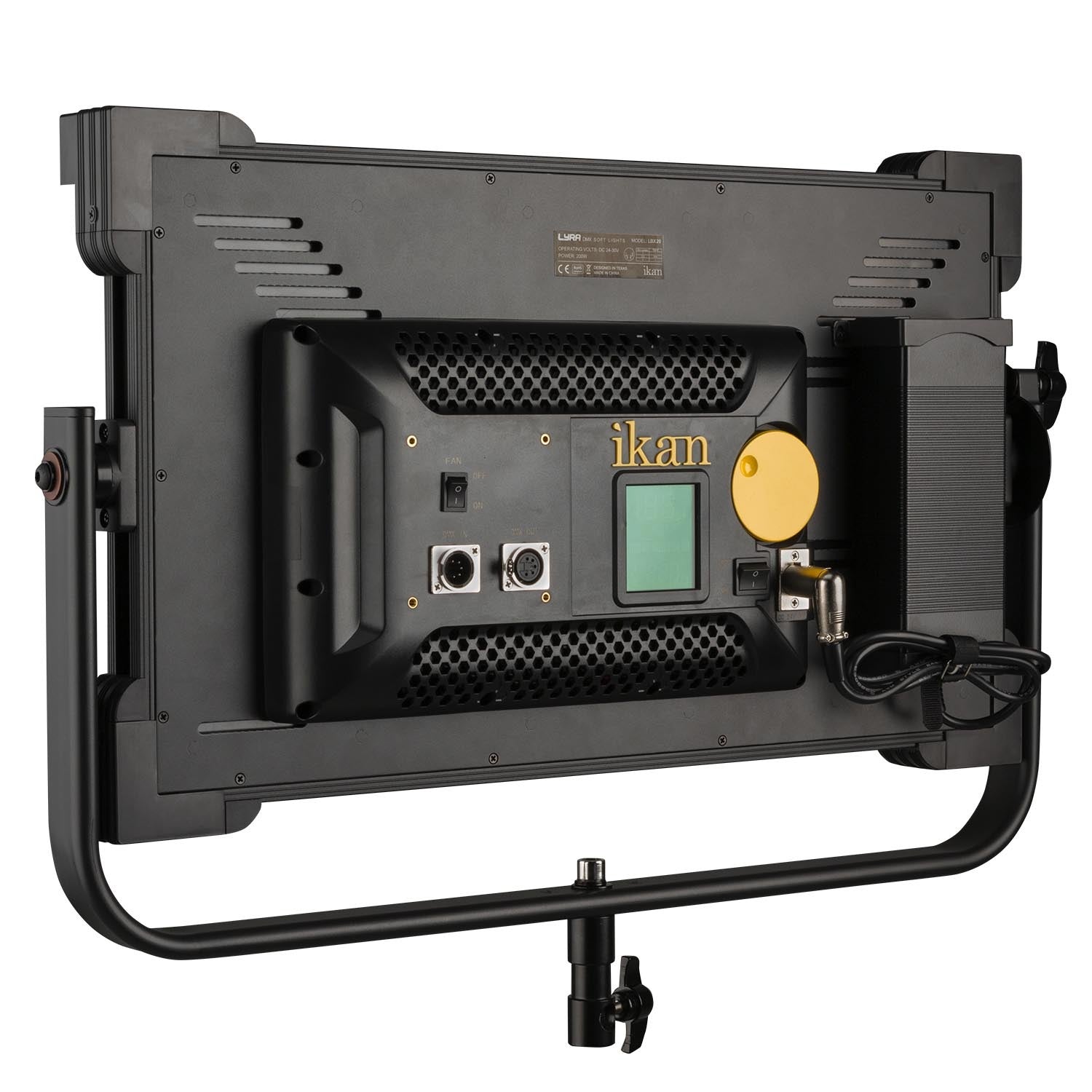

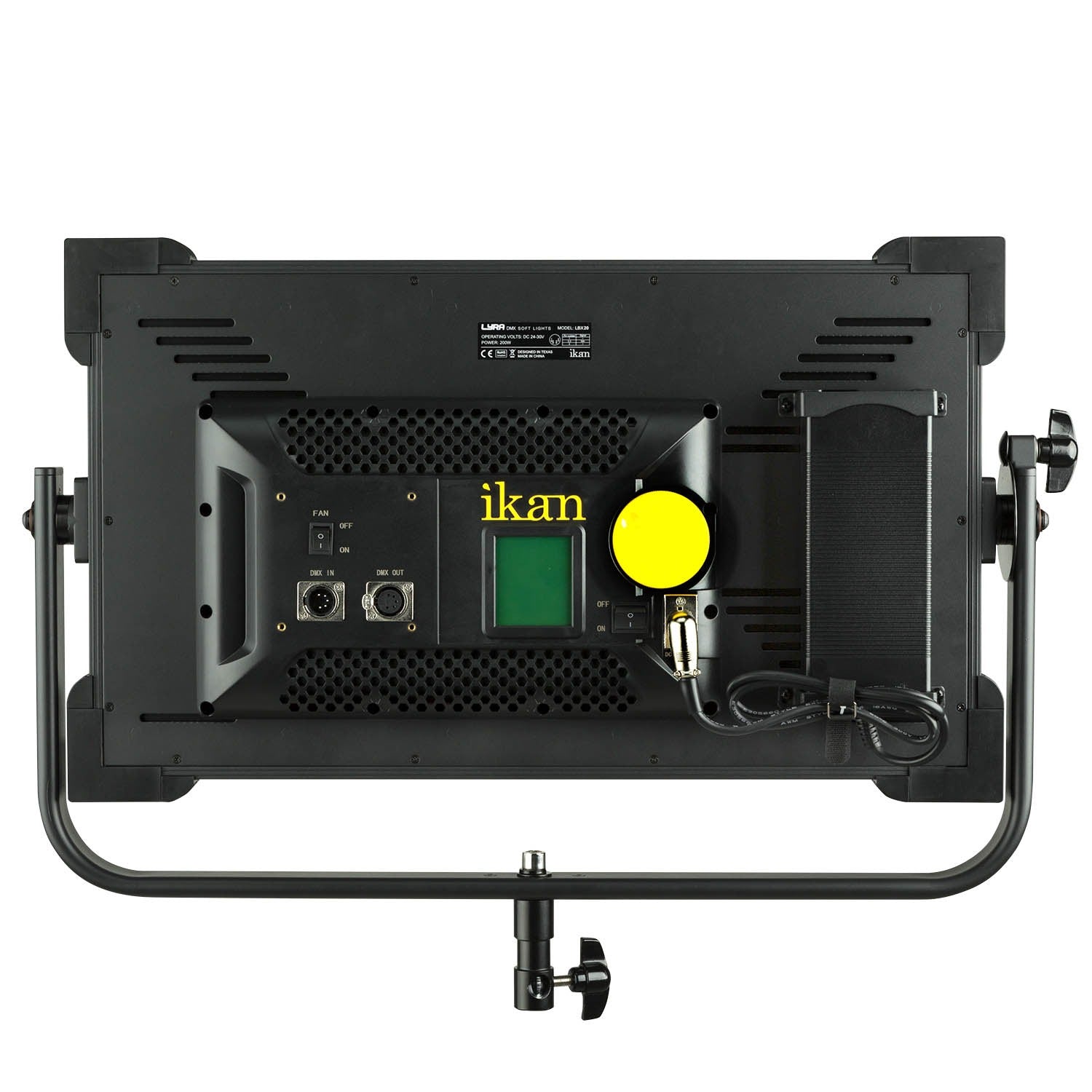

LED Readout & Single Knob Control

Users can easily adjust the brightness, color temperature, or DMX, on the fly by using the single control knob on the back of the lights. The new bright LED readout gives you a quick reference of the light’s output.

Quick Set Disk Locking System

The quick set disk locking system allows you to position the light when up on a grid.

Fan Switch for Silent Mode

The fan switch allows you to toggle the fan off to use the light in silent mode. In silent mode the light will be automatically limited to 80% max output of the light.

Easily Attach Modifiers

The clips make it easy to attach and remove barn doors or honeycomb egg crates. (Barn Doors and Egg Crate NOT included)

110° Beam Angle & Single Shadow

The wide 110° beam angle gives you plenty of soft light and a more natural shot with a single shadow.

LBX20 Photometrics

Shipping Weight (lbs): 25
Shipping Dimensions (in): 26 x 7 x 31
What's Included:
1 x Power Cord
1 x Lyra Bi-Color DMX Studio Light
1 x Power Supply
1 x Yoke Mount

LBX20 Photometrics

3200K FC LUX Beam Spread
5ft. / 1.5m 220 2370 12ft. / 3.6m
10ft. / 3m 60 646 TL
15ft. / 4.5m 30 323 TL
4400K FC LUX Beam Spread
5ft. / 1.5m 254 2738 12ft. / 3.6m
10ft. / 3m 69 742 TL
15ft. / 4.5m 35 375 TL
5600K FC LUX Beam Spread
5ft. / 1.5m 247 2654 12ft. / 3.6m
10ft. / 3m 68 727 TL
15ft. / 4.5m 34 363 TL

Quick Start Guide: LBX20 Downloadabel PDF
Data Sheet: LBX20 Downloadable PDF
SI Technical Guide: Downloadable PDF
Certificate: UKCA
Certificate: CE
Vectorworks: Ikan Fixtures VWX
Beam Angle: 110 Degree
Brand: Ikan
Build Material: Metal & Plastic Shell
Cooling System: Fan Off - Passive Cooling (Max 80% Brightness); Fan On - Active Cooling
Dimming: 5 Pin DMX512 & Local Knob Control
DMX Control: Fixture DMX Profile is available on ETC EOS and Carallon Database
Fixture Power Consumption: 205Watts
Fixture Size: 20 x 5 x 29 in.
Fixture Weight: 18 lbs
Head Type: Bi-Color 3200K-5600K Soft Light
Lens: 1/2 Stop Diffusion
Power Supply: Input: 100-220VAC; Output: 27.2VDC
UPC Code: 847983021994
Weight 25 lbs
Dimensions 26 × 7 × 31 in
Brand

Number of Lights

Line

Fixture Type

Light Type

Product Details

  • SKU: IKA-LBX20
  • EAN: 847983021994
  • Warranty: 12 months
  • Country of origin: China
  • Official categories: DMX Lights, DMX Studio Lights, Lighting, Lyra Series, Studio / Broadcast
