HyperDeck ISO Recorder 100G

HyperDeck ISO Recorder 100G is designed for live production, recording 8 cameras at the same time. Record for later editing or get exciting live-action replay with DaVinci Resolve! Files are recorded in broadcast-quality ProRes format direct to network storage for very long record durations. It connects via SMPTE-2110 100G Ethernet, so all 8 video channels run over a single connection. Or add a Blackmagic SDI Expander 8x12G for 12G-SDI. You can also play back all 8 channels, great for testing!

Official Technical Details

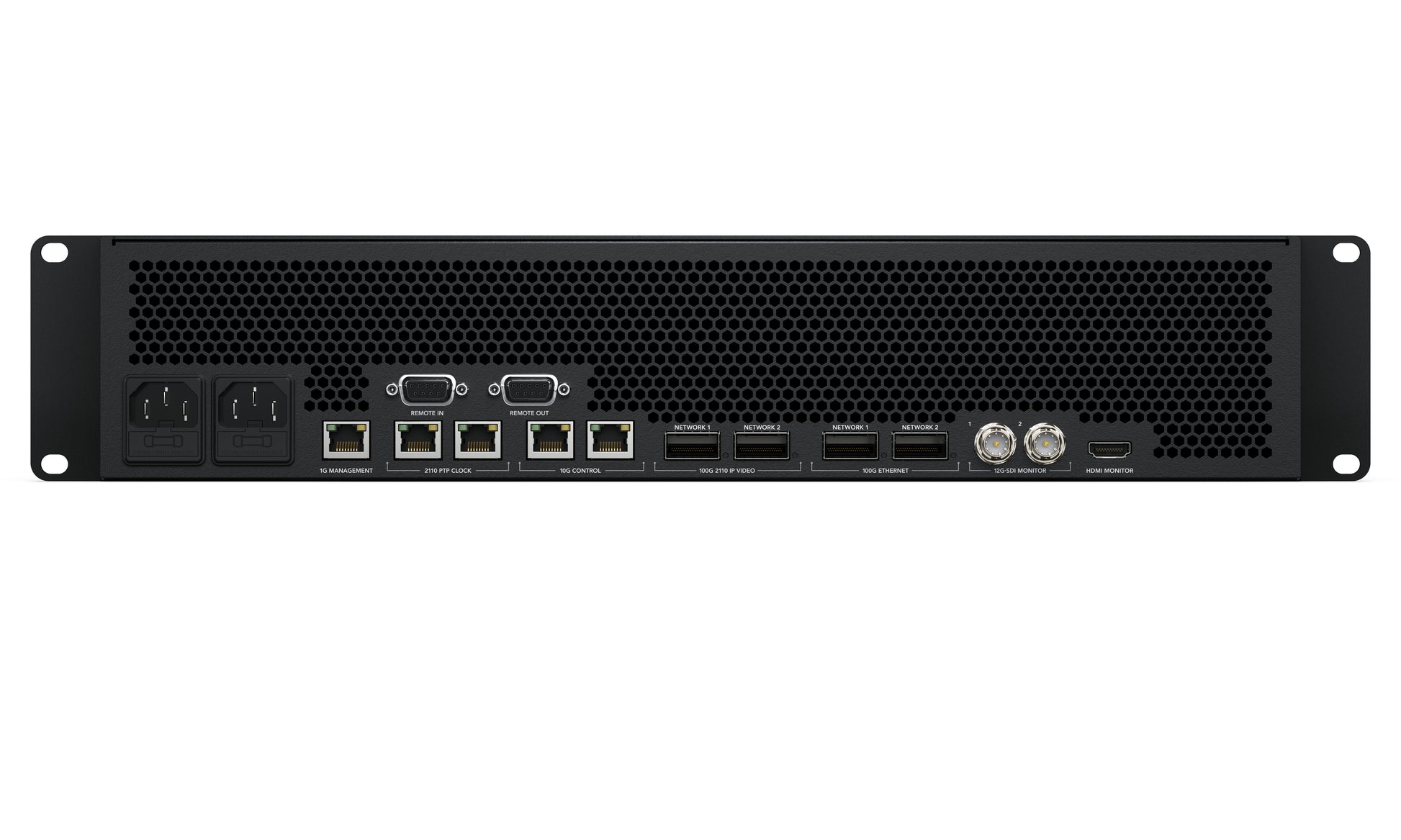

Connections

• 100G 2110 IP Networks: 2 x 100G QSFP28 connections. Supports ST 2022-7 redundant delivery of IP streams over two 2110 networks.
• Senders and Receivers per 100G Pair: 8 x Ultra HD or 8 HD
• 100G Ethernet: 2 x 100G QSFP28 connections.
• 10G Control Network: 2 x 10G RJ45 Ethernet for NMOS control.
• Reference Network: 2 x RJ45 Ethernet for 2110 PTP clock.
• 1G Management: 1 x RJ45 Ethernet. Supports 10/100/1000 BASE-T. For HyperDeck Setup utility and software updates.
• SDI Monitor Outputs: 2
• HDMI Monitor Outputs: 1
• SDI Rates: 1.5G, 3G, 6G, 12G.
• Analog Audio Outputs: 1 x 6.35 mm headphone jack.
• SMPTE ST 2110 IP Audio Inputs: 16 Ch embedded audio on each 2110 IP video stream over 100G Ethernet.
• SMPTE ST 2110 IP Audio Outputs: 16 Ch embedded audio on each 2110 IP video stream over 100G Ethernet.
• SDI Audio Outputs: 16 channels embedded audio.
• HDMI Audio Outputs: 8 channels embedded audio.
• Computer Interface: 1 x USB-C for HyperDeck Setup utility and software updates.
• Power: 2 x IEC C14 power inputs.

Standards

• HD Video Standards: 720p50, 720p59.94, 720p60 1080i50, 1080i59.94, 1080i60 1080p23.98, 1080p24, 1080p25, 1080p29.97, 1080p30, 1080p50, 1080p59.94, 1080p60
• Ultra HD Video Standards: 2160p23.98, 2160p24, 2160p25, 2160p29.97, 2160p30, 2160p50, 2160p59.94, 2160p60
• 4K DCI Video Standards: 4Kp23.98 DCI, 4Kp24 DCI, 4Kp25 DCI, 4Kp29.97 DCI, 4Kp30 DCI
• SMPTE Compliance: SMPTE 2110‑20, SMPTE 2110‑21, SMPTE 2110‑30, SMPTE 2110‑40, SMPTE 2022-7, SMPTE 292M, SMPTE 296M, SMPTE 424M, SMPTE 425M level A and B, SMPTE 2081‑1, SMPTE 2081‑10, SMPTE 2082‑1, SMPTE 2082‑10, SMPTE 2084, SMPTE 2108‑1.
• Supported HDMI Formats: 720p50, 720p59.94, 720p60 1080i50, 1080i59.94, 1080i60 1080p23.98, 1080p24, 1080p25, 1080p29.97, 1080p30, 1080p50, 1080p59.94, 1080p60 2160p23.98, 2160p24, 2160p25, 2160p29.97, 2160p30, 2160p50, 2160p59.94, 2160p60
• Audio Sampling: Television standard 24‑bit, 48 kHz sample rate.
• Video Sampling: 4:2:2 YUV
• Color Precision: 10-bit
• Color Space: Rec. 709, Rec. 2020.
• HDR Support: Hybrid Log‑Gamma, ST2084 300, ST2084 500, ST2084 800, ST2084 1000, ST2084 2000, ST2084 4000, ST2084.

IP Video Compliance

• SMPTE 2110-20 (Uncompressed Video): IGMP v2
• SMPTE 2110-21 (Traffic Shaping): Sender: Narrow Receiver: Narrow, Wide Synchronous, Asynchronous
• SMPTE 2110-30 (PCM): Audio Conformance level: Level C
• SMPTE 2110-40 (Ancillary Data): Full access to entire SMPTE ancillary data stream. Includes RP 188/SMPTE 12M-2, closed captioning and HDR static metadata.
• Codec: Blackmagic IP10 codec optional for 2160p59.94 and 2160p60 as 2110 IP video.
• Precision Time Protocol: IEEE 1588-2008 (PTP v2) ST 2059-1 ST 2059-2
• NMOS IS-04 Discovery and Registration: v1.3.2 Peer-to-peer via mDNS/DNS-SD
• NMOS IS-05 Connection Management: v1.1.2
• NMOS BCP-002-01: Natural Grouping
• NMOS BCP-004-01: Receiver capabilities

Audio

• Headphones: Front panel headphone outputs active monitor.
• Built in Speaker: Front panel mono speaker outputs active monitor.
• Audio Controls: Front panel button functions as single press for momentary speaker ON, double press for speaker ON / OFF plus press and hold for volume control using search dial.

Processing

• ProRes Encoder: Built-in hardware encoder supports up to
8 x Ultra HD simultaneous real-time ProRes encoding.

Media

• Media: Records over 100G Ethernet to network storage.

Supported Codecs

• Video Codecs: ProRes HQ QuickTime, ProRes 422 QuickTime, ProRes LT QuickTime, ProRes Proxy QuickTime for all formats up to 2160p60.
• Audio Codecs: AAC 2 Channels. PCM 2, 4, 8 or 16 Channels.

Control

• Built in Control Panel: 16 buttons for transport and device control with search dial featuring electronic clutch and 2.2 inch color display.
• External Control: RS-422 deck control, 2110 IP video start/stop, timecode run. Includes Blackmagic HyperDeck Ethernet Protocol. Supports remote FTP and HTTP Web Media Manager.

Displays

• Built in 2.2 inch LCD for monitoring video, audio, video standard and timecode plus menu settings. Use search dial to scrub between all available inputs and monitor on front panel.

Software

• Software Included: Blackmagic OS Blackmagic HyperDeck Setup
• Internal Software Upgrade: Loaded at system start, or via Blackmagic HyperDeck Setup using USB port.

Operating Systems

• Mac 15.0 Sequoia, Mac 26.0 Tahoe or later.
• Windows 11

Power Requirements

• Power Supply: 2 x 100 ‑ 240V AC 50/60Hz internal power supplies.
• Power Input: 2 x IEC C14 sockets.
• Power Usage: TBC

Accessories

• Optional Accessories: HyperDeck Extreme Control Blackmagic Cloud Store Ultra

Physical Installation

• 2 rack units height.

Environmental Specifications

• Operating Temperature: 0° to 40° C (32° to 104° F)
• Storage Temperature: -20° to 45° C (-4° to 113° F)
• Relative Humidity: 0% to 90% non‑condensing

What's Included

• HyperDeck ISO Recorder 100G Welcome wallet with QR code for software download

Warranty

• 1 Year Limited Manufacturer’s Warranty.
