| Input Formats |
480/59.94i, 576/50i, 480/59.94p, 576/50p, 720/59.94p, 720/50p, 1080/59.94i, 1080/50i, 1080/59.94p, 1080/50p, 640 x 480, 800 x 600, 1024 x 768, 1280 x 768, 1280 x 1024, 1366 x 768, 1400 x 1050, 1600 x 1200, 1920 x 1200
*RGB formats : Conforms to VESA DMT Version 1.0 Revision 11.
*The maximum refresh rates of RGB is 75 Hz. (excluding 1600 x 1200 and 1920 x 1200. The refresh rate of these 2 is 60Hz)
*1920 x 1200/60Hz : Reduced blanking |
| Audio Formats |
The maximum is PCM 8ch, Dolby Digital, True HD DTS-HD Master Audio |
| Input Connectors |
HT-TX01: HDMI x 1 : Type A 19 pins

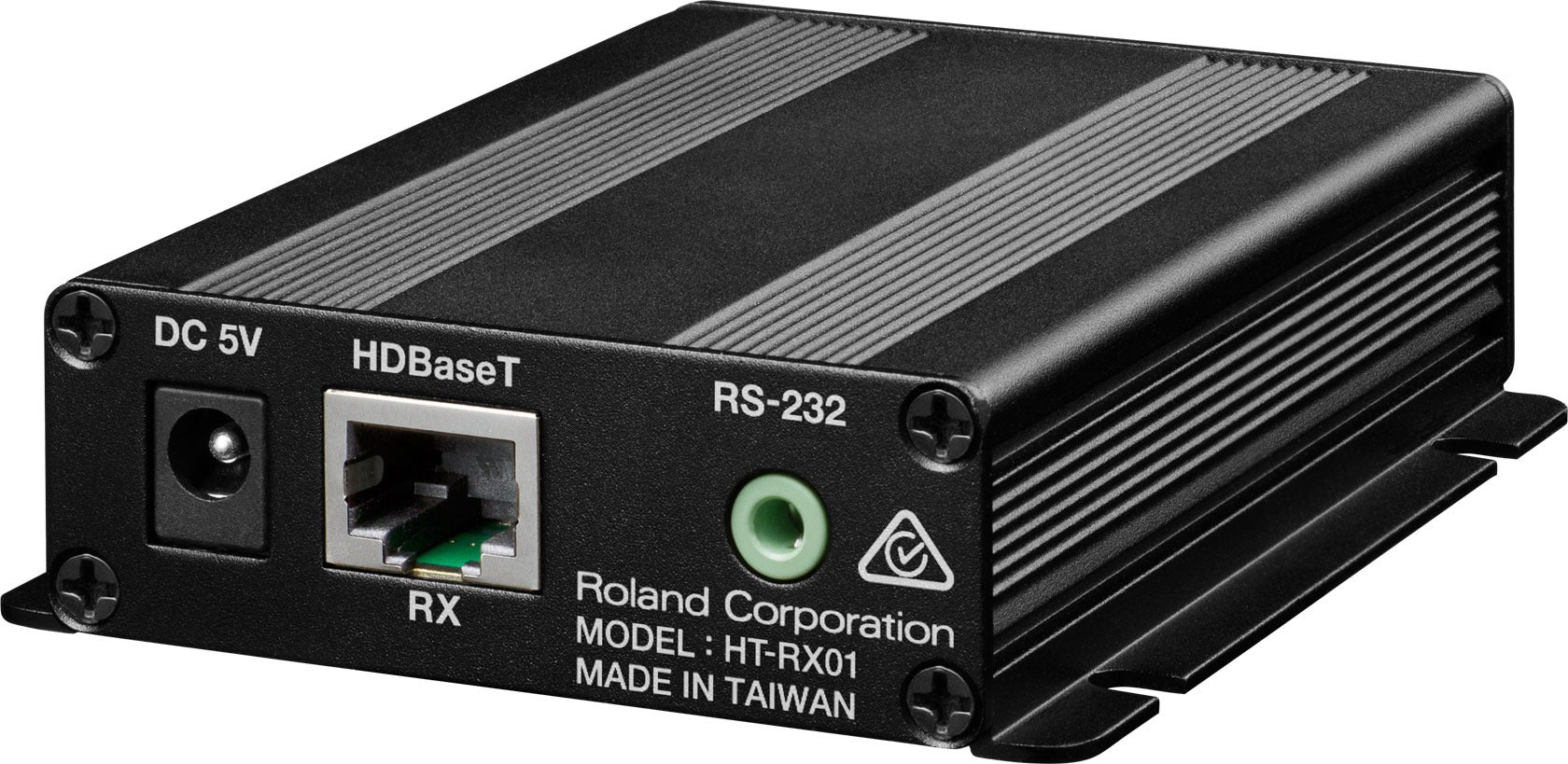

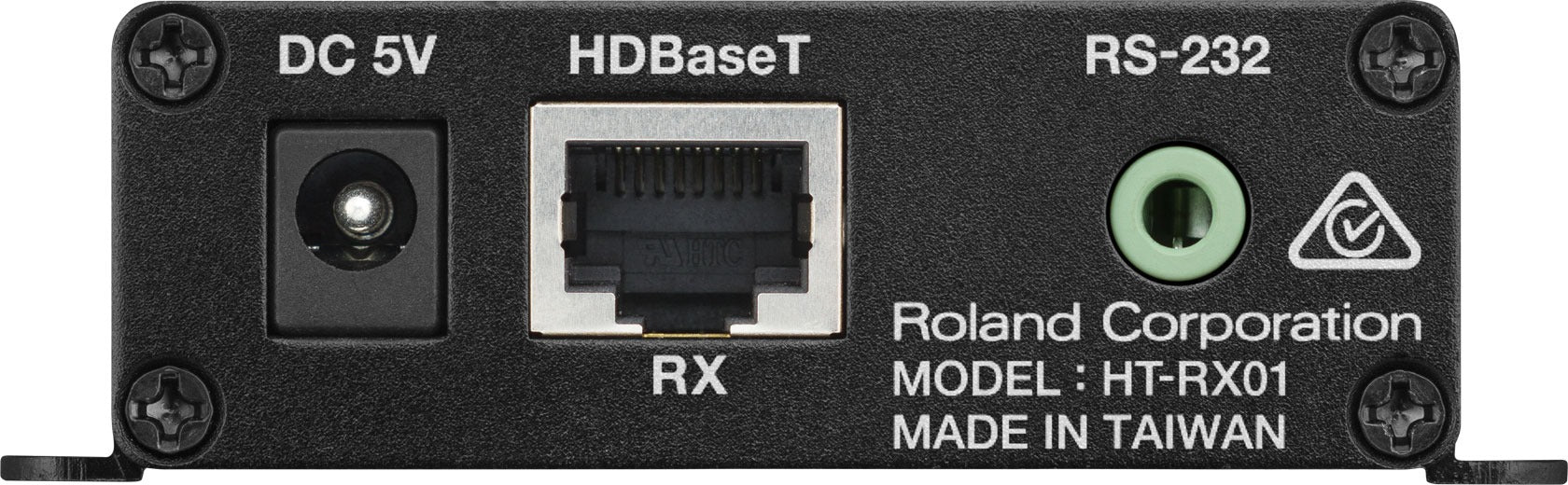

HT-RX01: RJ45 x 1 |
| Output Connectors |
HT-TX01: RJ45 x 1

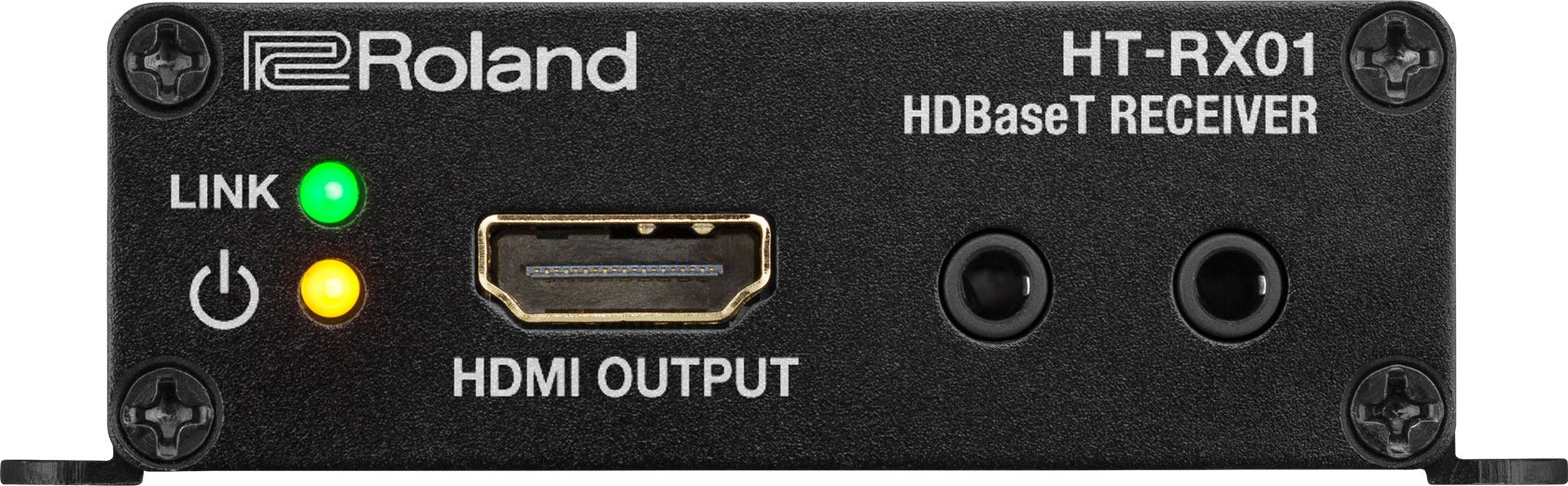

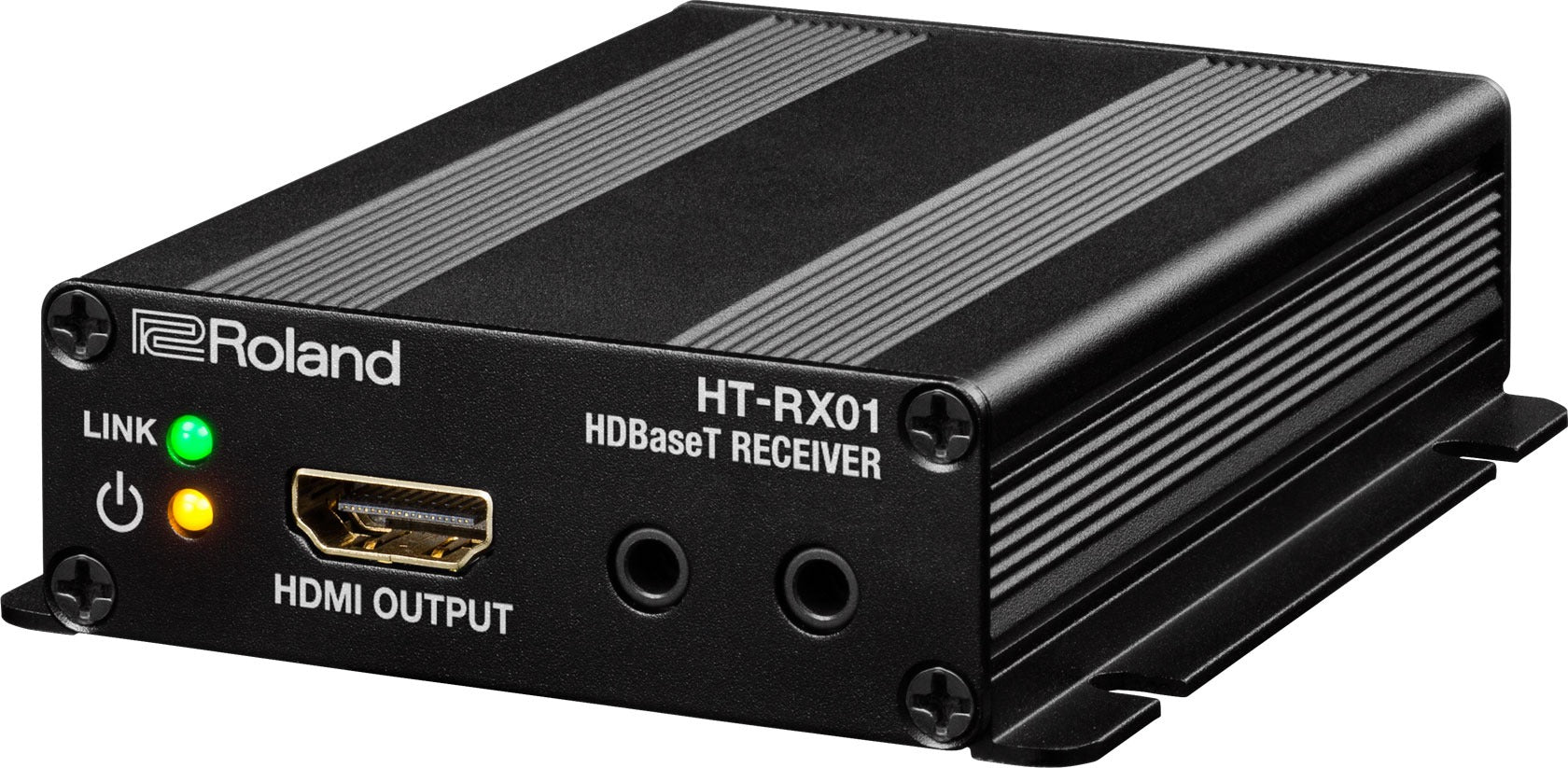

HT-RX01: HDMI x 1 : Type A 19 pins |
| Other Connectors |
RS-232 x 1 : 9 pins D-sub type
*when using additional RS-232 cable |
| Transmission distance |
The maximum is 100m (328 ft)
*To make connections, use a Cat 5e (Category 5e) or later shielded LAN cable.
*The available distance depends on the quality of the LAN cable. |
| Operating temperature range |
0 to 40 degree C
32 to 104 degrees F |
| Operating temperature humidity |
10 to 85 % (no condensation) |
| Storage temperature range |
20 to 60 degree C
4 to 140 degrees F |
| Storage temperature humidity |
10 to 85 % (no condensation) |
| Current Draw |
2 A |
| Power Supply |
AC Adaptor |
| Dimensions |
81 (W) x 93 (D) x 24 (H) mm
3-3/16 (W) x 3-11/16 (D) x 1 (H) inches |
| Weight excl. AC adaptor |
300 g
11 oz |
| Accessories |
AC adaptor
AC plugs (3 types)
RS-232 conversion cable (2 m (6 ft 6 inches))
ferrite core x 3
Owner's Manual |
| Width |
81 mm
3-1/4 inches |
| Depth |
93 mm
3-11/16 inches |
| Height |
24 mm
1 inches |
| Weight |
300 g
0 lbs. 11 oz. |
