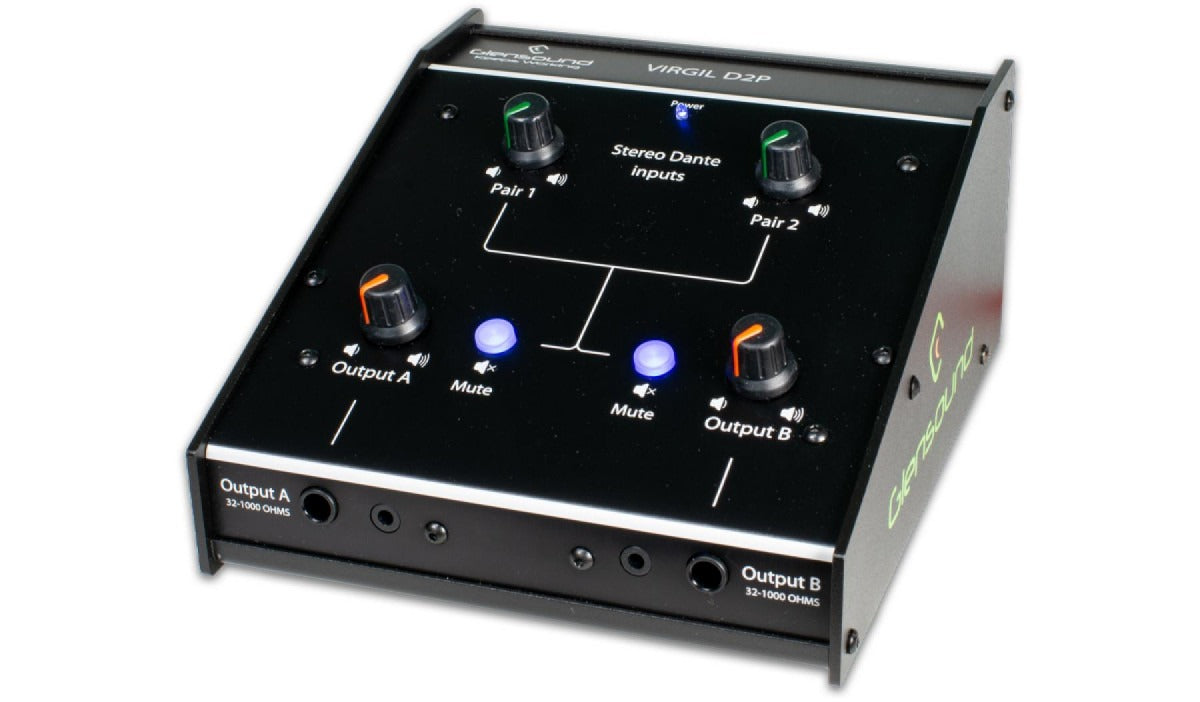

Dual desktop Stereo headphone amplifier with mixable twin stereo inputs Twin Dante Desktop Headphone Amplifier
The D2P is a headphone monitoring solution when two users sit next to each other and need to monitor one or two stereo sources. The two stereo sources come from the Dante/AES67 network and can be mixed for monitoring. Each of the stereo inputs can be routed to either headphone amp or both. This allows the users of a D2P to share the same stereo mix, or just monitor an induvial stereo input each. Each user also has their own mute button.
The D2P features Glensound’s auto impedance load balancing system to allow consistent gain ranges across the pot when using headphones between 32-1000 ohms.
Two independent stereo headphone amplifiers:
Headphone Impedance: 32 - 1000 Ohms
Max output level:+15.5dBu into 600 Ohms
Headphone connectors:6.35mm TRS or 3.5mm TRS
Pot Range:-80dB to 0dB
Frequency response:0.2dB 20Hz to 22kHz
Noise:-83dBu @ 0dBu output (into 600R)
NETWORK
Dante:Yes - UltimoX4 based
AES67 Compliant:Yes
SMPTE ST-2110-30 Compliant:No
Copper ethernet:Neutrik EtherCON connector
Fibre ethernet:No
Audio Sampling Frequency:44.1kHz & 48kHz
Transfer rate:100Mbps
Resolution:24 bit
Line up:0dBu = -18dBFs
POWER
PoE powered
Complies to IEE 802.3af
Classification Class 0
Consumption:Typical = 2W
PHYSICAL
Size:150mm x 171mm x 81mm (WxDxH)
Mechanics:Aluminium construction, anodized and laser etched, powder coated sides
