8 into 1 mono and 4 into 2 stereo selector or mixer with LED Meters 8 Channel Source Selector/ Switch/ Mixer with PPM
The Signature SW 8:2+ is a broadcast specification, 8 mono/ 4 stereo source selector switch/ mixer with PPM.

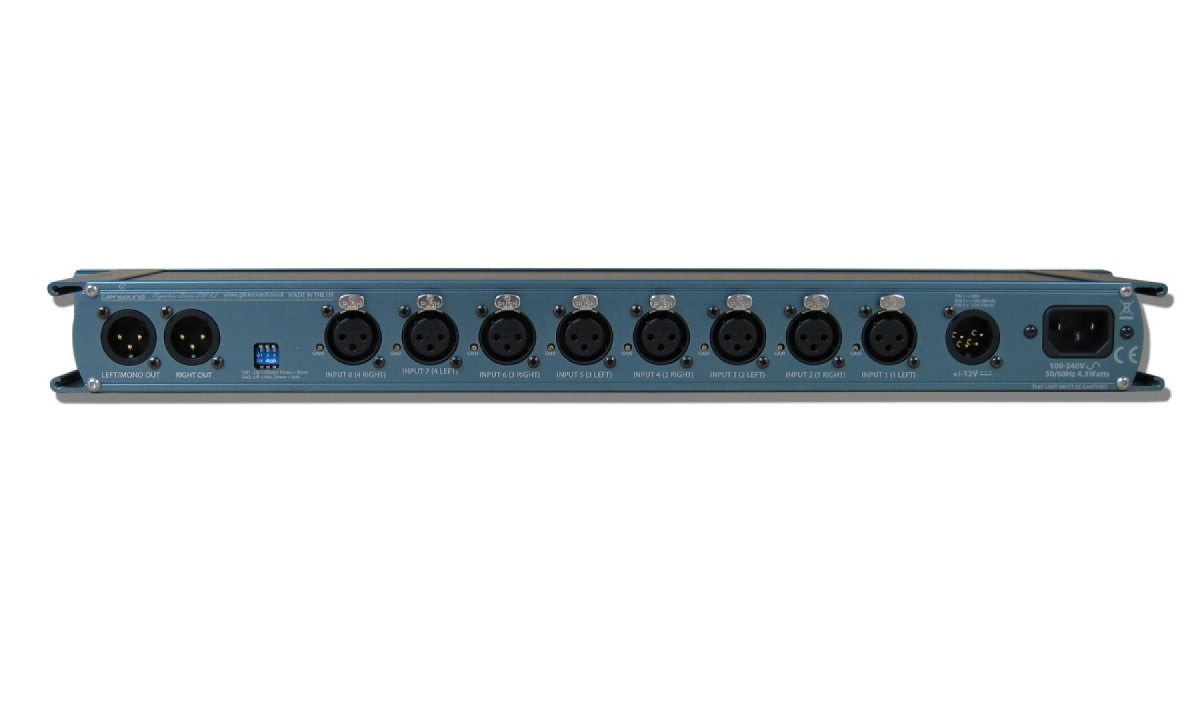

There are 8 balanced audio inputs on 3 pin Neutrik XLR sockets on the rear panel and these can be set globally to be 8 mono inputs or 4 stereo inputs.
On the front panel there are 8 large illuminated buttons for turning sources on/ off. They work as 8 individual switches when in the mono mode and 4 pairs of stereo switches when the SW 8:2+ is set to stereo.
Two balanced Neutrik XLR plugs on the rear panel provide the output of the unit, which will either be one single mono channel or 1 stereo channel when the unit is set to ‘switch’ mode or a mix of all selected sources when set to ‘mix’ mode.
Three rear panel dip switches allow for setting mix/switch, mono/stereo & output pre/post headphone volume pot.
The front panel features a 6.35mm stereo TRS jack socket for headphones monitoring, with a full size pot to adjust the volume level. This headphone circuit monitors the output audio.
A stereo 28 LED Peak Programme Meter (PPM) is also provided on the front panel for a visual indication of the audio currently being routed/ mixed to the output. The PPM provides a 1dB resolution per LED.
Power is provided by an internal switch mode power supply, with a wide input range. There is also an input for external +/-12V DC power. The +/-12V DC input can be connected to the optional Signature PS1external DC Master Power Station, for situations where a redundant power supply is desirable.
May be delivered with a black finish
AUDIO INPUTS
Maximum Input Level: +28dBu
Input Impedance: 47k Ohms balanced, 23k Ohms unbalanced
Balanced Input Type: Sophisticated electronically balanced (Can be wired unbalanced)
Connectors: Neutrik 3 pin XLR sockets
Input Gain Control: +10/-10dB
AUDIO OUTPUTS
Output Impedance: Connectors: Neutrik 3 pin XLR plugs
Noise: >-86dBu RMS 22-22kHz (1 source selected)
Frequency Response: THD + Noise: < 0.008% @ 1kHz
Interchannel Cross Talk: >78dB 100Hz to 15kHz
Maximium Output Level: +24dBu
HEADPHONE OUTPUTS
Gain Range: +10dB to Off
Headphone Impedance: 32 - 1000 Ohms
Maximum Output Level: +17dB into 600 Ohms
Peak Programme Meter (PPM)
Number of LEDS: 28 (per channel)
LED Resolution: 1dB
Number of Channels: Two
Range: -14 to +13dBu
POWER
Mains Input: Filtered IEC 100 to 230 VAC 47 - 63Hz
AC Consumption: 4.3 Watts @ 230VAC
DC Input: 4 Pin Neutrik XLR Plug +/-12V
DC Consumption: +12V = 88mA, -12V = 35mA
Internal Mains Fuse: 20mm 1A Anti Surge
PHYSICAL
Size: 445 x 163 x 44mm (LxDxH) no rack ears / 482mm 19" (1RU) with rack ears
Weight: 1.35kg
Mechanics: All aluminium construction, anodised and laser etched
Shipping Carton: Rugged export quality cardboard carton 610 x 420 x 130mm LxDxH
Shipping Weight: 2.8kg
INCLUDED ITEMS
Mains Lead: 2 metre long (UK & Europe only)
Rack Bolts: 4 off Pozi head M6
Feet: 4 off rubber stick on feet
Handbook: Full A4 handbook available to download and linked by QR code on device
