Power station master DC power supply for up to 6 Signature units. +/- 12VDC Power Station Master Power Supply
Power Supplies

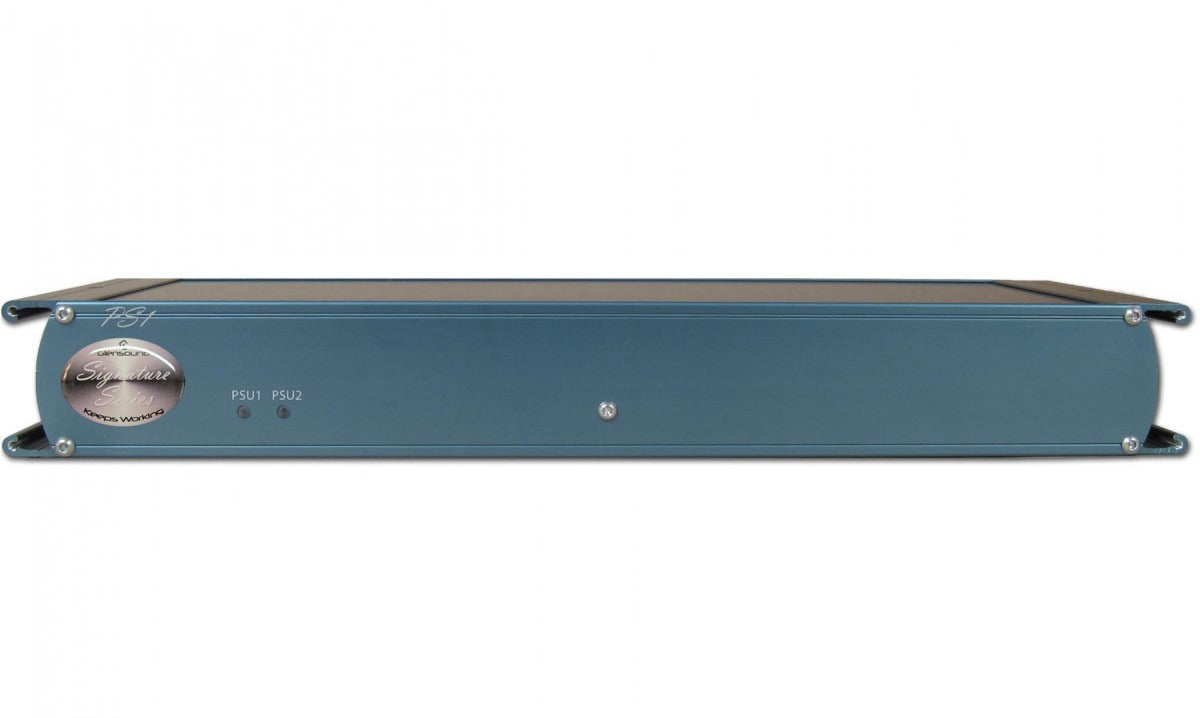

The Signature PS1 Power Station provides a fully resilient back up power supply to your Signature Series units. It contains two switch mode power supplies, each capable of powering up to three separate Signature Series units. A pair of bright front panel LEDs indicate that each power supply is on and active. The master AC power input accepts 100-240 VAC for worldwide compatibility.
Master And Back Up Power
As well as providing a backup DC supply for up to six Signature Series units, the PS1 can also act as master DC power distribution to six Signature units.
Safety Features
All outputs are individually fused so a short circuit on one will not affect any of the others.
Installation
For ease of installation and to allow quick connectivity to other Signature Series units, every Signature PS1is shipped with 6 x 4 pin XLR DC cables which are each two metres long.

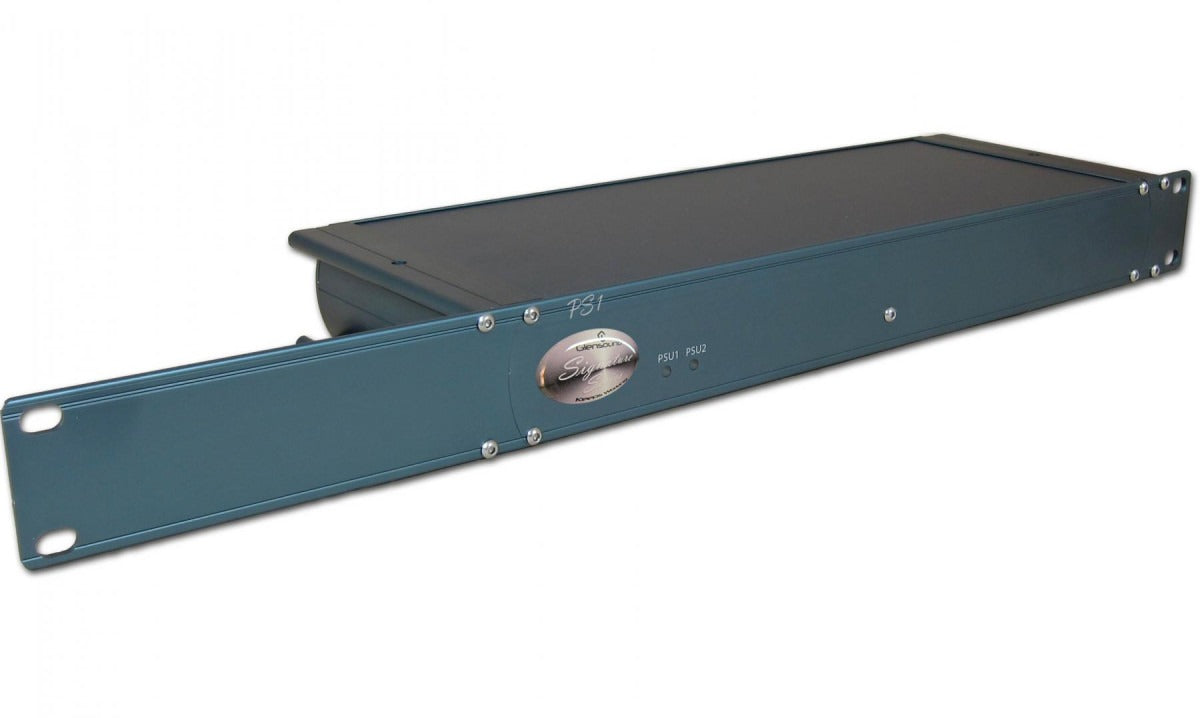

As the PS1 is only 336mm wide without the rack ears, it can easily be installed inside equipment racks, and fixed vertically via the flush mounting side wings. This provides the convenience of power distribution or backup without taking up any rack space.
May be delivered with a black finish
POWER
Mains Input: Filtered IEC, 100 to 240VAC 47 - 63Hz
Internal Mains Fuse: 20mm 1A Anti Surge
DC Output: 6 off 4 Pin Neutrik XLR plug ± 12V
AC Consumption: 10 Watts @ 230VAC
DC Output Fuse: Internal polyfuse 250mA per rail per output
ACCESSORIES
DC Output Cable: 6 x 2 metre long cables, 4 pin XLR plug to 4 pin XLR socket included
PHYSICAL
Size: 336 x 123 x 44mm (LxDxH) no rack ears, 482mm (19”) 1RU with rack ears
Shipping Weight: 3kg
Mechanics: All aluminium construction, anodised and laser etched
Weight: 0.85kg
Shipping Carton: Rugged export quality cardboard carton 610 x 420 x 130mm (LxDxH)l
