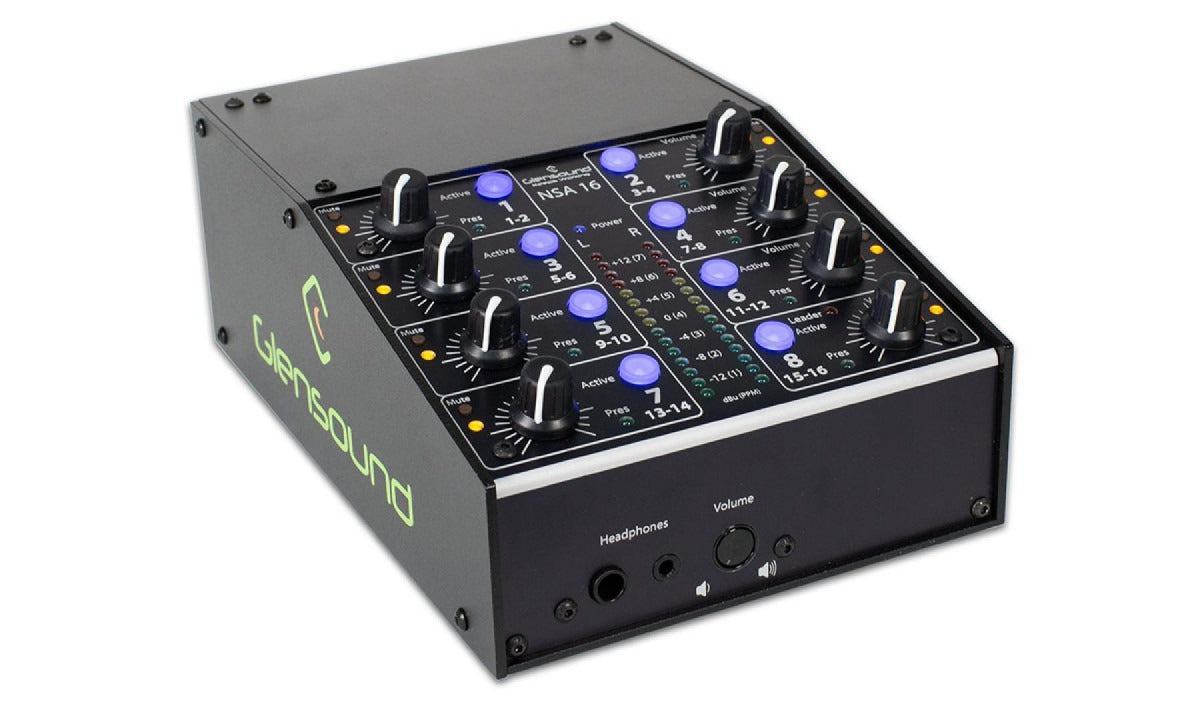

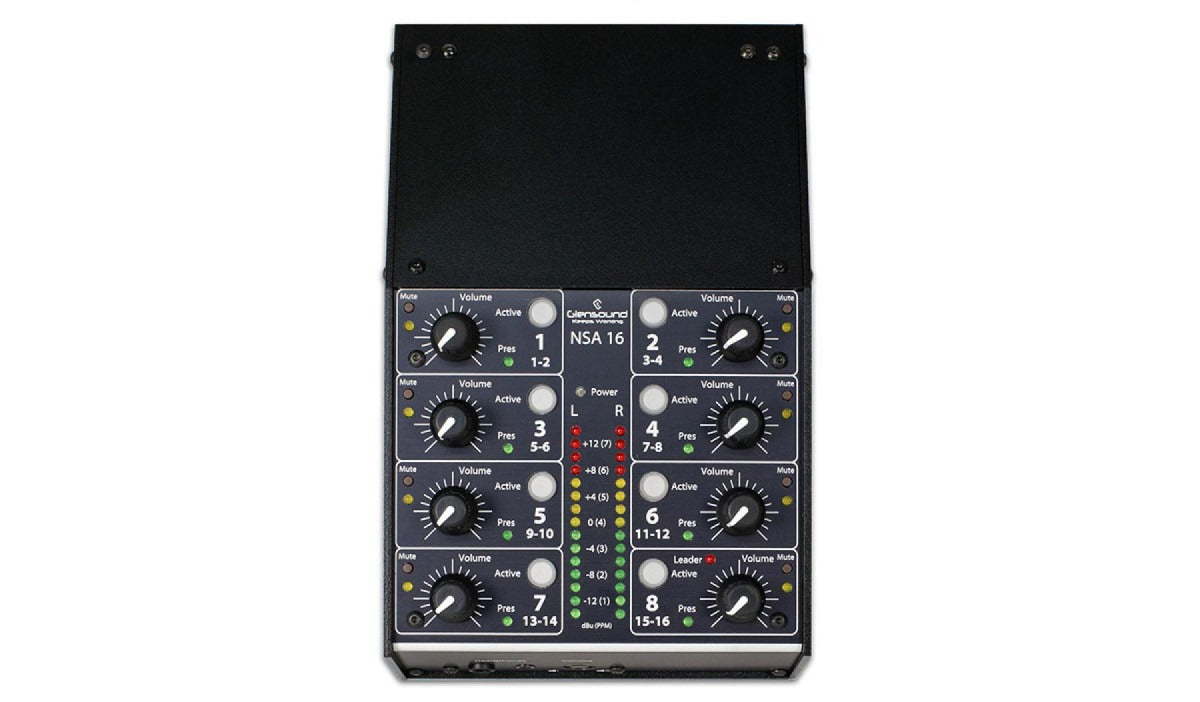

Network signal adjuster. Adjusts Dante signal levels inline for 16 channels. 8 pots on a desktop unit. PFL & level meter Dante/AES67 Inline Network Signal Adjuster
Adjusts the signal level of 16 Dante/AES67 channels
8 Stereo signals
Channel mute with signal present per pair
Primary and secondary Dante
SPF fibre modules available
PoE, Mains or DC powering options

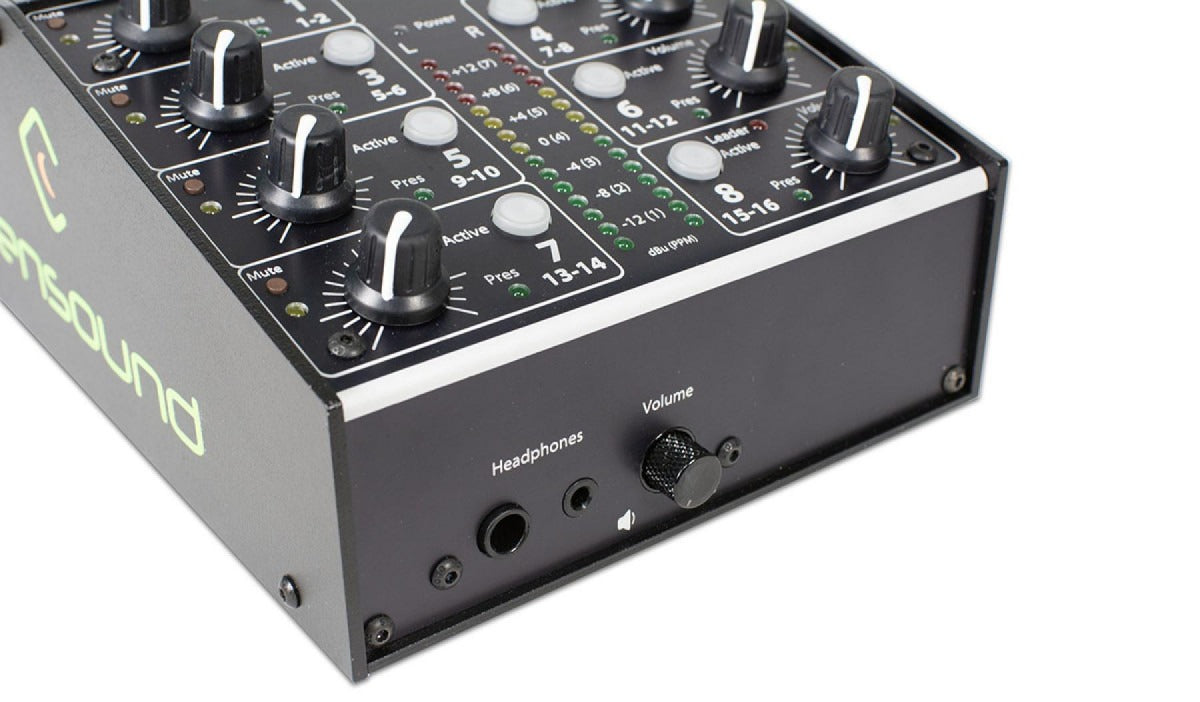

Headphone output for monitoring with sprung recessed pot with 6.35mm, 3.5mm
Recall current level with visual cue.
VU meter to monitor signal levels
Also Available in AES67/Ravenna Version
NETWORK OPTIONS:
DANTE/AES67 VERSION

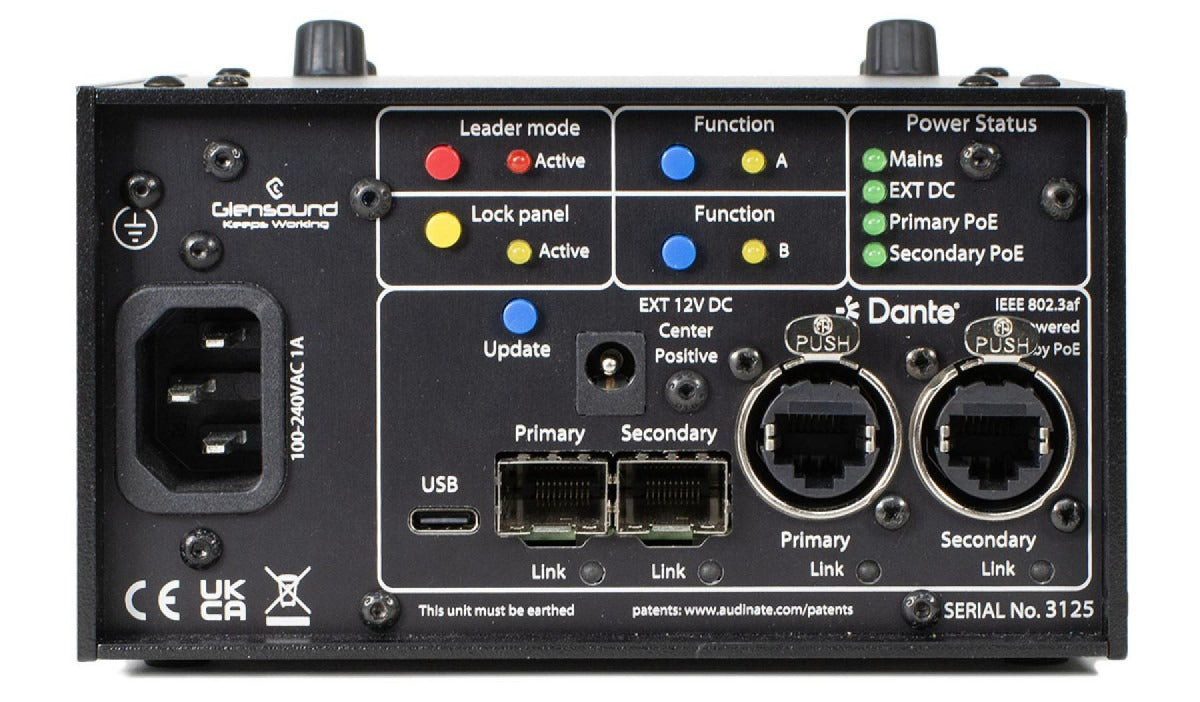

Physical: 2 x Neutrik Ethercons Cat6 RJ45s & 2 x SFP slots
Type: Fully redundant primary & secondary circuits
Sample Frequency: 48K
Resolution: 24 Bit
Control & Routing: Via Free Dante Controller
AES67: Can be configured for AES67
RAVENNA/AES67 VERSION
Physical: 2 x Neutrik Ethercons Cat6 RJ45s & 2 x SFP slots
Type: Fully redundant primary & secondary circuits
AES67: Yes
High Sample Rates: 44.1kHz - 192kHz
PTPv2: Master or Slave, IEEE-1588-2008 standard
SMPTE ST 2110-30: Yes. Including level C and CX
SMPTE ST2022-7: Yes. Seamless data switching
NMOS IS-04 (Disovery): Yes
NMOS IS-05 Routing): Yes
Remote Control: Web browser or Aneman
