Stereo digital to analogue converter

Key Features

  • Modern high quality Digital to Analogue audio converter
  • Analogue output on 2 x 3 pin XLR plugs
  • Analogue output also available on 2 x RCA phono sockets
  • Digital input available on 1 x AES on 3 pin XLR socket
  • Digital input also available on 1 x S/PDIF on a phono socket
  • Digital input also available on optical TOSLINK
  • Front panel headphone connection for monitoring
  • Front panel display for easy setup
  • Mains powered and external DC
  • Sample frequency up to 192k

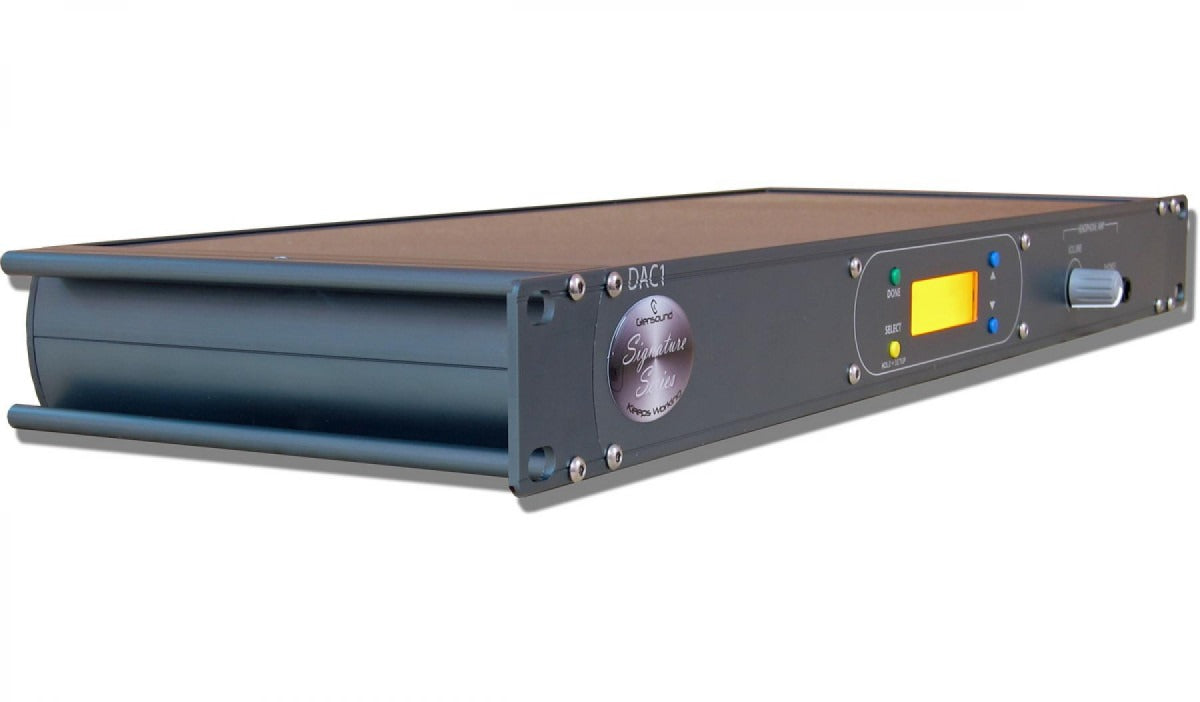

The Signature DAC 1 is a broadcast specification, stereo digital to analogue audio converter.

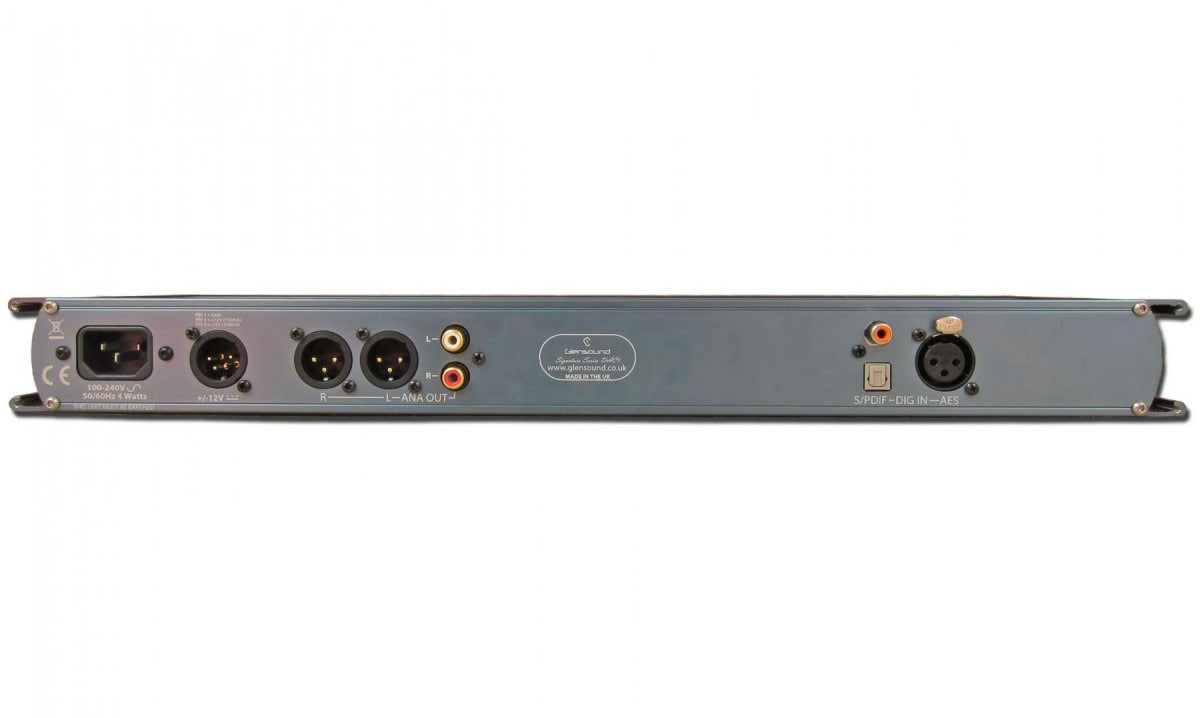

The digital inputs are available separately in three formats:
- 3 pin XLR using AES
- RCA phono plug using S/PDIF
- optical connectors using TOSLINK

The analogue outputs are available separately in two formats:
- balanced XLR connections
- unbalanced RCA phono connections

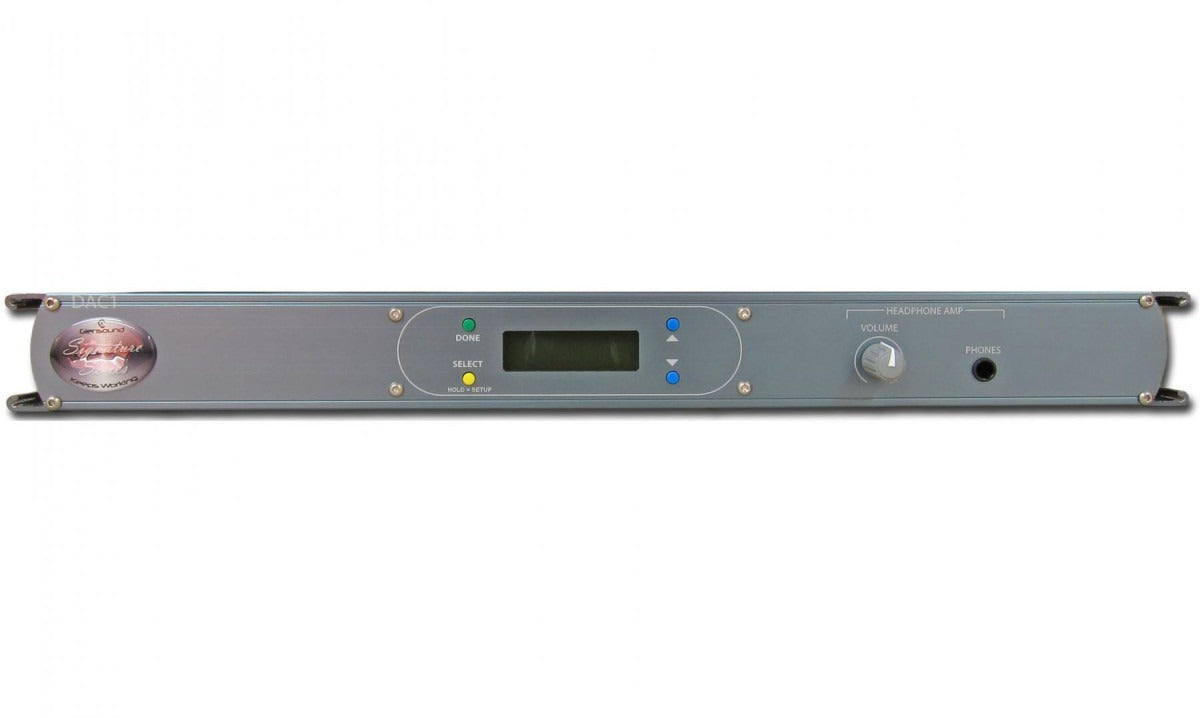

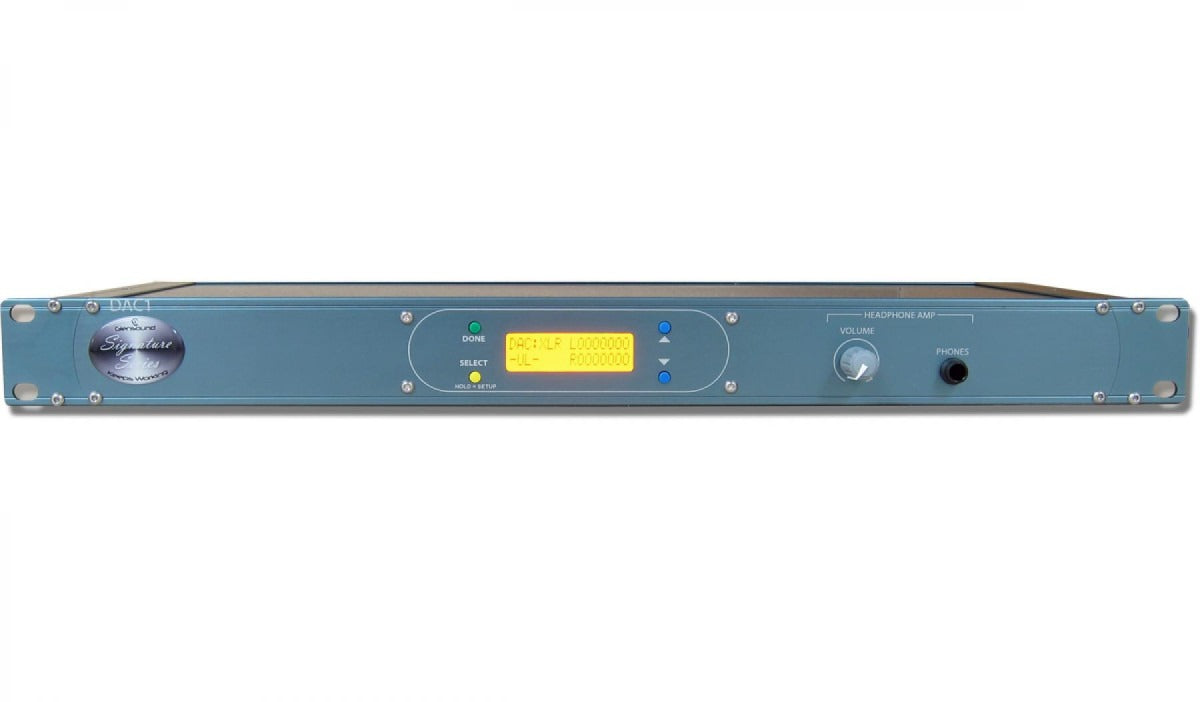

The front panel features a 6.35mm stereo jack socket for headphones monitoring, with a full size pot to adjust the volume level.
A front panel screen shows current operation mode and allows configuration of all unit parameters.

Power is provided by an internal switch mode power supply, with a wide input range.

There is also an input for external 12V DC power. The 12V DC input can be connected to the optional Signature PS1 external DC Master Power Station, for situations where a redundant power supply is desirable.

Technical Information

AUDIO

Digital Inputs
Sample Frequency Rates: 44.1kHz to 192kHz
Resolution: up to 24 Bit
0dBFs equivalents: +18dBu, +12dBu, +6dBu, 0dBu
Physical Intputs: AES/EBU Balanced XLR
                         S/PDIF RCA Phono
                         TOSlink optical

Analogue Outputs
Output impedance: 110 Ohms
Balanced Output Connectors: Neutrik XLR 3 pin plugs
Unbalanced Output Connectors: Gold Plated RCA Phono sockets
Noise: -108dBFs
Frequency Response: >-0.5dB 15Hz to 22kHz @48k sampling
THD + Noise: 0.001% @ 1kHz

Headphone Output
Output Gain Range: +10dB to Off
Headphone Impedance: 100 - 1000 Ohms
Maximum Output Level: +18dB into 600 Ohms

POWER

Mains Input:  Filtered IEC, 100 to 240VAC 47 - 63Hz
Internal Mains Fuse:  20mm 1A Anti Surge
DC Input:  4 Pin Neutrik XLR plug +/- 12V
DC Consumption:  +12V 200mA, -12V 100mA
AC Consumption: 4 Watts

PHYSICAL

Size:  445 x 163 x 44mm (LxDxH) no rack ears, 482mm 19” (1RU) with rack ears
Weight:  1.35kg
Shipping Weight: 2.8kg
Shipping Carton:  Rugged export quality cardboard carton 610 x 420 x 130mm LxDxH
Mechanics:  All aluminium construction, anodised and laser etched

INCLUDED ITEMS

Mains Lead: 2 metre long (UK & Europe only)
Rack Bolts: 4 off Pozi head M6
Feet: 4 off rubber stick on feet
Handbook: Full A4 handbook available to download and linked by QR code on device
