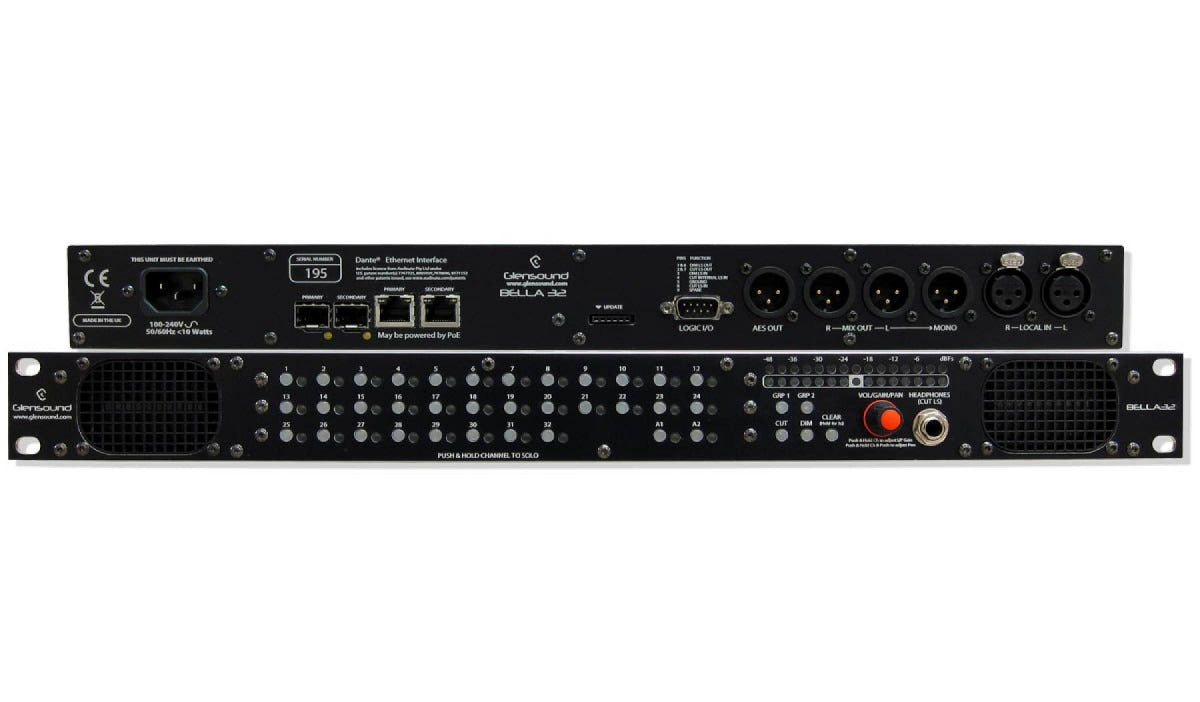

1u 19" rack mount 32 channel audio monitoring unit 32 Channel Dante / AES67 Audio Monitor
Bella 32 is a 2 buss summing matrix confidence monitor designed for outside broadcast trucks, studios, theatre and professional audio applications. It is perfect for easy and cost effective monitoring of multiple network audio sources, ideal for busy production environments and perfect for monitoring multiple network intercom & programme feeds.

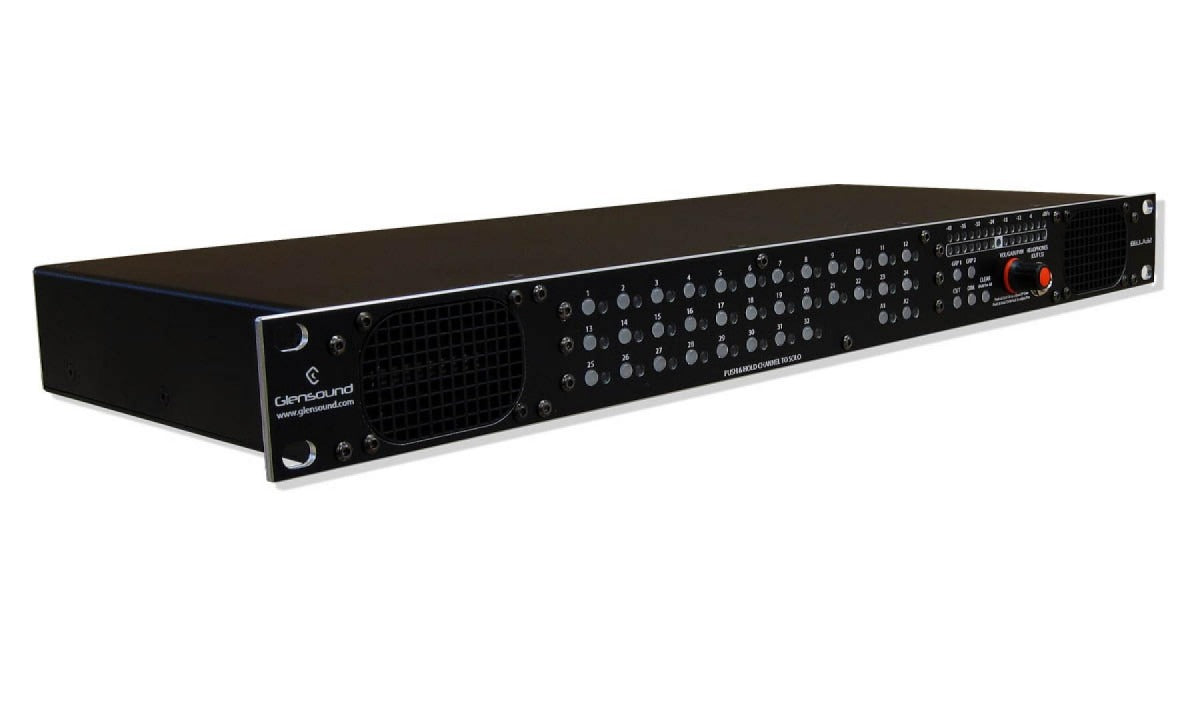

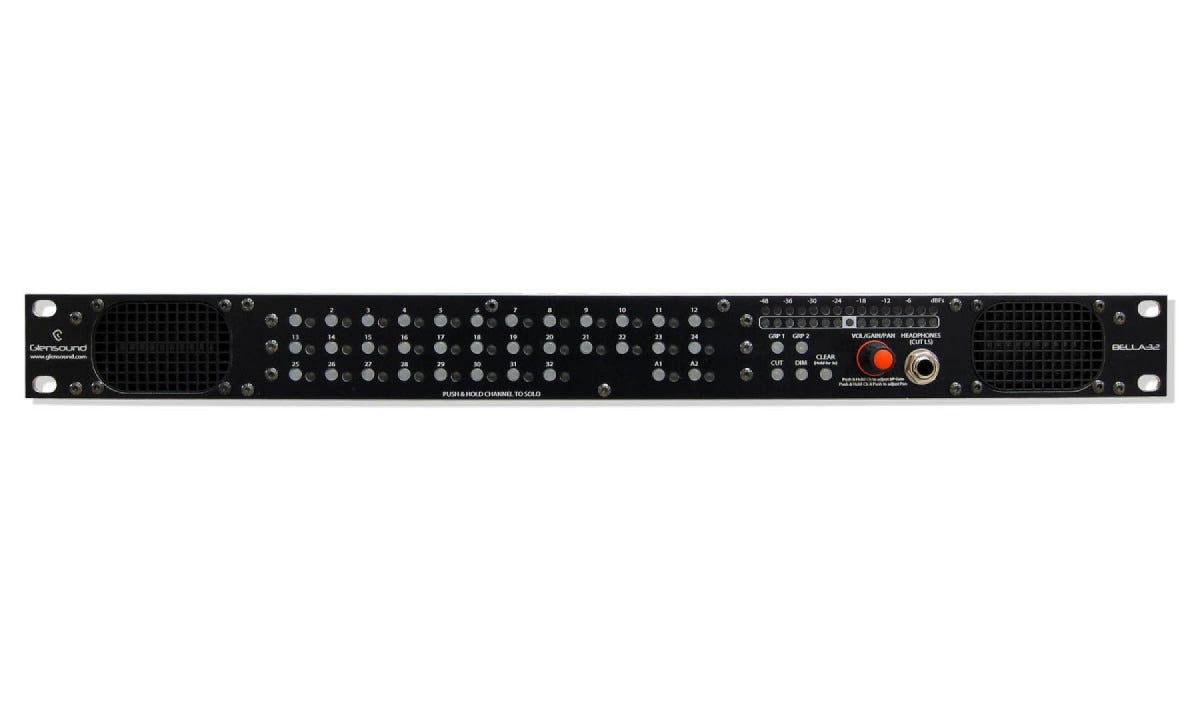

The 2 front panel loudspeakers (originally designed as a modern full range flat screen TV driver) are driven from a DSP to compensate for their size, the result is surprisingly good, with clear crisp vocals and highly intelligible reproduction of wider band audio sources. They are driven from a class D amplifier and have sufficient output level for most environments.
Robust proven construction techniques, simple reliable interface and excellent specification will help make your technician’s life hassle free. Whilst the low cost and long asset life will keep the accountant satisfied.
Two available options:
Bella 32 - Dante/AES67
Bella 32/R -Ravenna/AES67
AUDIO
Channel Input Gain Controls +21 to -21dB (In 1.5dB steps)
Loudspeaker/ Headphone Gain Control +10.6dB to Off
Channel Off Switch Fully muted (- infinity dB) when off
PPM Range/ Resolution 0dBFs to -48dBFs, 3dB Resolution 0 to -36dBFs, 6dB Resolution -36 to -48dBFs
Channel Output Pan Fully Off to Fully On
Analogue Input Type Electronically balanced, (can be wired unbalanced)
Analogue Input Impedance >20K0HMS
Analogue Input Connectors Neutrik XLRs
Analogue Input Line Up Line level (0dBu (-18dBFs))
Analogue Input Frequency Response >= 0.5dB 22Hz to 22kHz,Measured at Mix Output Mono
Analogue Input THD + Noise (ref +8dBu) >= 0.004% @ 1kHz
Analogue Output type Electronically balanced
Analogue Output Connectors Neutrik XLRs
Analogue Output Impedance Maximum Analogue Output Level +17.4dBu
Analogue Output Frequency Response >= -0.1dB 22Hz to 22kHz
Analogue Output Noise -91dB @ lineup (residual noise)
Analogue Out THD + Noise (ref =8dBu) 0.002% @ 1kHz
Headphone Impedance 100 - 1000 Ohms
Maximum Headphone Level +17dBu into 600 Ohms
Present LED Threshold -20dBu
Present LED Hold Time 3 seconds
Present LED Clip Indication Flashes when within 1dB of clip point
SIZE & POWER
Dimensions 19" wide 1RU high 185mm deep (chassis)
Weight 1800g (3.95 Pounds)
Mains Input 100 to 240VAC 50/60Hz
Power Consumption PoE (Power Over Ethernet) Maybe powered on either copper network port Complies to: IEEE 802.3af-2003, Classification Class 0
Shipping Weight 4Kg
Shipping Carton Export quality cardboard carton, 62 x 41x 12 cms
NETWORK AUDIO
Primary Network Protocol Dante® (Ravenna option)
AES67 Complient
SMPTE2110 Complient
DDM Certified
Sample Frequency 48kHz
Resolution 24 Bit
Network Interface Type Gigabit Ethernet

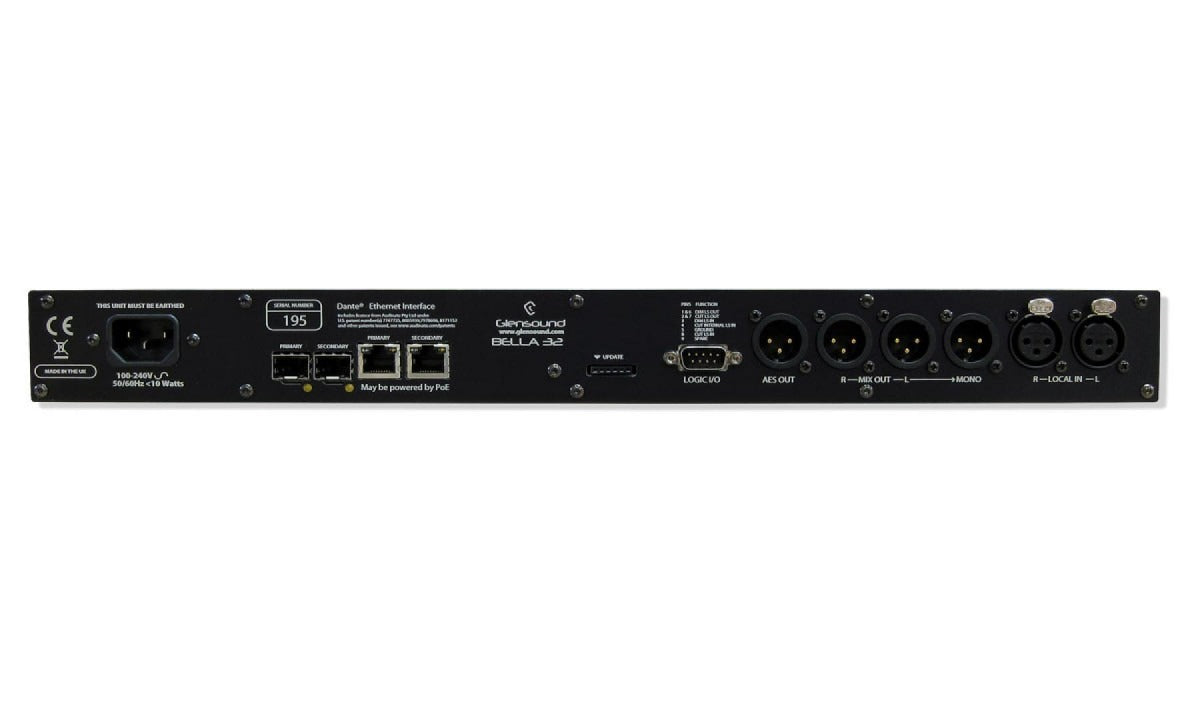

Network Interface Physical 2 x Rj45 copper, 2 x SFP Slots (SFP Modules Not Included)
ENVIROMENTAL
Operating Temperature 0 to +50°C (32 to 122°F)
Storage Temperature -20 to +70 °C (-4 to 158°F)
Relative Humidity 0 to 95% non-condensing
INCLUDED ITEMS
Handbook A4 user guide (download also available)
Rj45 Cable 1 x 2M Rj45 network cable
Mains Cable 1 x IEC Mains cable (UK & Europe Only)
