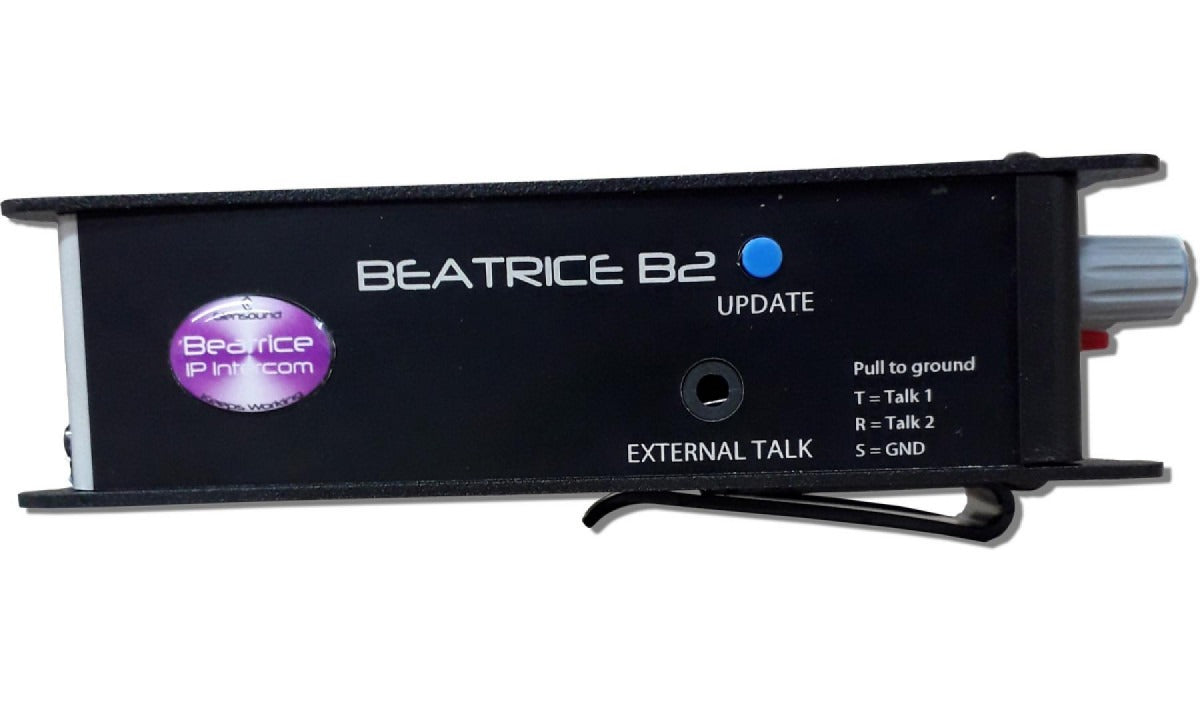

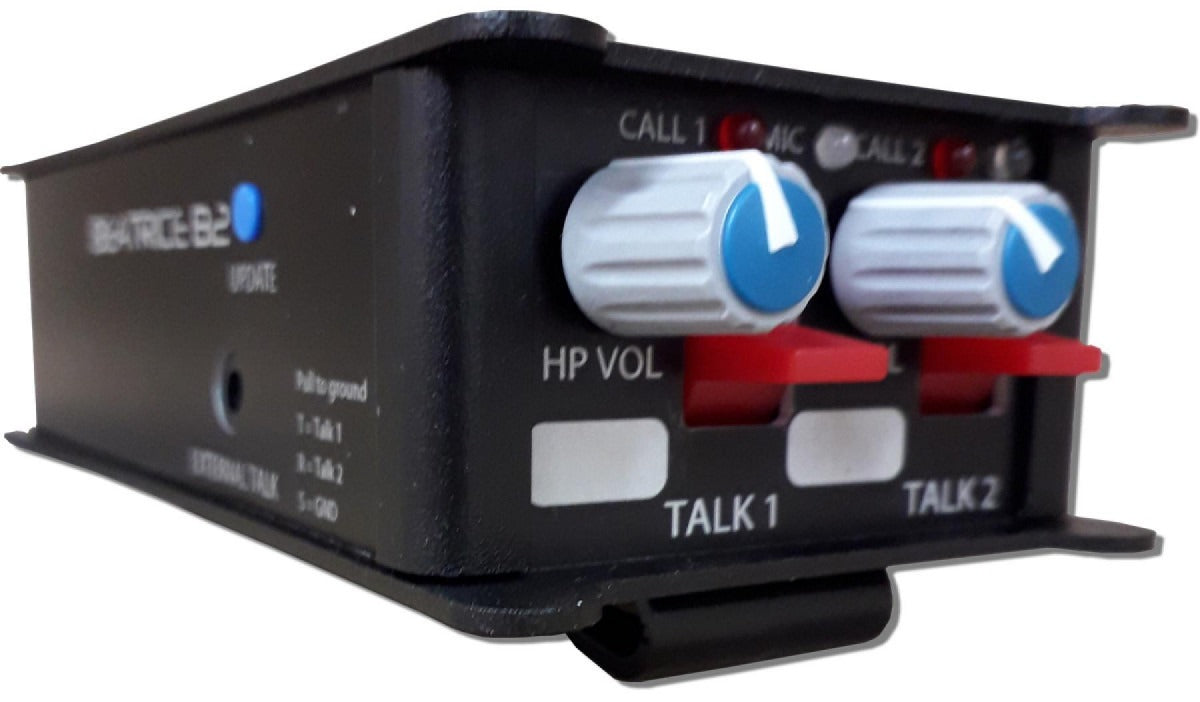

The Glensound BEATRICE B2 is an ultra compact, robust, portable two channel beltpack intercom designed for broadcast, theatre and professional audio applications.
It is part of our Beatrice intercom system that utilises the reliable and proven Dante network audio transmission protocol to allow real time distribution of uncompressed audio across standard ethernet networks. As such the BEATRICE B2 is also fully compatible with other manufacturers’ equipment using the Dante protocol. It is also AES67 compliant.
This small beltpack was designed to be very easy to use for the operator and simple to set up for the technician. It includes all the basic functionality required for small intercom systems and none of the overly complex installation requirements normally associated with large systems.
Technical Information

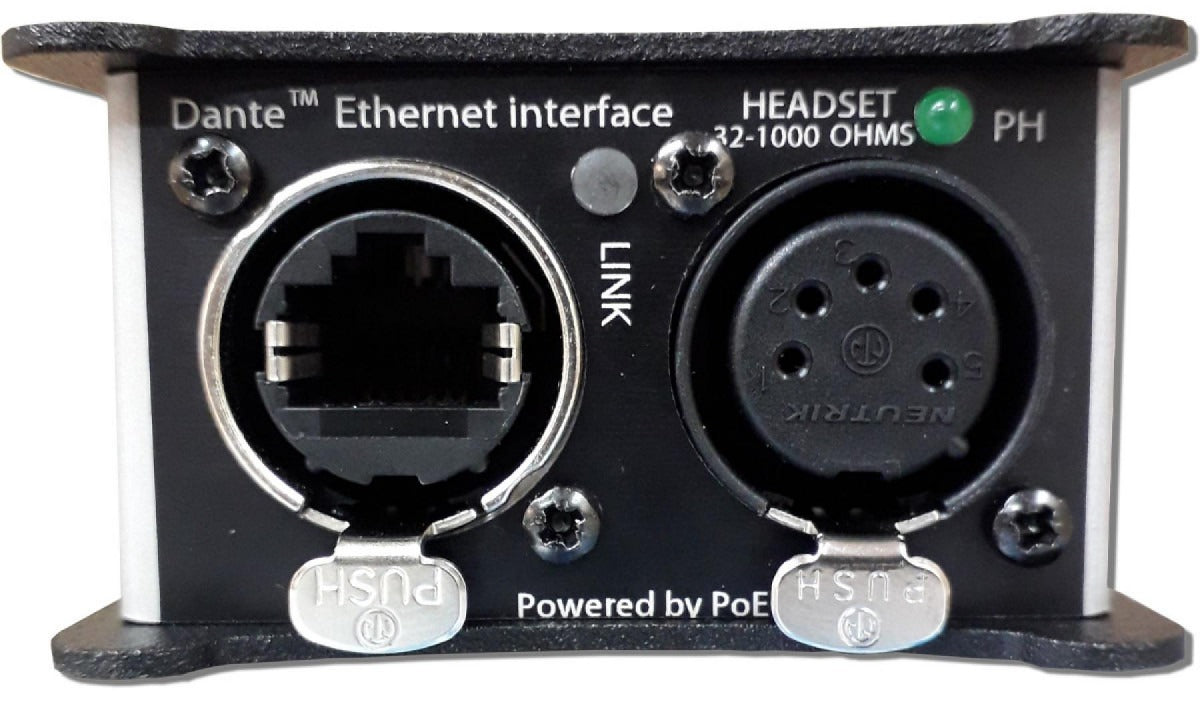

NETWORK Physical Interface: 1 off RJ45 Neutrik Ethercon Audio Sample Frequency: 48kS/s Transfer Rate: 100Mbps Dante® Chipset: Ultimo UXT-01-004 (Note: Audiante recommend no more than 10 Ultimo chipsets on one network UNLESS another Dante® device such as the Brooklyn Module (found in 8 channel Beatrice/ Dark units), is on the same network ) AES67 Compliant: The audinate Ultimo Chipset is AES67 Compliant.
AUDIO Mic Gain Range:60 to 20dB Phantom power: 12 Volts Equivalent Input noise: 110dB (20-20Khz RMS weighted 300 Ohms) Headphone Impedance: 32-1000 Ohms Max headphone Output Level: +10dB into 600 Ohms Headset Connector: 5 pin XLR Socket fitted as standard, 4 pin XLR plug (order code B2 4pin) Band Pass Filter: 50Hz to 15kHz
CALL CIRCUIT Inband Calling Frequency: 20kHz Amplitude: -20dBFs Duration Of Signal: 2 Seconds Compatibility: All Glensound Beatrice units & studio technologies
POWER Power Over Ethernet (PoE): 48V Consumption: 3 Watts
PHYSICAL Mechanics: All aluminium with laser etched panels and light textured black powder coated sides Beltclip: Long life spring loaded plastic Size (Body Excluding Beltclip): 65x132x37mm (WxLxH) Weight: 648g / 8.8oz Shipping weight: 0.75 Shipping Size 31x26x9 Shipping Carton: Rugged export quality cardboard
ENVIRONMENTAL
Operating Temperature: 0 to +50°C (32 to 122°F) Storage Temperature: -20 to +70°C (-4 to 158°F) Relative Humidity: 0 to 95% non-condensing
INCLUDED ITEMS Handbook: Physical A5 (download also available) RJ45 Network Cable: 2 metre Cat5 RJ45 plug / RJ45 plug Cable
Options
As standard the Beatrice B2 is supplied with a 5 pin XLR headset interface.
It can however be ordered with a 4 pin headset interface instead.
Part numbers are:
Beatrice B2 (5 Pin XLR)
Beatrice B2-X4 (4 Pin XLR)
Wiring for the headset interfaces is to common standards as detailed below. It may be possible to provide other custom wiring configurations if required, please email sales@glensound.com with your requirements.
Beatrice B2 Wiring Info
Connector type: 5 Pin XLR Socket (female XLR fitted, suitable for mating with cable mounted male)
PIN 1: Mic - PIN 2: Mic + PIN 3: GND PIN 4: Headphone Left PIN 5: Headphone Right
Beatrice B2-X4 Wiring Info
Connector type: 4 Pin XLR Plug (male XLR fitted, suitable for mating with cable mounted female)
PIN 1: Mic - (Mic GND) PIN 2: Mic + PIN 3: Headphone GND PIN 4: Headphone +
