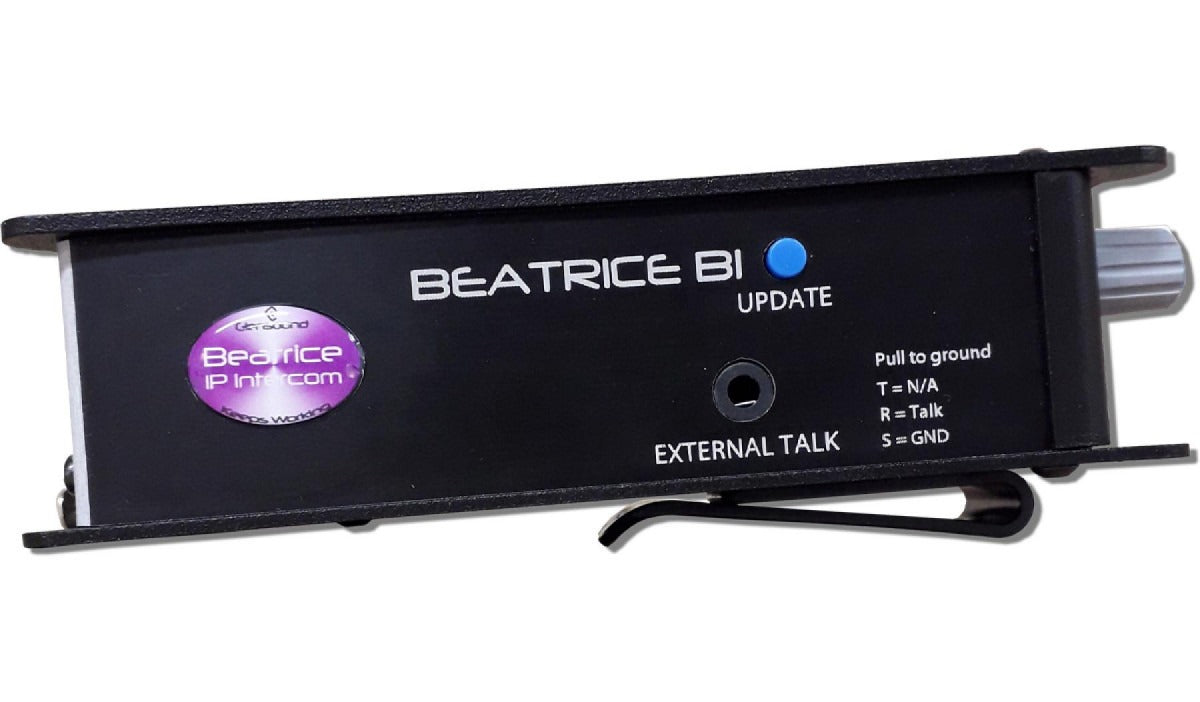

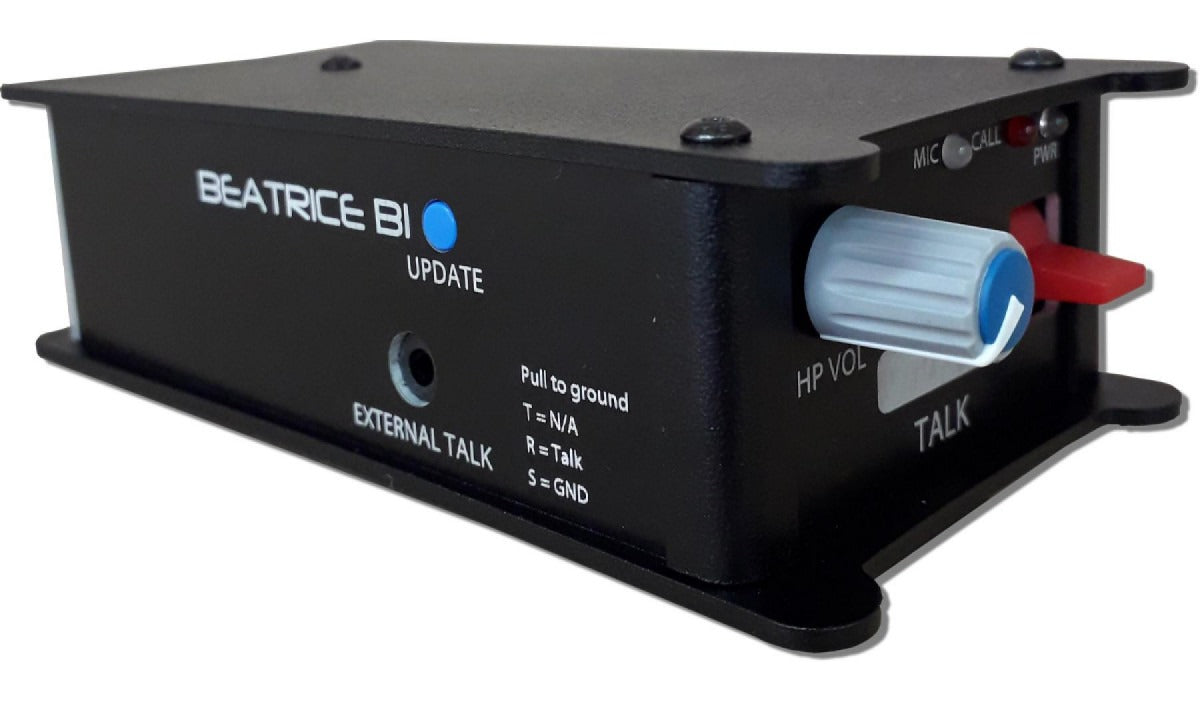

1 Channel Ultra Compact Beltpack with 4pin XLR Male Single Channel Network Audio Ultra Compact Beltpack Intercom
NETWORK
Physical Interface: 1 of RJ45 Neutrik Ethercon
Audio Sample Frequency: 48kS/s
Transfer Rate: 100Mbps
Dante® Chipset: Ultimo UXT-01-004 (Note: Audiante recommend no more than 10 Ultimo chipsets on one network UNLESS another Dante® device such as the Brooklyn Module (found in 8 channel Beatrice/ Dark units), is on the same network )
AES67 Compliant: The audinate Ultimo Chipset is AES67 Compliant.
AUDIO
Mic Gain Range: 60 to 20dB
Phantom power: 12 Volts
Equivalent Input noise: 110dB (20-20Khz RMS weighted 300 Ohms)
Headphone Impedance: 32-1000 Ohms
Max headphone Output Level: +10dB into 600 Ohms
Headset Connector: 5 pin XLR Socket fitted as standard, 4 pin XLR plug (order code B1 4pin)
Band Pass Filter: 50Hz to 15kHz
CALL CIRCUIT
Inband Calling Frequency: 20kHz
Amplitude: -20dBFs
Duration Of Signal: 2 Seconds
Compatibility: All Glensound Beatrice units & studio technologies.
POWER
Power Over Ethernet (PoE): 48V
Consumption: 3 Watts
PHYSICAL
Mechanics: All aluminium with laser etched panels and light textured black powder coated sides.

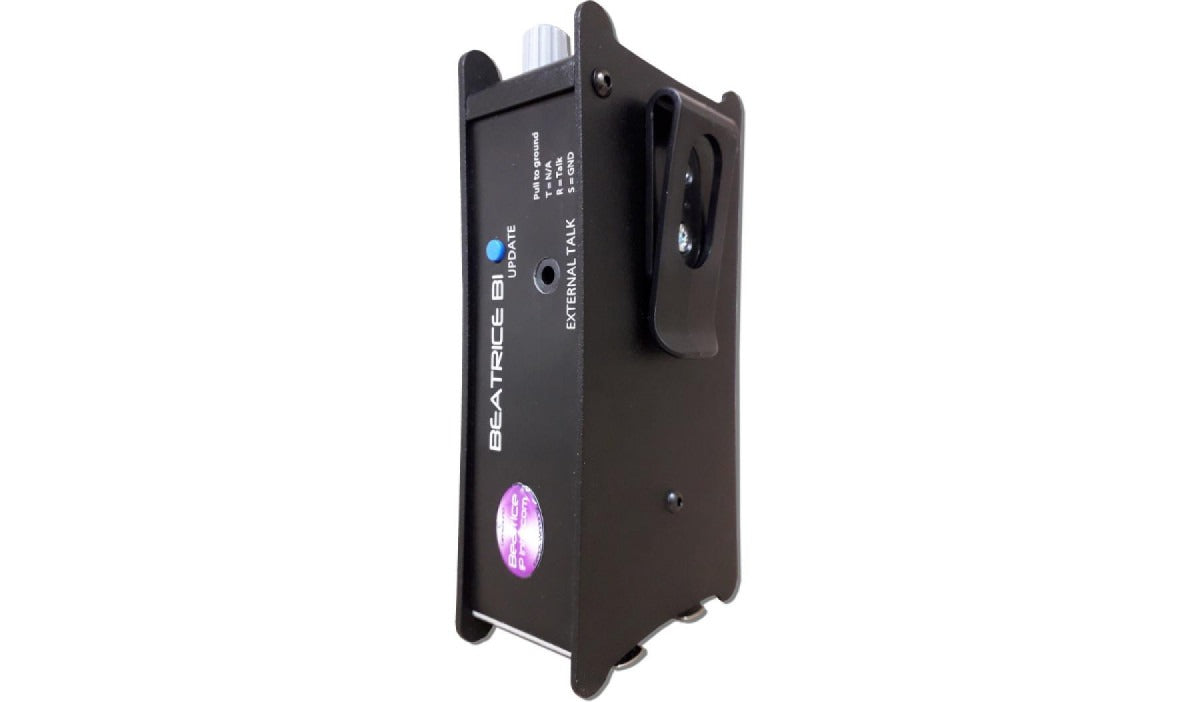

Beltclip: Long life spring loaded plastic
Size (Body Excluding Beltclip): 65x132x37mm (WxLxH)
Weight: 648g / 8.8oz
Shipping weight: 0.75
Shipping Size 31x26x9
Shipping Carton: Rugged export quality cardboard
ENVIRONMENTAL
Operating Temperature: 0 to +50°C (32 to 122°F)
Storage Temperature: -20 to +70°C (-4 to 158°F)
Relative Humidity: 0 to 95% non-condensing
INCLUDED ITEMS
Handbook: By download
RJ45 Network Cable: 2 metre Cat5 RJ45 plug / RJ45 plug Cable
As standard the Beatrice B1 is supplied with a 5 pin XLR headset interface.
It can, however, be ordered with a 4 pin headset interface instead.
Part numbers are:
Beatrice B1 (5 Pin XLR)
Beatrice B1-X4 (4 Pin XLR)
Wiring for the headset interfaces is to common standards as detailed below. It may be possible to provide other custom wiring configurations if required, please email sales@glensound.com with your requirements.
Beatrice B1 Wiring Info
Connector type: 5 Pin XLR Socket (female XLR fitted, suitable for mating with cable mounted male)
PIN 1: Mic -
PIN 2: Mic +
PIN 3: GND
PIN 4: Headphone Left
PIN 5: Headphone Right
Beatrice B1-X4 Wiring Info
Connector type: 4 Pin XLR Plug (male XLR fitted, suitable for mating with cable mounted female)
PIN 1: Mic - (Mic GND)
PIN 2: Mic +
PIN 3: Headphone GND
PIN 4: Headphone +
