Key Features
- 21.5-inch 1920×1080 QD-LED Panel
- 1000nits high bright PQ/HLG HDR
- 100% DCI-P3 wide color gamut coverage
- VICO 1.97 A-class Eye Protecting LCD
- 12G-SDI, 4x3G-SDI, HDMI®2.0 4K input
- 4-ch SDI/HDMI® mixed formats multiview

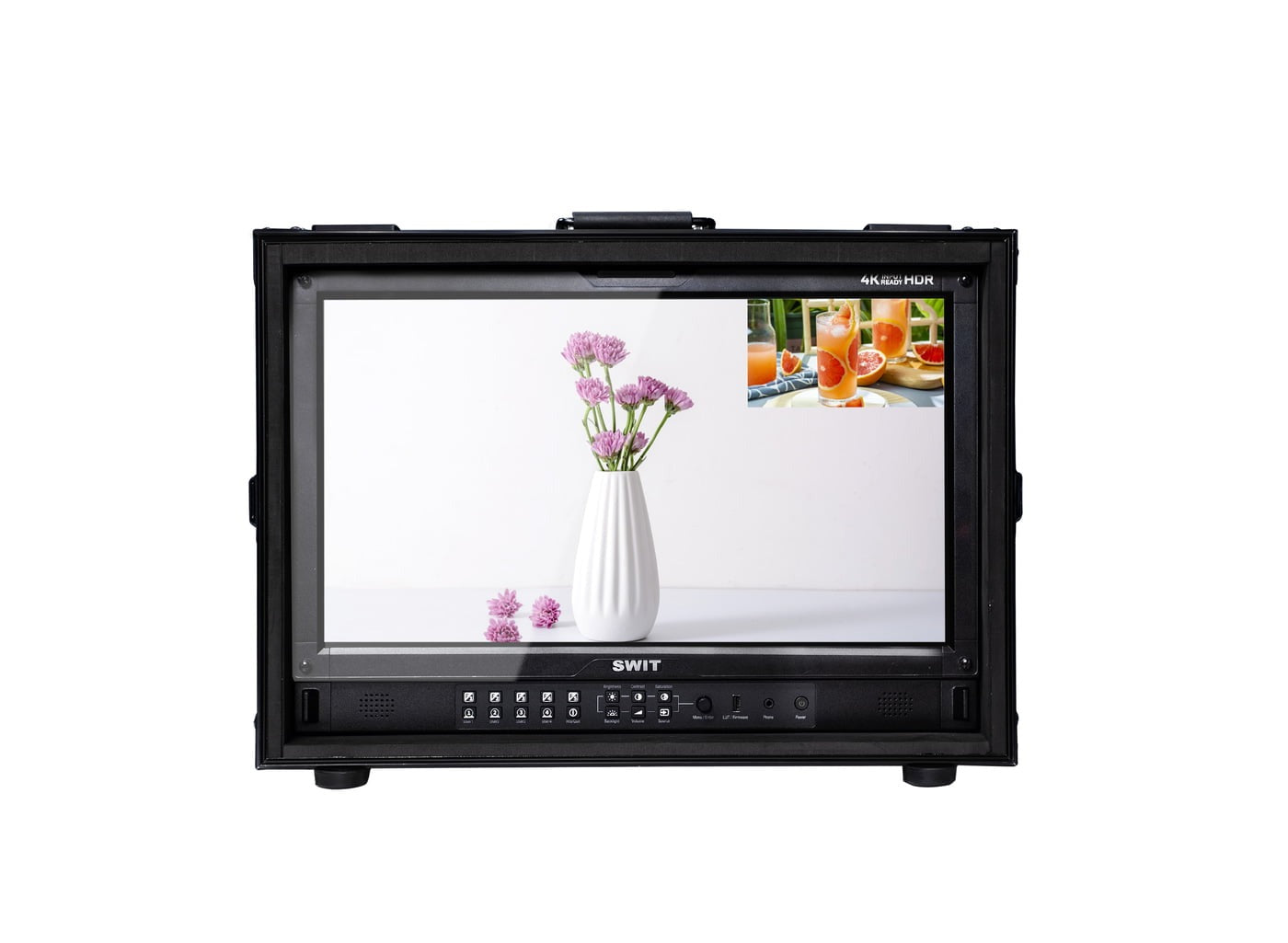

- Any 2 inputs mixed PBP or PIP view
- Horizontal and Vertical (cropped) PBP view
- Zero latency video processing (0.01frame)
- 3DLUT Auto Self-calibration without PC
- Built-in Multi camera Delog LUTs
- User 3DLUTs upload via USB

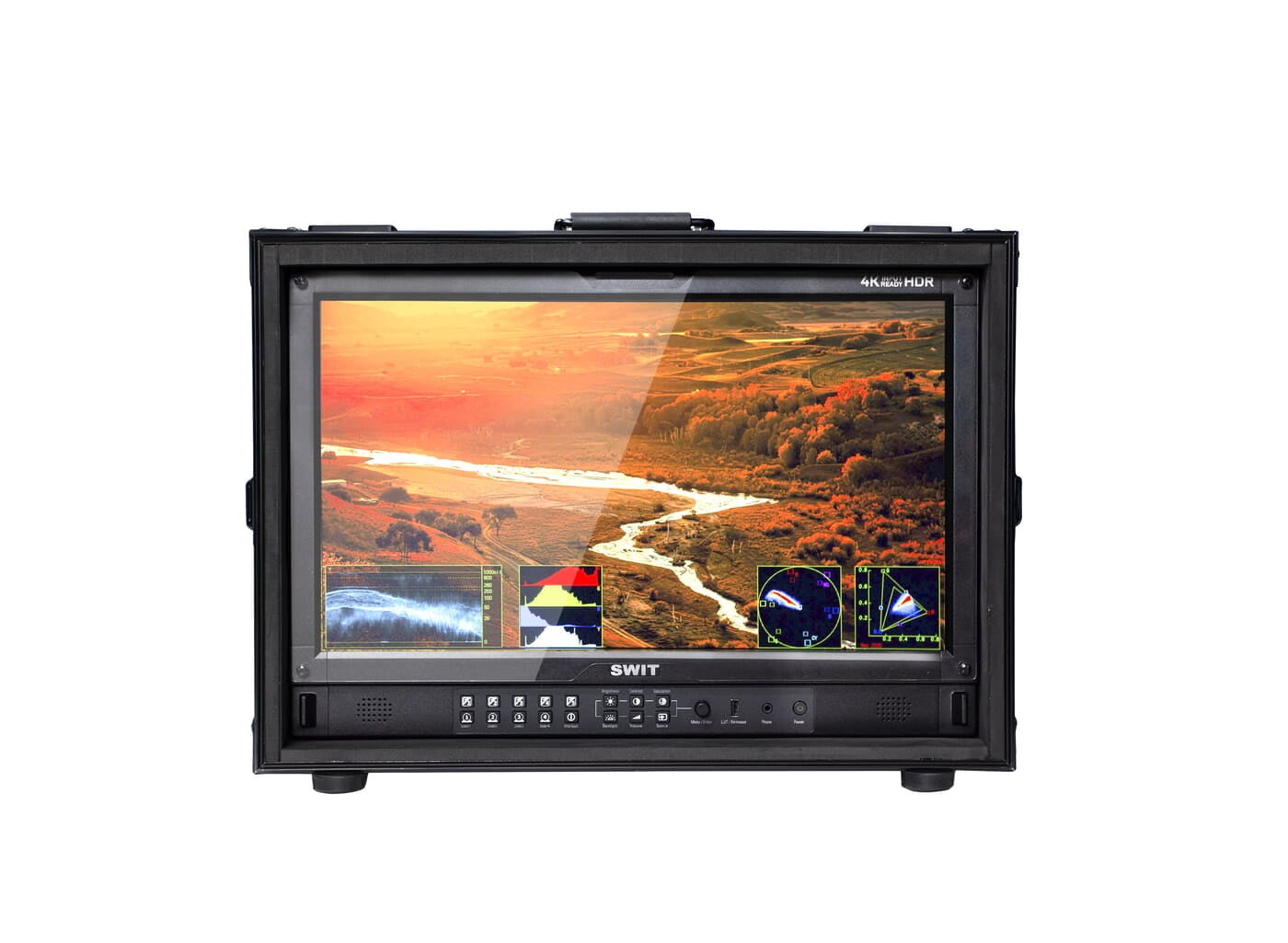

- Waveform / Focus assist / False color / Zebra
- With flight case and screen protector
- With VESA to C-stand adaptor
21.5” Field Production Monitor
4K inputs, 1000nits, HDR, Multi-view
FM-215HDR is a 21.5-inch 4K 12G-SDI input high bright HDR monitor for filmset or live streaming productions, go with flight case, screen protector and could be installed on C-stand for convenience field video productions.
1000nits Sunlight View HDR
The monitor is equipped with an advanced Quantum Dot LED (QD-LED) panel of 1000nits high bright backlight, outdoor sunlight viewable, and support PQ/HLG/S-log3 HDR monitoring.
All 4K Input Interfaces
FM-215HDR supports various 4K inputs including: - 12G-SDI 4K in and out - 4× 3G-SDI Quadlink 4K input - HDMI® 2.0 4K input

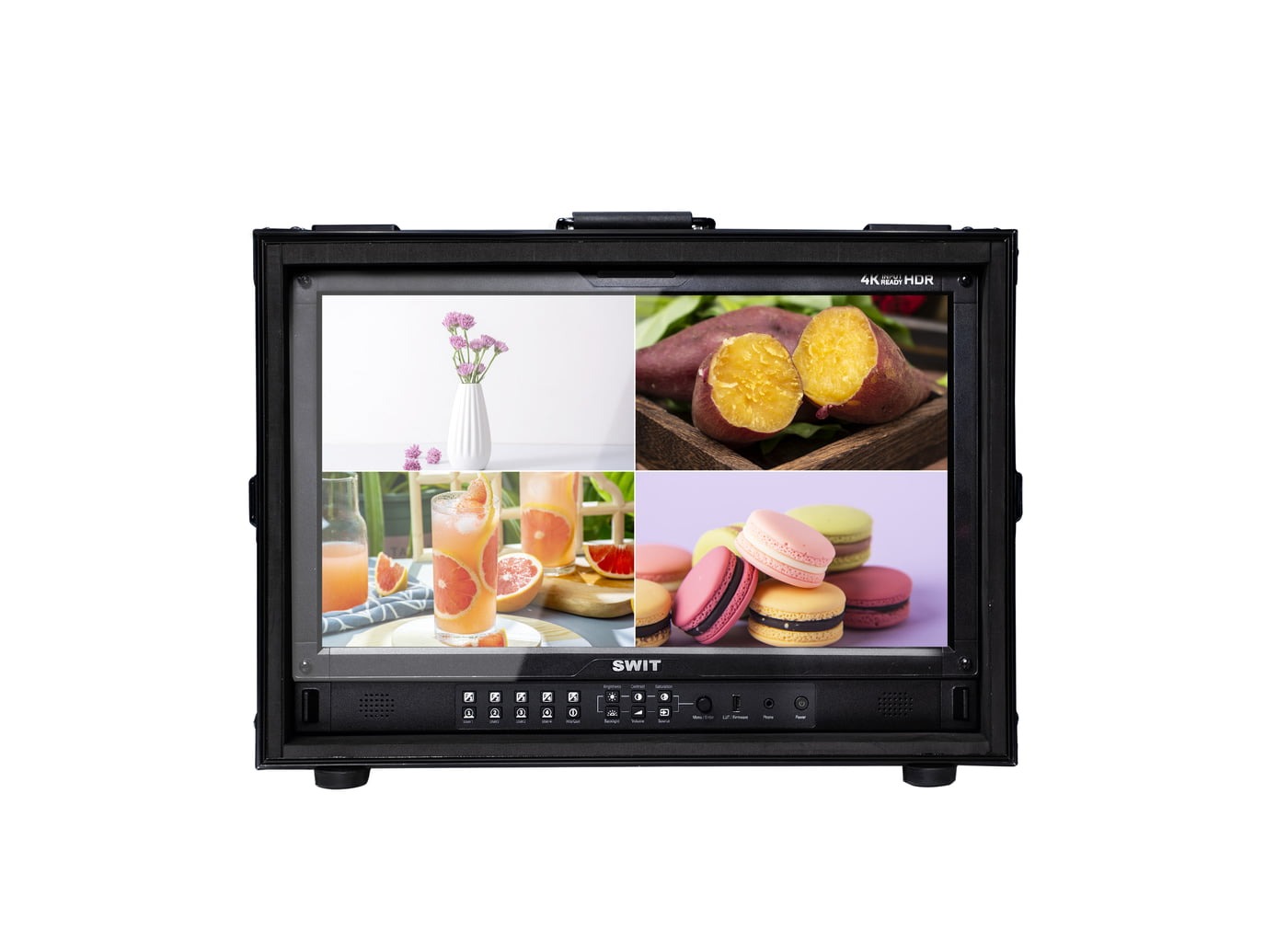

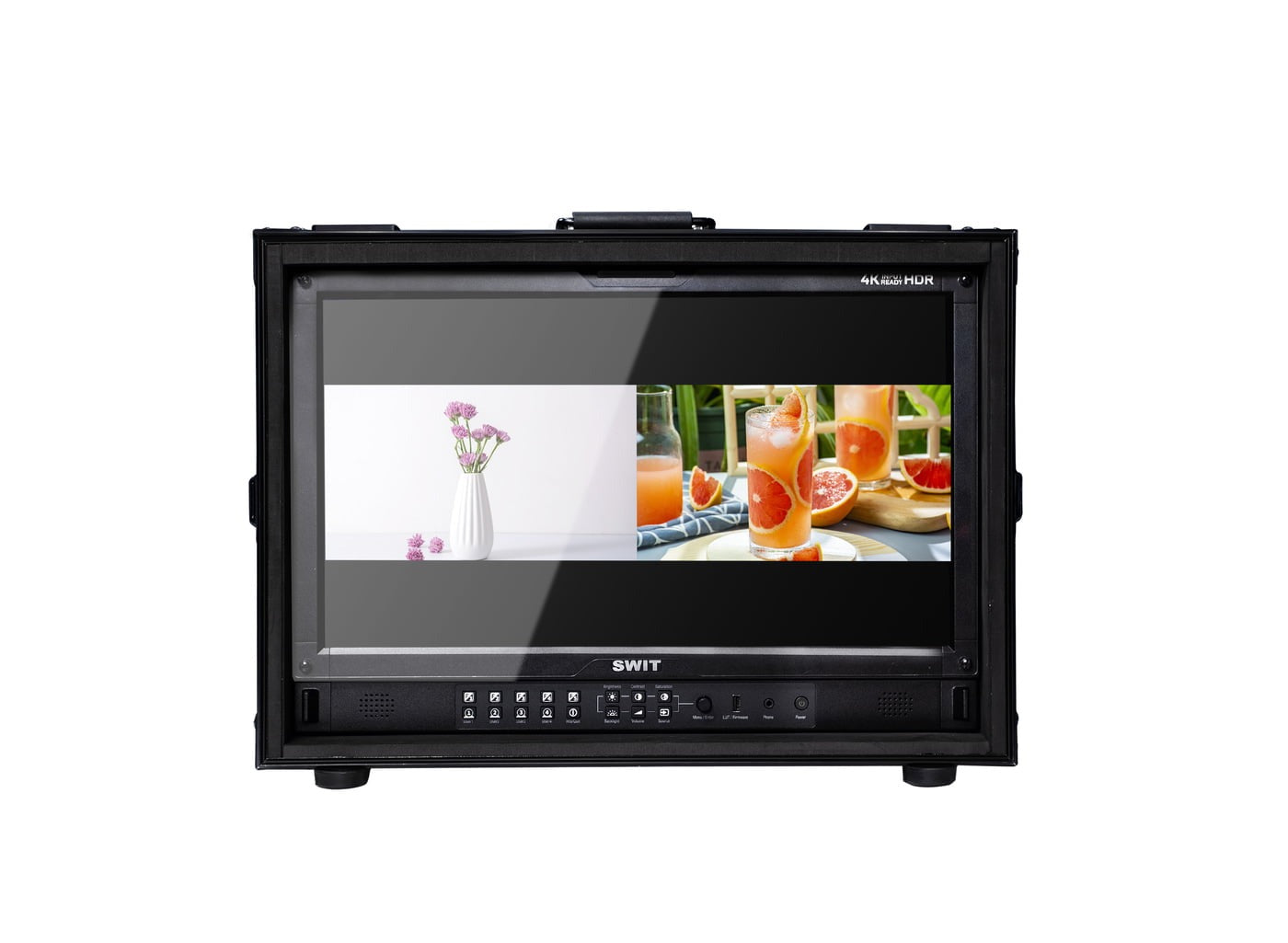

Multiview Display Mode
Supports 4x input video of mixed formats quadview display, or any 2x inputs Pic-by-Pic or Pic-in-Pic view, and any 2x inputs vertical (Cropped) display mode. You can select HDR/SDR gamma, color gamut independently for each input.

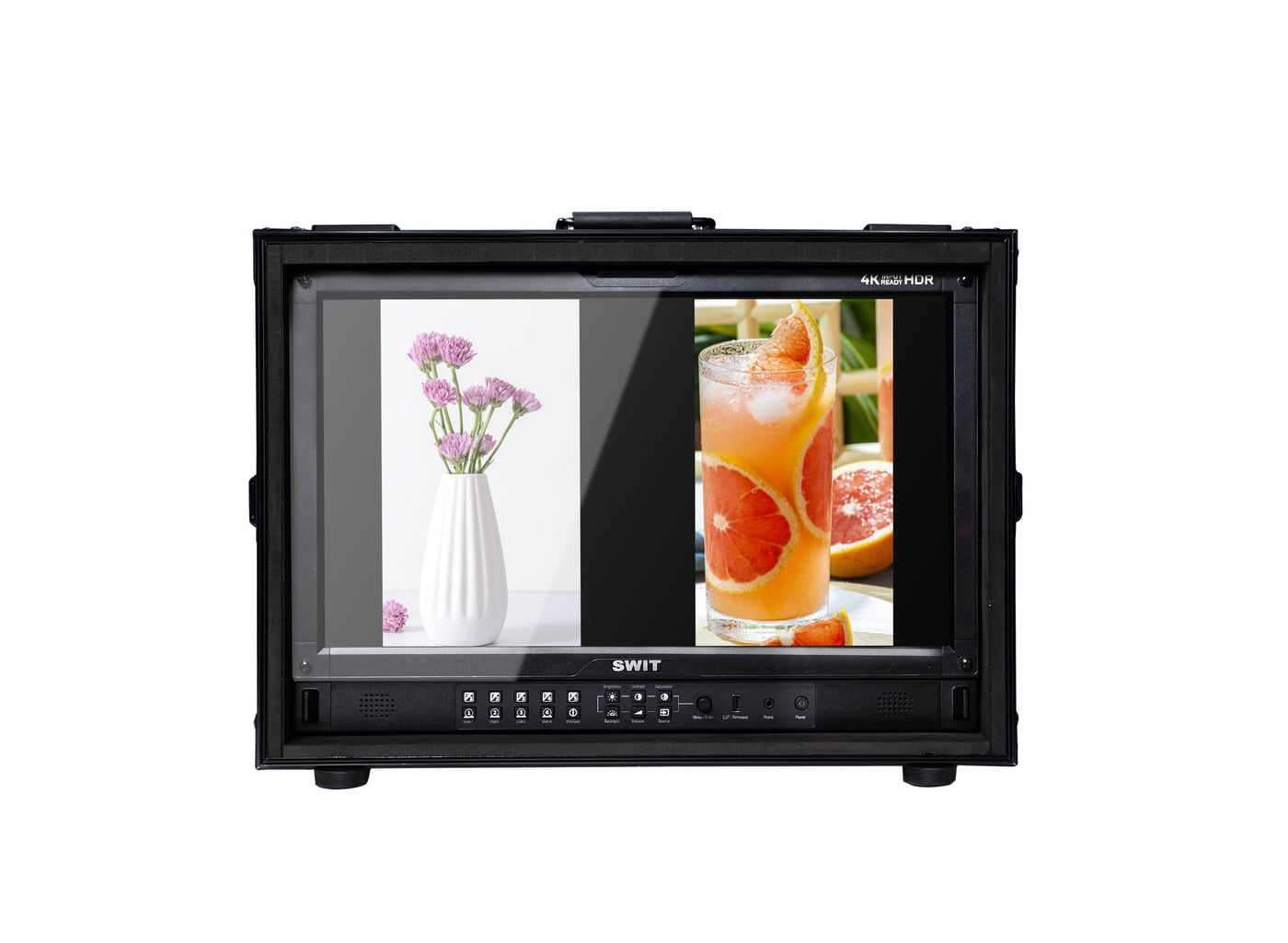

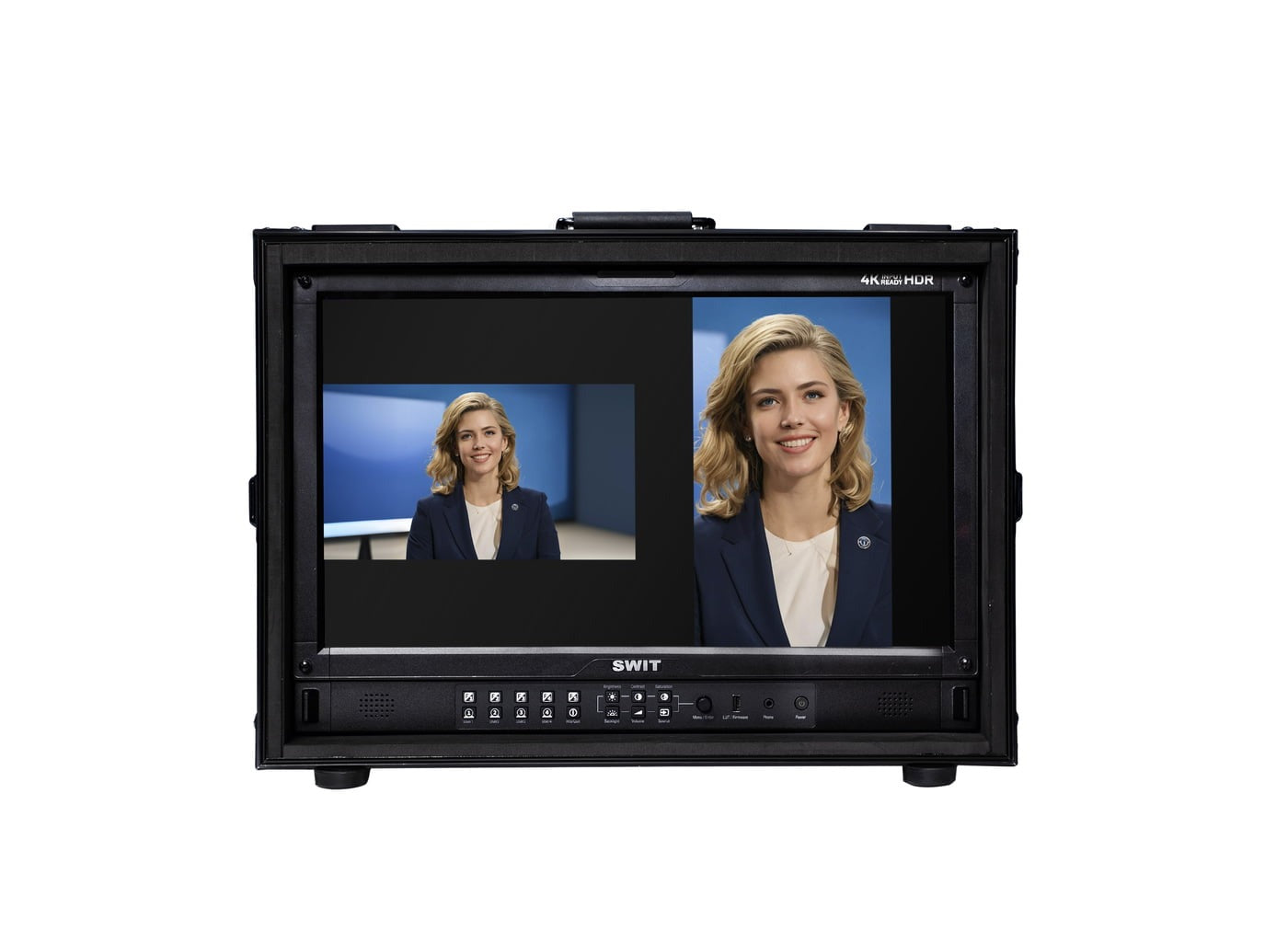

H/V Multi-platform Livestreaming View
1× input source to display regular horizontal view and cropped vertical view side by side simultaneously, for multi-platform livestreaming productions.

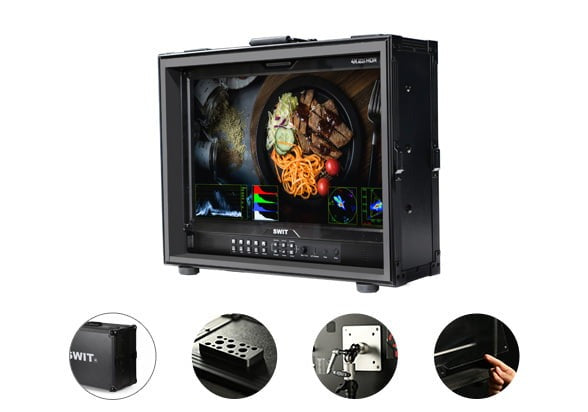

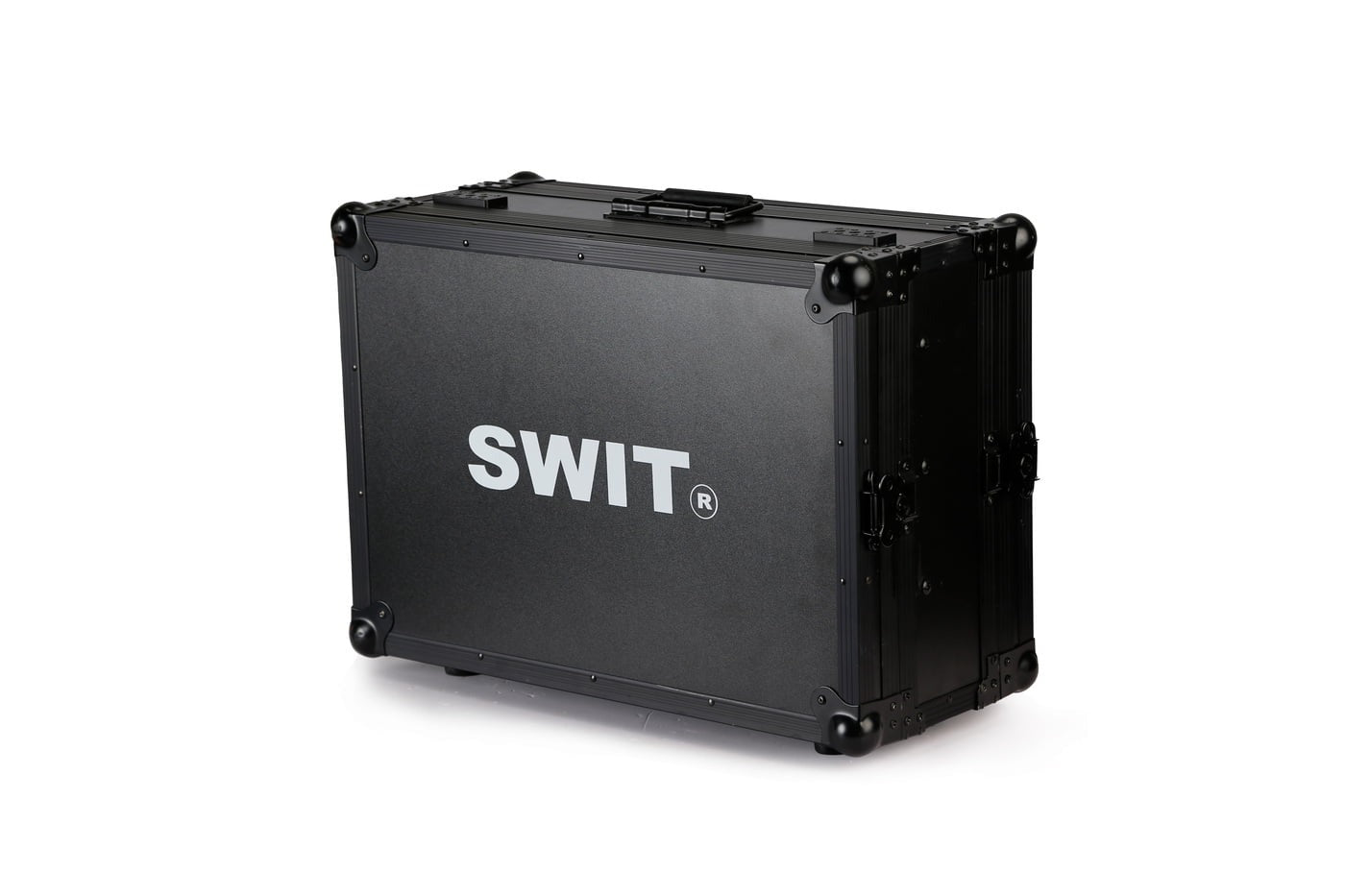

Go with Flight Case
The FM-215HDR monitor is shipped with strong aluminium flight case, for all-around protections on filmset.
Equipped with Screen Protector
The FM-215HDR monitor provides an acrylic screen protector, with high transparency and anti-reflection.

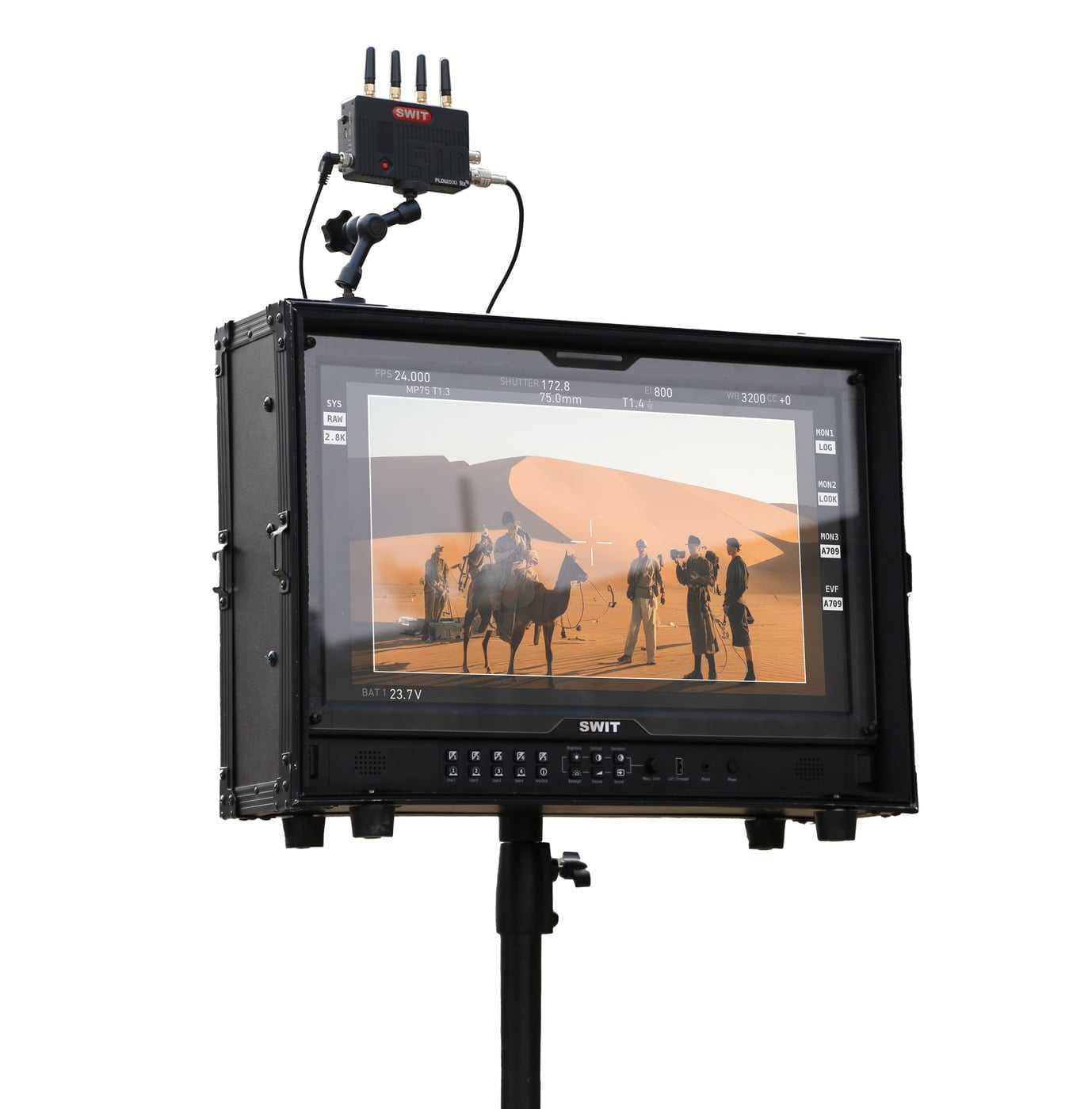

2× Top Cheese Boards
On the top of the flight case, 2× cheese boards are provided to install accessories like wireless video receiver, with multiple 1/4” and 3/8” screw threads.

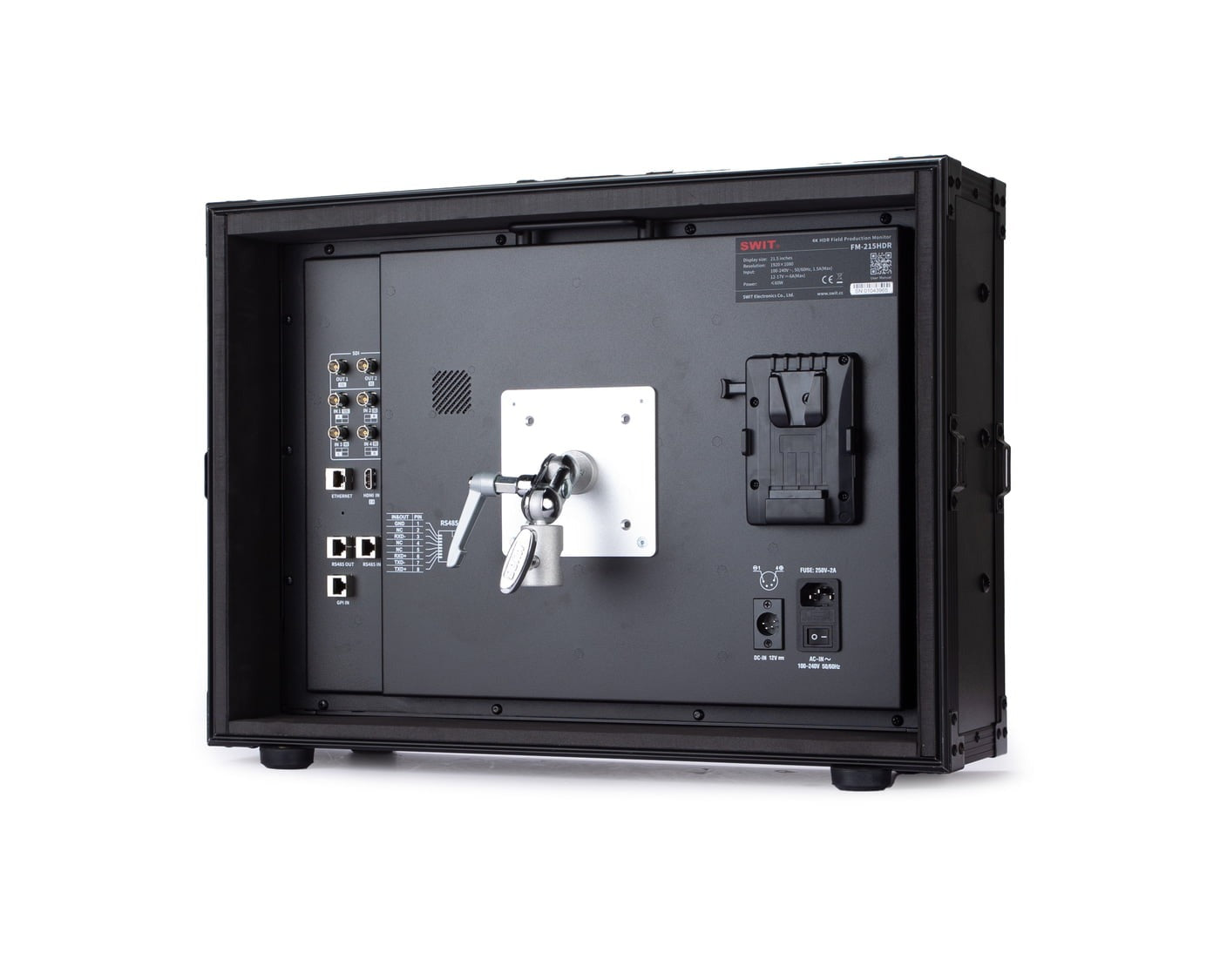

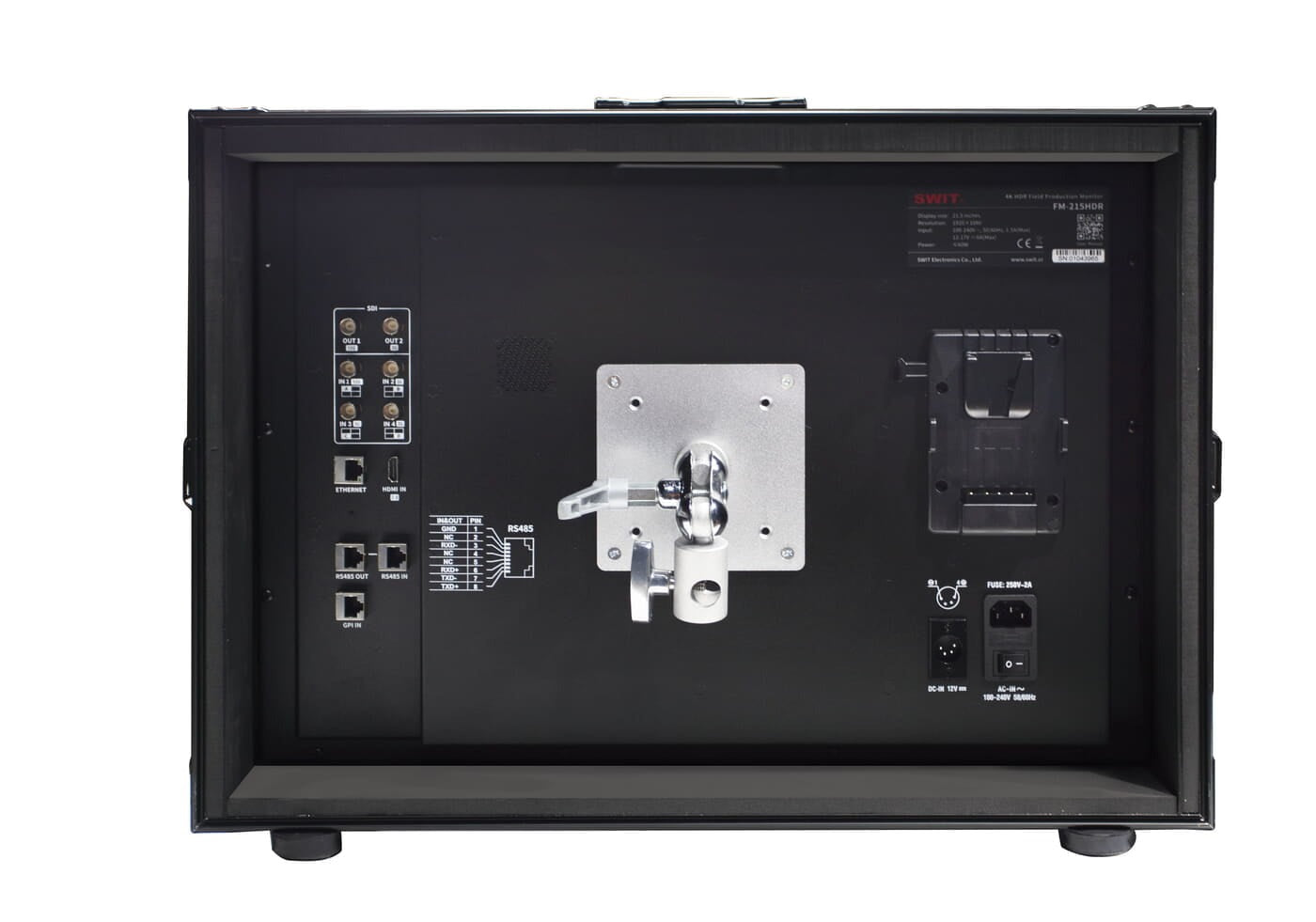

Provide VESA to C-stand Bracket
The monitor has standard 10×10 VESA mount, and provides VESA to 5/8” baby-pin C-stand / Light stand adaptor bracket in the package.
Technical Specifications
| Panel type |
QD-LED |
| Size |
21.5 inches |
| Display area |
476×268mm |
| Resolution |
1920×1080 |
| Aspect ratio |
16:9 |
| Brightness |
1000nits |
| Contrast |
1000:1 |
| Color depth |
10-bit |
| Signal process |
18-bit |
| Viewing angle |
178°(H) /178°(V) |
| BNC ×1 |
12G/6G/3G/HD/SD-SDI input |
| BNC ×3 |
3G/HD/SD-SDI input |
| HDMI® ×1 |
HDMI® 2.0 input |
| RS485 ×1 |
TSL 3.1/4.0 UMD input |
| RS485 ×1 |
GPI (Tally) input |
| RJ45 ×1 |
1000M Ethernet input for Webserver IP control |
| BNC ×1 |
12G/6G/3G/HD/SD-SDI loop output |
| BNC×1 |
3G/HD/SD-SDI loop output |
| RS485 ×1 |
TSL 3.1/4.0 UMD output |
| Analog audio |
3.5mm headphone and speaker |
| SDI 1 |
4096×2160p (60 / 59.94 / 50 / 30 / 29.97 / 25 / 24 / 23.98) |
| 3840×2160p (60 / 59.94 / 50 / 30 / 29.97 / 25 / 24 / 23.98) |
| 2048×1080p (60 / 59.94 / 50 / 30 / 29.97 / 25 / 24 / 23.98) |
| 2048×1080i (50 / 59.94 / 60) |
| 1080p (60 / 59.94 / 50 / 30 / 29.97 / 25 / 24 / 23.98) |
| 1080i (60 / 59.94 / 50) |
| 1080psf (30 / 29.97 / 25 / 24 / 23.98) |
| 720p (60 / 59.94 / 50) |
| 480i (59.94), 576I (50) |
| SDI 2/3/4 |
2048×1080p (60 / 59.94 / 50 / 30 / 29.97 / 25 / 24 / 23.98) |
| 1080p (60 / 59.94 / 50 / 30 / 29.97 / 25 / 24 / 23.98) |
| 1080i (60 / 59.94 / 50) |
| 1080psf (30 / 29.97 / 25 / 24 / 23.98) |
| 720p (60 / 59.94 / 50) |
| 480i (59.94), 576I (50) |
| Quad Link 4K (Each channel) |
2048×1080p (60 / 59.94 / 50 / 30 / 29.97 / 25 / 24 / 23.98) |
| 1080p (60 / 59.94 / 50 / 30 / 29.97 / 25 / 24 / 23.98) |
| HDMI® |
4096×2160p (60 / 59.94 / 50 / 30 / 29.97 / 25 / 24 / 23.98) |
| 3840×2160p (60 / 59.94 / 50 / 30 / 29.97 / 25 / 24 / 23.98) |
| 1080p (60 / 59.94 / 50 / 30 / 29.97 / 25 / 24 / 23.98) |
| 1080i (60 / 59.94 / 50) |
| 720p (60 / 59.94 / 50) |
| Input voltage |
DC 12V-17V, AC 100-240V, 50/60Hz |
| Power consumption |
60W |
| Working temperature |
0°C～+50°C |
| Working humidity |
10%～90% |
| Storage temperature |
-15°C～+60°C |
| Storage humidity |
10%～90% |
| Net weight(without packaging) |
7.28kg |
| Product dimensions(without packaging) |
570×260×405mm |
| Gross weight(with packaging) |
18.6kg |
| Package dimensions |
660×355×535mm |
Included in the Package
- FM-215HDR monitor
- AC power cable
- VESA to C-stand bracket
- Two install plates
- Screen protector
- Flight case
The MA-HC215 sunhood is an optional accessory.
