Panel Receiver 5GHz DFS comply, Strong Wall-cross, OLED info
SDI&HDMI® 6500ft/2km Wireless System
Official Features
KUWI Wireless Technology
SDI&HDMI® 6500ft / 2km long distance FLOW6500 wireless system is based on SWIT latest professional KUWI wireless technology, 5.1-5.9GHz license free bands, DFS comply, sup- ports 3G/HD-SDI and HDMI® (Max 1080p60) to transmit 6500ft / 2km Line-of-Sight distance. The KUWI professional wireless chip features stable connection at any complex environment and stronger in wall-cross capability. The long distance wireless can be widely used in film production, event broadcasting etc.

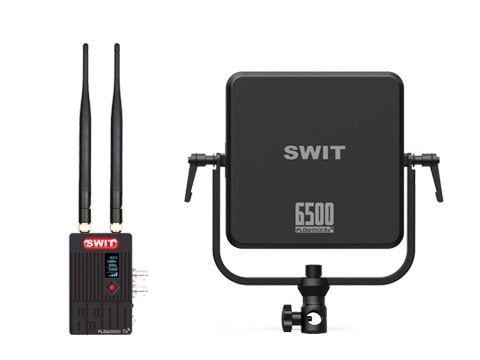

The Transmitter
The Transmitter has 2 omni antennas, supports 1x 3G/HD-SDI input 1x 3G/HD-SDI loop output 1x HDMI® 1.3 input SDI & HDMI® formats: 1080p60, 1080p59.94, 1080p50 1080p23.98, 1080p24; 1080p25, 1080p29.97, 1080p30; 1080psf23.98, 1080psf24 1080i60, 1080i59.94, 1080i50; 720p60, 720p59.94, 720p50 * Supports embedded audio (CH1&2) transmission.
The Panel Receiver
The Receiver has built into high gain directional Panel Antenna, compact size, without complex antanna wires connection, solid and reliable, and provides 1x 3G/HD-SDI output.
6500ft/2km Long Distance
Strong Wall-cross Performance With the high gain panel receiver, FLOW6500 supports 6500ft/2km (Line-of-sight) reliable wireless transmission, and featured stronger wall-cross performance due to both RF optimize and image quality optimize, so that will keep video transmission without date lost or crash comparing to regular 5GHz wireless transmitters.
Power Supply

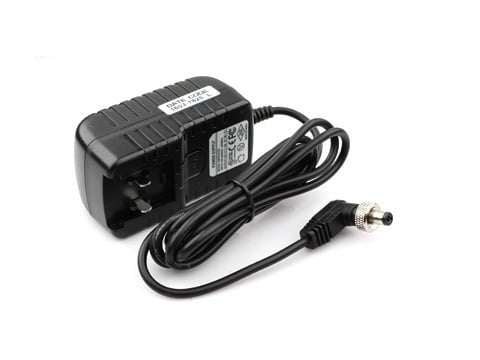

The power consumtion of Tx and Rx are less than 9W. The Transmitter provides NP-F DV battery plate, and 7-34V DC-IN socket; The Panel Receiver provide V-mount battery plate, and 7-34V DC-IN socket.
OLED Display & Channel Switch
5GHz Frequency, DFS Comply The FLOW wireless works under 5.1-5.9GHz, with built-in wireless scanner, and detect wireless condition of all frequencies, automatically jump to the best wireless channel to keep reliable connection and transmission, and DFS comply. You can also switch the wireless channels manually from 7 Non-DFS restricted channels. Both Transmitter and Panel Receiver are equipped with OLED to display signal format, wireless channel number and signal strength.
Multicast and Double Encryption
Support 1 transmitter to unlimited quantity receivers reliable multicast mode. The transmitter and receivers are paired and double encrypted by private transmission protocol and by AES128, in order to protect the footages.
Stable Connection at Worst Wireless Environment
The FLOW series adopt professional KUWI 5GHz wireless technology, can keep connected at any complex wireless environment, such as sports stadium, concert, public plaza where full of people, electronic devices or wifi routers.
Official Product Data
-
Model SPU: FLOW6500
-
Division: Wireless
-
Big Category: Wireless
-
Small Category: Wireless Long-range
-
Weight (kg): 6.85
-
Spec 1: Tx+Rx
-
Plate Type: F-Plate;V-Mount
-
Accessory Options: WA-A01
Official Specifications
Input / Output
| Transmitter |
3G/HD-SDI input×1, loop output ×1 |
| HDMI® 1.3 input×1 |
| Receiver |
3G/HD-SDI output×1 |
Video Formats
| SDI |
1080p60, 1080p59.94, 1080p50 |
| 1080p23.98, 1080p24; 1080p25, 1080p29.97, 1080p30; |
| 1080psf23.98, 1080psf24 |
| 1080i60, 1080i59.94, 1080i50; |
| 720p60, 720p59.94, 720p50 |
| HDMI® |
1080p60, 1080p59.94, 1080p50 |
| 1080p23.98, 1080p24; 1080p25, 1080p29.97, 1080p30; |
| 1080psf23.98, 1080psf24 |
| 1080i60, 1080i59.94, 1080i50; |
| 720p60, 720p59.94, 720p50 |
Wireless
| Frequency |
5.17GHz-5.69GHz and 5.75GHz-5.83GHz |
| RF Modules |
OFDM 16QAM, 64QAM, QPSK, BPSK |
| RF Power |
128mW |
| Transmission Distance |
6500 feet / 2000 meters (Line of sight) |
General
| Input voltage |
Transmitter DC 7-34V Reveiver DC 7-34V |
| Power Consumption |
Transmitter 9W Reveiver 9W |
| Dimension(w/o antenna) |
Transmitter 66×106.5×24.7 (mm) Reveiver 190×190×46 (mm) |
| Net weight |
Transmitter 286g Receiver 1500g; With package 6.85kg |
| Working Temperature |
0°C -+40°C |
