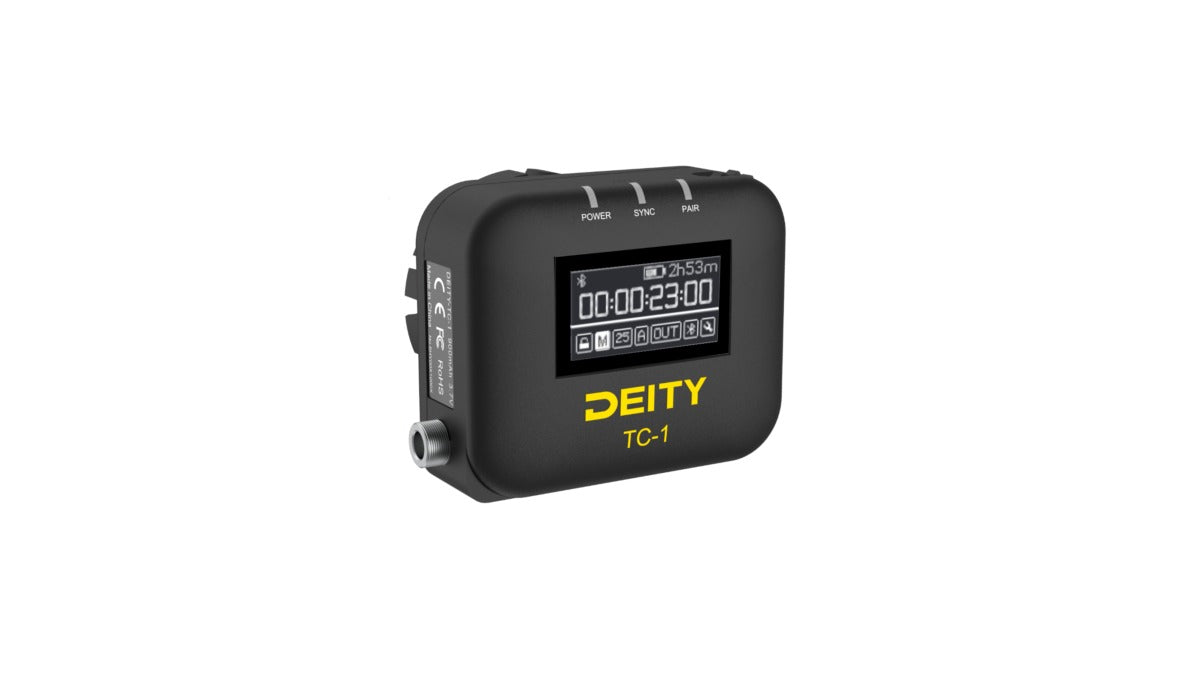

Deity TC-1 Wireless Timecode Generator

Deity TC-1 Wireless Timecode Generator

Įprasta kaina €159,00 be PVM
Įprasta kaina Išpardavimo kaina €159,00 be PVM
Išpardavimas Išparduota
Siuntimo išlaidos ir mokesčiai apskaičiuojami atsiskaitant.
Kiekis

Quick Look

Wireless Timecode Box

The TC-1 takes the best parts of timecode box units from the past and brings them all together into a timecode generator built for the future. We developed it to fit into your workflow, no matter how you work. You can wirelessly jam it from your phone or even wirelessly sync it from other boxes using our proprietary 8 channel 2.4G radio ecosystem. You can also hardwire jam it or use it to internally generate timecode and jam other devices.


  • Locking 3.5mm Timecode Port
  • Bluetooth 5.0: Max Range 250FT
  • 2.4G Radio; Max Range 30FT
  • Supports all SMPTE Timecode Format
  • Only 1 Frame Drift Every 72 Hours
  • USB-C Charging;  2 Hours to Fully Charge, Up to 28 Hours Battery Life
  • LED Status Lights Indicate Power, TC Sync, and Wireless Pairing
  • Includes Hook-N-Loop and DSLR Cold Shoe Mount



Features

Long Range Wireless Control

Using our exclusive Bit Connectify™️ technology you can control up to 20x TC-1 wireless timecode generator boxes from 250ft away. The TC-1 has 600% more control range than Bluetooth® timecode boxes from leading competitors.

The TC-1 also features a secondary RF chip for syncing TC-1 to TC-1 devices from a range of 30ft. When syncing the timecode from the phone, you can transmit up to 250ft to the master TC-1 and then 30ft to each other TC-1 timecode box around the master node.

Frame Accurate Timecode

Each TC-1 timecode generator box features a TCXO with an accuracy of ±0.5ppm. And through firmware optimization, your footage will sync perfectly when you go to edit with less than 1 frame of drift in a 72-hour period.

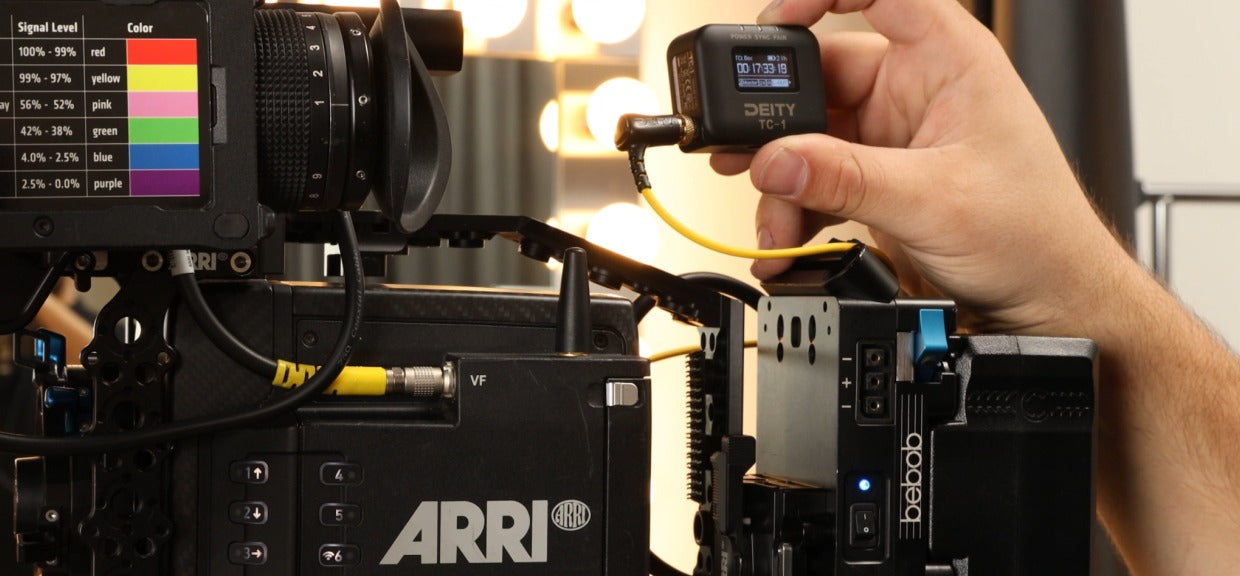

Locking 3.5mm TC Connection

You won't have to worry about your TC cables getting unplugged with the TC-1. The port is also compatible with other brands' non-locking 3.5mm TC cables.

Timecode Makes Post Easier

With more devices than ever now supporting SMPTE timecode, syncing footage and audio in post has never been so easy or quick. With the TC-1 and other items (like the BP-TRX and the TC-SL1) you can use the workflow methods used by studio feature films.

Built-In Scratch Mic

The TC-1 timecode box features an on-board scratch microphone for when you're using a Mirrorless or Action Camera that only feature a stereo mic input.

Versatile Mounting Options

Professionals will enjoy the integrated hook-n-loop pad on the back of the TC-1. Indie filmmakers will appreciate the included cold shoe soft-loop mount. And everyone will love coming up with convenient new ways to mount the TC-1 timecode box using the 1/4" or 3/8" threaded mount under the cold shoe mount.

Locking Timecode Port

We talked to members of the sound mixing community and made sure we answered your concerns. The TC-1's timecode port is a locking 3.5mm TRS connector. This adds security and opens up the TC-1 to our catalogue of timecode cables.

LEARN MORE➡︎

Sidus Audio™️ App

Connect all your devices to your phone or laptop via Sidus Audio™️. With our app, you can control your device's settings, monitor their status, and sync all your units at once.

LEARN MORE➡︎

Deity TC-1 (Single Unit)

Having a spare timecode box on set is always nice.

What do you get in the standard box?
1x TC-1
1x Locking TRS to TRS Cable
1x USB Type-A to USB-C cable
1x Cold Shoe Mount

BUY NOW➡︎

Deity TC-1 (Double Kit)

Double your timecode, double your fun.

What do you get in the standard box?
2x TC-1
2x Locking TRS to TRS Cable
1x USB Type-A to USB-C cable
2x Cold Shoe Mount

BUY NOW➡︎

Deity TC-1 (3pc Kit)

Switching to Deity has never been so easy. Having 3 timecode boxes helps you be prepared.

What do you get in the 3 Piece Kit?
3x TC-1
3x Cold Shoe Mounts
1x Locking TRS to TRS Timecode cable
1x Locking TRS to BNC Timecode cable
1x Locking TRS to Arri Mini 5-Pin Timecode Cable*
1x USB Type-A to Triple Split USB-C cable

*Not included in the EU

BUY NOW➡︎

Specifications

Timecode SMPTE

High Frame Rates

Frame Rates 23.98/24/25/29.97/29.97DF/30/50/60 fps
Timecode Accuracy ±0.5ppm
Timecode Ports Locking 3.5mm
Output Types 2.5Volt TC Line Level

Mic Level (+Scratch Mic)

Audio Built-In Scratch Mic
Wireless Type 2.4G RF

Bluetooth® 5

RF Channels 8
Display Type 1" OLED Display
Battery Type Lithium-ion Rechargable Battery
Battery Charger USB-C
Battery Capacity 950mAh
Battery Life Upto 28Hrs
Built-In Microphone Omni-Directional
TC-1 Net Weight 41g
TC-1 Dimensions 53.4 * 40 * 21.8mm
Temperature Range -20°C to +45°C

Support Notes

3.5mm Pinout

Tip – LTC Ring – Float / Mic Sleeve – Ground

Product Details

  • SKU: DY-6971842184187
  • EAN: 6971842184187
  • Warranty: 24 months
  • Country of origin: China
