Deity SPD-1 Modern Power Distribution

Smart Battery Telemetry Display

The device displays battery telemetry data to keep track of your power usage. Monitoring power on set is crucial to keeping production running smoothly. With the SPD-1, you can easily keep track of your power usage, ensuring you never run out of power at the wrong time.

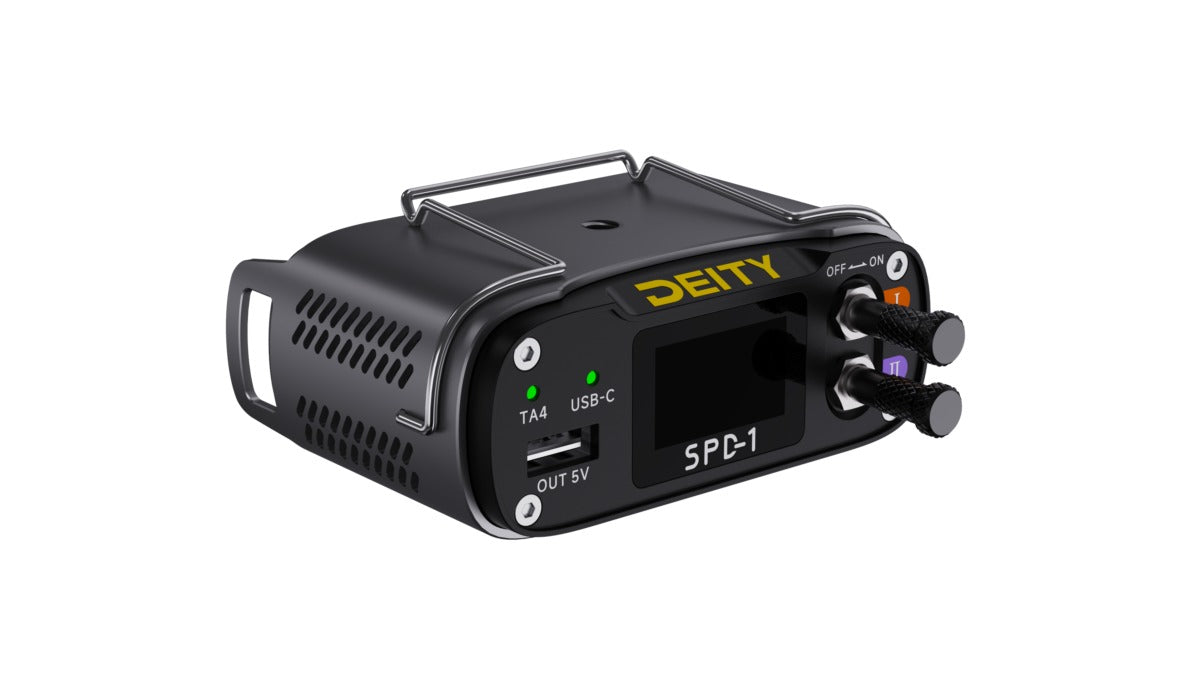

The SPD-1’s 1.1” color screen provides you with all the information you need, like total power consumption, battery temperatures, voltage, battery life, and battery cycle count.

Over-Voltage Protection

Outputs will automatically cut off if a battery over 18V has been plugged into the SPD-1. This protects your sound bag from damage caused by voltage spikes and malfunctioning batteries.

Dual Power Circuitry

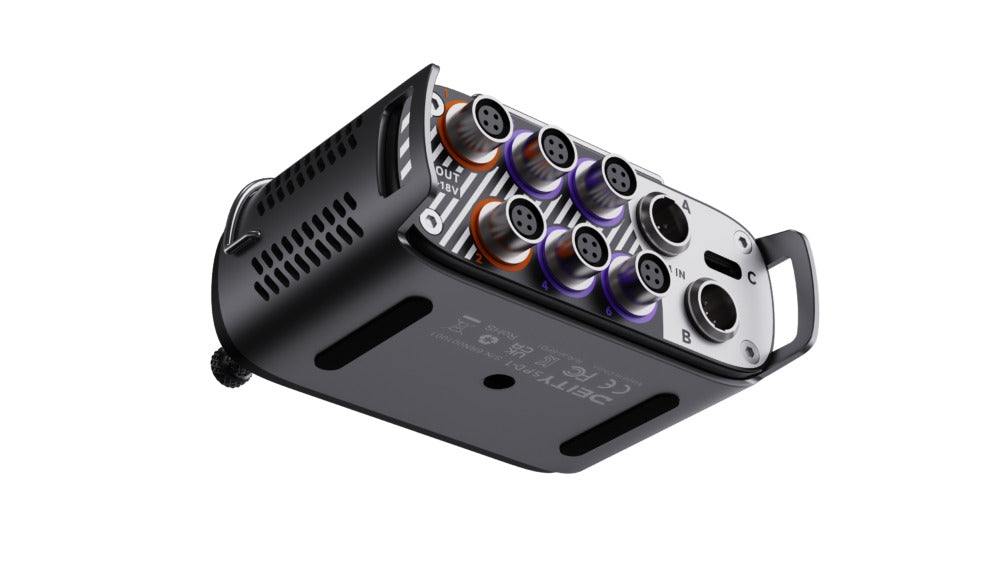

Featuring six unregulated 4-Pin Push Power outputs (that are Hirose compatible), you can power multiple devices simultaneously. The six outputs are divided across two power circuit groups so you can toggle auxiliary devices on/off without needing to power down your primary devices. And the operating range of 12V-18V ensures that it will work with a wide range of devices.

Locking Switches

Locking toggle switches make turning your devices on and off easy and safe, and help prevent accidental power-downs.

Loads of Mounting Options

The SPD-1 also features dual 1/4” threaded mounts, allowing you to mount the device in any position securely. The reversible mounting clip makes it easy to change the device’s orientation as needed.

Wide Compatibility

The SPD-1 is compatible with the following*:

• Lectrosonics SREXT SR Mounting Kit, DSR4EXT, DCR822
• MiPro MR-90SC
• Sony UWP-D
• Sound Devices 633, 664, 688, 8-Series
• Sound Devices A10-RX A-TA3 Adapter, A10-RX A-XLR
• Sound Devices A10-RX A-TA3 Adapter, A10-RX A-XLR
• Sound Devices MX-HIROSE DC Input Sled
• Wisycom MCR54 End Plate
• Zaxcom Deva 24
• Zaxcom Nova, Nova 2
• Zoom F4
• Zoom F8, F8n, F8n Po
• And Many More Devices...

Multiple Battery Types Supported

The SPD-1 supports both smart and non-smart batteries with its triple DC inputs and hot-swappable functionality. When using a non-smart 14.4v or USB-C battery, the SPD-1 will display incoming voltage. The screen on the SPD-1 adapts its displayed data to the type of power you supply.

The SPD-1 is compatible with batteries from:

• Audio Root
• Inspire Energy
• Remote Audio HiQ
• RRC
• Sound Device Smartbattery
• Deity SPD-T4BATT

BUY NOW➡︎

Compatible Battery Cups

The following battery cups are compatible with the SPD-1:

• Audio Root eTA4f
• COGA Sound BPS TA4
• Sound Devices XL-SmartCup
• Sound Guy Solutions TA4D-SmartCup
• Deity SPD-T4BATT

BUY NOW➡︎

A cable for every connection

We have a whole catalogue of cable options to make the most out of the SPD-1.
