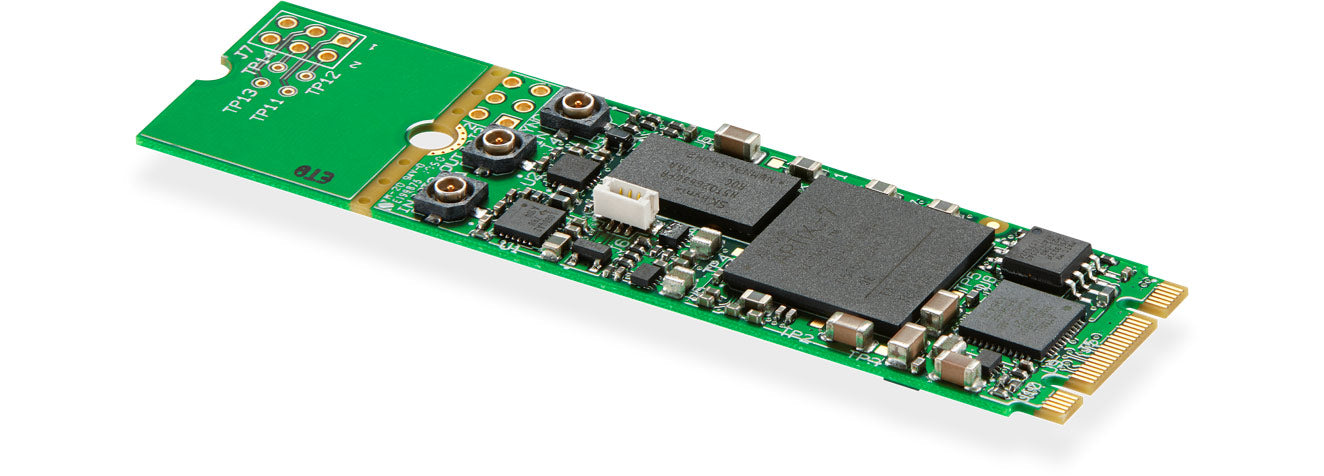

Miniature M.2 card with 3G‑SDI connections for simultaneous capture and playback in all SD and HD formats up to 1080p60. DeckLink SDI Micro also includes Black Burst and Tri‑Sync reference input and its miniature size makes it great for use on portable solutions which are based on compact computers!
Official Technical Details Connections
M.2: M.2 PCI Express 1 lane generation 3, compatible with B and M key type 2260 and 2280. Standards
SD Video Standards: 525i59.94 NTSC, 625i50 PAL
HD Video Standards: 720p50, 720p59.94, 720p60 1080p23.98, 1080p24, 1080p25, 1080p29.97, 1080p30, 1080p50, 1080p59.94, 1080p60 1080PsF23.98, 1080PsF24, 1080PsF25, 1080PsF29.97, 1080PsF30 1080i50, 1080i59.94, 1080i60
SDI Video Sampling: 4:2:2, 4:4:4
SDI Color Precision: 8, 10, 12-bit RGB 4:4:4 in all modes up to 1080p30 and 8, 10-bit YUV 4:2:2 in all modes.
SDI Compliance: SMPTE 259M, SMPTE 292M, SMPTE 296M, SMPTE 424M, SMPTE 425M level A and B, ITU‑R BT.656 and ITU‑R BT.601.
Available Accessories
Part Numbers: DeckLink SDI Micro, order code: BDLKMICROSDI SDI Cable, order code: CABLE-BDLKMIR/SDI Operating Systems
Mac 15.0 Sequoia, Mac 26.0 Tahoe or later.
Windows 10, 64-bit. Windows 11.
Linux
Power Requirements
Power Consumption: 4.03 W (max) Environmental Specifications
Operating Temperature: 0°C to 50°C (32°F to 122°F)
Storage Temperature: -40°C to 75°C (-40°F to 167°F)
Relative Humidity: 0% to 90% non-condensing
What's Included
DeckLink SDI Micro
Fan and Heat Sink assembly
Warranty 3 Year Limited Manufacturer’s Warranty. Official Documentation
