Supports up to DCI 4K (4096 x 2160) and UHD 4K (3840 x 2160)
The DAC-8P 4K is broadcast quality converter, and it supports up to DCI 4K (4096 x 2160) and UHD 4K (3840 x 2160).
The DAC-8P 4K is also very easy to use. It is a plug and play converter, and there is no setting needed from your laptop.

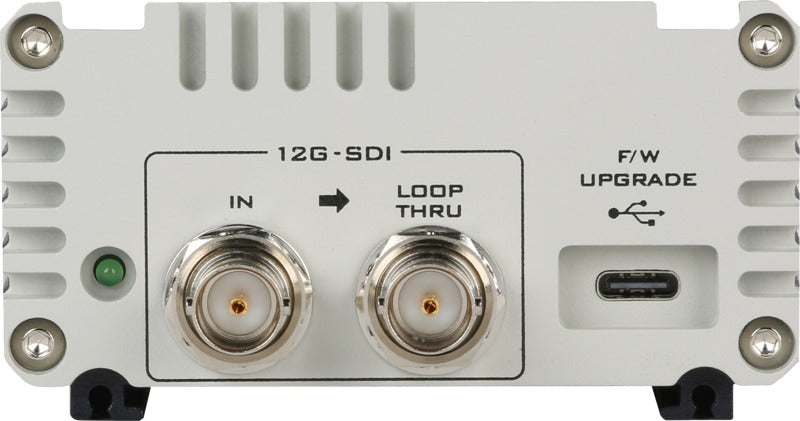

12G-SDI input and loop-thru output
In addition to the converted 4K HDMI output, there is a 12G-SDI loop thru for sending a signal to other devices in your workflow.
Supports SDI Re-Clocking
DAC-8P 4K will regenerate the SDI video, and provideo less SDI jitter to improve SDI eye pattern. DAC-8P 4K allows for a long cable transmission.
Not only a video converter, but also an audio de-embedder.
DAC-8P 4K provides a video converter from SDI to HDMI, and it also provides you an additional de-embedded 2-channel RCA analog audio output from SDI video to your live production.
Supports HDMI Deep Color
HDMI Deep Color supports more realistic and stunning of the video. Much better video quality than the regular HDMI video.
Aluminum appearance design, rugged and durable
Super sturdy and durable. The DAC series has a rugged metal housing for use in even the roughest conditions. Low heat dissipation, ideal for long hour operation in normal ventilated environment.
Specifications:
Model Number
DAC-8P 4K
Conversion
12G-SDI to HDMI 2.0
Video Inputs
12G-SDI x 1
Loop Through
1
Video Outputs
1x HDMI 2.0 with embedded Audio
Audio Inputs
SDI embedded audio, 24-bit, 16-channel
Audio Outputs
RCA x 2 (Unbalanced Audio L/R)
HDMI embedded audio, 24-bit, 8-channel
Supported Video Input Formats
4096x2160p: 60/59.94/50/30/29.97/25/24/23.98
3840x2160p: 60/59.94/50/30/29.97/25/24/23.98
1080p: 60/59.94/50/30/29.97/25/24/23.98
1080i: 60/59.94/50
720p: 60/59.94/50
Output Resolutions
Automatically matches the HD, 3G and 12G SDI video input
Equalizer
Yes
Reclock
Yes
SDI Cable Drive
Yes
Updates and Configuration
USB Type C x 1
Dimension (LxWxH)
112 x 85 x 45 mm
Weight
0.3 kg
Operating Temp. Range
0~40 °C
Power
DC 12V, 8.64W
What's in the Box:
1 x DAC-8P 4K
1 x AD Switch DC 12V
