USB Video Capture for PC/Mac livestreaming, 5GHz DFS comply, NOT WIFI, Reliable and Strong Wall-cross
HDMI®500ft/150m Wireless with USB capture
Official Features
Wireless HDMI® Transmission

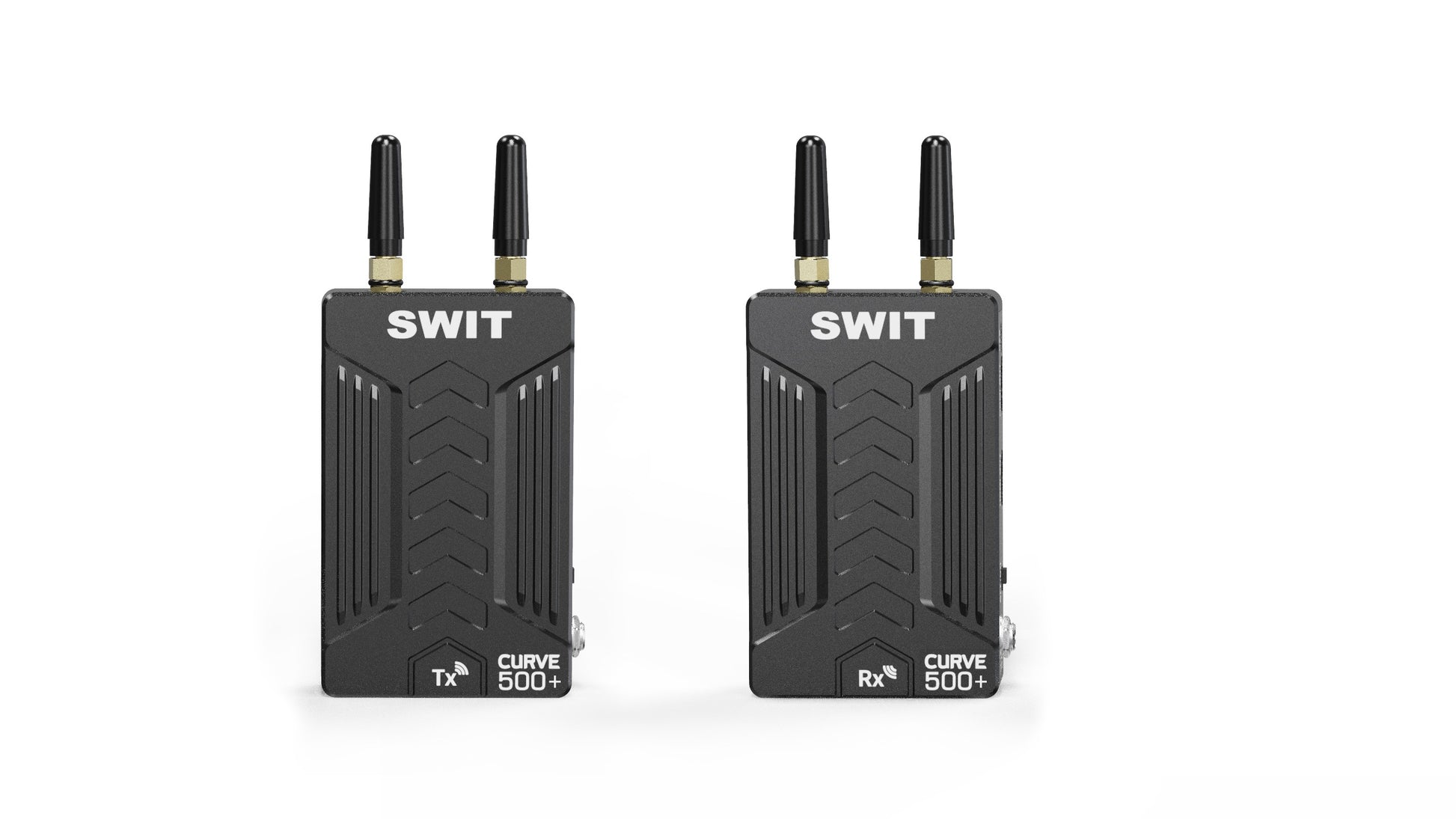

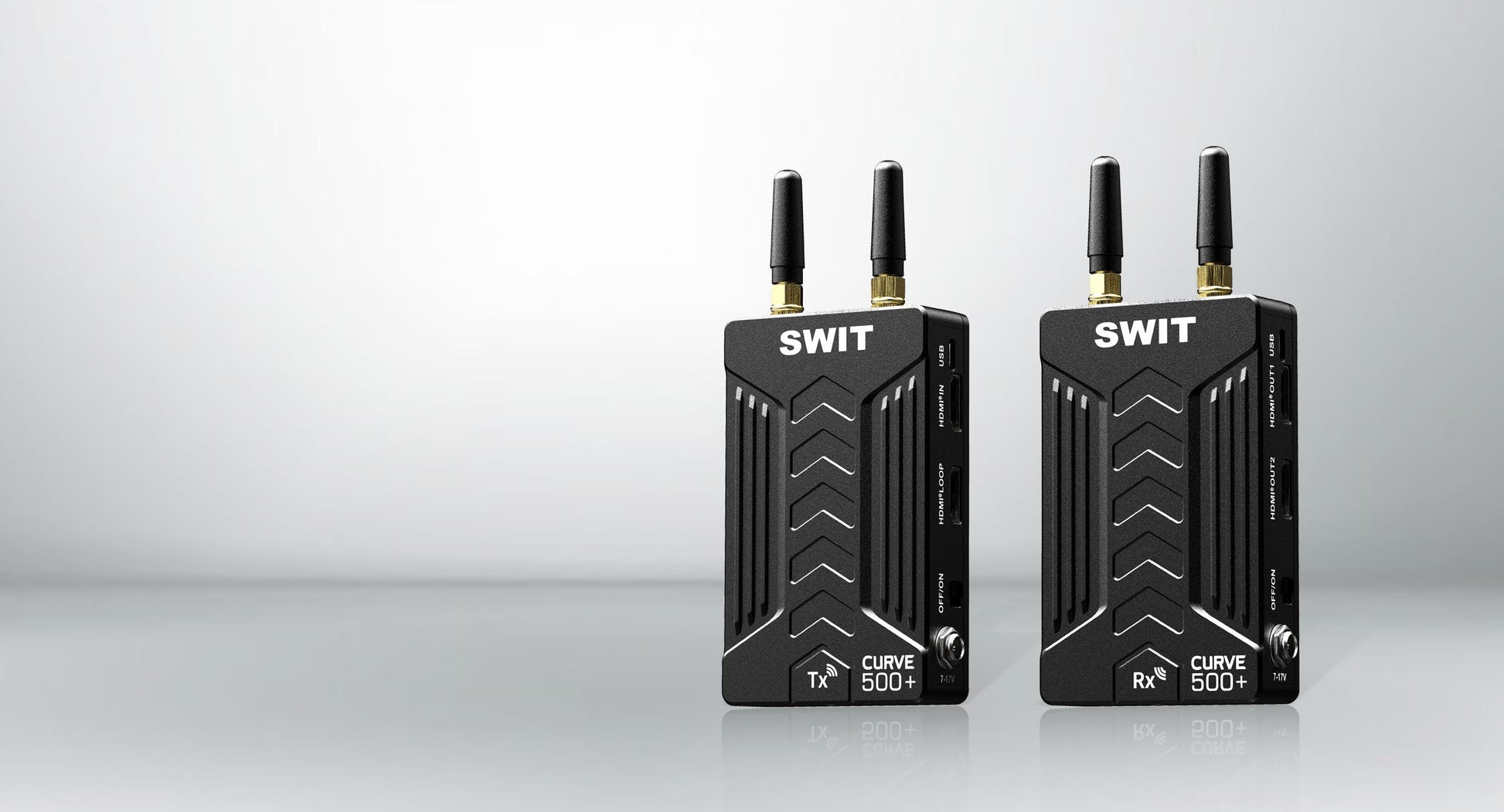

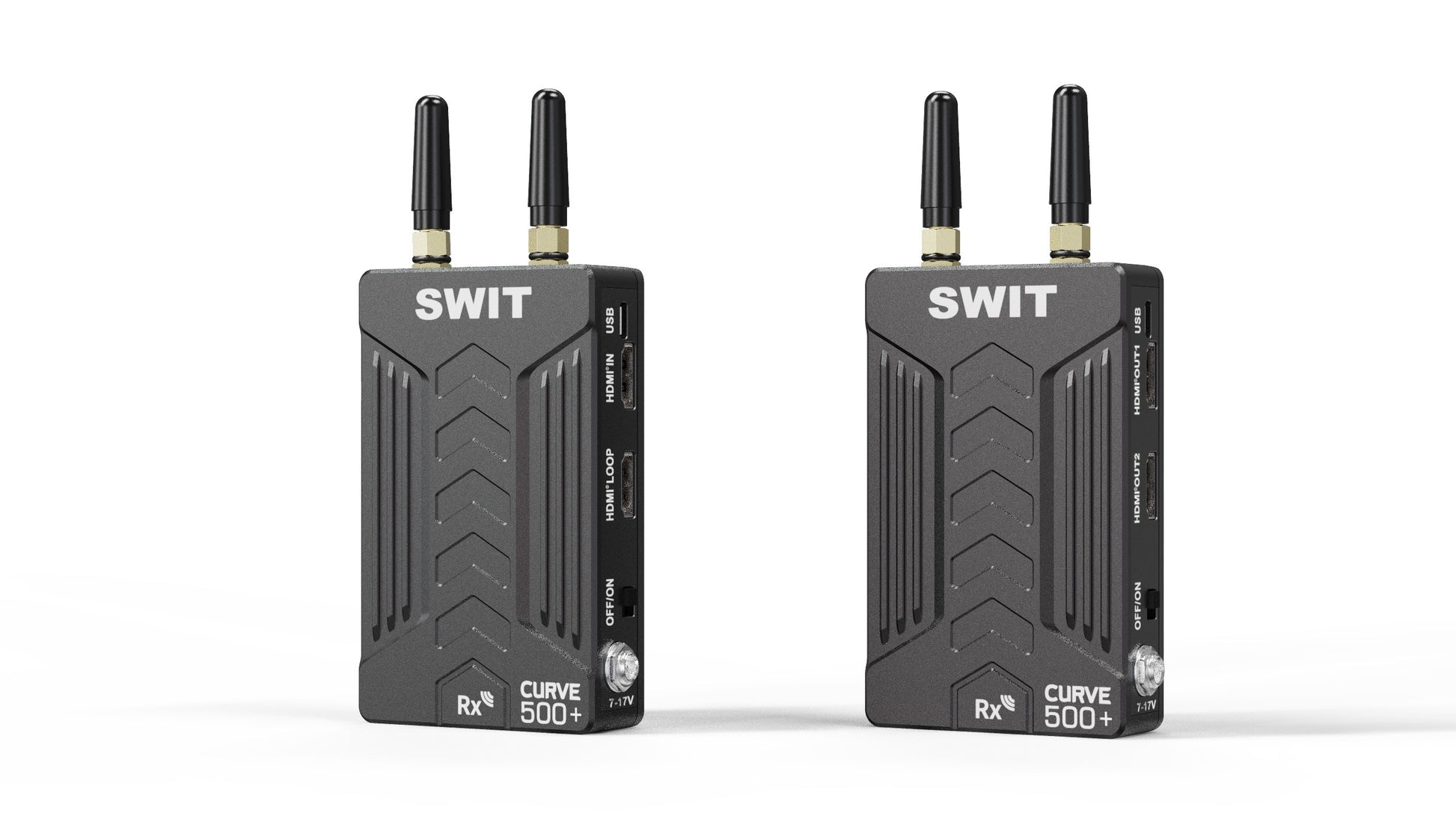

New Update with USB Video Capture CURVE500+ wireless system is based on SWIT KUWI wireless video technology, NOT WIFI, 5.1-5.9GHz license free, DFS comply, supports HDMI® 1080p60 transmit 500 feet (150 meters) Line-of-Sight distance. As the updated version, CURVE500+ support USB video capture output to computer for live streaming.
Input & Output

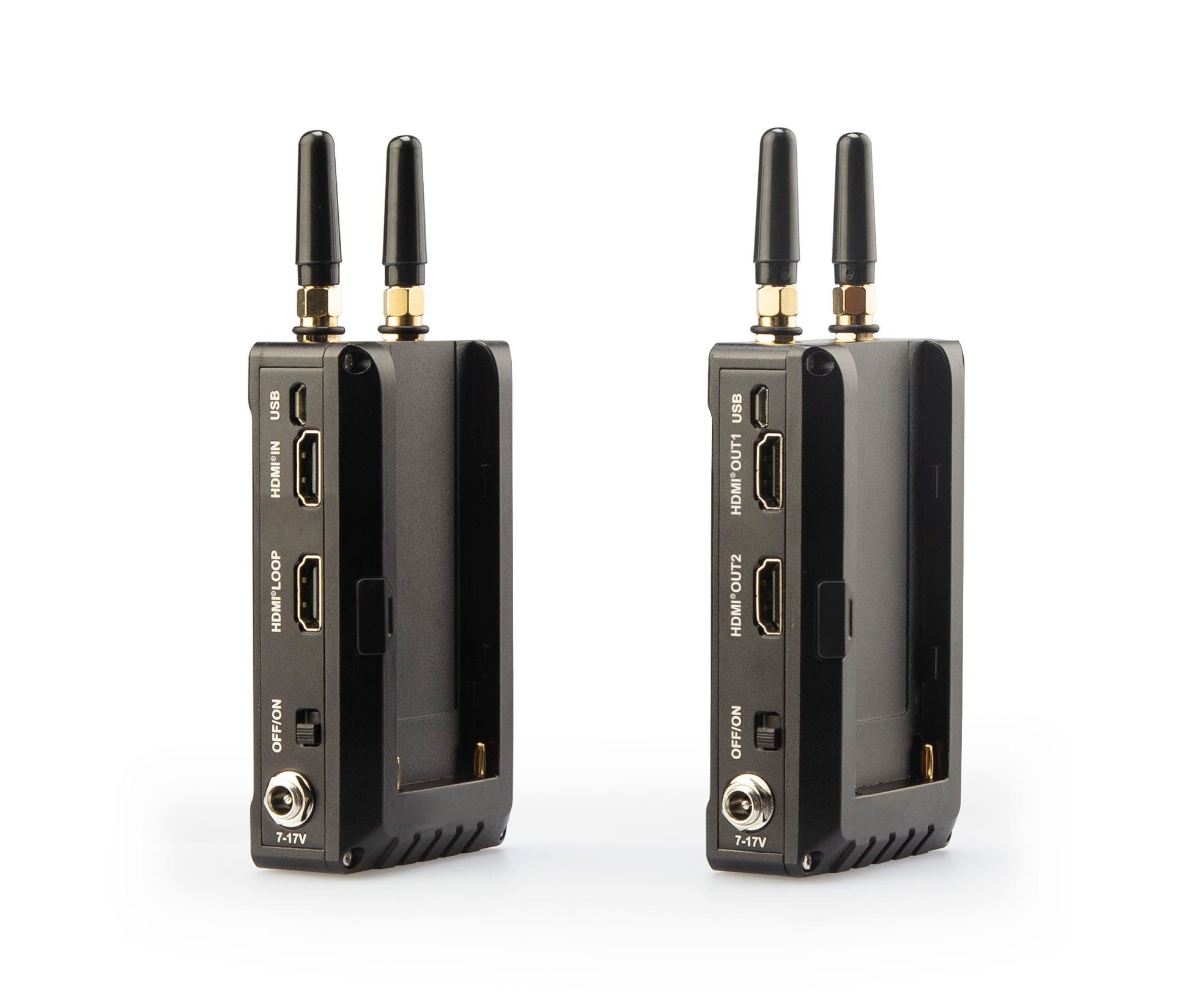

The Transmitter (Tx) supports 1x HDMI® input 1x HDMI® loop output The Receiver (Rx) supports 2x HDMI® output 1x Micro USB Video Capture output
USB Video Capture for PC/Mac
CURVE500+ Receiver provides an USB port for video capture output to computer. You can find CURVE500+ wireless video source from video conference software like MS Team, ZOOM etc, to capture high quality up to 1080p60 video instead of computer webcam.
USB Video Capture for PC/Mac
You can pull CURVE500+ wireless receiving video source to OBS studio, editing, switching and live streaming broadcasting.
500ft/150m Strong Wall-cross
CURVE500+ supports 500ft/150m (Line-of-sight) reliable wireless transmission, and featured stronger wall-cross performance due to both RF optimize and image quality optimize, so that will keep video transmission without date lost or crash comparing to regular 5GHz wireless transmitters. * Supports HDMI® embedded audio (CH1&2) transmission.
Backstage Frequency Jumping
CURVE500+ works between 5.1-5.9GHz, DFS comply, and has built-in wireless scanner to detect wireless condition and automatically jump to the best wireless channel to keep reliable connection and transmission.
Up to 7 Pairs Work Together
At one location, you can use up to 7 pairs of CURVE500+ wireless system, without interference to each other.
Official Product Data
-
Model SPU: CURVE500
-
Division: Wireless
-
Big Category: Wireless
-
Small Category: Wireless150m
-
Weight (kg): 1.05
-
Spec 1: Tx+Rx, +
-
Spec 2: HDMI-Only
-
Plate Type: F-Plate
-
Lifecycle: 2022New,Hot Selling
-
Accessory Options: WA-A03, PD-A12K
Official Specifications
Input / Output
| Transmitter |
HDMI® 1.3 input ×1 HDMI® 1.3 loop output x1 |
| Receiver |
HDMI® 1.3 Primary output ×1 HDMI® 1.3 Secondary output x1 Micro USB video capture output x1 |
Video Formats
| HDMI® |
1080p60, 1080p59.94, 1080p50 |
| 1080p23.98, 1080p24; 1080p25, 1080p29.97, 1080p30; |
| 1080psf23.98, 1080psf24 |
| 1080i60, 1080i59.94, 1080i50; |
| 720p60, 720p59.94, 720p50 |
| USB |
1080p60, 1080p59.94, 1080p50 |
| 1080p23.98, 1080p24; 1080p25, 1080p29.97, 1080p30; |
| 720p60, 720p59.94, 720p50 |
Wireless
| Frequency |
5.18GHz-5.30GHz and 5.76GHz-5.83GHz |
| RF Modules |
OFDM 16QAM, 64QAM, QPSK, BPSK |
| RF Power |
50mW |
| Transmission Distance |
500 feet / 150 meters (Line of sight) |
General
| Input voltage |
Transmitter DC 7-17V Receiver DC 7-17V |
| Power Consumption |
Transmitter 7.5W Receiver 7W |
| Dimension(w/o antenna) |
Transmitter 114.18×69.55×28 (mm) Receiver 114.18×69.55×28 (mm) |
| Net weight |
Transmitter 180.8g Receiver 181.2g; With package 1.05kg |
| Working Temperature |
0°C -+40°C |
