3400Lux @ 1m high intensity, 1:1/2 size, no fan no noise, CRI 98 TLCI 99 SSI 73
100W Mini Size Studio SMD LED Light
Official Features
Mini Size 100W LED Panel
CL-M100D is an 100W Bi-color SMD LED panel light of 1: 1/2 mini size designed, high intensity and fanless, for broadcast studio, live entertainment, theater, film applications, especially the low ceiling space setup.
576pcs Surface Mounted LEDs
CL-M100D adopts 576pcs SMD LEDs, featured: (1) higher uniformity of illuminance; (2) wider beam angle; (3) higher color rendering index; (4) Softer and Brighter; (5) longer life time, an ideal light source for Broadcast studios, green keyer, live streaming etc.
3400 Lux @ 1 meter
CL-M100D provides 100W light output, 3400Lux luminance at 1 meter distance, 62° half-peak wide beam angle, supports 0 to 100% PWM digital dimming, smoothly and non-flickering.
IEC 62471 Photobiological Safe Certificated
The light has been tested and certificated as “Exempt - No Photobiological Hazard” by the IEC 62471:2008 standard, without the risk of ultraviolet radiation, high energy blue light, flicking. In specific locations such as churches, museums, and ancient buildings, using this lighting fixture can effectively prevent the fading and peeling of mural artifacts, thereby protecting cultural heritage.

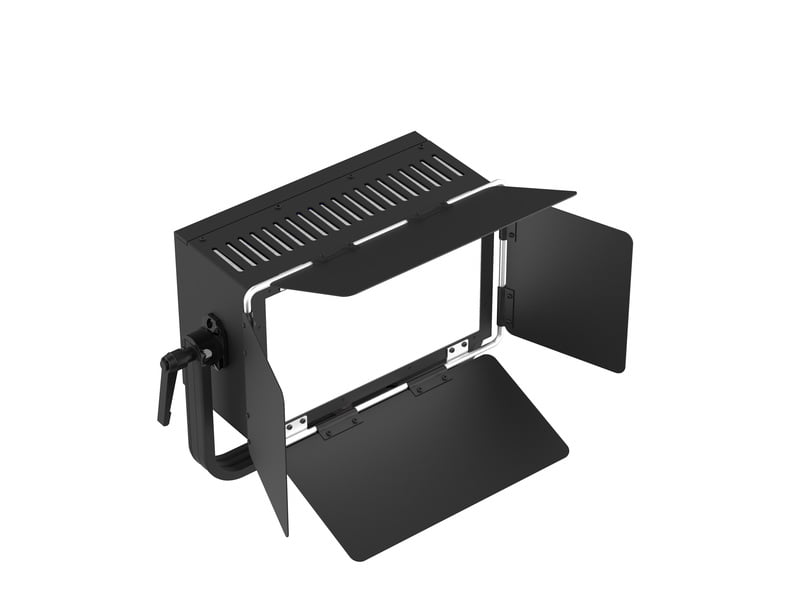

No Fan, No Noise
The large size fin consender inside CL-M100D ensures 100W high bright output within such a small size housing, no fan, no noise, to provide a silent video production environment.
2700K-6500K Continuously Adjustment
CL-M100D consists of 100W of 2700K LED and 100W of 6500K LED, and outputs 100W power at any color temperature from 2700K to 6500K.
CRI 98; TLCI 99
CL-M100D adopts high end surface mounted LEDs with super high Color Rendering Index (CRI) Ra 98, and Television Lighting Consistency Index (TLCI) 99. Objects will keep their original colors exactly under the light.

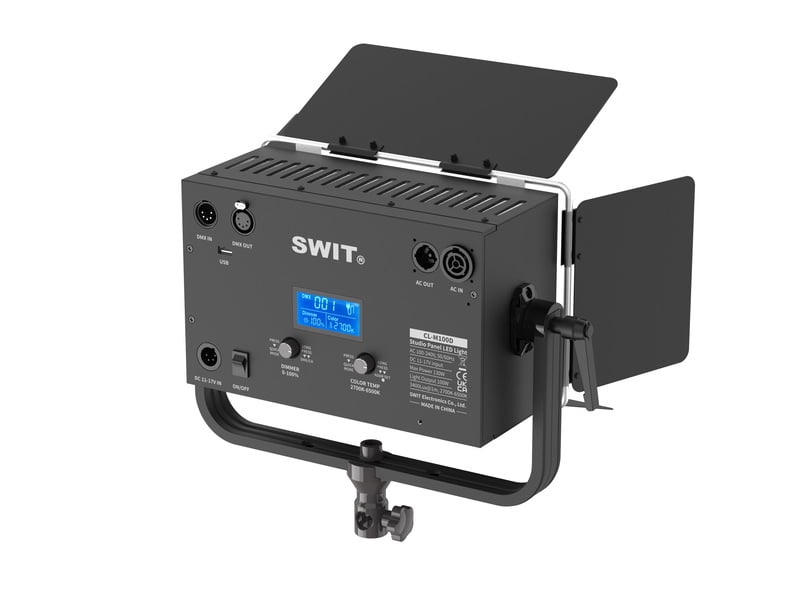

Control Info Display

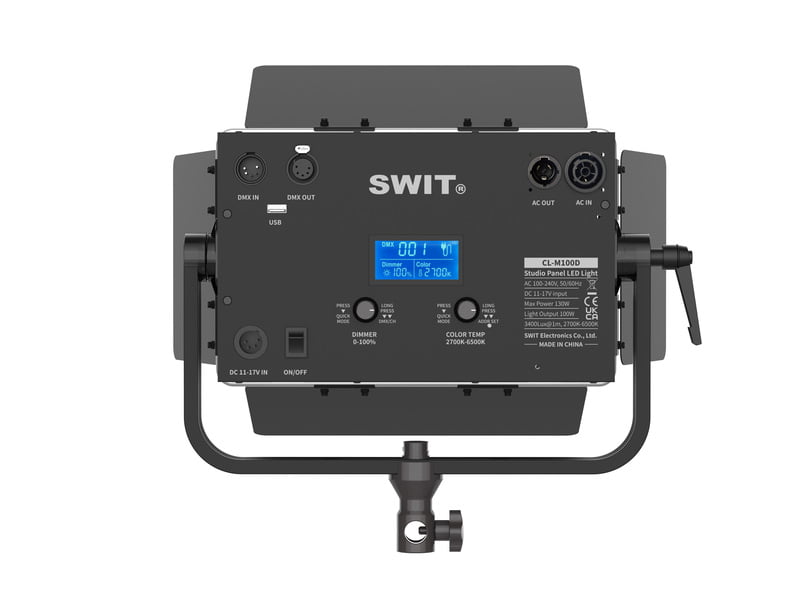

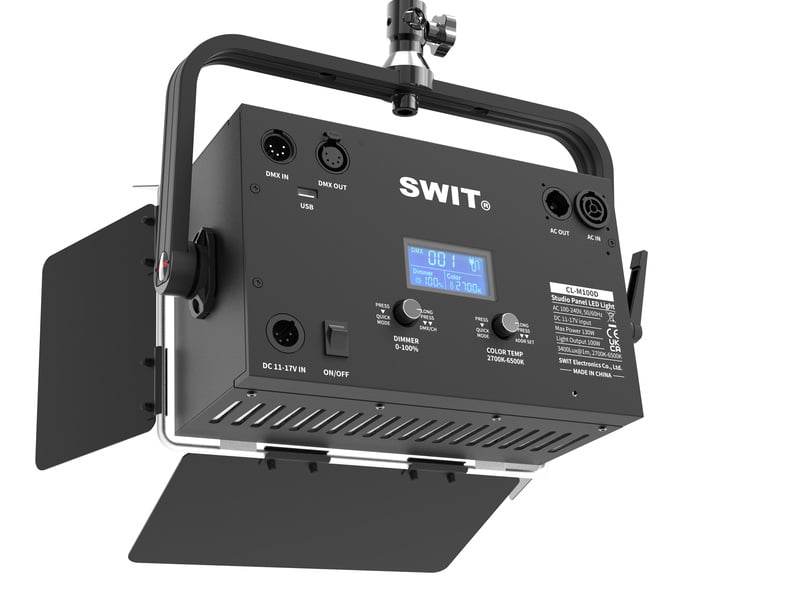

The rear LCD screen can display dimmer percentage, color temperature, DMX address, Group channel (CH), and power indicators. Long press color temp knob to set DMX address, and long press dimmer knob to switch between DMX consoler mode and Group interactive control mode.
Official Product Data
-
Model SPU: CL-M100D
-
Division: Lighting
-
Big Category: Lighting
-
Small Category: Panel Light
-
Power: 100W
-
Weight (kg): 7.4
-
Spec 1: DMX
-
Lifecycle: 2021New, Hot Selling
