1:1/2 size, no fan no noise, 3000Lux@1m, CTDM high intensity color light
100W Mini Size Studio RGBW Light
Official Features
Mini Size 100W RGBW Panel
CL-M100C is an 100W RGBW SMD LED panel light of 1: 1/2 mini size designed, high intensity and fanless, for broadcast studio, live entertainment, theater, film applications, especially the low celling space setup.
3000 Lux @ 1 meter
With 170pcs RGB LEDs and 340pcs White LEDs, CL-M100C provides 100W light output, 3000Lux luminance at 1 meter distance, 62° half-peak wide beam angle, 2800K-10000K continuously adjustment and G/M ±1.00 support. 0 to 100% PWM digital dimming, smoothly and non-flickering.
Time Division Tech, Brighter Color Light
The regular RGB panels are high bright in CCT mode, but much lower in RGB color mode. That’ s because in a regular RGB light, the RGB color LED and White LED have fixed rates to share the total power of the light, and when output color lights, the RGB LEDs use only 1/3 power. By SWIT unique Time Division Drive tech, full power of the light can be assigned to RGB color LEDs, and greatly increased the intensity of color light. The 100W CL-M100C color light intensity equals to a regular 300W RGB color light intensity.
IEC 62471 Photobiological Safe Certificated
The light has been tested and certificated as “Exempt - No Photobiological Hazard” by the IEC 62471:2008 standard, without the risk of ultraviolet radiation, high energy blue light, flicking. In specific locations such as churches, museums, and ancient buildings, using this lighting fixture can effectively prevent the fading and peeling of mural artifacts, thereby protecting cultural heritage.
No Fan, No Noise
The large size fin consender inside CL-M100C ensures 100W high bright output within such a small size housing, no fan, no noise, to provide a silent video production environment.

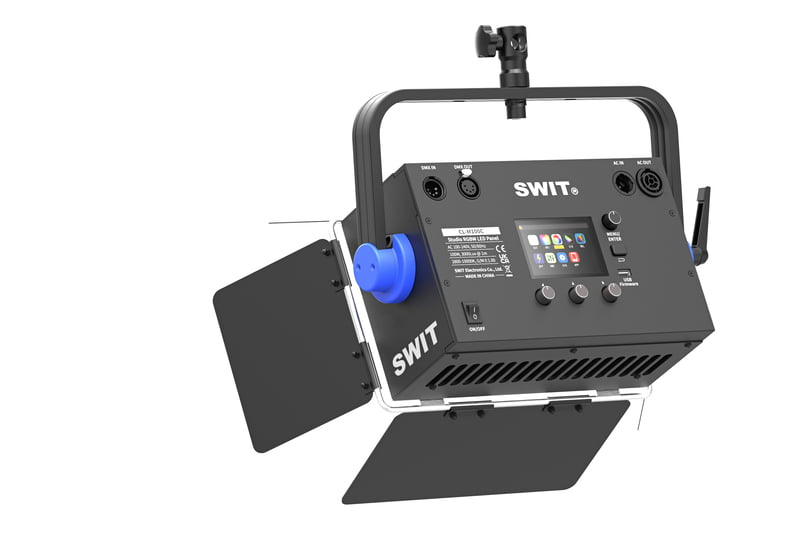

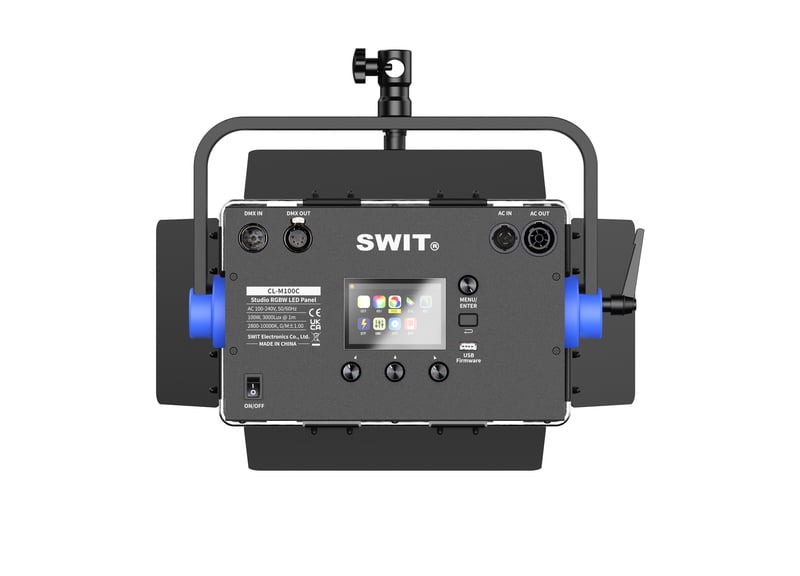

Control Panel
CL-M100C rear control panel supports 5-pin DMX in & out, and a large color LCD with menu and hot keys for convenient color picking. The USB-A port is for firmware update or user color profile upload, and to power wireless DMX receiver.
On-board 3.5-inch Color LCD
Visualized color selection
Bluetooth APP Control
Download “SWIT Console” APP on IOS App Store or Google PLAY, to connect and control CL-M100C lights via Bluetooth.
Official Product Data
-
Model SPU: CL-M100C
-
Division: Lighting
-
Big Category: Lighting
-
Small Category: RGB Panel Light
-
Power: 100W
-
Weight (kg): 6.75
-
Spec 1: DMX
-
Lifecycle: 2022New
