3700Lux@1m, CRI 98 TLCI 99, 2700-6500K, DMX control
120W 2:1 Bi-color SMD LED panel light
Official Features
SMD LED Studio Light
Brighter, softer, wider beam angle CL-120D is a 120W 2:1 Bi-color SMD LED panel light, with DMX control, high CRI/TLCI and accurate color performance, for broadcast studio, mobile studio, live streaming studio or interview kit applications.
1800pcs Surface Mounted LEDs
CL-120D adopts 1800pcs SMD LEDs, featured: (1) higher uniformity of illuminance; (2) wider beam angle; (3) higher color rendering index; (4) Softer and Brighter; (5) longer life time, which is an ideal light source for Broadcast studios, green keyer, interview kit, live streaming etc.
3700 Lux @ 1 meter, Fanless
CL-120D outputs 120W power, feeds 3700Lux luminance at 1 meter distance (center), supports 0 to 100% PWM digital dimming, smoothly and non-flickering. The active cooling system ensures high bright output with no fan or louver, to provide a silent video production environment.
Wider Beam Angle
The SMD LEDs have wider beam angle comparing to the traditional DIP LED bulbs. It will generate an equally spread area light from center to edge, instead of a glaring light spot that suddenly declined from center to edge. The wider angle equally spread light produces a nature light environment in studio.
IEC 62471 Photobiological Safe Certificated
The light has been tested and certificated as “Exempt - No Photobiological Hazard” by the IEC 62471:2008 standard, without the risk of ultraviolet radiation, high energy blue light, flicking. In specific locations such as churches, museums, and ancient buildings, using this lighting fixture can effectively prevent the fading and peeling of mural artifacts, thereby protecting cultural heritage.
Bi-color temperature
2700K-6500K continuously adjustable CL-120D alternated with 120W 2700K LEDs and 120W 6500K LEDs, and can be continuously adjusted between 2700K and 6500K, 50K step.
Accurate Color Render
CRI 98; TLCI 99 CRI (Color Rendering Index) is a measure of the ability of a light source to reveal the colors of various objects faithfully in comparison with a natural light source. And TLCI (Television Lighting Consis- tency Index) is special for the color reveal ability by camera sensor. Max value 100. The normal LED light has 80-85 CRI or TLCI, while CL-120D offers the super high CRI at 98 and TLCI at 99, and will not lose the object original colors.
DMX512 Control

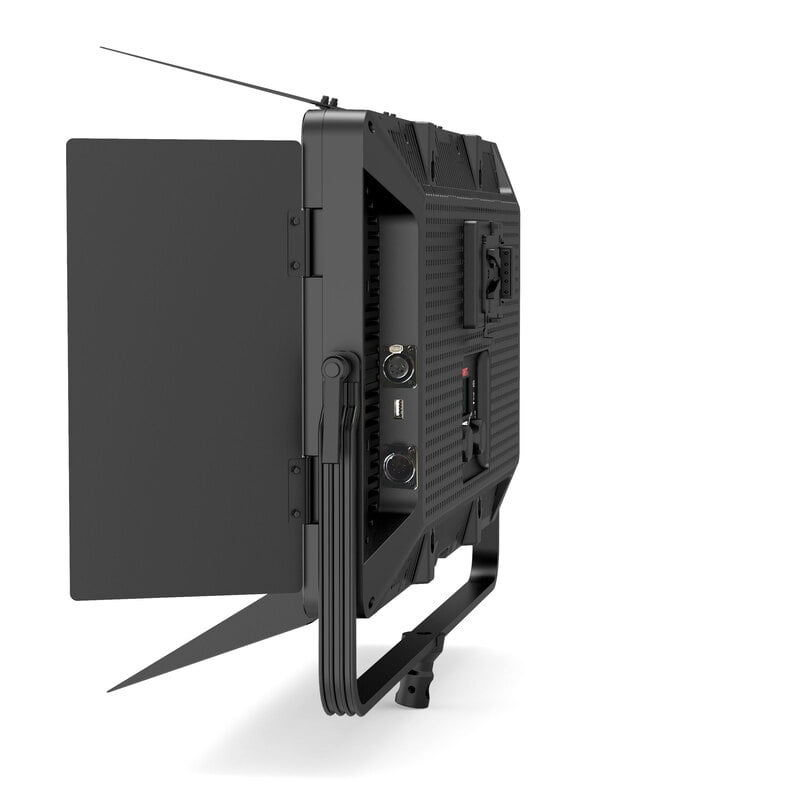

5pin XLR in and out DMX address: N= Dimmer; N+1= Color temp Provides a 5V USB power output socket. You can use SWIT LA-WR8 Pocket Wireless DMX controller and power the wireless DMX adaptor by the on board USB socket. Press and hold dimmer knob for 2 seconds to enter DMX address setting from 001 to 512.
Official Product Data
-
Model SPU: CL-120D
-
Division: Lighting
-
Big Category: Lighting
-
Small Category: Panel Light
-
Power: 120W
-
Weight (kg): 9.4
-
Spec 1: DMX
-
Plate Type: V-Mount
-
Lifecycle: Hot Selling
