USB-C 65W, 150W/12A high load, D-tap×2, fly-friendly
98Wh USB-C Slim Cine V-mount Battery
Official Features
CINE V-Mount Battery
The CIMO series cine class V-mount batteries featured high power load, 2× D-tap, 65W USB-C, OLED power info display, battery life inspection and 1.2m drop-off proof for professional cinematographers.
14.4V, 98Wh Slim Size
CIMO-98S consists of 8pcs ternary lithium cells, 14.4V nominal voltage, 98Wh, 6.8Ah fly friendly capacity. The ternary lithium cells provide higher energy density, achieve higher capacity with a smaller size, and excellent low-temperature performance, capable of supplying power under -20°C cold environment.
150W Constant / 200W Peak High Load Output
CIMO-98S outputs at least 150W/12A high load even at 1% capacity (Peak load up to 200W), to drive high power Cine cameras and on-camera devices together. The high load cells will also ensure battery life comparing to normal load batteries if long time full load output.

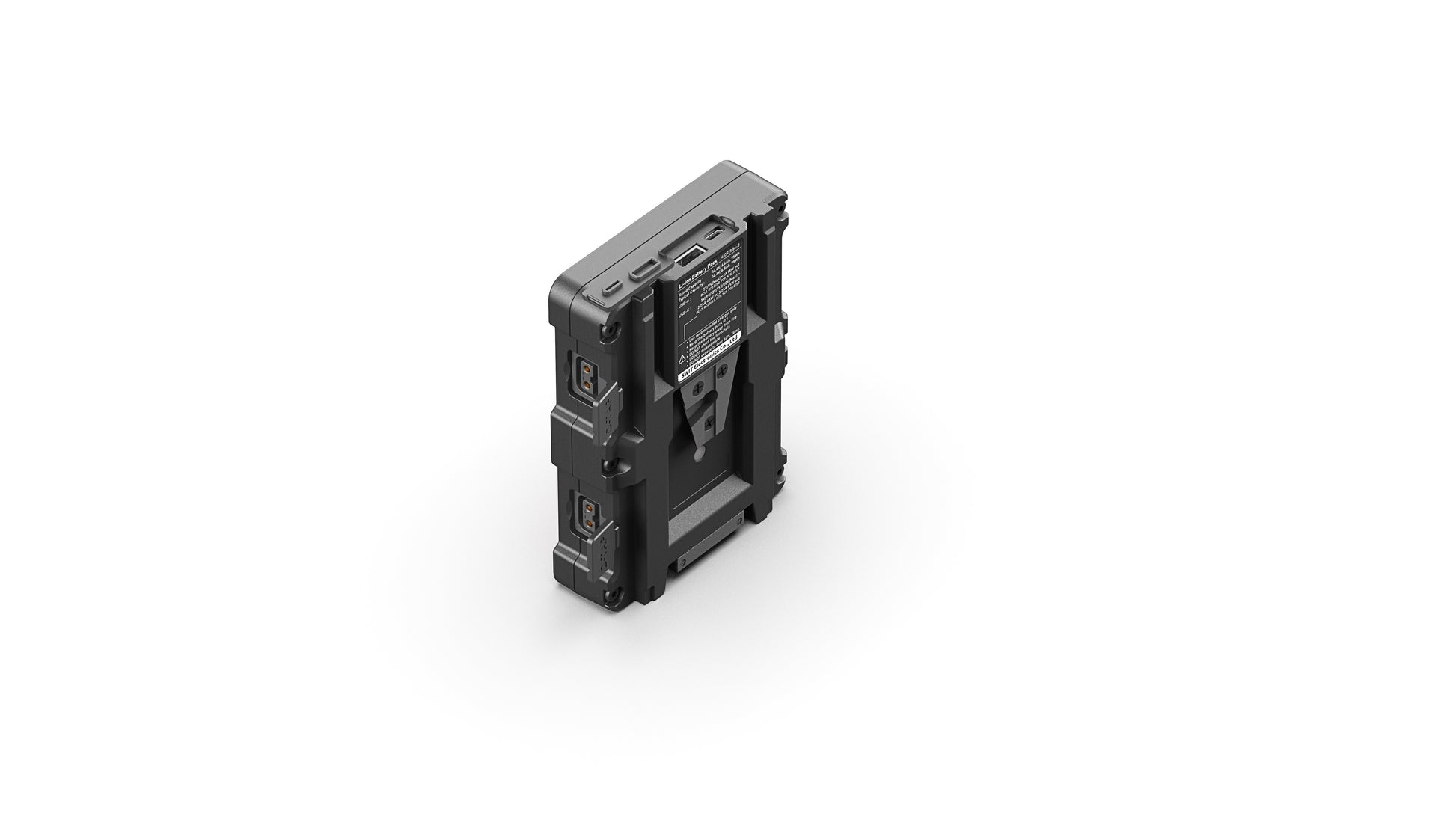

2×D-tap, USB-A & USB-C
CIMO-98S provides with 2x D-tap 150W in total; 1x USB-A 5V/9V 2A out; 1x USB-C 45W input and 65W output for various on-camera devices.

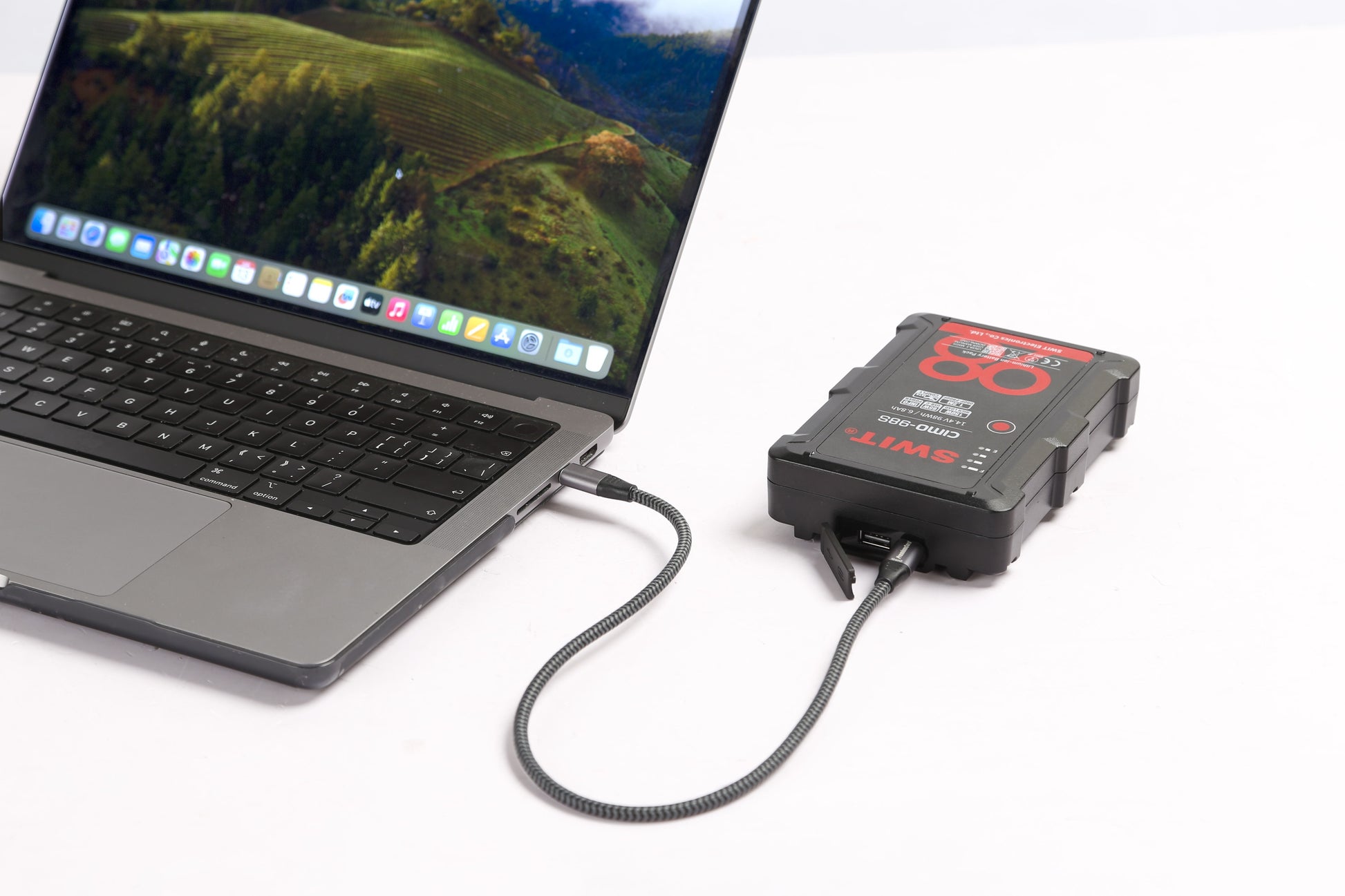

USB-C 65W Output
The USB-C port of CIMO-98S outputs 5V/9V/12V/15V 3A, 20V(Max) 3.25A, 65W high power for laptops and various smart devices, with BC1.2, QC2.0/3.0, FCP, SCP, PD2.0/3.0 universally compatible protocols.
USB-C 45W Charging Input
The battery can also be charged by USB-C charger of PD2.0/3.0 ≥45W power, fully charged within 2.5 hours. * Please note that<45W low power USB-C chargers are unable to charge this battery.
LED Torch
You can double press the Power Check button to switch on LED torch on the rear side of the battery, to help you to find V-mount plate in dark production environment. Double press the Power Check button again to switch the light off, and it will be automatically switched off after 60 seconds.
1.2 meters Drop-off Proof
CIMO series batteries are dual housing designed and can survive from 1.2 meters drop-off at any angles, strong and reliable for filmmakers.
Official Product Data
-
Model SPU: CIMO-98
-
Division: Power
-
Big Category: Battery
-
Small Category: Power Battery
-
Power: 98Wh
-
Voltage: 14.4V
-
Weight (kg): 0.7
-
Spec 1: USB-C
-
Plate Type: V-Mount
-
Lifecycle: 2024New, available
-
Accessory Options: UC-2065
