2304 zones local dimming UHD Mini-LED, PQ/HLG, 4x12GSDI (8K), Quad View, Self Calibration

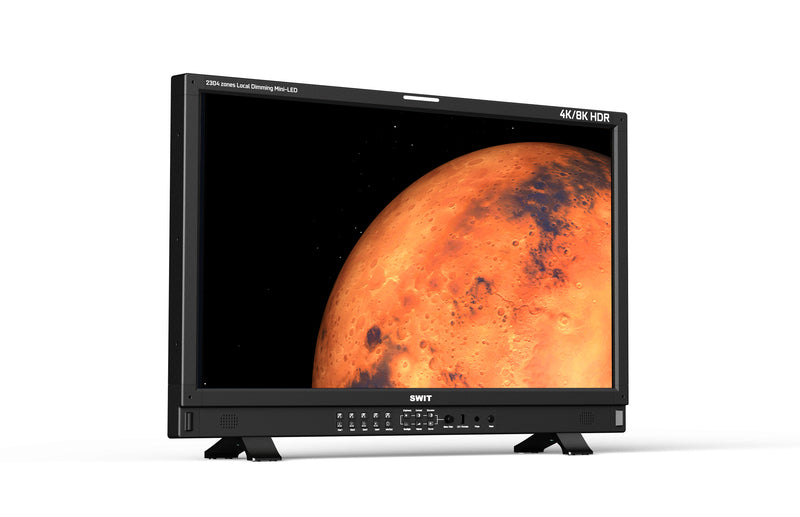

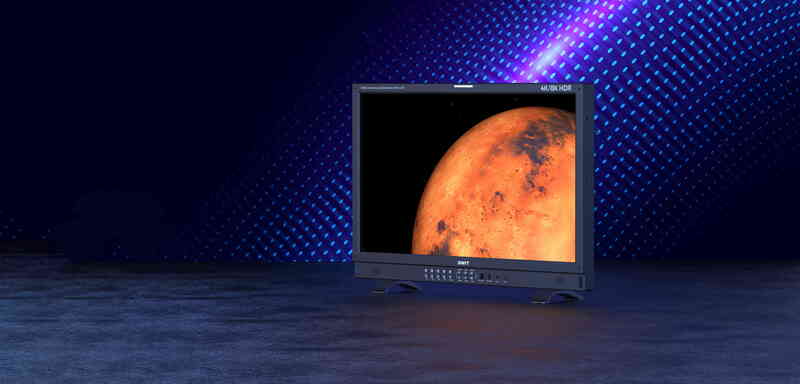

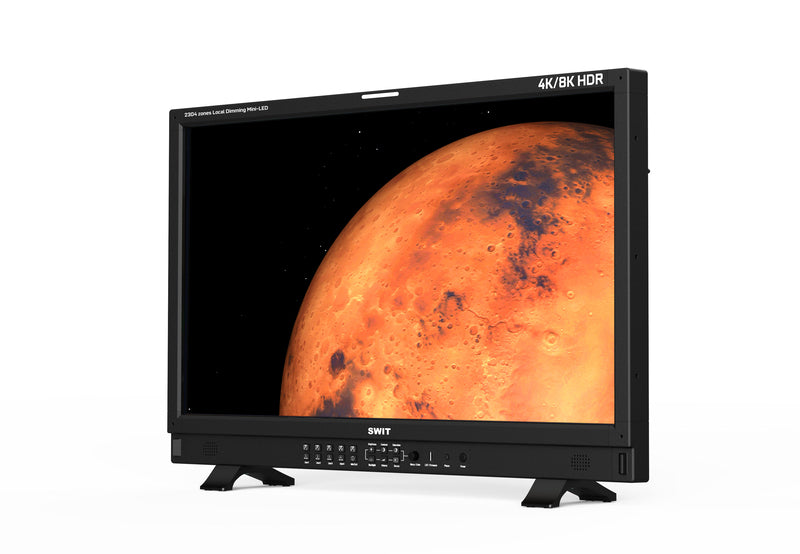

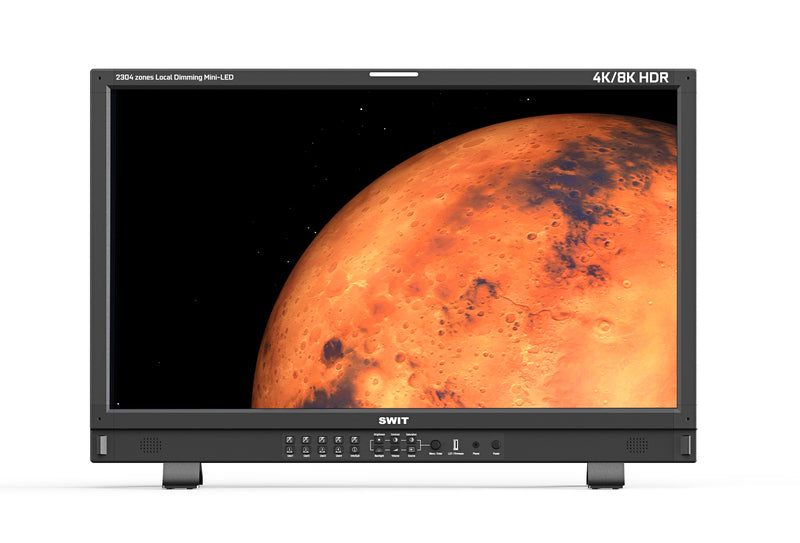

31.5" 4K/8K 1500nit 1,000,000:1 HDR Studio Monitor
Official Features
1500nits 1,000,000:1 HDR
2304 zones local dimming Mini-LED BM-U325MD adopts a 31.5-inch 4K/UHD resolution10-bit Mini-LED panel of 2304 zones local dimming backlight, with 1500nits high bright and 1,000,000:1 high contrast radio for HDR productions.
Unique Local Dimming Mini-LED
SWIT has customized the Mini-LED drivers with advanced algorithms, to greatly restrain the halo effect and ensure H/V 178° full viewing angle.
Multi 4K/8K Interfaces
12GSDI 4-in 4-out, supports: Single link 4K; Quad link 4K and Quad link 8K HDMI® 2.0 (4K60P) 12GSDI via SFP Fiber (Optional *) ST2110 IP via SFP Fiber (Optional **) * 12G-SDI via SFP receiver: Embrionix EB12LC2R-MNR-P or MPT-SDI-12GR35-20 recommended); ** ST.2110 via SFP transceiver: Embrionix EB22LC2B-SN recommended (up to 1080p50/60).
4K/8K UHD Monitor
Supports Single link 4K input including 12GSDI, HDMI®2.0 or 12GSDI / ST.2110 via SFP, and Quad link 4x 3GSDI 4K or Quad link 4x 12GSDI 8K inputs with both SQD and 2SI modes.
Quadview, PBP, PIP
You can also input 4x independent 4K inputs for quadview, supports 12G/6G/3G/HD-SDI and HDMI® 2.0/1.4/1.3 mixed formats input, and waveform, vector, HDR/SDR gamma selection, color gamut selection, and UMD displays for each input window. Beside Quadview, you can select any 2 inputs to display Pic-by-Pic or Pic-in-Pic modes for convenient video productions.
VICO 1.97 Eye Protect
The Mini-LED panel also adopts Quantum Dot layer between screen and LED backlight, which changes the LED spectrum to reduce blue and balance the R/G/B peak, which will stimulate people’ s cone cells evenly, and reducing visual fatigue effectively. The VICO (Visual Health and Comfort) testing scores 1.97, A class, to protect your eyes from long time video editting or broadcast studio productions.
HLG/PQ/S-Log3/Gamma 2.4 HDR
BM-U325MD has a native 1500nits high bright backlight and 1,000,000:1 contrast ratio, perfectly displays HLG (Hybrid Log Gamma), Dolby Vision PQ, SONY S-Log3 HDR and Gamma 2.4 HDR content.
HDR EOTF Match
Official Product Data
-
Model SPU: BM-U325MD
-
Division: Monitor
-
Big Category: Monitor
-
Small Category: Studio Monitor
-
Weight (kg): 21
-
Spec 1: MillionContrast, HB, 8K4K
-
Spec 4: ~31"
-
Lifecycle: 2023New
-
Accessory Options: EB22LC2B-SN
Official Specifications
LCD Performance
| Size |
31.5 inches |
| Display area |
697.3×392.2mm |
| Resolution |
3840×2160 |
| Aspect ratio |
16:9 |
| Brightness |
1500nits |
| Contrast |
1,000,000:1 |
| Color depth |
1.073G colors, 10-bit |
| Signal process |
18-bit |
| Viewing angle |
178°(H) /178°(V) |

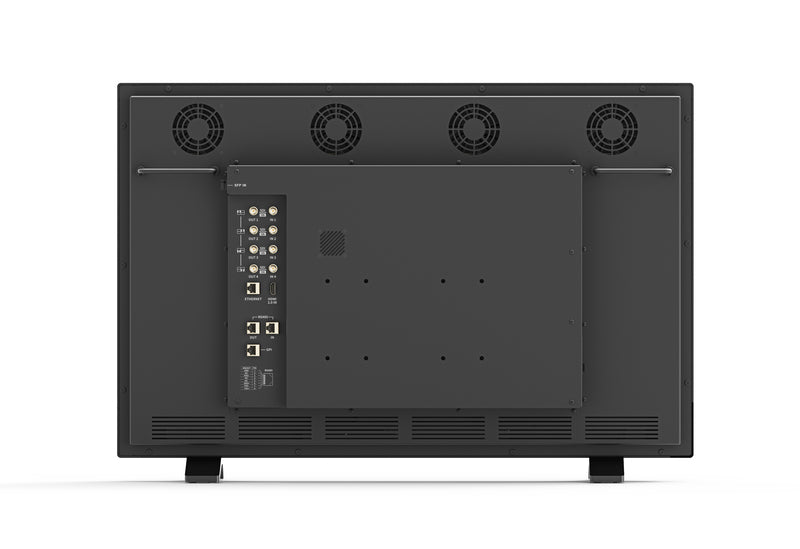

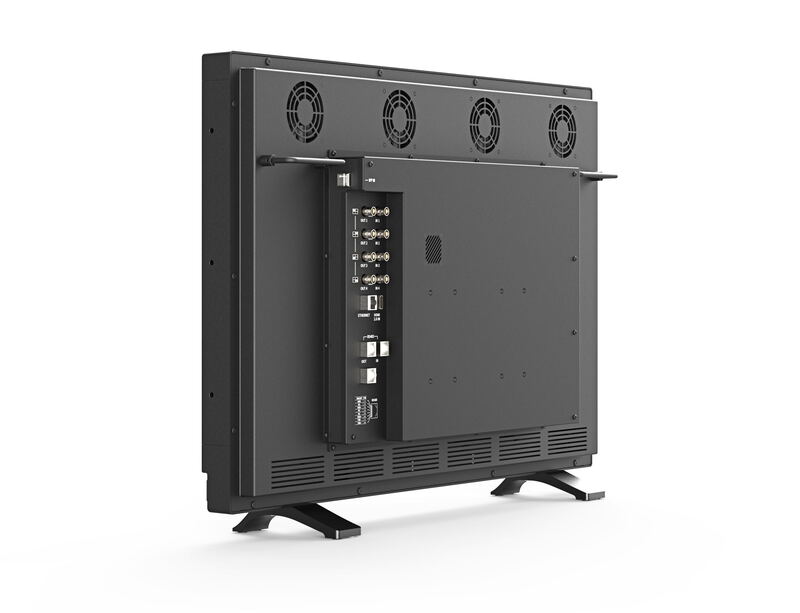

Input
| BNC ×4 |
12G/6G/3G/HD/SD-SDI input |
| HDMI® ×1 |
HDMI® 2.0 input |
| SFP ×1 |
Optical Fiber input (By optional SFP adaptor) |
| RS485 ×1 |
TSL 3.1/4.0 UMD input |
| RS485 ×1 |
GPI (Tally) input |
| RJ45 ×1 |
1000M Ethernet input for Webserver IP control |
Output
| BNC ×4 |
12G/6G/3G/HD/SD-SDI loop output |
| RS485 ×1 |
TSL 3.1/4.0 UMD output |
| Analog audio |
3.5mm headphone and speaker |
Video Format
| SDI 1/2/3/4 |
4096×2160p (60 / 59.94 / 50 / 30 / 29.97 / 25 / 24 / 23.98) |
| 3840×2160p (60 / 59.94 / 50 / 30 / 29.97 / 25 / 24 / 23.98) |
| 2048×1080p (60 / 59.94 / 50 / 30 / 29.97 / 25 / 24 / 23.98) |
| 2048×1080i (50 / 59.94 / 60) |
| 1080p (60 / 59.94 / 50 / 30 / 29.97 / 25 / 24 / 23.98) |
| 1080i (60 / 59.94 / 50) |
| 1080psf (30 / 29.97 / 25 / 24 / 23.98) |
| 720p (60 / 59.94 / 50) |
| 480i (59.94), 576I (50) |
| Quad Link 4K (Each channel) |
2048×1080p (60 / 59.94 / 50 / 30 / 29.97 / 25 / 24 / 23.98) |
| 1080p (60 / 59.94 / 50 / 30 / 29.97 / 25 / 24 / 23.98) |
| Quad Link 8K (Each channel) |
4096×2160p (60 / 59.94 / 50 / 30 / 29.97 / 25 / 24 / 23.98) |
| 3840×2160p (60 / 59.94 / 50 / 30 / 29.97 / 25 / 24 / 23.98) |
| HDMI® |
4096×2160p (60 / 59.94 / 50 / 30 / 29.97 / 25 / 24 / 23.98) |
| 3840×2160p (60 / 59.94 / 50 / 30 / 29.97 / 25 / 24 / 23.98) |
| 1080p (60 / 59.94 / 50 / 30 / 29.97 / 25 / 24 / 23.98) |
| 1080i (60 / 59.94 / 50) |
| 720p (60 / 59.94 / 50) |
General
| Input voltage |
AC 100-240V, 50/60Hz |
| Power consumption |
≤ 200W |
| Working temperature |
0°C～+50°C |
| Working humidity |
10%～90% |
| Storage temperature |
-15°C～+60°C |
| Storage humidity |
10%～90% |
| Dimensions |
753.5×490×111.1mm |
| Net weight (main body) |
Net 16.8kg; With package 22.4kg |
