UHD panel, 1000nits PQ/HLG, 4x12GSDI (8K), HDMI® 2.0, SFP Fiber, Self Calibration

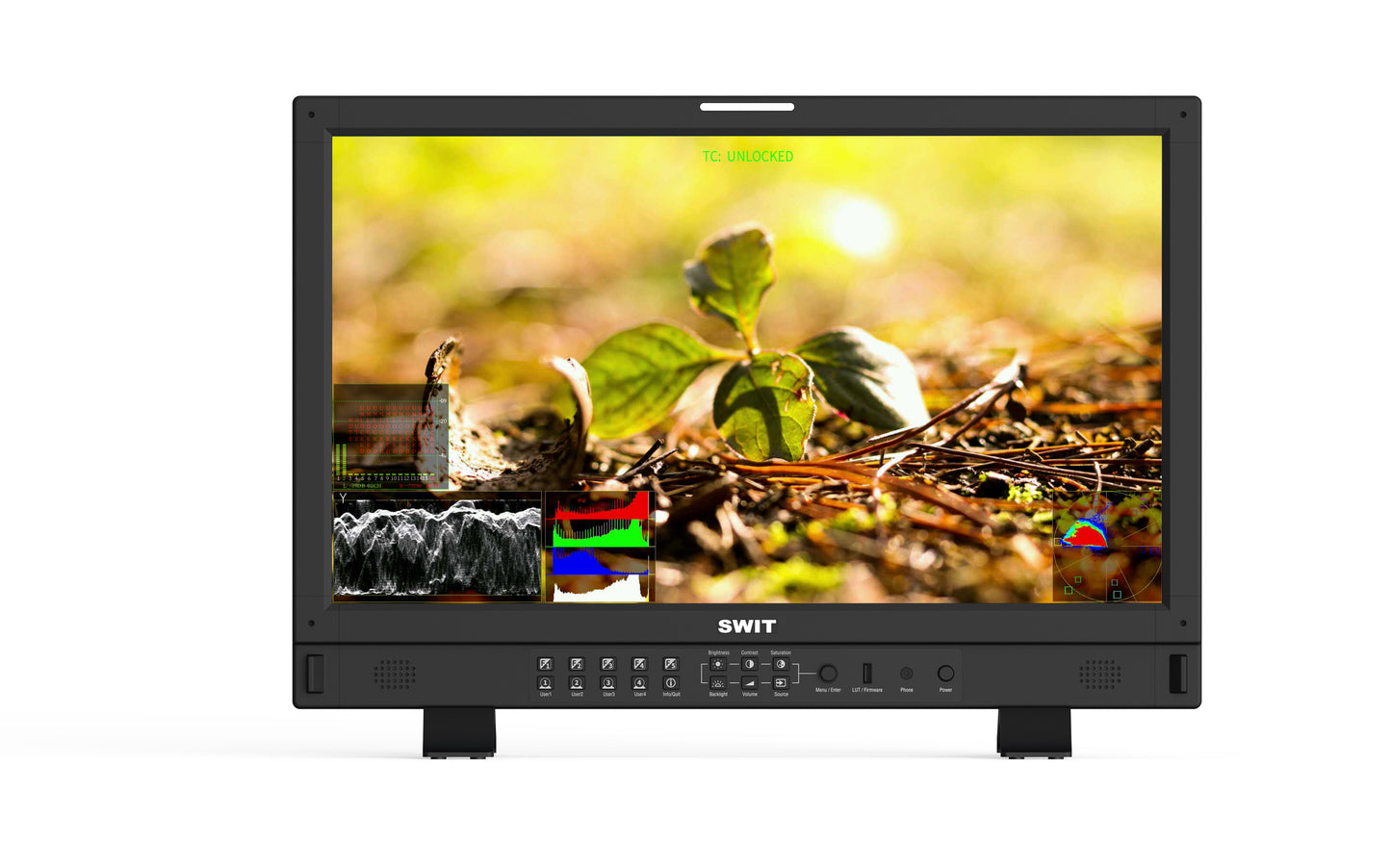

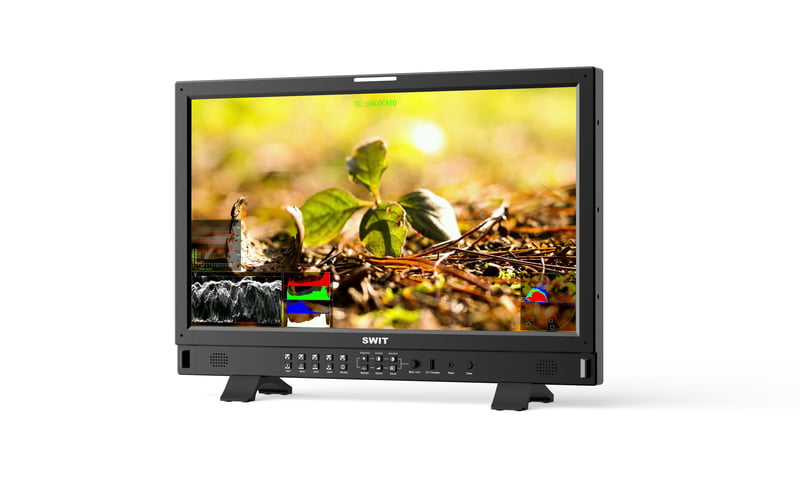

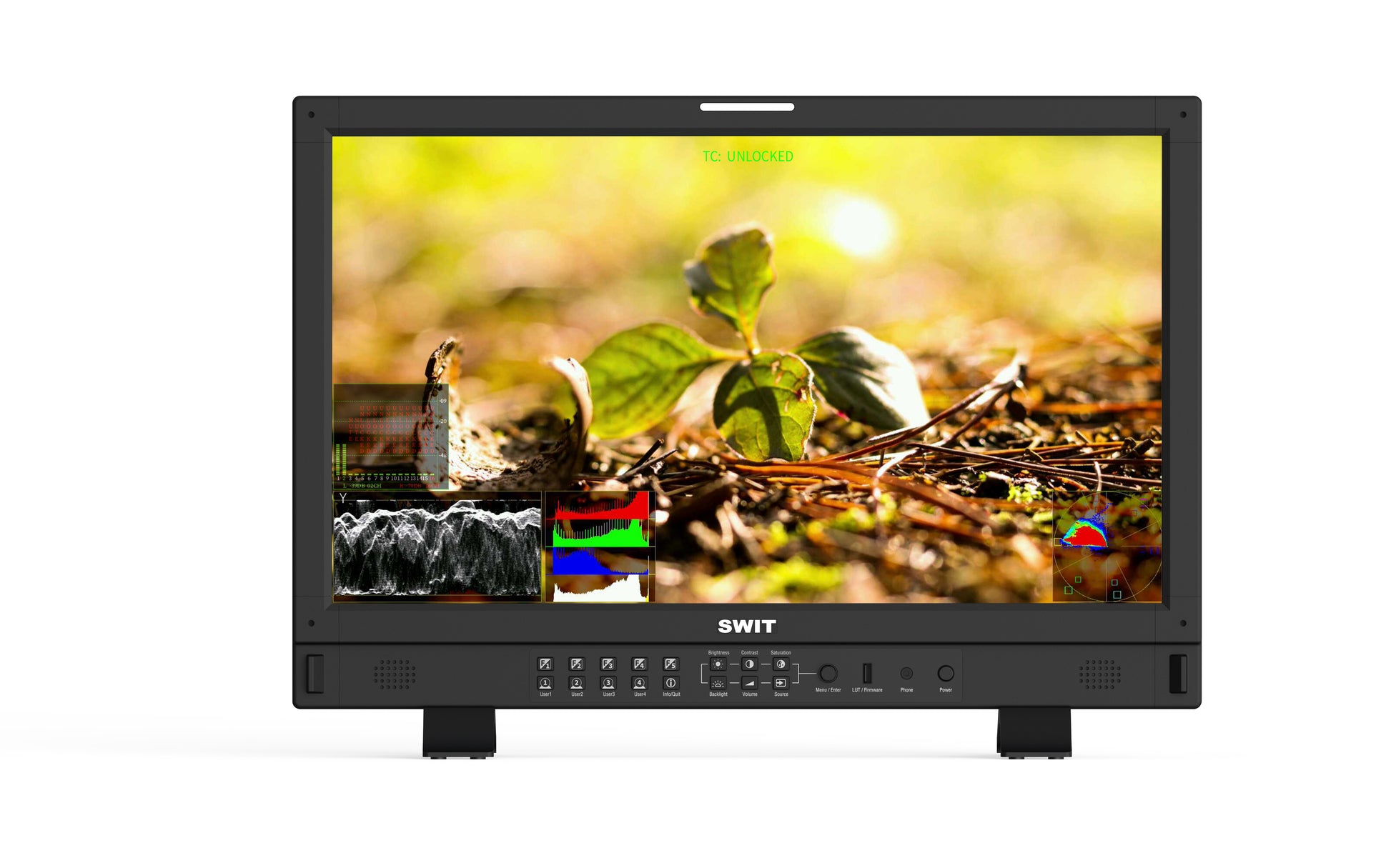

23.8-inch 4K/8K 12GSDI HDR Studio Monitor
Official Features
23.8-inch 1000nits 4K
UHD panel, 89% REC2020 BM-U245HDR adopts a 23.8-inch 10-bit LCD panel, UHD 3840×2160 resolution, 1000nits LED backlight, 1000:1 contrast, 91.9% DCI-P3 and 89% Rec2020 color gamut. The viewing angle is H178° / V178°.
Multi 4K/8K Interfaces
12GSDI 4-in 4-out, supports: Single link 4K; Quad link 4K and Quad link 8K HDMI® 2.0 (4K60P) 12GSDI via SFP Fiber (Optional *) ST2110 IP via SFP Fiber (Optional **) * 12G-SDI via SFP receiver: Embrionix EB12LC2R-MNR-P or MPT-SDI-12GR35-20 recommended; ** ST.2110 via SFP transceiver: Embrionix EB22LC2B-SN recommended (up to 1080p50/60).
Display Modes
Supports Single link 4K input including 12GSDI, HDMI®2.0 or 12GSDI via SFP, and Quad link 4x 3GSDI 4K or Quad link 4x 12GSDI 8K inputs. You can also input 4x independent 4K videos to multiview, supports 12G/6G/3G/HD-SDI and HDMI® 2.0/1.4/1.3 mixed formats input, and waveform, vector, audio meters, EOTF, color gamut selection for each input.
HLG/PQ/S-Log3 HDR
BM-U245HDR has a native 1000nits high bright backlight LCD panel, and supports HLG (Hybrid Log Gamma), Dolby Vision PQ and SONY S-Log3 HDR monitoring.
HDR EOTF Match
Payload ID Auto Setting
Support input video Payload ID identify and the monitor will automatically set HDR/SDR EOTFs, Color Gamut, Input range, Color space and Color depth according to the Payload ID info.
Multi CG & EOTF Viewing
Supports 1 input source copied to 4 windows and display different HDR/SDR and color gamut simultaneously. You can get correct reference when producing HDR and SDR together.
3DLUT Auto Self-Calibration
By X-rite i1 or JETI Specbos 1211 With built-in 3DLUT calibration software, (software copyright) support X-rite i1 and Jeti Specbos 1211 probes to directly connect with the monitor USB port. The monitor generates color patterns and the color probes read the color, send color info to monitor via USB. Then the monitor compares the color difference and generate 3DLUT and calibrate itself automatically. Calibration time: X-rite i1 15min, Specbos 1211 45min Calibration result: ∆E≤1.0
Official Product Data
-
Model SPU: BM-U245
-
Division: Monitor
-
Big Category: Monitor
-
Small Category: Studio Monitor
-
Power: 120W
-
Voltage: 12-17V
-
Weight (kg): 12.7
-
Spec 1: HB, 8K4K
-
Spec 4: ~24"
-
Lifecycle: 2021New, Hot Selling
-
Accessory Options: X-Rite Pro(SWIT version), EB22LC2B-SN, EB12BN1R-MNR
Official Specifications
LCD Performance
| Size |
23.8 inches |
| Display area |
527.04×296.46mm |
| Resolution |
3840×2160 |
| Aspect ratio |
16:9 |
| Brightness |
1000nits |
| Contrast |
1000:1 |
| Color depth |
1.073G colors, 10-bit |
| Signal process |
18-bit |
| Viewing angle |
178°(H) /178°(V) |
Input

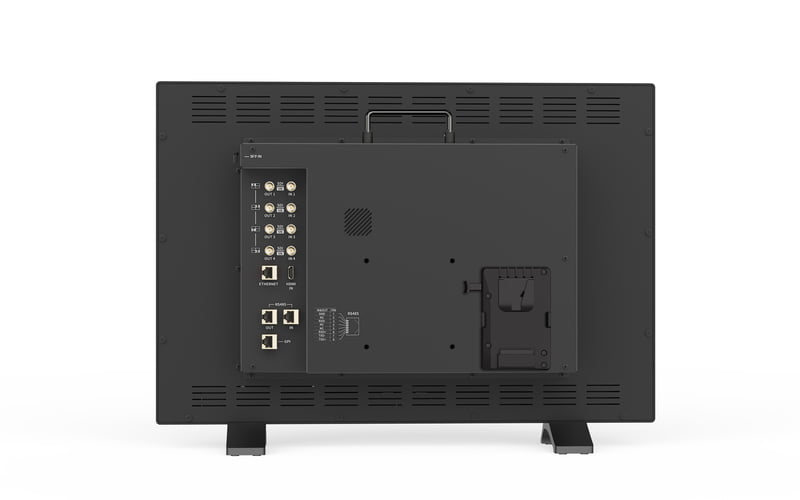

| BNC ×4 |
12G/6G/3G/HD/SD-SDI input |
| HDMI® ×1 |
HDMI® 2.0 input |
| SFP ×1 |
Optical Fiber input (By optional SFP adaptor) |
| RS485 ×1 |
TSL 3.1/4.0 UMD input |
| RS485 ×1 |
GPI (Tally) input |
| RJ45 ×1 |
1000M Ethernet input for Webserver IP control |
Output
| BNC ×4 |
12G/6G/3G/HD/SD-SDI loop output |
| RS485 ×1 |
TSL 3.1/4.0 UMD output |
| Analog audio |
3.5mm headphone and speaker |
Video Format
| SDI 1/2/3/4 |
4096×2160p (60 / 59.94 / 50 / 30 / 29.97 / 25 / 24 / 23.98) |
| 3840×2160p (60 / 59.94 / 50 / 30 / 29.97 / 25 / 24 / 23.98) |
| 2048×1080p (60 / 59.94 / 50 / 30 / 29.97 / 25 / 24 / 23.98) |
| 2048×1080i (50 / 59.94 / 60) |
| 1080p (60 / 59.94 / 50 / 30 / 29.97 / 25 / 24 / 23.98) |
| 1080i (60 / 59.94 / 50) |
| 1080psf (30 / 29.97 / 25 / 24 / 23.98) |
| 720p (60 / 59.94 / 50) |
| 480i (59.94), 576I (50) |
| Quad Link 4K (Each channel) |
2048×1080p (60 / 59.94 / 50 / 30 / 29.97 / 25 / 24 / 23.98) |
| 1080p (60 / 59.94 / 50 / 30 / 29.97 / 25 / 24 / 23.98) |
| Quad Link 8K (Each channel) |
4096×2160p (60 / 59.94 / 50 / 30 / 29.97 / 25 / 24 / 23.98) |
| 3840×2160p (60 / 59.94 / 50 / 30 / 29.97 / 25 / 24 / 23.98) |
| HDMI® |
4096×2160p (60 / 59.94 / 50 / 30 / 29.97 / 25 / 24 / 23.98) |
| 3840×2160p (60 / 59.94 / 50 / 30 / 29.97 / 25 / 24 / 23.98) |
| 1080p (60 / 59.94 / 50 / 30 / 29.97 / 25 / 24 / 23.98) |
| 1080i (60 / 59.94 / 50) |
| 720p (60 / 59.94 / 50) |
General
| Input voltage |
AC 100-240V, 50/60Hz, DC 12-17V |
| Power consumption |
120W |
| Working temperature |
0°C～+50°C |
| Working humidity |
10%～90% |
| Storage temperature |
-15°C～+60°C |
| Storage humidity |
10%～90% |
| Dimensions |
593×404.5×92mm |
| Net weight (main body) |
Net 10kg; With package 12.7kg |
