UHD panel, 4x12GSDI (8K), HDMI® 2.0, SFP Fiber, HLG/PQ-HDR, Self Calibration

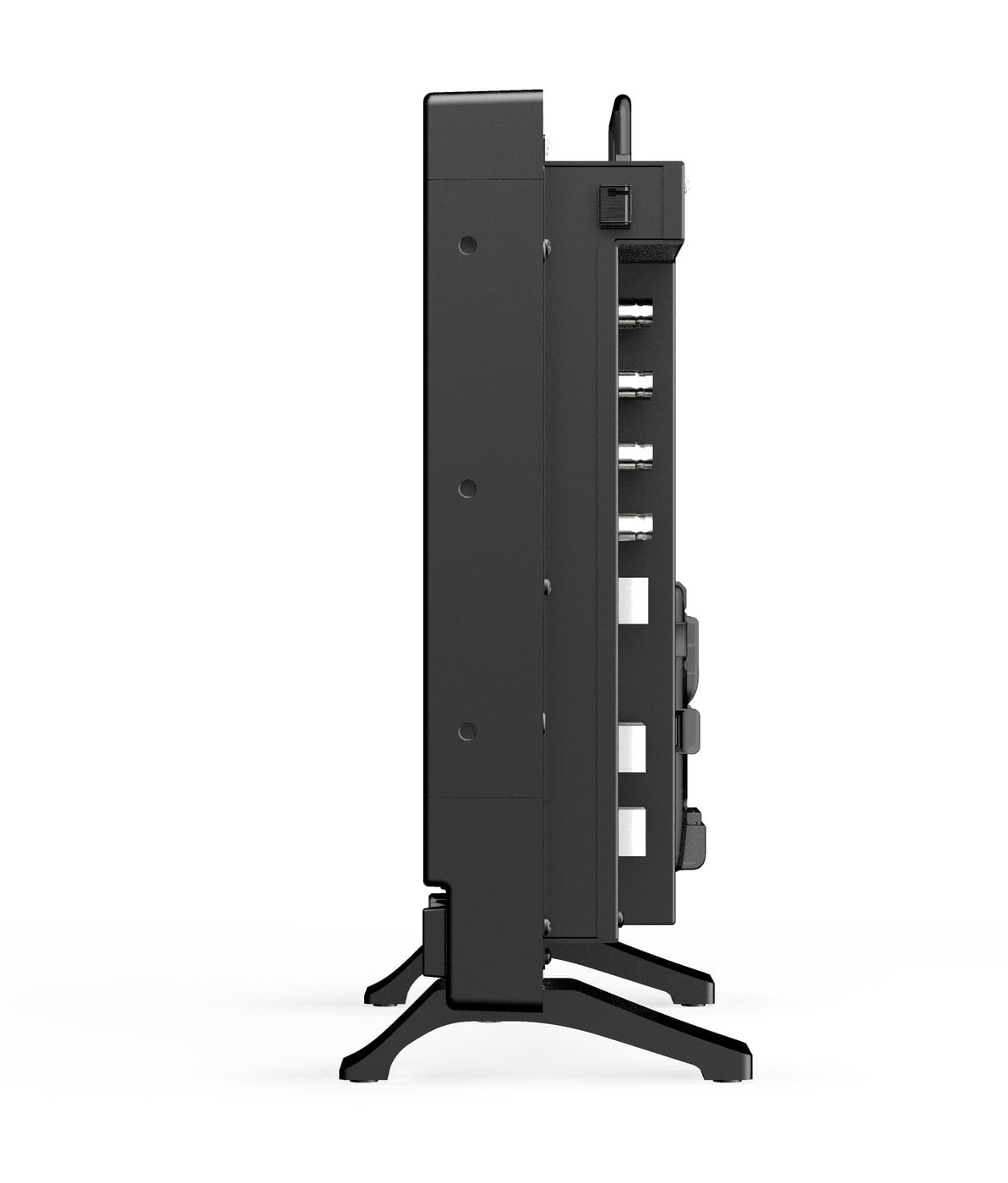

17.3-inch 4K/8K 12GSDI Studio Monitor
Official Features
17.3-inch 4K Monitor

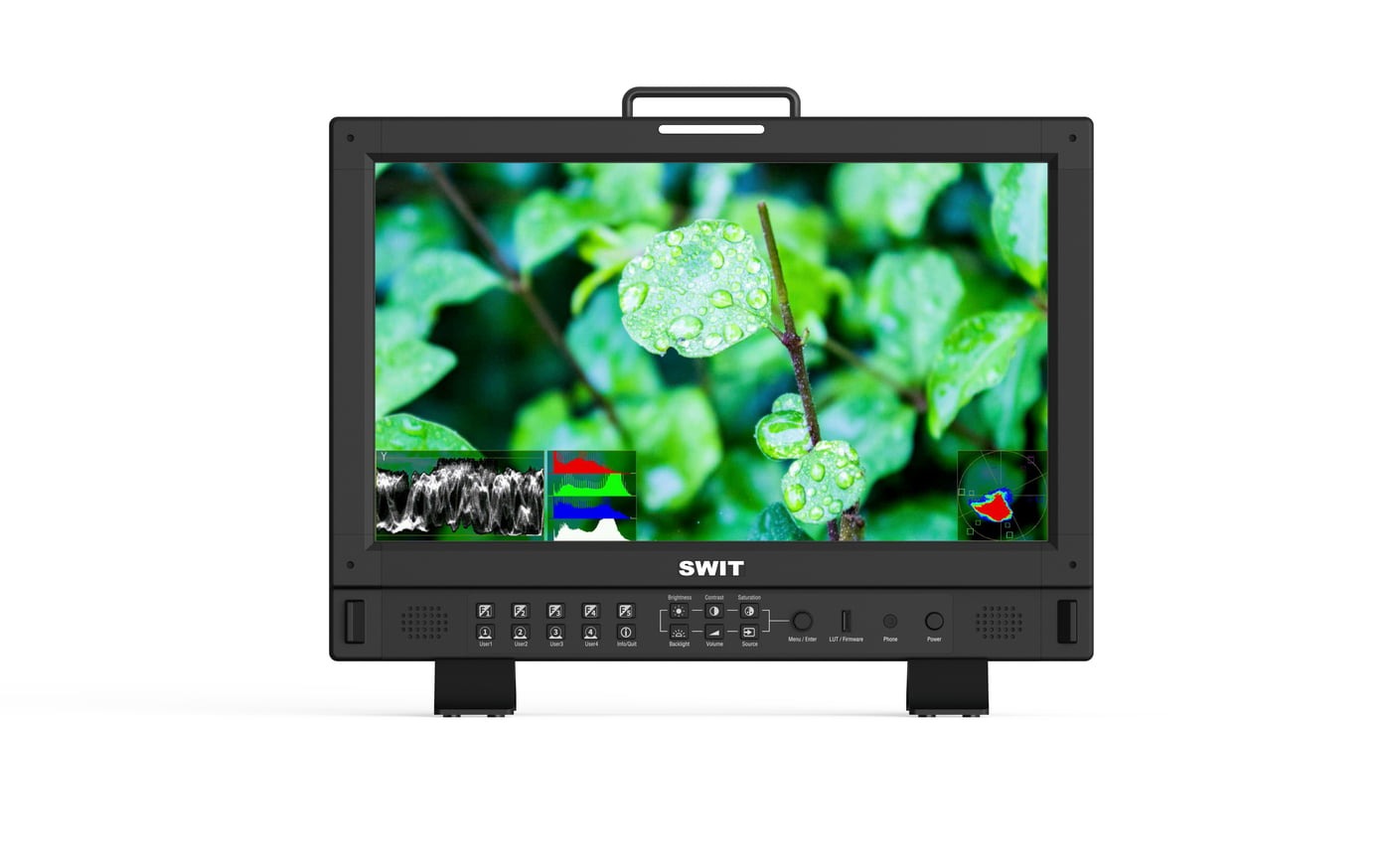

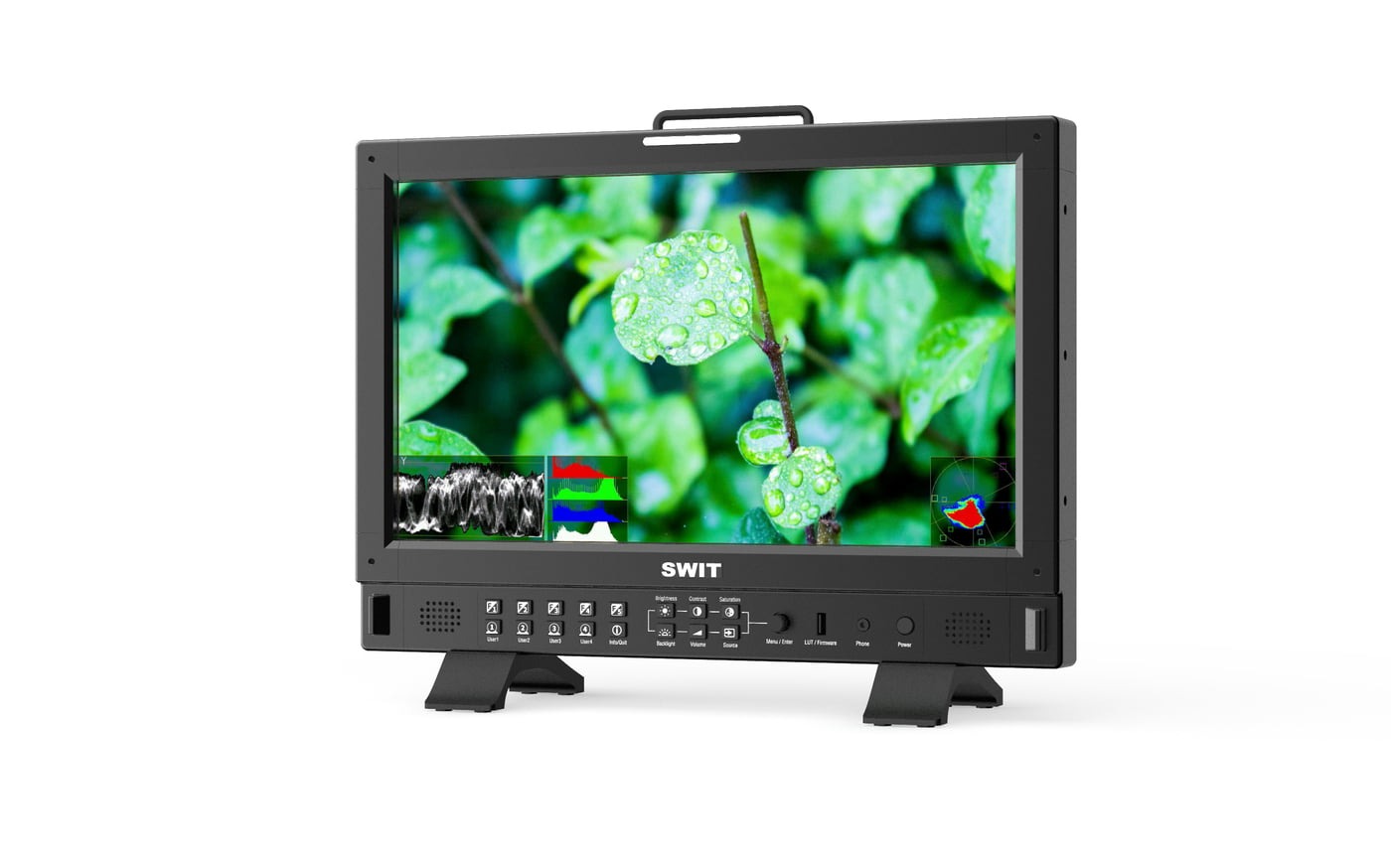

UHD panel, 91.5% DCI-P3 BM-U175 adopts a 17.3-inch 8-bit+2FRC LCD panel, UHD 3840×2160 resolution, 300nits LED backlight, 800:1 contrast, 91.5% DCI-P3 color gamut. The viewing angle is H178° / V178°. 12GSDI 4-in 4-out, supports: Single link 4K; Quad link 4K and Quad link 8K HDMI® 2.0 (4K60P) 12GSDI via SFP Fiber (Optional) ST2110 IP via SFP Fiber (Optional) * The Quadlink 4K/8K supports both Quad mode and 2SI interleave mode; * The SFP optical fiber adaptor is optional purchased. Supports Single link 4K input including 12GSDI, HDMI®2.0 or 12GSDI via SFP, and Quad link 4x 3GSDI 4K or Quad link 4x 12GSDI 8K inputs. You can also input 4x independent 4K videos to multiview, supports 12G/6G/3G/HD-SDI and HDMI® 2.0/1.4/1.3 mixed formats input, and waveform, vector, audio meters, EOTF, color gamut selection for each input.
HDR/SDR EOTFs
BM-U175 provides HLG (Hybrid Log Gamma), Dolby Vision PQ, SONY S-Log3 HDR and Gamma 1.0/1.8/2.2/2.4/2.6 SDR EOTFs, and Color Gamut selection from LCD native, BT.709, DCI-P3 and BT.2020.
Payload ID Auto Setting
Support input video Payload ID identify and the monitor will automatically set HDR/SDR EOTFs, Color Gamut, Input range, Color space and Color depth according to the Payload ID info.
Multi CG & EOTF Viewing
Supports 1 input source copied to 4 windows and display different HDR/SDR and color gamut simultaneously. You can get correct reference when producing HDR and SDR together.
3DLUT Auto Self-Calibration
By X-rite i1 or JETI Specbos 1211 With built-in 3DLUT calibration software, (software copyright) support X-rite i1 and Jeti Specbos 1211 probes to directly connect with the monitor USB port. The monitor generates color patterns and the color probes read the color, send color info to monitor via USB. Then the monitor compares the color difference and generate 3DLUT and calibrate itself automatically. Calibration time: X-rite i1 15min, Specbos 1211 45min Calibration result: ∆E≤1.0
Audio/Video Zero Latency
Support Zero latency mode (less than 1/100 frame) under 4K input sources, for special image processing mode for lip-sync monitoring.
HDR/SDR De-log LUTs
The monitor has built-in multi camera logs to HLG1000, PQ1000, Rec 709 SDR conversion LUTs, including Log-C, C-log, S-log2, S-log3, V-log, J-log1, RedLogFilm etc. You can also upload User LUTs to monitor by USB disk, support 17x17x17 3DLUT cube files.
Multiple Video Analysis Patterns
Official Product Data
-
Model SPU: BM-U175
-
Division: Monitor
-
Big Category: Monitor
-
Small Category: Studio Monitor
-
Weight (kg): 8.9
-
Spec 1: 8K4K
-
Plate Type: Rack mountable
-
Spec 4: ~17"
-
Lifecycle: 2021New
-
Accessory Options: X-Rite Pro(SWIT version), MA-PGU17, EB22LC2B-SN, EB12BN1R-MNR
Official Specifications
LCD Performance
| Size |
17.3 inches |
| Display area |
381.88×214.82mm |
| Resolution |
3840×2160 |
| Aspect ratio |
16:9 |
| Brightness |
300nits |
| Contrast |
800:1 |
| Color depth |
16.77M colors, 8-bit |
| Signal process |
18-bit |
| Viewing angle |
178°(H) /178°(V) |

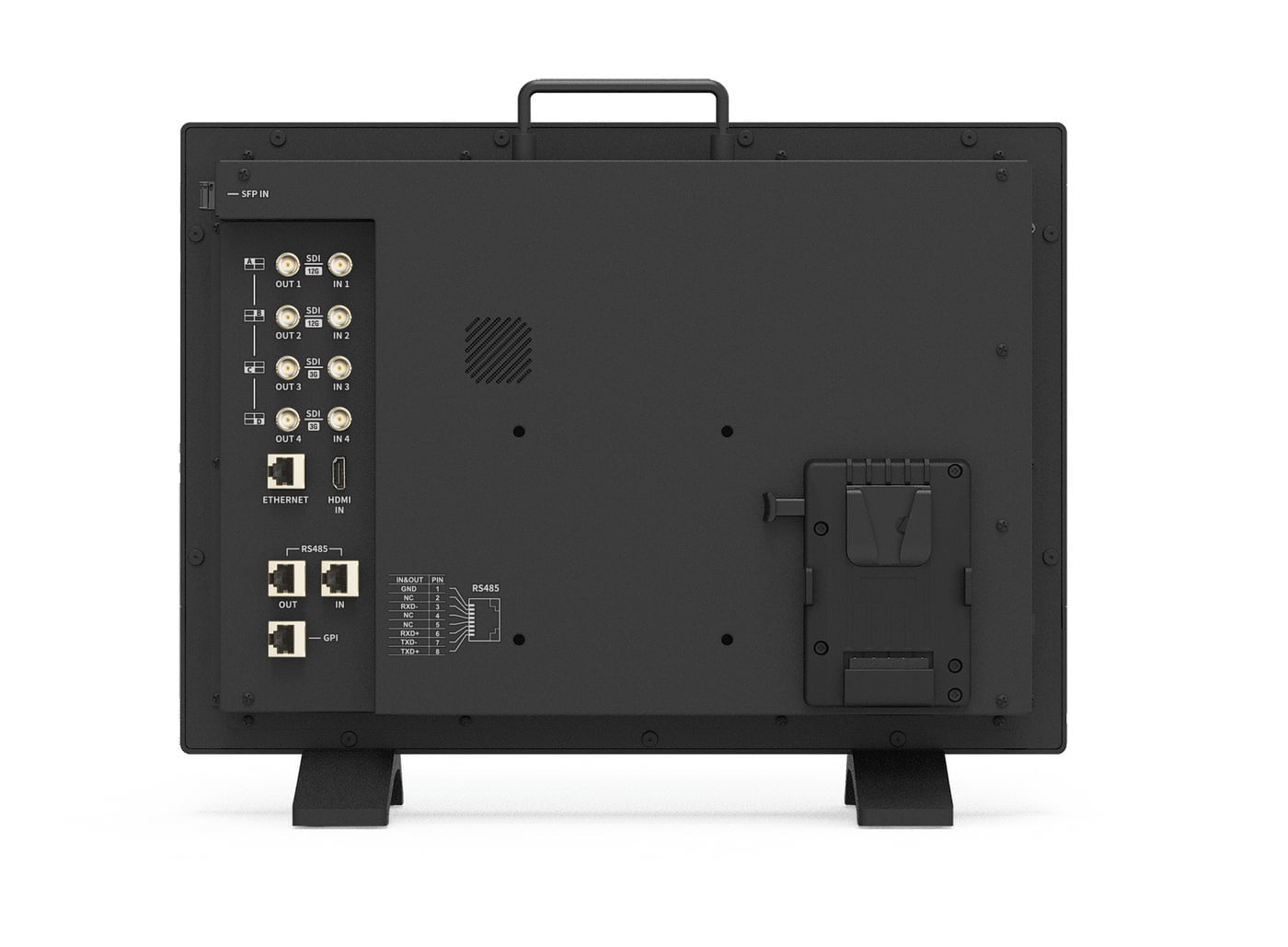

Input
| BNC ×4 |
12G/6G/3G/HD/SD-SDI input |
| HDMI® ×1 |
HDMI® 2.0 input |
| SFP ×1 |
Optical Fiber input (By optional SFP adaptor) |
| RS485 ×1 |
TSL 3.1/4.0 UMD input |
| RS485 ×1 |
GPI (Tally) input |
| RJ45 ×1 |
1000M Ethernet input for Webserver IP control |
Output
| BNC ×4 |
12G/6G/3G/HD/SD-SDI loop output |
| RS485 ×1 |
TSL 3.1/4.0 UMD output |
| Analog audio |
3.5mm headphone and speaker |
Video Format
| SDI 1/2/3/4 |
4096×2160p (60 / 59.94 / 50 / 30 / 29.97 / 25 / 24 / 23.98) |
| 3840×2160p (60 / 59.94 / 50 / 30 / 29.97 / 25 / 24 / 23.98) |
| 2048×1080p (60 / 59.94 / 50 / 30 / 29.97 / 25 / 24 / 23.98) |
| 2048×1080i (50 / 59.94 / 60) |
| 1080p (60 / 59.94 / 50 / 30 / 29.97 / 25 / 24 / 23.98) |
| 1080i (60 / 59.94 / 50) |
| 1080psf (30 / 29.97 / 25 / 24 / 23.98) |
| 720p (60 / 59.94 / 50) |
| 480i (59.94), 576I (50) |
| Quad Link 4K (Each channel) |
2048×1080p (60 / 59.94 / 50 / 30 / 29.97 / 25 / 24 / 23.98) |
| 1080p (60 / 59.94 / 50 / 30 / 29.97 / 25 / 24 / 23.98) |
| Quad Link 8K (Each channel) |
4096×2160p (60 / 59.94 / 50 / 30 / 29.97 / 25 / 24 / 23.98) |
| 3840×2160p (60 / 59.94 / 50 / 30 / 29.97 / 25 / 24 / 23.98) |
| HDMI® |
4096×2160p (60 / 59.94 / 50 / 30 / 29.97 / 25 / 24 / 23.98) |
| 3840×2160p (60 / 59.94 / 50 / 30 / 29.97 / 25 / 24 / 23.98) |
| 1080p (60 / 59.94 / 50 / 30 / 29.97 / 25 / 24 / 23.98) |
| 1080i (60 / 59.94 / 50) |
| 720p (60 / 59.94 / 50) |
General
| Input voltage |
DC 12V-17V, AC 100-240V, 50/60Hz |
| Power consumption |
60W |
| Working temperature |
0°C～+50°C |
| Working humidity |
10%～90% |
| Storage temperature |
-15°C～+60°C |
| Storage humidity |
10%～90% |
| Dimensions |
436×310.8×88.8mm |
| Net weight (main body) |
Net 5.9kg; With package 8.55kg |
