QLED, 100% DCI-P3 WCG, 12G-SDI, 4x 3G, HDMI® 2.0, Self Calibration

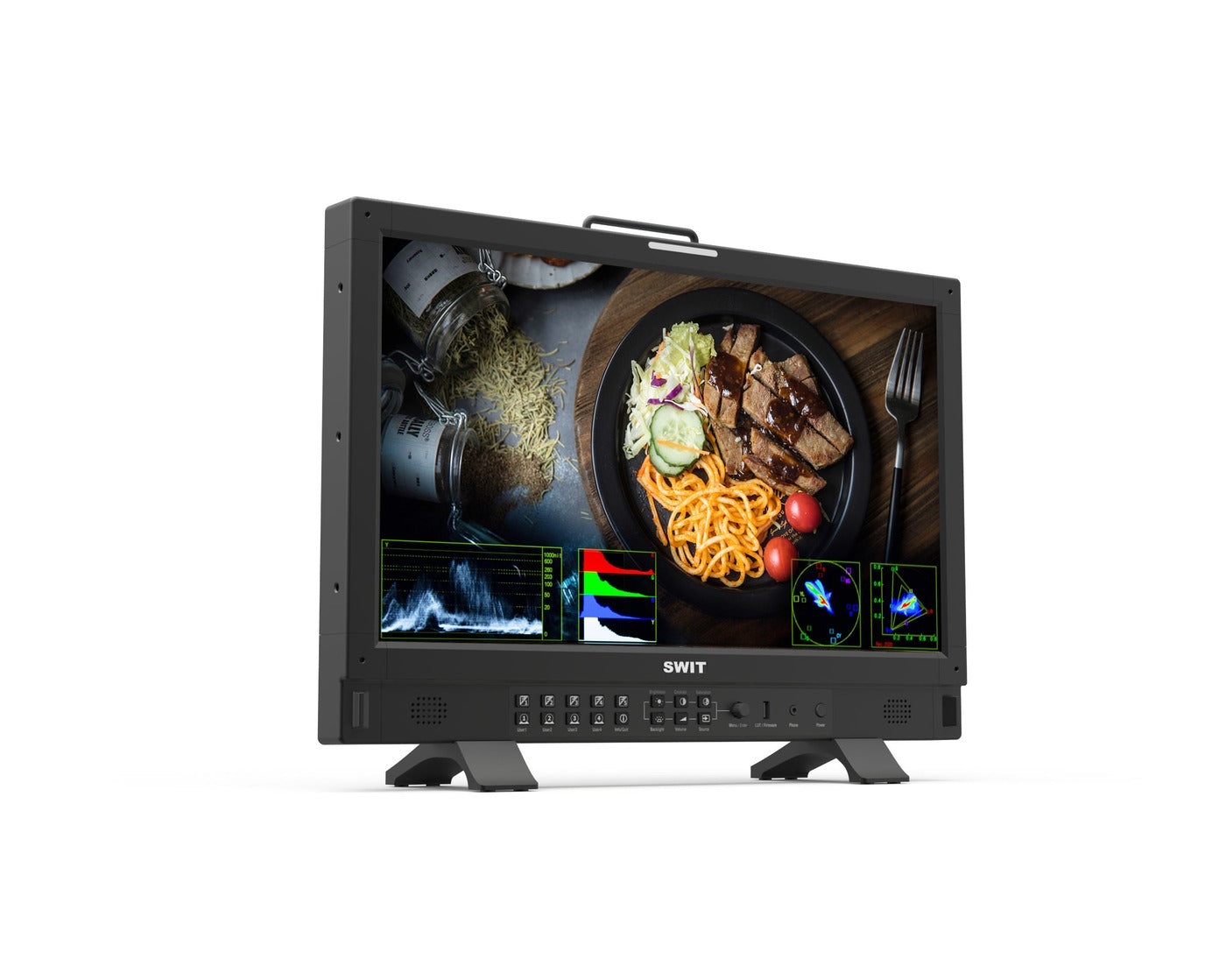

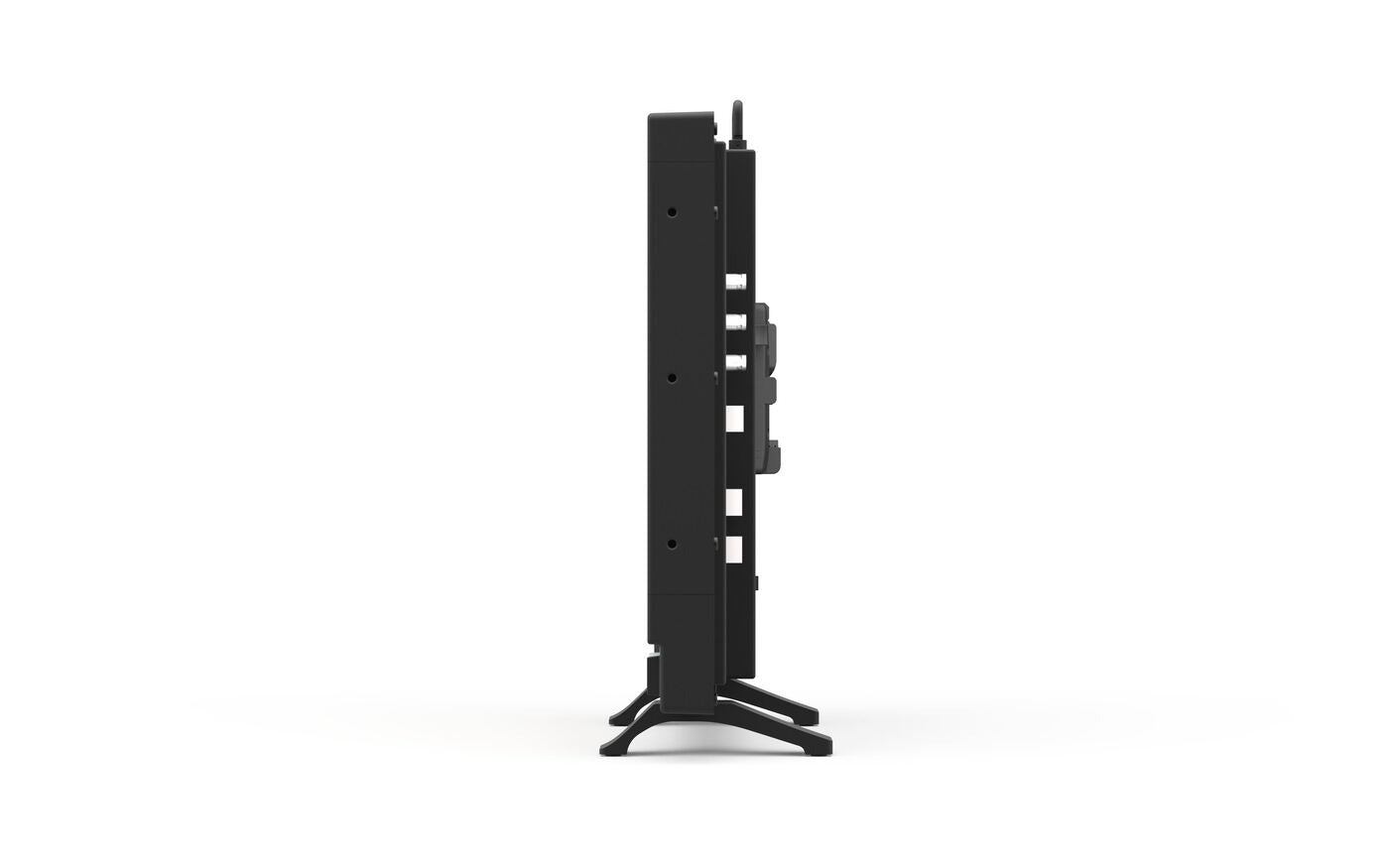

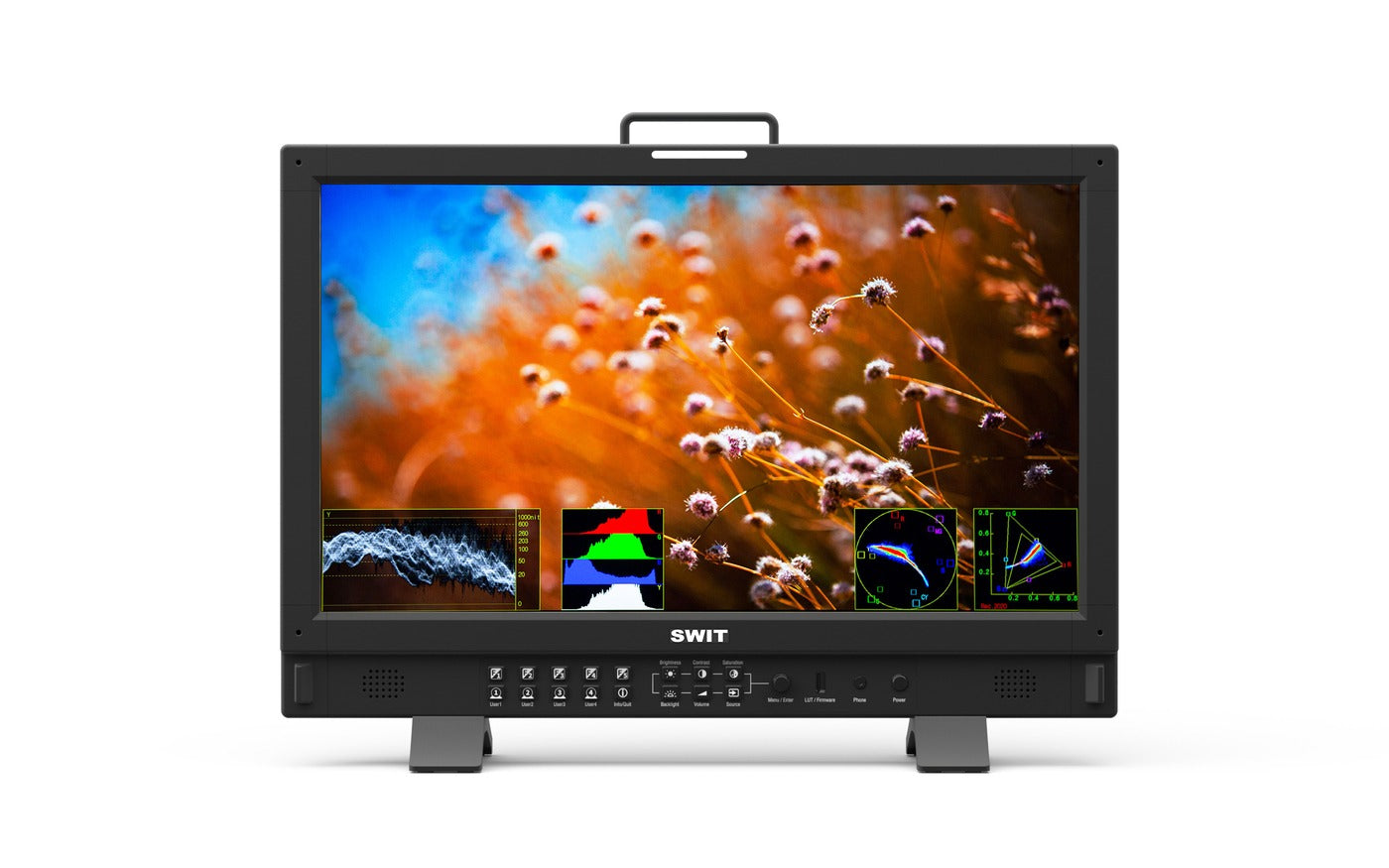

21.5-inch 1000nits 4K Input Ready Monitor
Official Features
21.5-inch 1000nits HDR
FHD, 100% DCI-P3 QLED Panel BM-H215HDR adopts a 21.5-inch 1920x1080 QLED panel, 100% DCI-P3 coverage wide color gamut, 1000nits high bright backlight for HDR productions, 1000:1 contrast, H/V 178° viewing angle.
Multi 4K Interfaces
BM-H215HDR provides 4x SDI inputs and 2x SDI loop outputs, supports multiple 4K inputs including: - 12GSDI Single link 4K; - 4x3GSDI Quadlink 4K, (SQD and 2SI) - HDMI® 2.0 (4K60P) Supports pixel-to-pixel zoom-in the 4K signal to FHD panel. Supports Single link 4K input including 12GSDI, HDMI®2.0, and Quad link 4x 3GSDI 4K inputs. You can also input 4x independent sources to multiview, or 2x sources Pic-by-Pic or Pic-in-Pic view, supports 12G/6G/3G/HD-SDI and HDMI® 2.0/1.4/1.3 mixed formats input, and waveform, vector, audio meters, EOTF, color gamut selection for each input.
VICO 1.97 Eye Protect
BM-H215HDR QLED panel has a Quantum Dot layer between LCD screen and its LED backlight, which changes the LED spectrum to reduce blue and balance the R/G/B peak, which will stimulate people’ s cone cells evenly, and reducing visual fatigue effectively. The VICO (Visual Health and Comfort) testing scores 1.97, A class, to protect your eyes from long time video editting or broadcast studio productions.
HLG/PQ/S-Log3 HDR
BM-H215HDR has native 1000nits high bright backlight, provides HLG (Hybrid Log Gamma), Dolby Vision PQ, SONY S-Log3 HDR and Gamma 1.0/1.8/2.2/2.4/2.6 SDR EOTFs, and Color Gamut selection from LCD native, REC.709, DCI-P3 and REC.2020.
Payload ID Auto Setting
Support input video Payload ID identify and the monitor will automatically set HDR/SDR EOTFs, Color Gamut, Input range, Color space and Color depth according to the Payload ID info.
Multi CG & EOTF Viewing
Supports 1 input source copied to 4 windows and display different HDR/SDR and color gamut simultaneously. You can get correct reference when producing HDR and SDR together.
3DLUT Auto Self-Calibration
By X-rite i1 or JETI Specbos 1211 With built-in 3DLUT calibration software, (software copyright) support X-rite i1 and Jeti Specbos 1211 probes to directly connect with the monitor USB port. The monitor generates color patterns and the color probes read the color, send color info to monitor via USB. Then the monitor compares the color difference and generate 3DLUT and calibrate itself automatically. Calibration time: X-rite i1 15min, Specbos 1211 45min Calibration result: ∆E≤1.0
Audio/Video Zero Latency
Support Zero latency mode (less than 1/100 frame) for lip-sync monitoring.
Official Product Data
-
Model SPU: BM-H215
-
Division: Monitor
-
Big Category: Monitor
-
Small Category: Studio Monitor
-
Power: 60W
-
Voltage: 12-17V
-
Weight (kg): 9.6
-
Spec 1: HB
-
Spec 4: ~21"
-
Lifecycle: 2023New
Official Specifications
LCD Performance
| Size |
21.5 inches |
| Display area |
476×268mm |
| Resolution |
1920×1080 |
| Aspect ratio |
16:9 |
| Brightness |
1000nits |
| Contrast |
1000:1 |
| Color depth |
10-bit |
| Signal process |
18-bit |
| Viewing angle |
178°(H) /178°(V) |

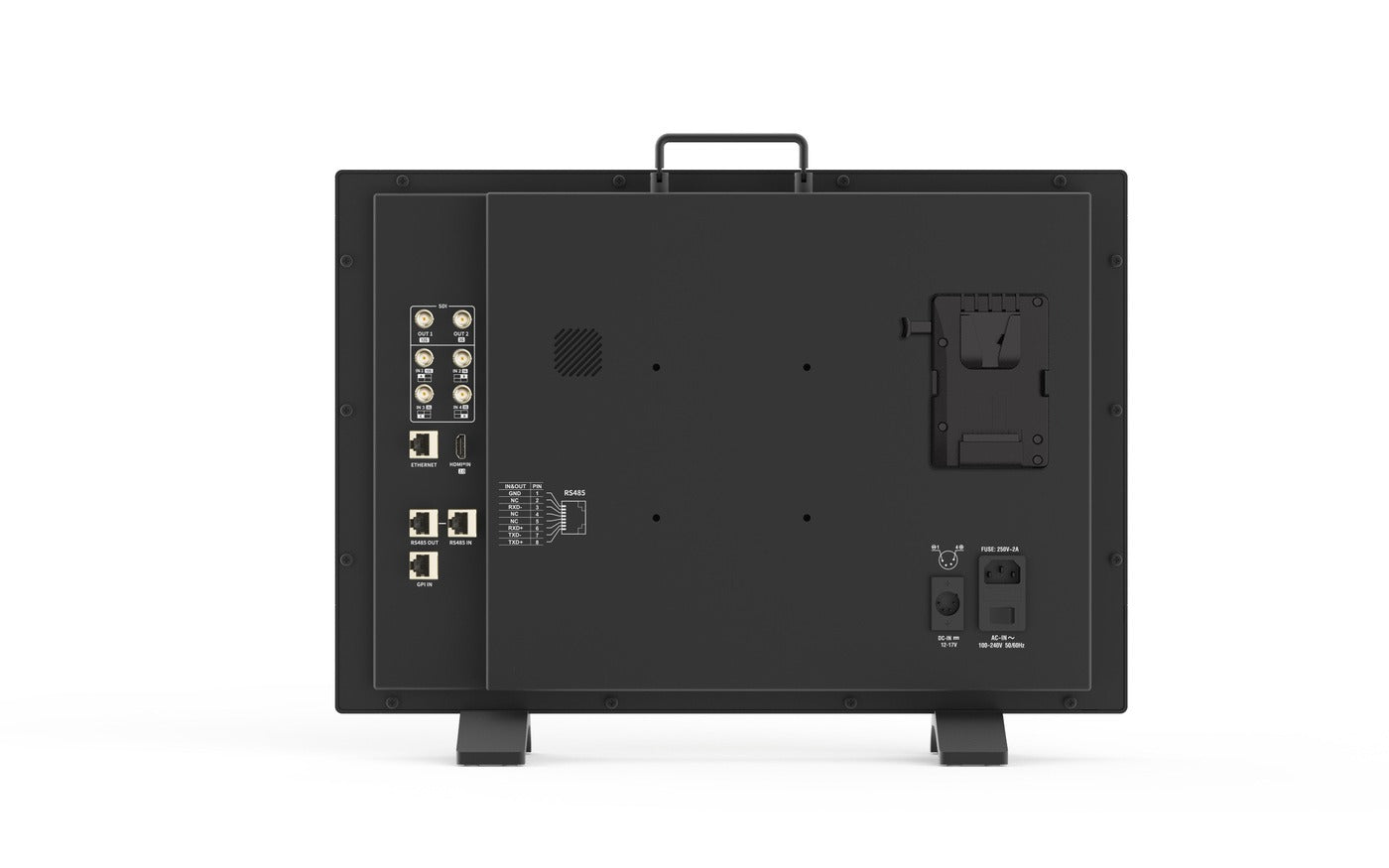

Input
| BNC ×1 |
12G/6G/3G/HD/SD-SDI input |
| BNC ×3 |
3G/HD/SD-SDI input |
| HDMI® ×1 |
HDMI® 2.0 input |
| RS485 ×1 |
TSL 3.1/4.0 UMD input |
| RS485 ×1 |
GPI (Tally) input |
| RJ45 ×1 |
1000M Ethernet input for Webserver IP control |
Output
| BNC ×1 |
12G/6G/3G/HD/SD-SDI loop output |
| BNC×1 |
3G/HD/SD-SDI loop output |
| RS485 ×1 |
TSL 3.1/4.0 UMD output |
| Analog audio |
3.5mm headphone and speaker |
Video Format
| SDI 1 |
4096×2160p (60 / 59.94 / 50 / 30 / 29.97 / 25 / 24 / 23.98) |
| 3840×2160p (60 / 59.94 / 50 / 30 / 29.97 / 25 / 24 / 23.98) |
| 2048×1080p (60 / 59.94 / 50 / 30 / 29.97 / 25 / 24 / 23.98) |
| 2048×1080i (50 / 59.94 / 60) |
| 1080p (60 / 59.94 / 50 / 30 / 29.97 / 25 / 24 / 23.98) |
| 1080i (60 / 59.94 / 50) |
| 1080psf (30 / 29.97 / 25 / 24 / 23.98) |
| 720p (60 / 59.94 / 50) |
| 480i (59.94), 576I (50) |
| SDI 2/3/4 |
2048×1080p (60 / 59.94 / 50 / 30 / 29.97 / 25 / 24 / 23.98) |
| 1080p (60 / 59.94 / 50 / 30 / 29.97 / 25 / 24 / 23.98) |
| 1080i (60 / 59.94 / 50) |
| 1080psf (30 / 29.97 / 25 / 24 / 23.98) |
| 720p (60 / 59.94 / 50) |
| 480i (59.94), 576I (50) |
| Quad Link 4K (Each channel) |
2048×1080p (60 / 59.94 / 50 / 30 / 29.97 / 25 / 24 / 23.98) |
| 1080p (60 / 59.94 / 50 / 30 / 29.97 / 25 / 24 / 23.98) |
| HDMI® |
4096×2160p (60 / 59.94 / 50 / 30 / 29.97 / 25 / 24 / 23.98) |
| 3840×2160p (60 / 59.94 / 50 / 30 / 29.97 / 25 / 24 / 23.98) |
| 1080p (60 / 59.94 / 50 / 30 / 29.97 / 25 / 24 / 23.98) |
| 1080i (60 / 59.94 / 50) |
| 720p (60 / 59.94 / 50) |
General
| Input voltage |
DC 12V-17V, AC 100-240V, 50/60Hz |
| Power consumption |
60W |
| Working temperature |
0°C～+50°C |
| Working humidity |
10%～90% |
| Storage temperature |
-15°C～+60°C |
| Storage humidity |
10%～90% |
| Dimensions |
530.6×364.3×74.2mm |
| Net weight (main body) |
Net 6.05kg; With package 9.15kg |
