QLED, 100% DCI-P3 WCG, 4K NDI®, 3GSDI, HDMI®2.0, Auto detect and quick select NDI® sources

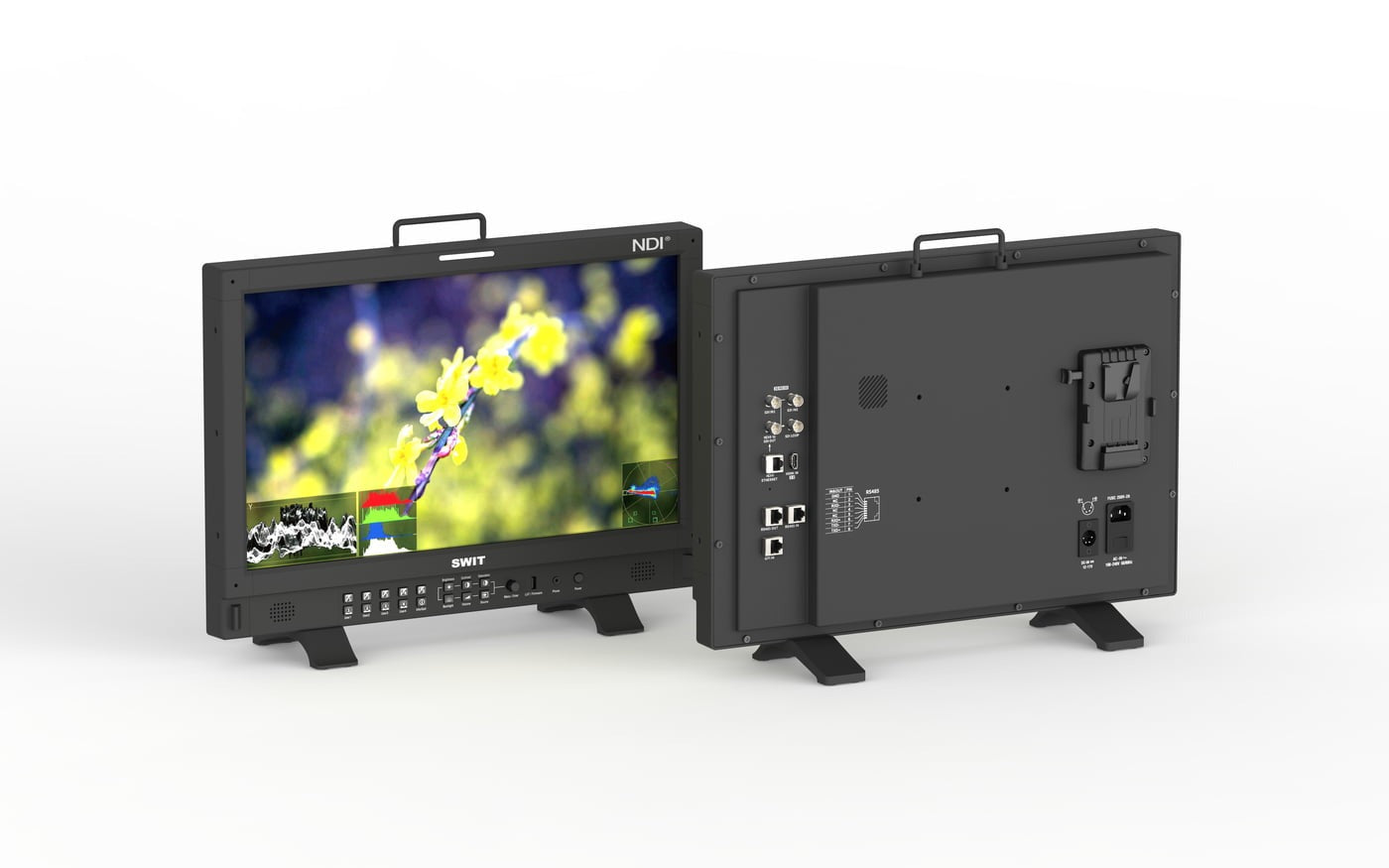

21.5-inch Professional NDI® Monitor
Official Features
21.5-inch QLED WCG Panel
FHD, 100% DCI-P3 Coverage BM-215-NDI monitor adopts a 21.5-inch 1920x1080 QLED panel, 100% DCI-P3 coverage wide color gamut, 400nits LED backlight, H/V 178° viewing angle for professional NDI® broadcast productions.
NDI®, SDI and HDMI®
BM-215-NDI monitor provides multiple inputs including: - High bandwidth NDI® up to 4K; - 3GSDI input×2; Loop out×1 - NDI® decode to 3GSDI out ×1 - HDMI® 2.0 input ×1 NDI® is a registered trademark of Vizrt Group. All NDI® sources will be auto detected when the monitor is connected to NDI® network, and quickly select NDI® sources from a list in monitor menu. The monitor supports Discover Server to pull NDI® sources from different IP segments, and support NDI® low bandwidth mode as well.
PBP / PIP Display Mode
You can select any 2 sources from NDI®, SDI or HDMI® to display simultaneously by Pic-by-Pic mode or Pic-in-Pic mode.
HDR/SDR EOTFs and Color Gamut Selection
BM-215-NDI provides HLG (Hybrid Log Gamma), Dolby Vision PQ, SONY S-Log3 HDR and Gamma 1.0/1.8/2.2/2.4/2.6 SDR EOTFs, and Color Gamut selection from LCD native, REC.709, DCI-P3 and REC.2020.
3DLUT Auto Self-Calibration
By X-rite i1 or JETI Specbos 1211 With built-in 3DLUT calibration software, (software copyright) support X-rite i1 and Jeti Specbos 1211 probes to directly connect with the monitor USB port. The monitor generates color patterns and the color probes read the color, send color info to monitor via USB. Then the monitor compares the color difference and generate 3DLUT and calibrate itself automatically. Calibration time: X-rite i1 15min, Specbos 1211 45min Calibration result: ∆E≤1.0
VICO 1.97 Eye Protect
BM-215-NDI QLED panel has a Quantum Dot layer between LCD screen and its LED backlight, which changes the LED spectrum to reduce blue and balance the R/G/B peak, which will stimulate people’ s cone cells evenly, and reducing visual fatigue effectively. The VICO (Visual Health and Comfort) testing scores 1.97, A class, to protect your eyes from long time video editting or broadcast studio productions.
Multiple Video Analysis Patterns
Audio Patterns
BM-215-NDI monitor will de-embed 2-ch NDI audios; 8-ch HDMI® audios; 16-ch SDI audios, display audio meters and Lissajous paterns, and select any 2 channels audio to output via speaker or 3.5mm headphone socket.
Official Product Data
-
Model SPU: BM-215-NDI
-
Division: Monitor
-
Big Category: Monitor
-
Small Category: Studio Monitor
-
Power: 40W
-
Voltage: 12-17V
-
Weight (kg): 9.4
-
Spec 4: ~21"
-
Accessory Options: X-Rite Pro(SWIT version)
Official Specifications
LCD Performance
| Size |
21.5 inches |
| Display area |
495.6×292.2mm |
| Resolution |
1920×1080 |
| Aspect ratio |
16:9 |
| Brightness |
400nits |
| Contrast |
3000:1 |
| Color Gamut |
100% DCI-P3 |
| Color depth |
10bit (8+2FRC) |
| Eye Protect |
VICO 1.97 |
| Viewing angle |
178°(H) /178°(V) |

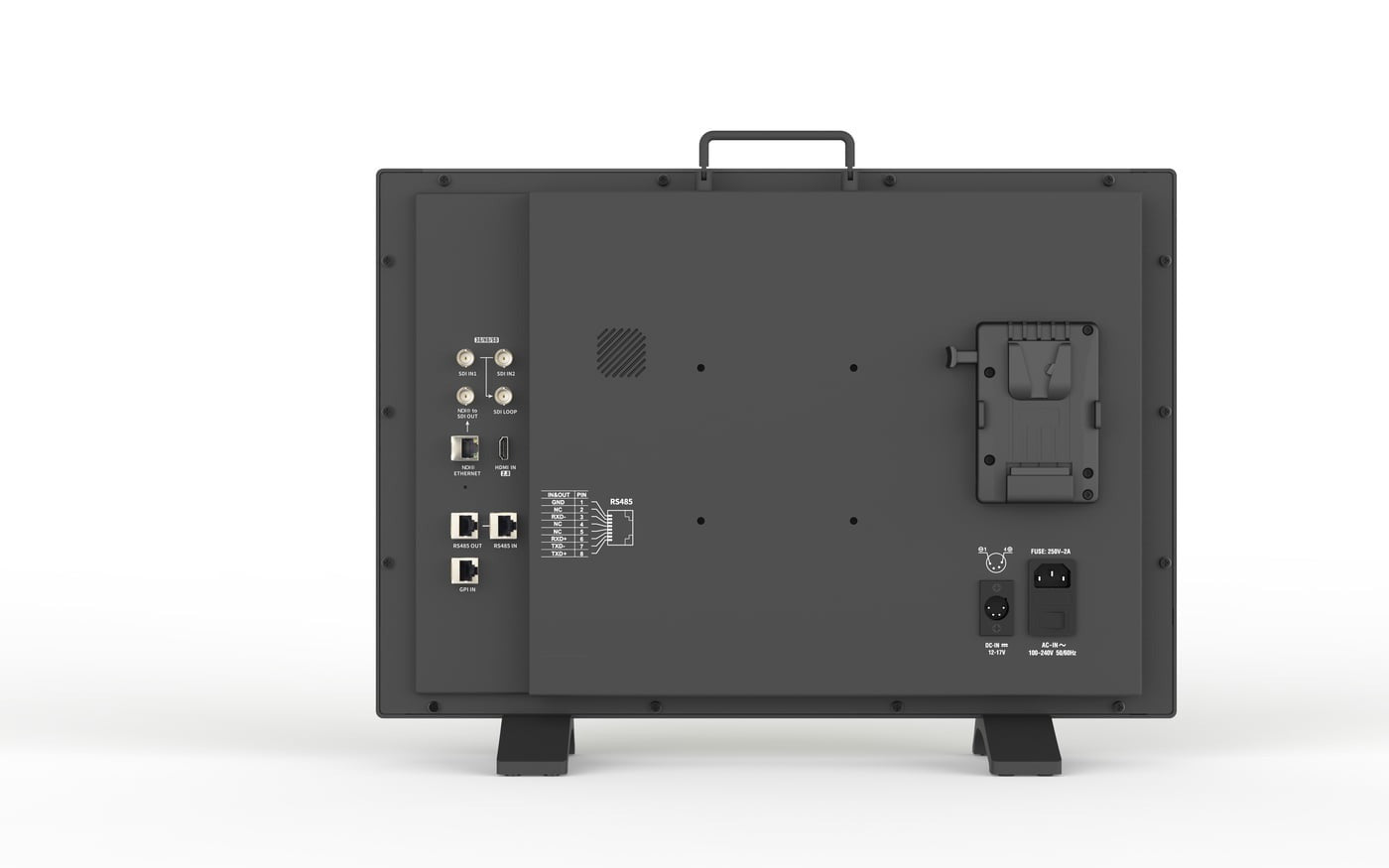

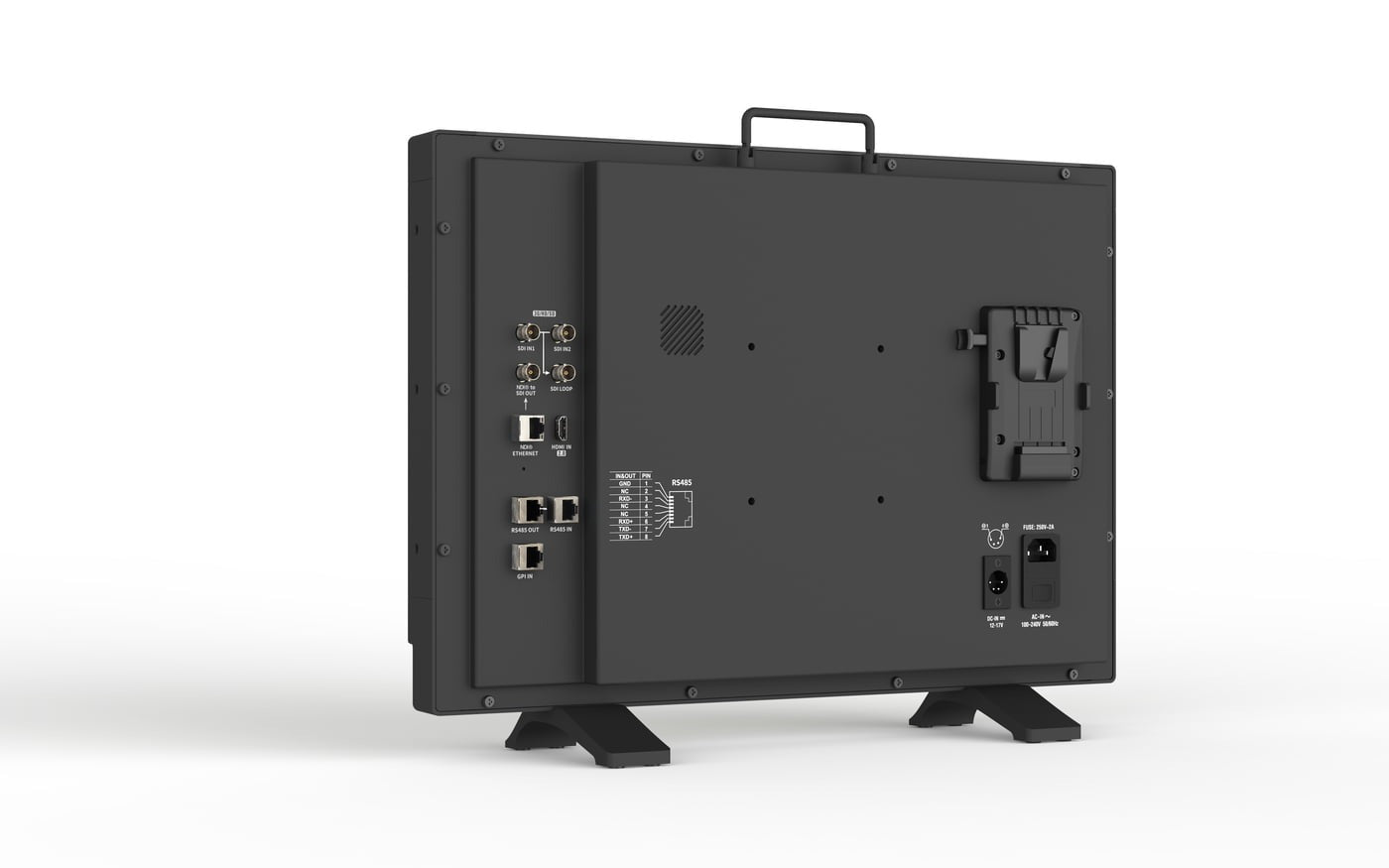

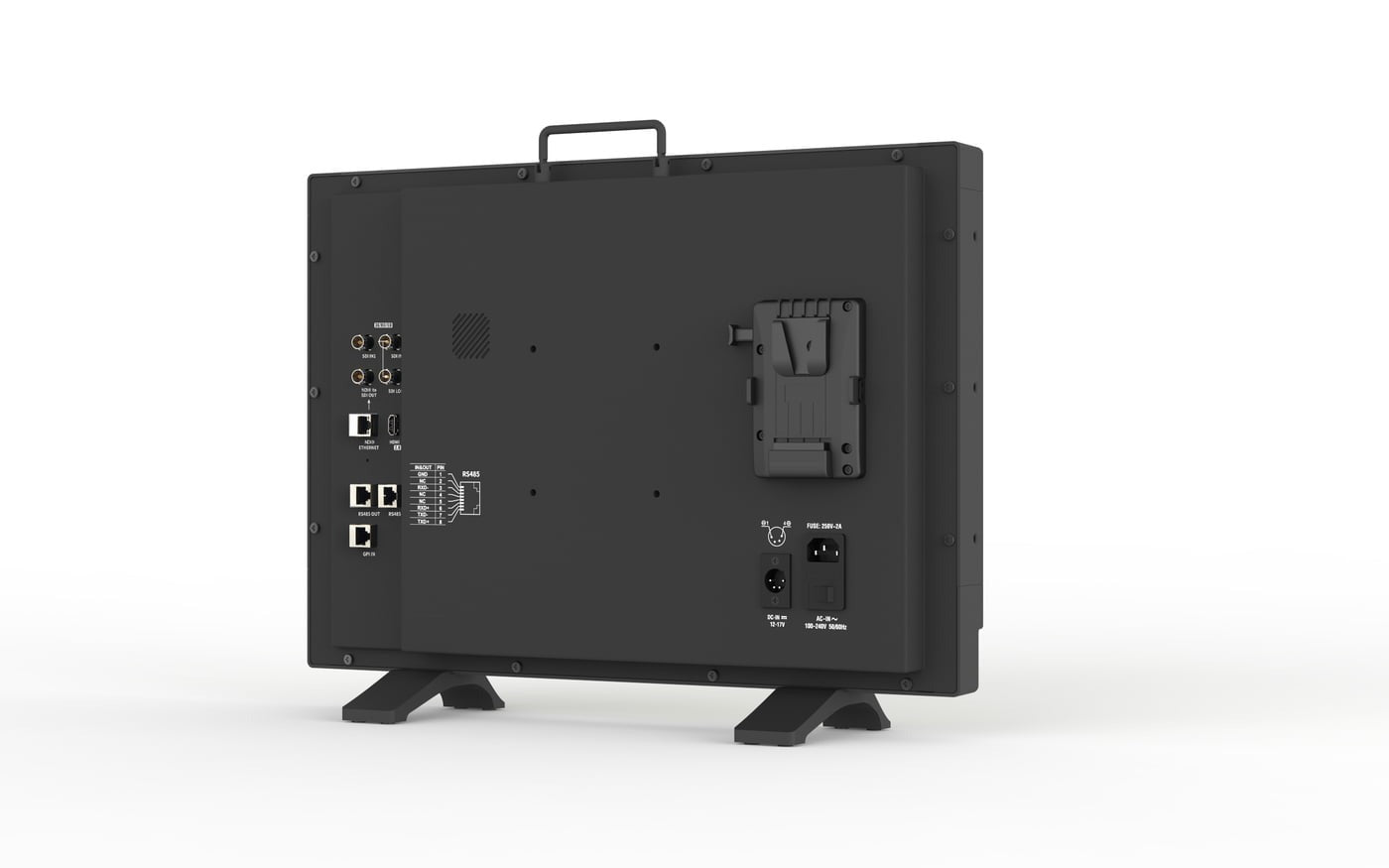

Input
| RJ45 ×1 |
High bandwidth 4K NDI® |
| BNC ×2 |
3G/HD/SD-SDI input |
| HDMI® ×1 |
HDMI® 2.0 input |
| RS485 ×1 |
TSL 3.1/4.0 UMD input |
| RS485 ×1 |
GPI (Tally) input |
Output
| BNC ×1 |
3G/HD/SD-SDI loop outp ut |
| BNC×1 |
NDI® decoded to SDI output |
| RS485 ×1 |
TSL 3.1/4.0 UMD output |
| Analog audio |
3.5mm headphone and speaker |
Video Format
| NDI® |
4096×2160p (30 / 29.97 / 25 / 24 / 23.98) |
| 3840×2160p (30 / 29.97 / 25 / 24 / 23.98) |
| 2048×1080p (60 / 59.94 / 50 / 30 / 29.97 / 25 / 24 / 23.98) |
| 2048×1080i (50 / 59.94 / 60) |
| 1080p (60 / 59.94 / 50 / 30 / 29.97 / 25 / 24 / 23.98) |
| 1080i (60 / 59.94 / 50) |
| 720p (60 / 59.94 / 50) |
| NDI ® decoded to SDI out |
2048×1080p (60 / 59.94 / 50 / 30 / 29.97 / 25 / 24 / 23.98) |
| 2048×1080i (50 / 59.94 / 60) |
| 1080p (60 / 59.94 / 50 / 30 / 29.97 / 25 / 24 / 23.98) |
| 1080i (60 / 59.94 / 50) |
| 720p (60 / 59.94 / 50) |
| SDI IN1/2 and LOOP |
2048×1080p (60 / 59.94 / 50 / 30 / 29.97 / 25 / 24 / 23.98) |
| 2048×1080i (50 / 59.94 / 60) |
| 1080p (60 / 59.94 / 50 / 30 / 29.97 / 25 / 24 / 23.98) |
| 1080i (60 / 59.94 / 50) |
| 1080psf (30 / 29.97 / 25 / 24 / 23.98) |
| 720p (60 / 59.94 / 50) |
| 480i (59.94), 576i (50) |
| HDMI® IN |
4096×2160p (60 / 59.94 / 50 / 30 / 29.97 / 25 / 24 / 23.98) |
| 3840×2160p (60 / 59.94 / 50 / 30 / 29.97 / 25 / 24 / 23.98) |
| 1080p (60 / 59.94 / 50 / 30 / 29.97 / 25 / 24 / 23.98) |
| 1080i (60 / 59.94 / 50) |
| 720p (60 / 59.94 / 50) |
General
| Input voltage |
DC 12V-17V, AC 100-240V, 50/60Hz |
| Power consumption |
45W |
| Working temperature |
0°C～+50°C |
| Working humidity |
10%～90% |
| Storage temperature |
-15°C～+60°C |
| Storage humidity |
10%～90% |
| Dimensions |
530.6×364.3×74.2mm |
| Net weight (main body) |
Net 5.90kg; With package10.05kg |
