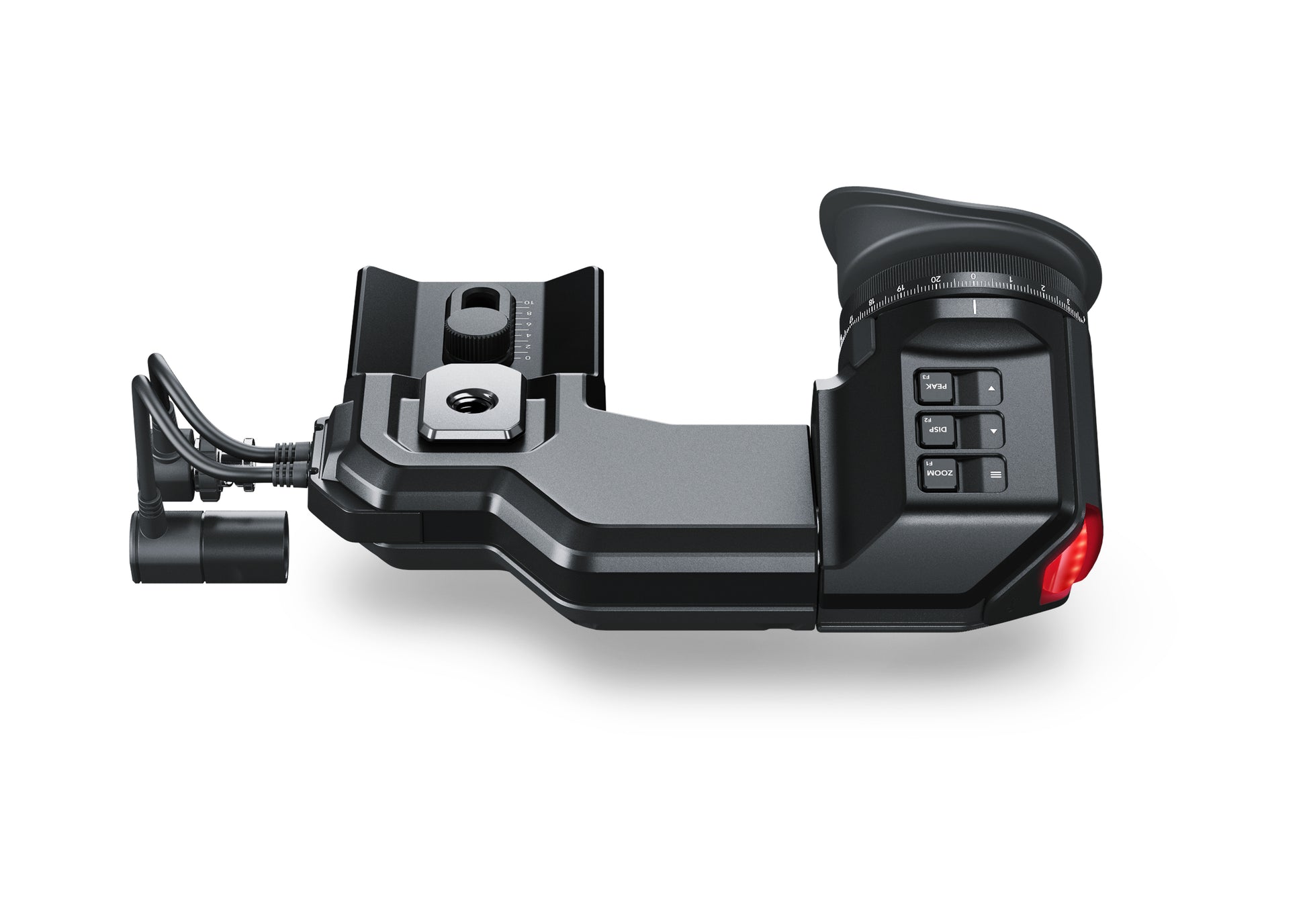

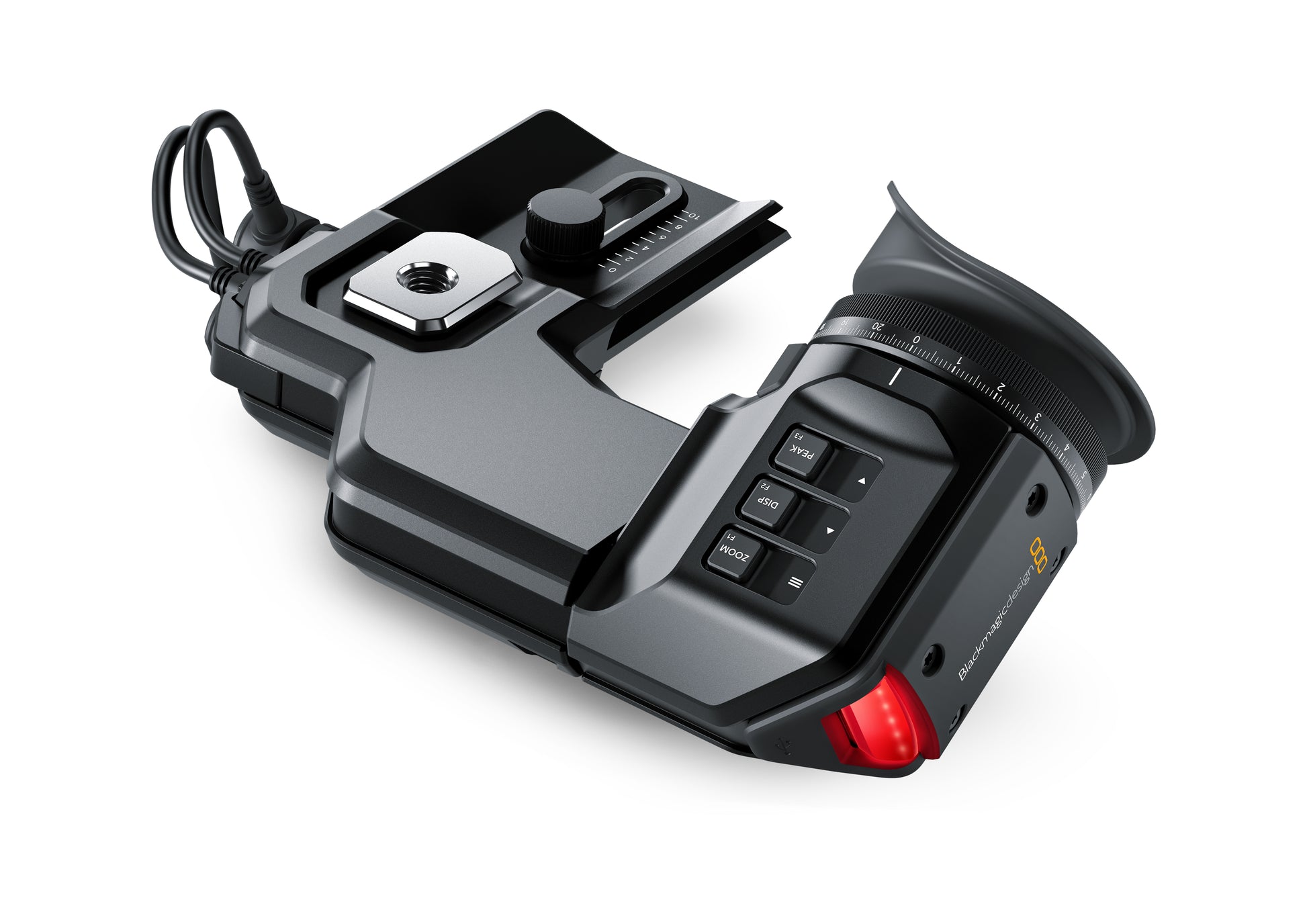

The Blackmagic URSA Viewfinder is the perfect accessory to make outdoors and handheld shooting with your URSA or URSA Mini digital film camera easy. You get an extremely high quality viewfinder with 1080HD resolution display, true precision glass optics, built in tally light and built in menus, overlays and even a digital focus chart!
Official Technical Details
Connections
SDI Video Inputs: 1 x 3G-SDI BNC.
Power Input: 1 x 4 pin XLR 12V.
Computer Interface: USB 2.0 Mini-B port for software updates.
Features
Display Resolution: Full 1920 x 1080.
Frame Rates: Up to 60fps
Display Type: OLED
Display Pixels: 6.22 Million Pixels
Color Precision: 24 bit RGB, 16.7 million colors
Focus: 4 Element diopter.
Diopter Range: -4 to +3
Controls: Buttons for settings, short cut features and navigating menus.
Overlays: Built in overlay display processor and top mounted buttons.
Eyepiece: Can be tilted vertically and extended for left or right eye use.
Tally: LED tally light.
Mounting Options: Camera mount with adjustment.
Metadata Support: Detects camera information embedded in the SDI signal from URSA, URSA Mini and Blackmagic 3G-SDI Shield for Arduino.
Operating Systems
Mac 13.0 Ventura, Mac 14.0 Sonoma or later.
Windows 10 and 11.
Power Requirements
12V power input via 4 pin XLR connected via 12v power output.
Environmental Specifications
Operating Temperature: 0° to 40° C (32° to 104° F)
Storage Temperature: -20° to 60° C (-4° to 140° F)
Relative Humidity: 0% to 90% non-condensing
What's Included
Blackmagic URSA Viewfinder
3/8 inch viewfinder mounting thumb screw for URSA
Recommended Accessories

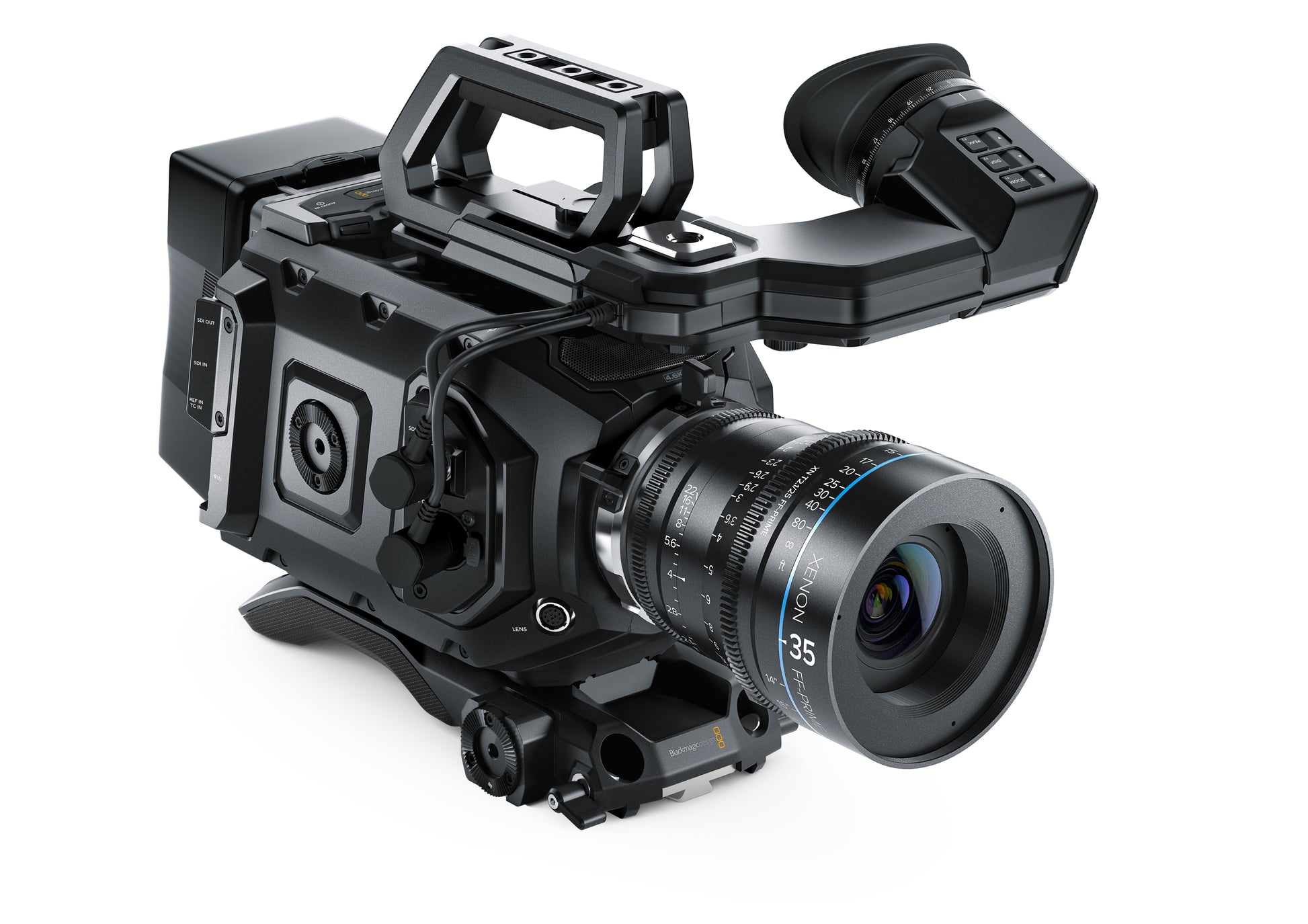

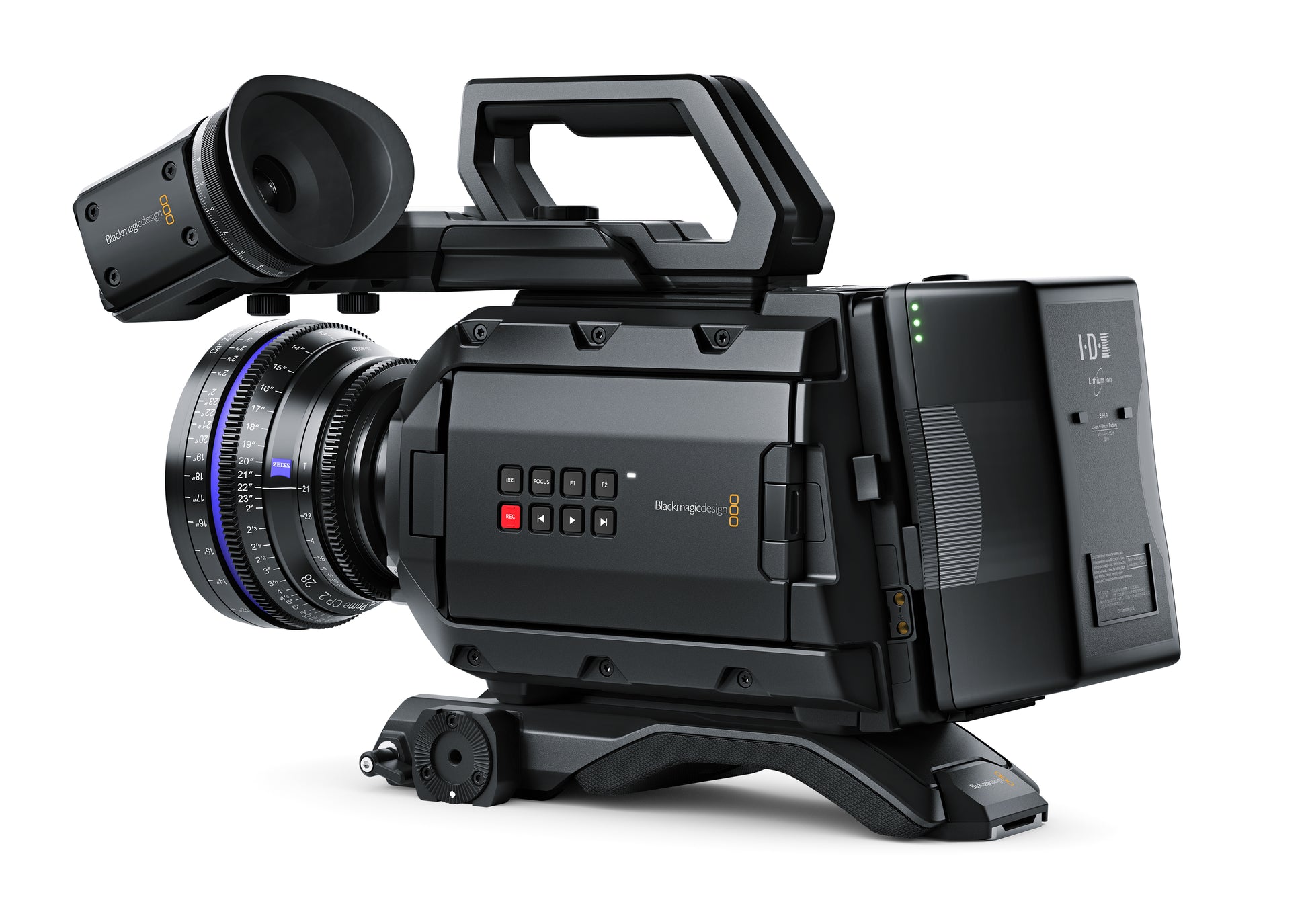

Blackmagic URSA Mini Shoulder kit is required for mounting URSA Viewfinder on URSA Mini or URSA Mini Pro.
