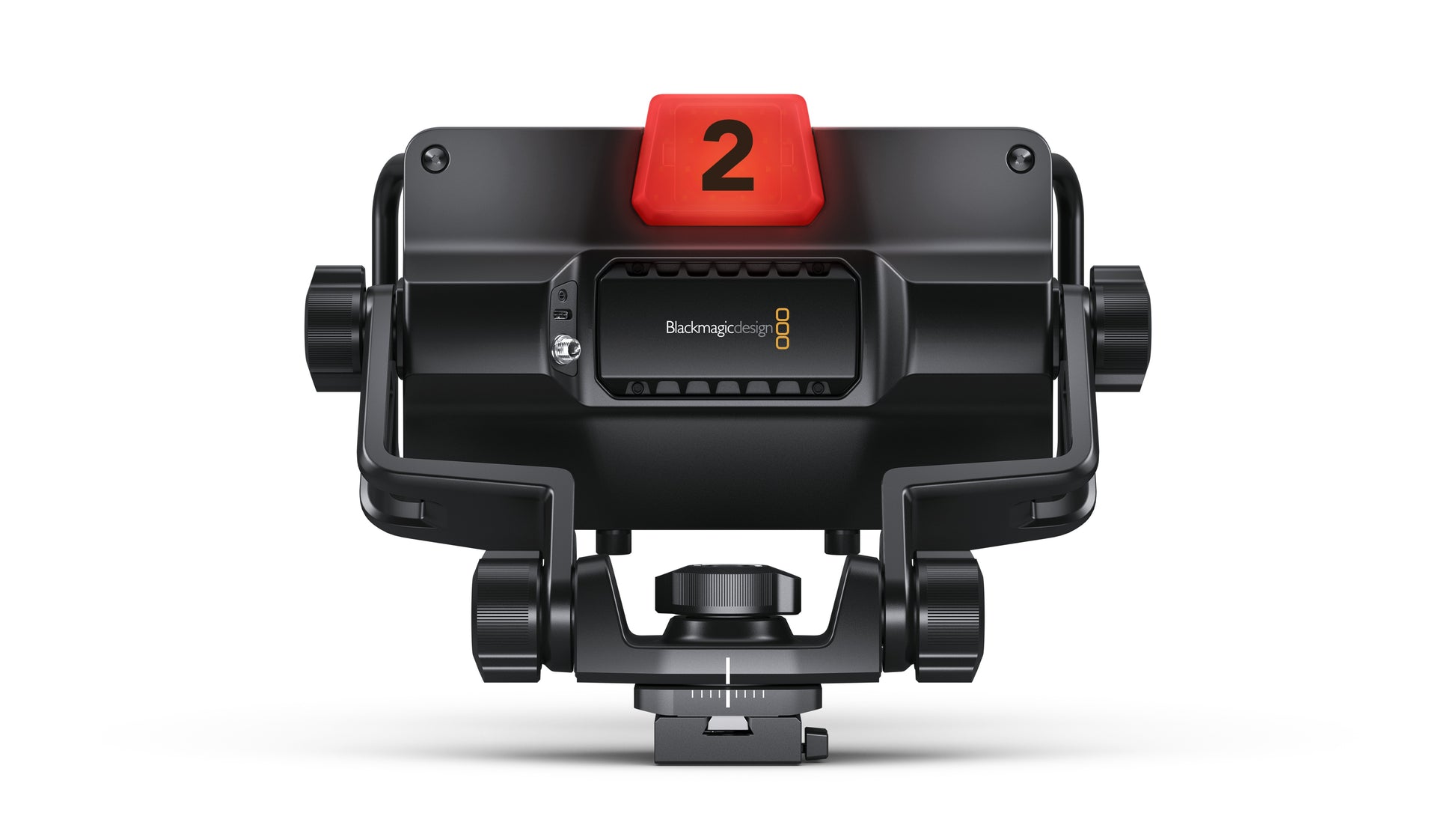

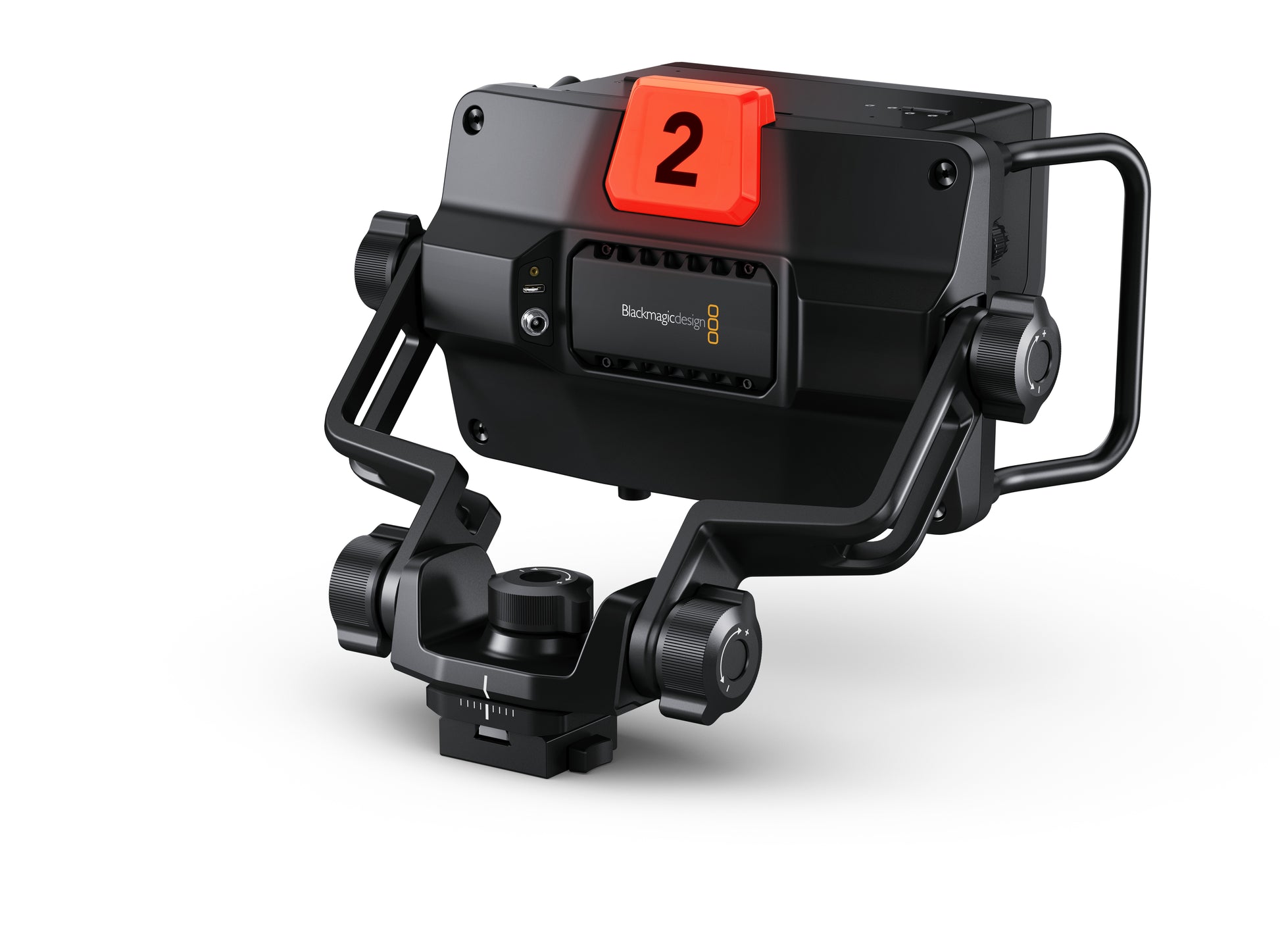

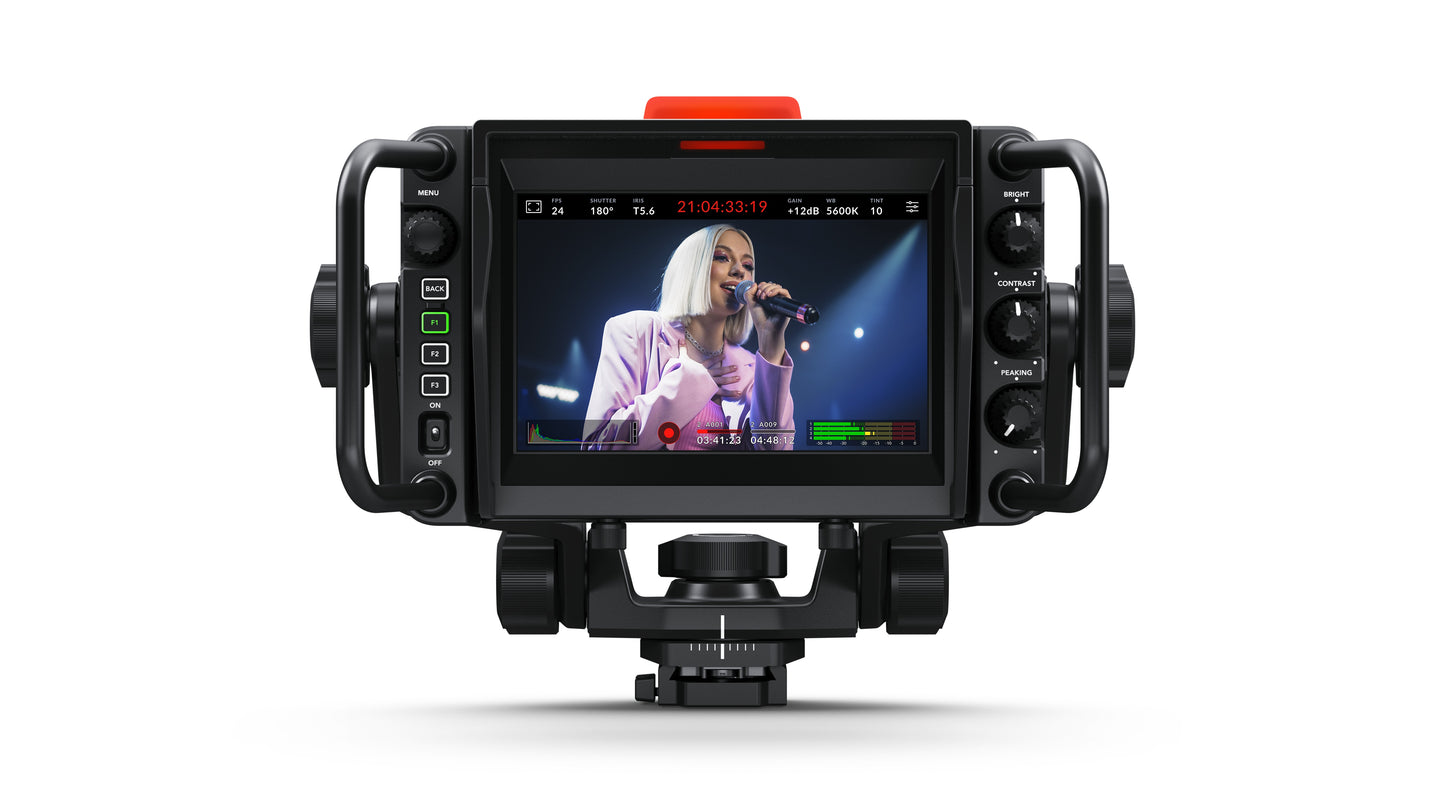

Blackmagic URSA Cine Studio Viewfinder is a large 7″ HDR touchscreen viewfinder with full camera control, designed for use with URSA Cine in live production environments. It combines a high brightness HDR touchscreen with custom function buttons and physical knobs for brightness, contrast and focus peaking. On screen overlays include focus peaking, frame guides, histograms and more, with full touchscreen access to all camera settings. Includes removable sunshade and connects via a single USB-C cable for video, power and camera control.
Official Technical Details
Connections
-
USB-C with Locking Connector: Video, power, metadata, camera control and software updates.
-
Screen Dimensions: 7" 1920 x 1200 resolution.
-
Screen Type: 7" high brightness TFT LCD
-
Screen Brightness: 2000 nits
-
Power: 5.5mm barrel power input for external +12V DC power.
Features
-
Display Size: 7 inch.
-
Display Resolution: 1920px x 1200px.
-
Display Type: LCD capacitive touchscreen.
-
Display Brightness: 2000 nits.
-
Frame Rates: Up to 60fps.
-
Handles: Built in grab handles for positioning the monitor independently from the camera.
-
Position Adjustment Options: Articulated yoke with variable tension pivots and grab handles for forward, backward, up, down, pan and tilt adjustments.
-
Sunshade: Detachable and foldable sunshade
-
Mounting Options: Quick release V-lock mounting bracket for attaching viewfinder to URSA Cine 12K body.
-
Tally: Large talent facing LED tally light with customizable perspex camera numbers.
-
Metadata Support: Viewfinder supports all camera metadata and full Blackmagic OS camera control.
Control
-
Controls: Touch screen with heads up display and full camera control, Push button dial for settings and navigating menus, Customizable short cut function buttons, Dedicated brightness, contrast and peaking knobs.
-
On Screen Controls: Tap screen to control Monitor Overlays, Frame Rate, Shutter, Iris, Timecode, ISO, White Balance, Tint, Power, Record Start/Stop, Media, Audio, Focus Zoom, Digital Slate and camera menus.
-
Button Controls: Includes F1, F2, F3 assignable function buttons to recall preset parameters or toggle functions plus BACK button.
-
Function Button Toggle: Clean Feed Status Text Display LUT Frame Guides Focus Assist False Color Zebra Grid Safe Area Guide Off Speed Rec Focus Zoom Focus Record Auto White Balance Color Bars Playback False Color + Zebra OIS Stream Still
Mounting
-
Mounting: Includes quick release VLock bracket, attaches to mounting surfaces using 2 x 1/4-20 screws.
Compatible Cameras
- Blackmagic URSA Cine 12K LF 100G Blackmagic URSA Cine 12K LF Blackmagic URSA Cine 17K 65 Blackmagic URSA Cine Immersive 100G Blackmagic URSA Cine Immersive
Operating Systems
- Mac 15.0 Sequoia,
Mac 26.0 Tahoe or later.
- Windows 11
Power Requirements
-
Power Input: 5.5mm barrel connector with locking thread.
-
Power Usage: TBA
Environmental Specifications
-
Operating Temperature: 0°to 40°C (32° to 104°F)
-
Storage Temperature: -20°to 60°C (-4° to 140°F)
-
Relative Humidity: 0% to 90% non-condensing
What's Included
- Blackmagic URSA Cine Studio Viewfinder
- Monitor Mounting Plate
- Welcome wallet with QR code for software download
Warranty
-
Product Warranty: 1 Year Limited Manufacturer’s Warranty.
