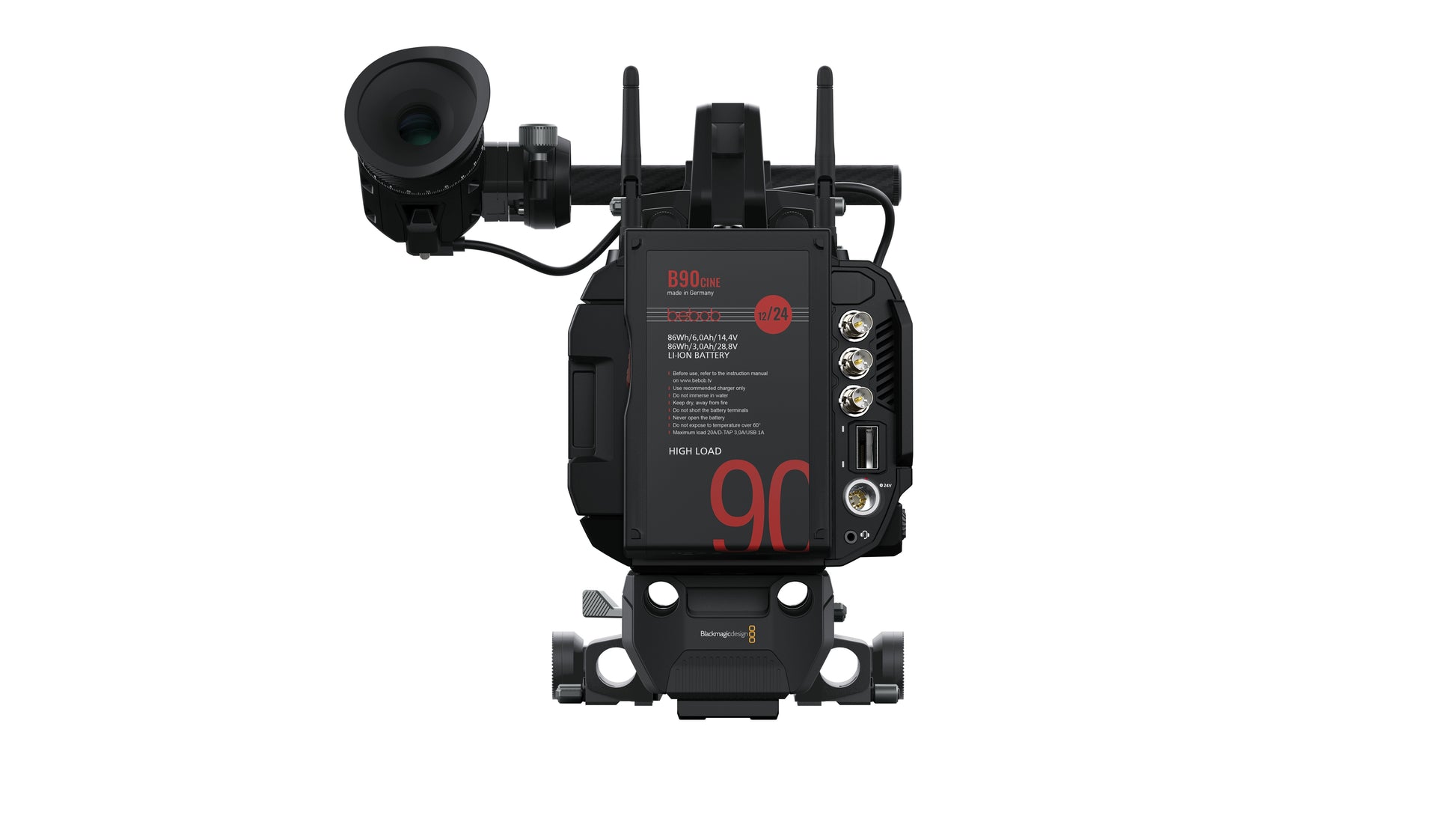

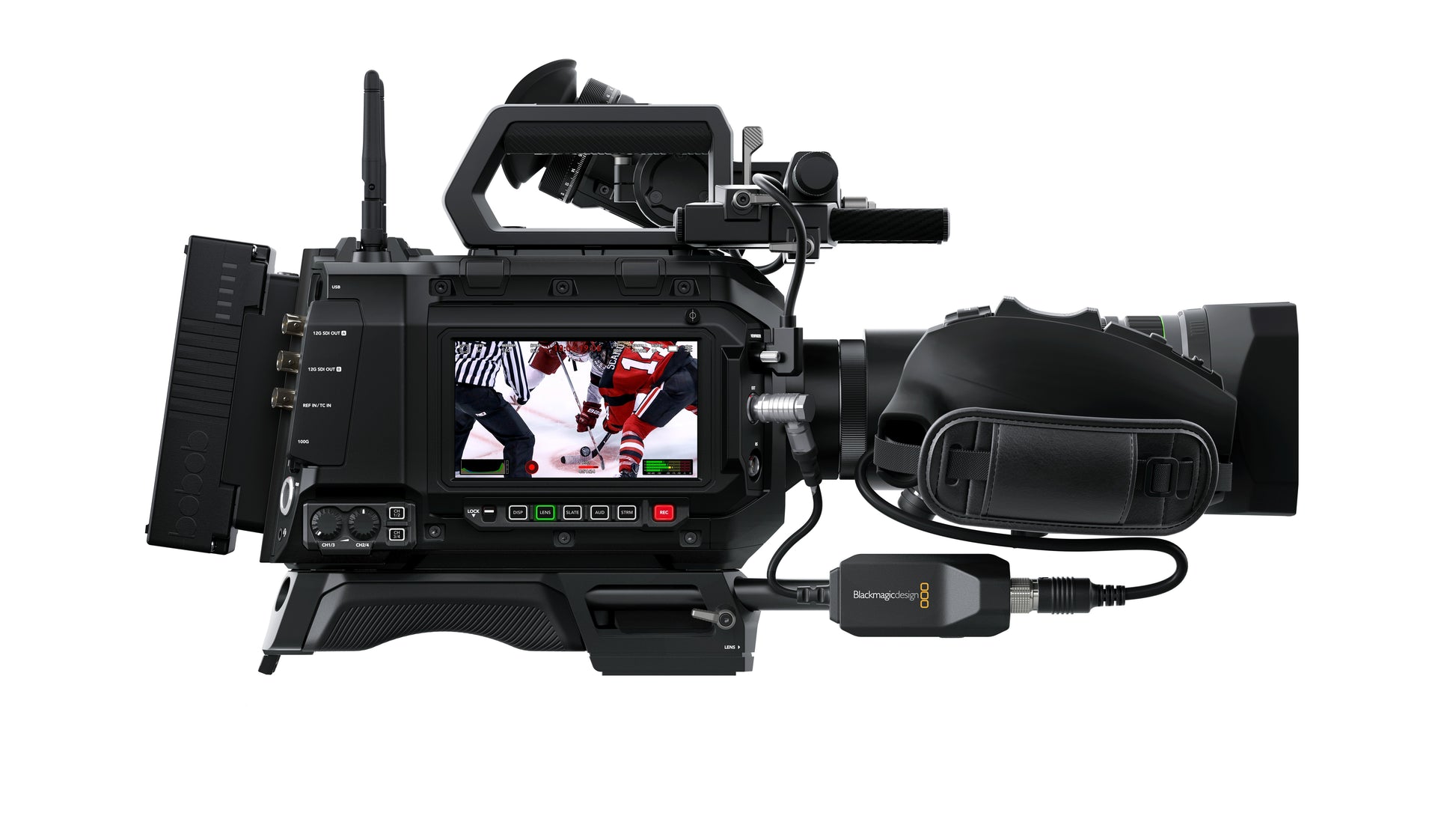

Blackmagic URSA Cine 12K LF 100G

This powerful Blackmagic URSA Cine 12K 100G model has a much faster 100G Ethernet port for SMPTE-2110 live video at incredibly high frame rates. With the new B4 lens mount for broadcast lenses, it can deliver up to 440fps! Your main cameras can also be high-frame-rate cameras, perfect for live sports and replay. You still get the large format RGBW 36x24mm sensor and 16 stops of dynamic range. It also works with the new URSA Cine Studio Viewfinder for a complete studio camera solution.

Official Technical Details

Camera Features

• Effective Sensor Size: 35.64mm x 23.32mm (Large Format)
• Pixel Pitch: 2.9 microns
• Lens Mount: PL mount. Interchangeable with URSA Cine lockable EF mount included.
• Lens Control: Lens control of compatible EF lenses. Lens data from compatible PL lenses and control of some PL lenses.
• Dynamic Range: 16 Stops
• Shooting Formats: 12,288 x 8040 (12K 3:2 open gate) 12,288 x 6912 (12K 16:9) 12,288 x 6480 (12K 17:9) 12,288 x 5112 (12K 2.4:1) 9648 x 8040 (12K 6:5)
• Frame Rates: Project frame rates of 23.98, 24, 25, 29.97, 30, 50, 59.94 and 60 fps supported. Maximum sensor frame rate dependent on resolution selected.
• High Speed Frame Rates: 12K 3:2 open gate up to 80 fps 12K 17:9 up to 100 fps 12K 2.4:1 up to 120 fps 9K 3:2 Super 35 up to 100 fps 8K / 4K 3:2 open gate up to 144 fps 8K / 4K 2.4:1 up to 224 fps 4.6K B4 crop 16:9 up to 240 fps
• Built in ND Filters: Button activated ND filters with clear, 2-stop, 4-stop and 6-stop IR ND filters.
• Focus: Focus button turns on peaking, auto focus available using compatible lenses.
• Iris Control: Iris wheel and touchscreen slider for manual iris adjustment on electronically controllable lenses, iris button for instant auto iris settings on compatible lenses so no pixel is clipped in film mode. Scene average auto exposure in video mode.
• Screens: 2 x Monitoring Screens 1 x Camera Status Screen
• Monitoring Screen Dimensions: 5 inch.
• Monitoring Screen Resolution: 1920px x 1080px
• Monitoring Screen Brightness: 1500 nits.
• Monitoring Screen Type: LCD capacitive touchscreen
• Metadata Support: Automatically populated lens data from i/Technology with compatible PL, LPL lenses and electronic EF lenses when using optional EF lens mount. Automatic recording of camera settings and slate data such as project, scene number, take and special notes.
• Controls: Touchscreen menus on 5 inch screen. Push buttons for other controls. 6 assignable shortcut keys plus 6 assignable viewfinder shortcut keys on optional URSA Cine EVF.
• Timecode Clock: Highly accurate timecode clock. Less than 1 frame drift every 8 hours.

Connections

• Total Video Outputs: 3
• SDI Video Outputs: 2
• SDI Rates: 1.5G, 3G, 6G, 12G.
• 100G 2110 IP Networks: 1 x 100G QSFP28 connection.
• 2110 IP Video Outputs: 1 x 100G QSFP28 connection.
• 2110 IP Video Inputs: 1 x 100G QSFP28 connection.
• Senders and Receivers per 100G: 1 x Ultra HD
• Analog Audio Inputs: 2 x XLR analog switchable between mic, line and AES audio. Phantom power support. 1 x 3.5mm headset jack
• Analog Audio Outputs: 1 x 3.5mm headset jack
• Reference Inputs: Tri-Sync/Black Burst and Timecode. PTP clock and timecode over 2110 IP network.
• Viewfinder: 1 x Viewfinder USB-C with video, power, camera control data and locking connector. Works with URSA Cine EVF and PYXIS Monitor.
• USB-C Monitor Outputs: 2 x USB-C side monitor ports support URSA Cine EVF, PYXIS Monitor or DisplayPort monitors.
• Accessories: 1 x 7-pin Lemo ‘EXT’ for power out, serial communication, and run/stop. 1 x 3-pin Fischer ‘RS’ for power out and run/stop.
• Computer Interface: 2 x USB-C side expansion ports for camera accessories. Software updates using side USB‑C closer to rear.
• Ethernet: 1 x 100Gb/s QSFP28 connector for sending and receiving 2110 IP video or SMB file sharing, Web Media Management, Blackmagic Cloud uploads, camera control and streaming.
• Power: 1 x 8-pin Lemo compatible +24V DC power input.

Audio

• Microphone: Integrated stereo microphone.
• Built in Speaker: 1 x mono speaker.

Standards

• HD Video Standards: 1080p23.98, 1080p24, 1080p25, 1080p29.97, 1080p30, 1080p50, 1080p59.94, 1080p60, 1080i50, 1080i59.94, 1080i60
• Ultra HD Video Standards: 2160p23.98, 2160p24, 2160p25, 2160p29.97, 2160p30, 2160p50, 2160p59.94, 2160p60
• SMPTE Compliance: SMPTE 2110‑20, SMPTE 2110‑21, SMPTE 2110‑30, SMPTE 2110‑40, SMPTE 292M, SMPTE 424 level A and B, SMPTE 2081-1, SMPTE 2082-1
• SDI Audio Sampling: 48 kHz and 24 bit

IP Video Compliance

• SMPTE 2110-20 (Uncompressed Video): IGMP v2
• SMPTE 2110-21 (Traffic Shaping): Sender: Narrow Receiver: Narrow, Wide Synchronous, Asynchronous
• SMPTE 2110-30 (PCM): Audio Conformance level: Level C
• SMPTE 2110-40 (Ancillary Data): Full access to entire SMPTE ancillary data stream. Includes RP 188/SMPTE 12M-2, closed captioning and HDR static metadata.
• Codec: Blackmagic IP10 codec optional for 2160p59.94 and 2160p60 as 2110 IP video.
• Precision Time Protocol: IEEE 1588-2008 (PTP v2) ST 2059-1 ST 2059-2
• NMOS IS-04 Discovery and Registration: v1.3.2 Peer-to-peer via mDNS/DNS-SD
• NMOS IS-05 Connection Management: v1.1.2
• NMOS BCP-002-01: Natural Grouping
• NMOS BCP-004-01: Receiver capabilities

Media

• Media: 1 x Blackmagic Media Module.
• Media Format: Blackmagic

Supported Codecs

• Codecs: Blackmagic RAW Constant Bitrate 3:1 Blackmagic RAW Constant Bitrate 5:1 Blackmagic RAW Constant Bitrate 8:1 Blackmagic RAW Constant Bitrate 12:1 Blackmagic RAW Constant Bitrate 18:1 Blackmagic RAW Constant Quality Q0 Blackmagic RAW Constant Quality Q1 Blackmagic RAW Constant Quality Q3 Blackmagic RAW Constant Quality Q5 H.264 Proxy in 1920 x 1080, 8-bit 4:2:0 Blackmagic IP10

Control

• External Control: Blackmagic URSA Cine EVF can trigger record plus camera functions assigned to the VF1, VF2, VF3, Zoom, Exp and Record buttons. External Camera Control supported using REST API over Ethernet, WiFi or serial communication via the 7-pin Lemo connector. Run / Stop supported via 3-pin Fischer and 7-pin Lemo connector. Blackmagic iPad control and Bluetooth control supported. Blackmagic Zoom Demand and Blackmagic Focus Demand for controlling camera and compatible lenses.

Streaming

• Direct Streaming: Supports Secure Reliable Transport (SRT) and Real Time Messaging Protocol (RTMP) local live streaming using a Ethernet or WiFi, or global live streaming using an internet connection via Ethernet, WiFi or USB‑C cellular data.

Network Management

• NTP: Network time protocol support allows you to sync the time on your camera, whenever connected to a network with any NTP server of your choice.
• FTP: Download files from any drive attached to your camera using FTP.
• Web Media Manager: Using a browser connected over Ethernet, web media manager allows you to access, browse, download and delete files from any drive connected to the camera.
• SMB: File sharing using SMB

Storage Features

• Storage Type: 1 x Blackmagic Media Module 8TB
• Storage Rates: Storage rates based on 24 frames per second.

Software

• Software Included: URSA Cine Blackmagic OS DaVinci Resolve Studio for Mac and Windows including activation key Blackmagic Camera Setup Blackmagic RAW Player Blackmagic RAW QuickLook Plugin Blackmagic RAW SDK

Operating Systems

• Mac 15.0 Sequoia, Mac 26.0 Tahoe or later.
• Windows 11

Power Requirements

• Power Supply: +24V DC external power supply 100 - 240 AC 50/60Hz compatible with IEC C14 socket. B-Mount battery plate.
• Power Input: 1 x 8‑pin Lemo compatible socket for external power or battery use. Molex connector for rear battery plate.
• Power Output: 1 x 7-pin connector with +24V DC power output when camera is powered by +24V DC batteries or power supply. 1 x 3-pin Fischer with +24V DC power output when camera is powered by +24V DC batteries or power supply. B-Mount battery plate including 2-pin connector with +12V regulated output from camera.

Accessories

• Optional Accessories: Blackmagic URSA Cine EVF Blackmagic URSA Cine Studio Viewfinder Blackmagic PYXIS Monitor Blackmagic PYXIS Monitor Kit Blackmagic PYXIS Monitor EVF Kit Blackmagic URSA Cine Mount PL Blackmagic URSA Cine Mount LPL Blackmagic URSA Cine Mount EF Blackmagic URSA Cine Mount B4 Blackmagic URSA Cine B4 Adapter Cable Blackmagic URSA Cine Mount Shims Blackmagic URSA Cine Battery Plate B Mnt Blackmagic URSA Cine Battery Plate Gold Blackmagic URSA Cine Battery Plate VLock Blackmagic URSA Cine Baseplate 15 Blackmagic URSA Cine Baseplate 19 Blackmagic URSA Cine Handle Blackmagic URSA Cine Grips Blackmagic URSA Cine 5" LCD Sunshade Blackmagic Media Dock Blackmagic Media Module CF Blackmagic Media Module 8TB Blackmagic Media Module 16TB ATEM Streaming Bridge

Environmental Specifications

• Operating Temperature: 0° to 40°C (32° to 104°F)
• Storage Temperature: -20° to 45°C (-4° to 113°F)
• Relative Humidity: 0% to 90% non-condensing

What's Included

• Blackmagic URSA Cine 12K LF 100G camera with PL lens mount Blackmagic Media Module 8TB Blackmagic URSA Cine Handle and bolts Blackmagic URSA Cine Top Rod Mount Blackmagic URSA Cine Baseplate 19 Blackmagic URSA Cine Battery Plate B Mount Blackmagic URSA Cine Rubber Caps for connectors Blackmagic URSA Cine WiFi Antennas Blackmagic URSA Cine Mount EF and mount screws Blackmagic URSA Cine 24V 250W power supply Blackmagic EF Body Cap Blackmagic PL Body Cap Plastic folding screen hood for 5” LCD DaVinci Resolve Studio with activation key Welcome wallet with QR code for software download Blackmagic Sticker Pelican 1510 Case with custom foam

Warranty

• 1 Year Limited Manufacturer’s Warranty.
