Blackmagic StudioBridge 100G

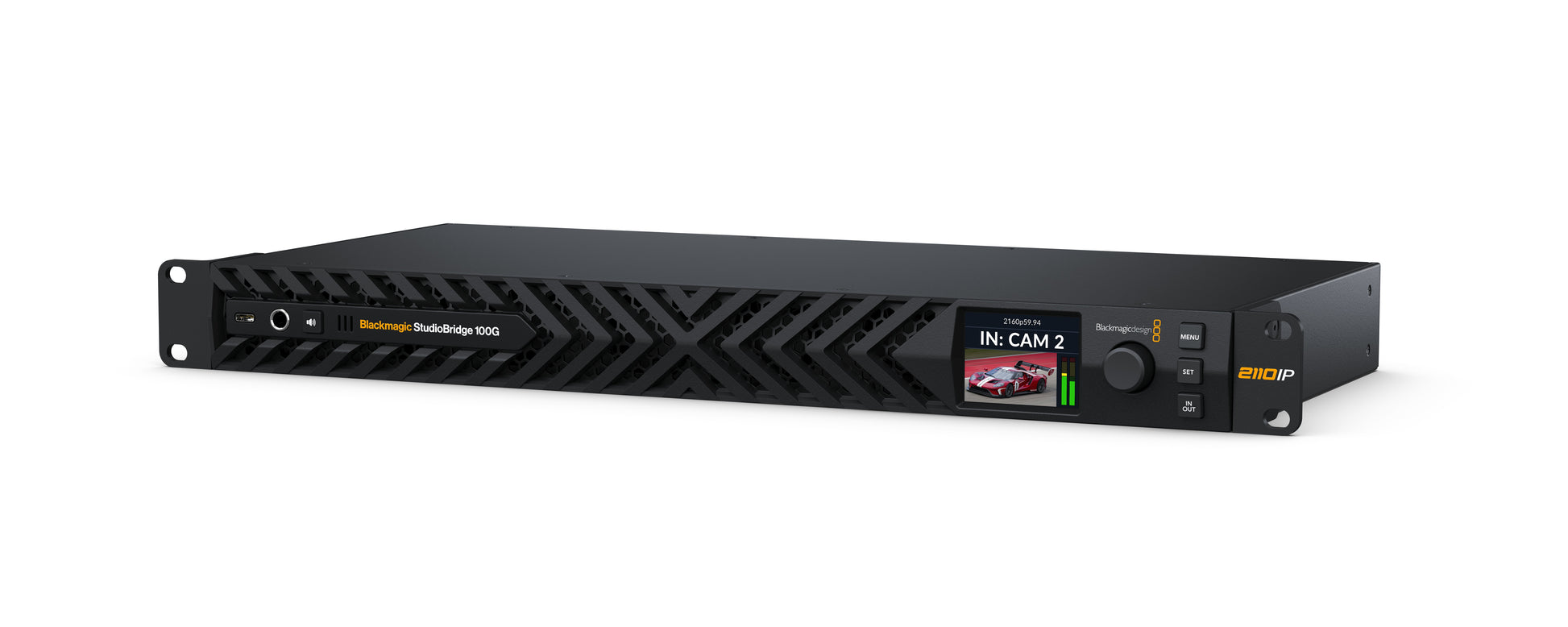

The Blackmagic StudioBridge 100G bridges a single 100G Ethernet SMPTE-2110 connection into a redundant dual 100G Ethernet broadcast system. It also has two 100G Ethernet camera connections that can be combined if total bandwidth doesn't exceed 100 Gb/s! This lets you interface two cameras such as the URSA Cine 12K 100G into a redundant broadcast system. It also includes a separate 10G Ethernet channel for accessories, an NMOS control port, and dual redundant power supplies.

Official Technical Details

Connections

• 100G 2110 IP Networks: 2 x 100G QSFP28 Network connections. Supports ST 2022-7 redundant delivery of IP streams over the two ‘100G 2110 IP Video’ network connections.
• 100G 2110 IP Camera: 2 x 100G QSFP28 Camera connections.
• Senders and Receivers per 100G Pair: 1 x 100G URSA Cine or 2 x URSA Cine Immersive / URSA Immersive.
• 10G 2110 IP Networks: 2 x 10G SFP optical fiber connections. 2 x 10G RJ45 connections.
• Senders and Receivers per 100G Pair: 8 x Ultra HD or HD.
• 1G Control Network: 1 x 1G RJ45 for NMOS control, configuration and software updates.
• SMPTE ST 2110 IP Audio Inputs: 16 Ch embedded audio on each 2110 IP video stream over 100G and 10G Ethernet.
• SMPTE ST 2110 IP Audio Outputs: 16 Ch embedded audio on each 2110 IP video stream over 100G and 10G Ethernet.
• Multi Rate Support: Auto detection of HD, Ultra HD and 4K.
• Computer Interface: 1 x USB-C for configuration and firmware updates.

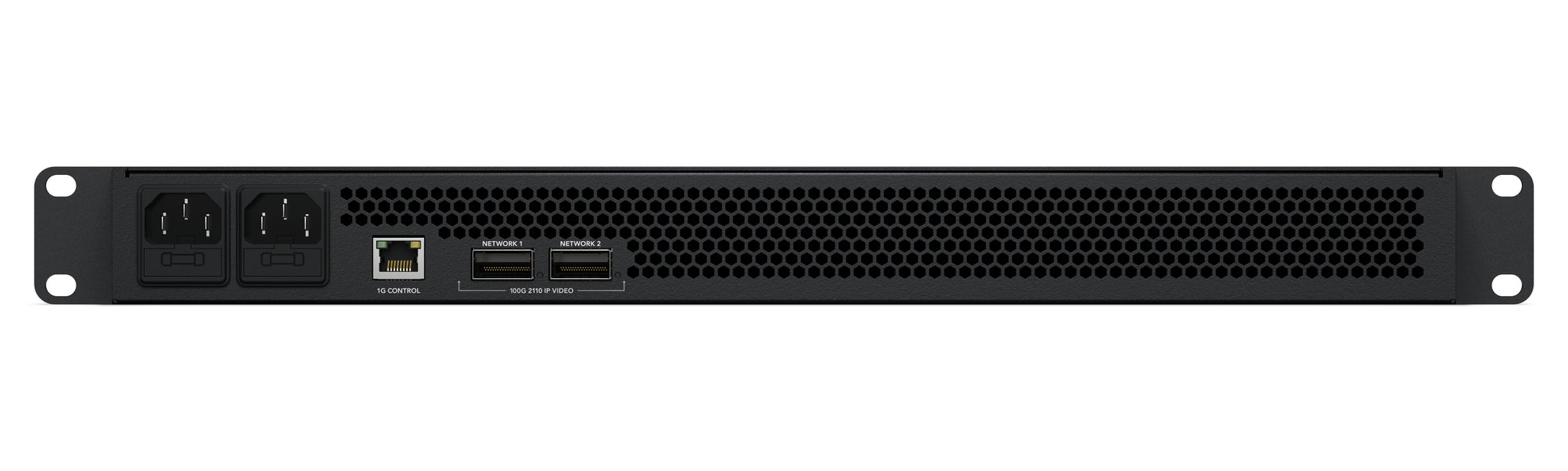

• Power: 2 x IEC C14 power inputs.

Video Standards

• HD Video Standards: 720p50, 720p59.94, 720p60 1080i50, 1080i59.94, 1080i60 1080p23.98, 1080p24, 1080p25, 1080p29.97, 1080p30, 1080p50, 1080p59.94, 1080p60 1080PsF25, 1080PsF29.97, 1080PsF30
• Ultra HD Video Standards: 2160p23.98, 2160p24, 2160p25, 2160p29.97, 2160p30, 2160p50, 2160p59.94, 2160p60
• 8K Video Standards: 8160 x 7200 x 2 stereo immersive
• SMPTE Compliance: SMPTE 2110‑20, SMPTE 2110‑21, SMPTE 2110‑30, SMPTE 2110‑40, SMPTE 2022-7
• Color Precision: 10-bit 4:2:2 YUV
• Color Space: Rec. 709, Rec. 2020.
• SDI Auto Switching: Automatically detects HD and Ultra HD.

IP Video Compliance

• SMPTE 2110-20 (Uncompressed Video): IGMP v2
• SMPTE 2110-21 (Traffic Shaping): Sender: Narrow Receiver: Narrow, Wide Synchronous, Asynchronous
• SMPTE 2110-30 (PCM): Audio Conformance level: Level C
• SMPTE 2110-40 (Ancillary Data): Full access to entire SMPTE ancillary data stream. Includes RP 188/SMPTE 12M-2, closed captioning and HDR static metadata.
• Codec: Blackmagic IP10 codec optional for 2160p59.94 and 2160p60 as 2110 IP video.
• Precision Time Protocol: IEEE 1588-2008 (PTP v2) ST 2059-1 ST 2059-2
• NMOS IS-04 Discovery and Registration: v1.3.2 Peer-to-peer via mDNS/DNS-SD
• NMOS IS-05 Connection Management: v1.1.2
• NMOS BCP-002-01: Natural Grouping
• NMOS BCP-004-01: Receiver capabilities

Displays

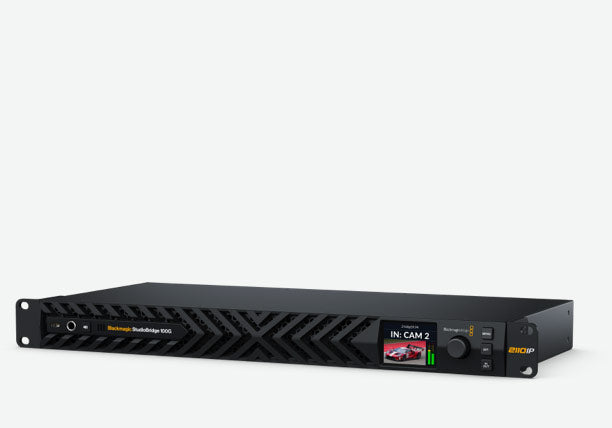

• Display: Built in 2.2 inch LCD for monitoring video, audio, video standard and timecode plus menu settings. Use search dial to scrub between all available inputs and monitor on front panel.

Control

• Built in Control Panel: 2.2 inch color display, 3 button control panel and spin knob for source and destination setup and menu settings.
• External Control: RJ-45 Ethernet and USB-C.

Operating Systems

• Mac 15.0 Sequoia, Mac 26.0 Tahoe or later.
• Windows 11

Power Requirements

• Power Supply: 2 x 100 ‑ 240V AC 50/60Hz internal power supplies.
• Power Inputs: 2 x IEC C14 sockets.
• Power Usage: TBC

Physical Installation

• 1 rack unit.

Environmental Specifications

• Operating Temperature: 5° to 40° C (41° to 104° F)
• Storage Temperature: -20° to 45° C (-4° to 113° F)
• Relative Humidity: 0% to 90% non‑condensing

What's Included

• Blackmagic StudioBridge 100G
• Welcome wallet with QR code for software download

Warranty

• 1 Year Limited Manufacturer’s Warranty.
