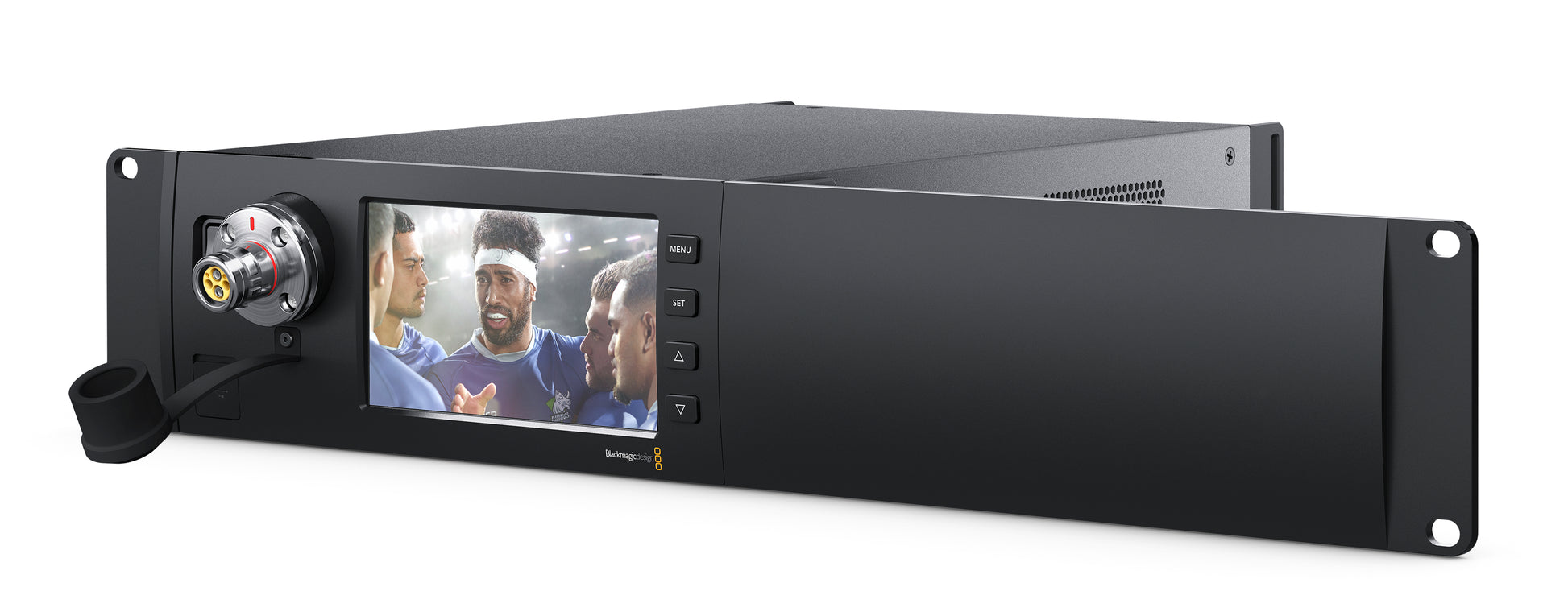

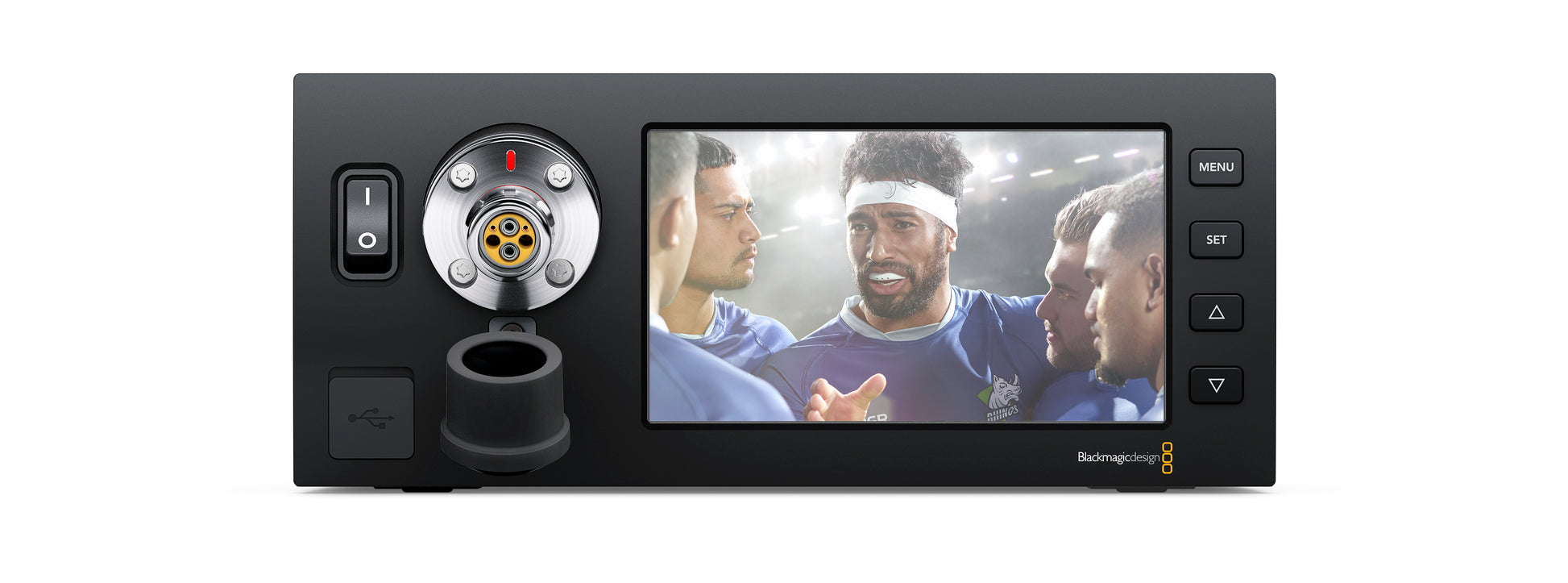

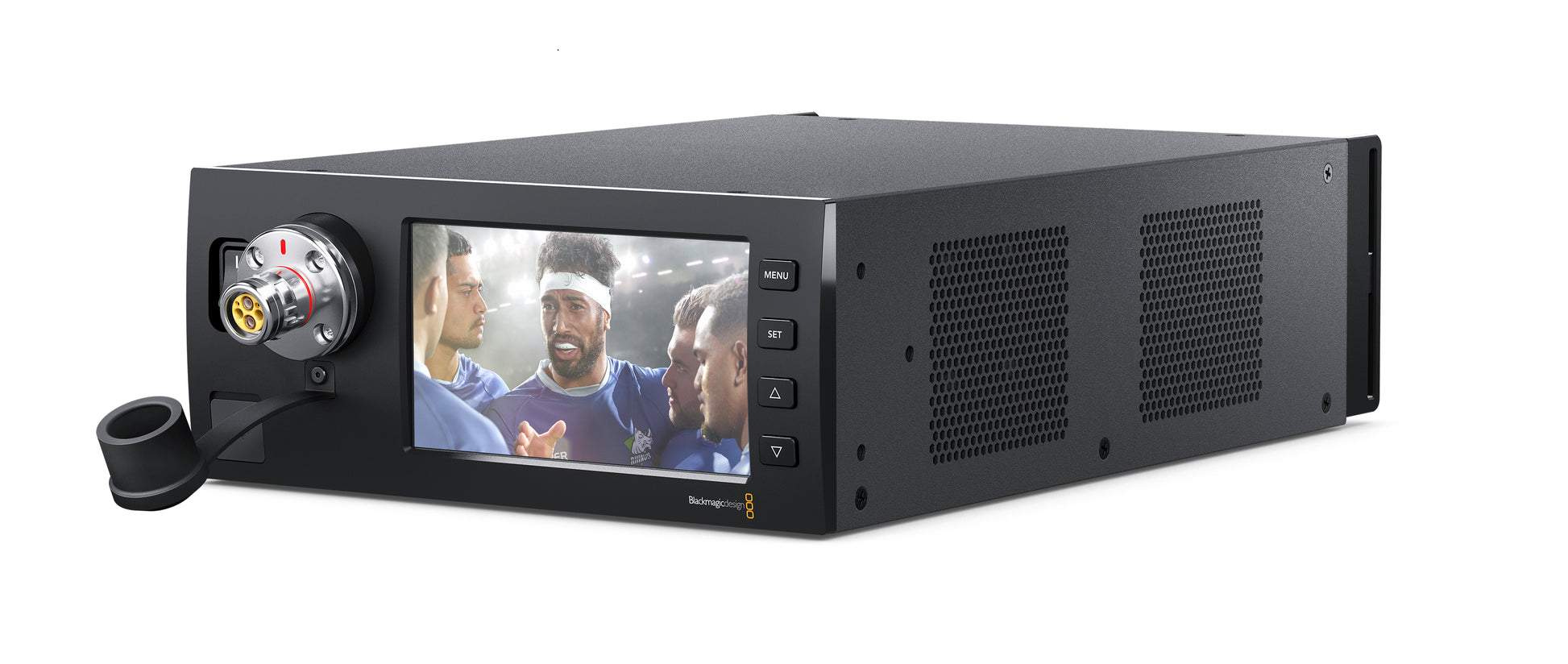

Work with remote cameras up to 2 km away from your studio or outside broadcast truck using SMPTE fiber. The Blackmagic Studio Fiber Converter converts SDI video, audio, and remote camera control connections into a single optical fiber cable, which connects to a Blackmagic Camera Fiber Converter attached to a remote camera. All video and data are transmitted using standard IP for extremely low latency broadcast quality video. You get 12G-SDI for an HD or Ultra HD camera feed and 3 independent HD return feeds, along with standard connections for camera control, PTZ, two dual channel talkback intercoms, tracker talkback, tally and a 5 inch LCD screen for monitoring camera and return feeds. The Blackmagic Studio Fiber Converter also provides power for your remote cameras and accessories.

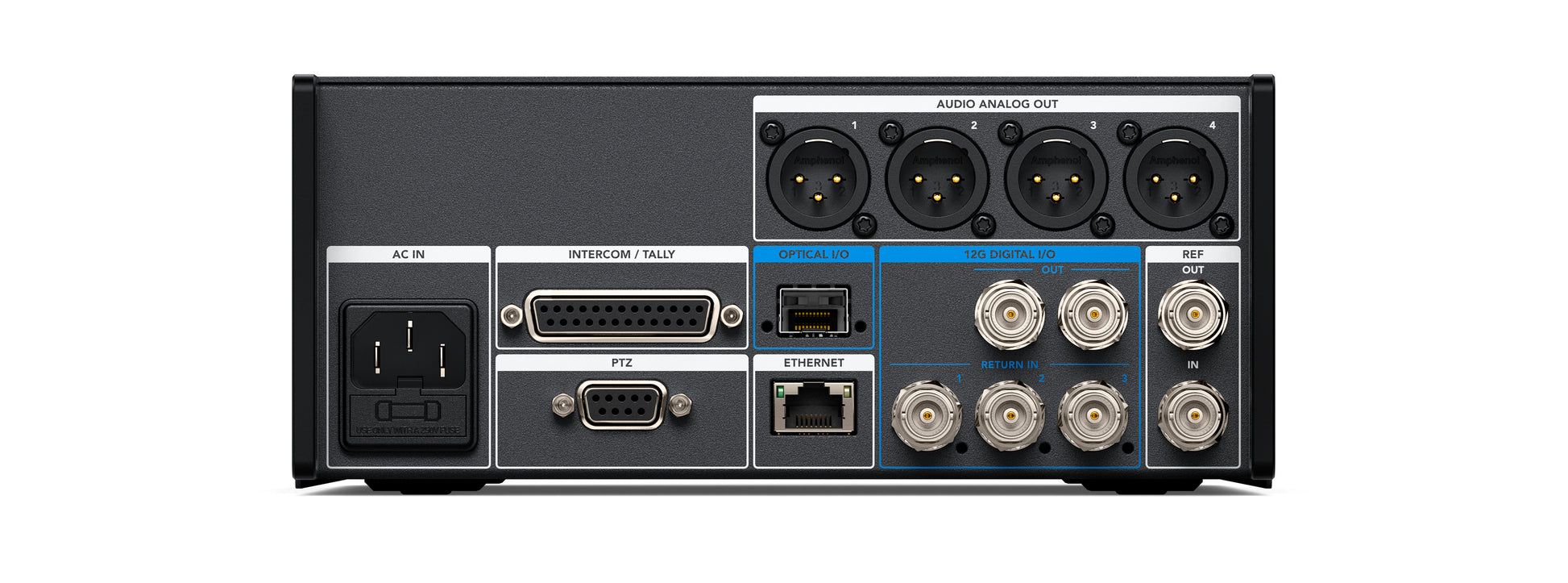

SDI Video Input: 3x 12G SDI Return feeds with Program, Camera Control, Tally, Genlock and Intercom on Return 1.
SDI Video Output: 2x 12G SDI for Ultra HD up to 60p.
Talkback Audio: SDI Channels 15 and 16 for Production, Analogue in and out supported via 25-pin connector for Production and Engineering talkback support.
Balanced XLR Audio Outputs: 4x camera analogue audio outputs.
Optical Fiber Outputs: 1x Optical I/O via 10 Gb-E (not currently active).
