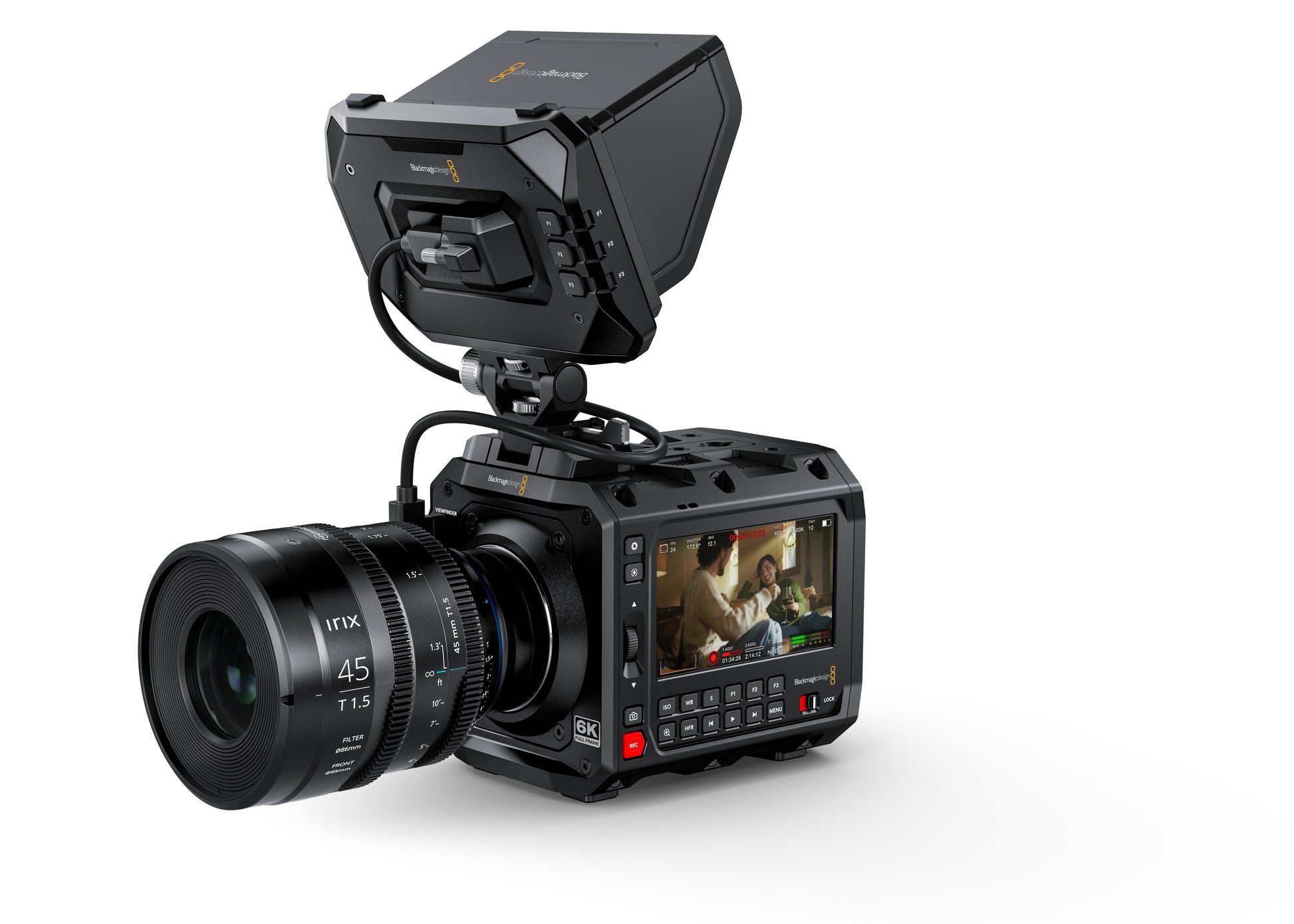

Blackmagic PYXIS Monitor is a versatile 5″ HDR touchscreen monitor with full camera control that can be mounted almost anywhere. Blackmagic PYXIS Monitor Kit contains the monitor, foldable sunshade, locking USB cable and PYXIS Mounts to attach to Blackmagic PYXIS and Blackmagic URSA Cine cameras. The design of the PYXIS Mounts with a dovetail means the PYXIS Monitor can be quickly attached and removed from the camera. The mount makes it simple to position the monitor where customers need it without requiring tools to loosen bolts.
Official Technical Details
Connections
USB-C with Locking Connector: Video, power, data and software updates.
Features
Display Size: 5 inch.
Display Resolution: Full 1920 x 1080.
Display Type: LCD capacitive touchscreen.
Display Brightness: 1500 nits.
Frame Rates: Up to 60fps.
Tally: Rear facing LED tally light.
Accelerometer: Automatically rotates image when monitor mounted upside down.
Control
On Screen Controls: Tap screen to control Monitor Overlays, Frame Rate, Shutter, Iris, Timecode, ISO, White Balance, Tint, Power, Record Start/Stop, Media, Audio, Focus Zoom, Digital Slate and camera menus.
Button Controls: Includes F1, F2, F3 assignable function buttons to recall preset parameters or toggle functions.
Function Button Presets: FPS: Preset Value Iris: Preset Value WB: Preset Value ISO: Preset Value Shutter: Preset Value
Function Button Toggle: Clean Feed Status Text Display LUT Frame Guides Focus Assist False Color Zebra Grid Safe Area Guide Off Speed Rec Focus Zoom Focus Record Auto White Balance Color Bars Playback False Color + Zebra OIS Stream Still
Mounting
Mounting Points: 1 x 1/4-20 bottom mounting point with ARRI locating pin pattern. 2 x M4 bottom mounting points. 1 x 1/4-20 side mounting point with ARRI locating pin pattern. 2 x M4 side mounting points.
Mounting Brackets: Blackmagic PYXIS Monitor Swivel Mount ‑ included in Kit. Blackmagic PYXIS Monitor Fixed Mount ‑ included in Kit. Blackmagic PYXIS Monitor Dovetail Shoe ‑ included in Kit.
Compatible Cameras
Blackmagic PYXIS 6K Blackmagic PYXIS 6K PL Blackmagic PYXIS 6K EF Blackmagic URSA Cine 12K LF Blackmagic URSA Cine 17K 65 Blackmagic Micro Studio Camera 4K G2
Operating Systems
Mac 13.0 Ventura, Mac 14.0 Sonoma or later.
Windows 10 and 11.
Power Requirements
Powered over USB-C.
Environmental Specifications
Operating Temperature: 0° to 40°C (32° to 104°F)
Storage Temperature: -20° to 60°C (‑4° to 140°F)
Relative Humidity: 0% to 90% non‑condensing

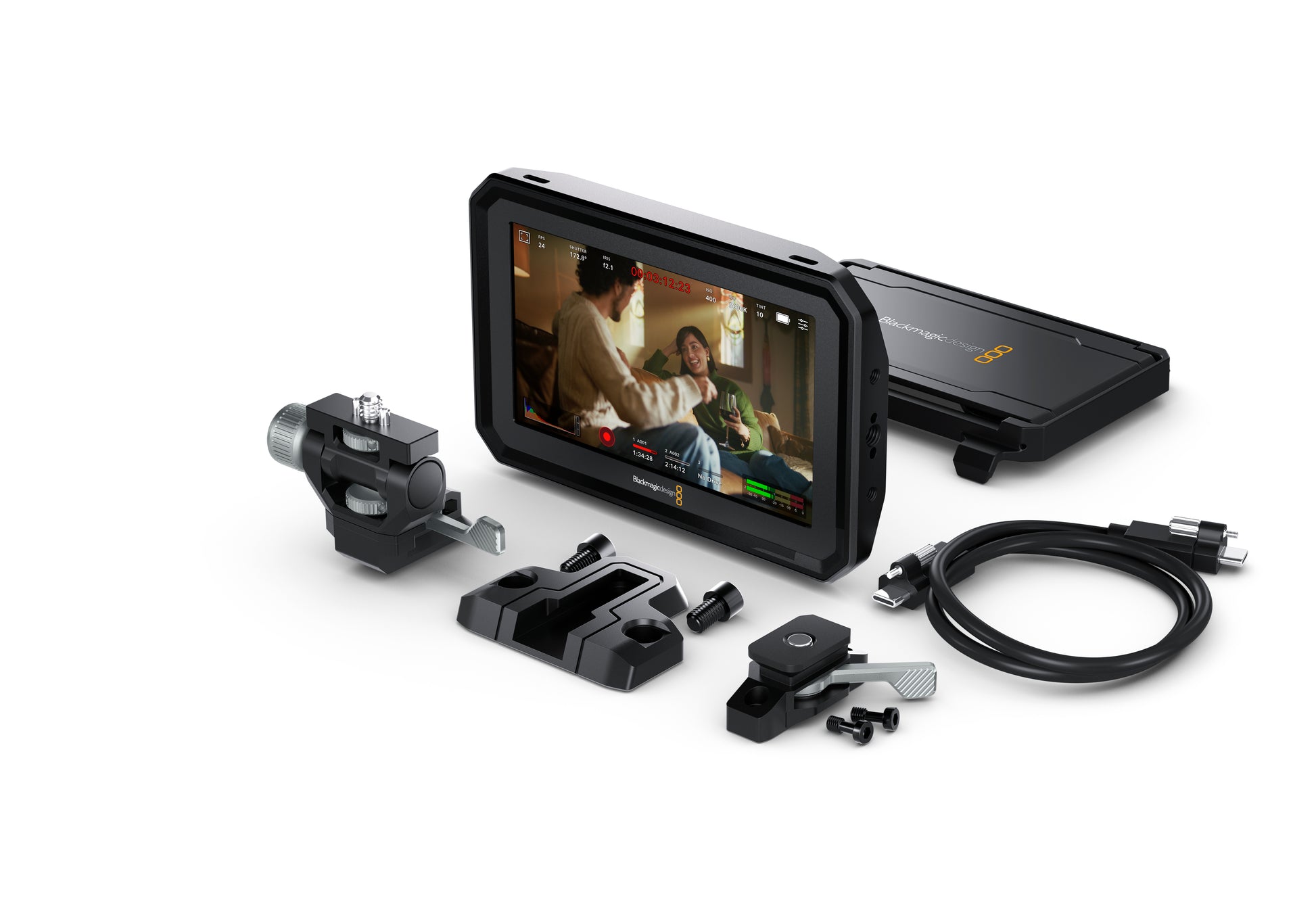

What's Included
Blackmagic PYXIS Monitor
Blackmagic PYXIS Clip On Sunshade
Blackmagic PYXIS Monitor Swivel Mount
Blackmagic PYXIS Monitor Fixed Mount and screws
Blackmagic PYXIS Monitor Dovetail Shoe and screws
1 x USB-C Viewfinder Cable
Welcome wallet with QR code for software download
Blackmagic Design Sticker
Warranty
Product Warranty: 1 Year Limited Manufacturer’s Warranty.
