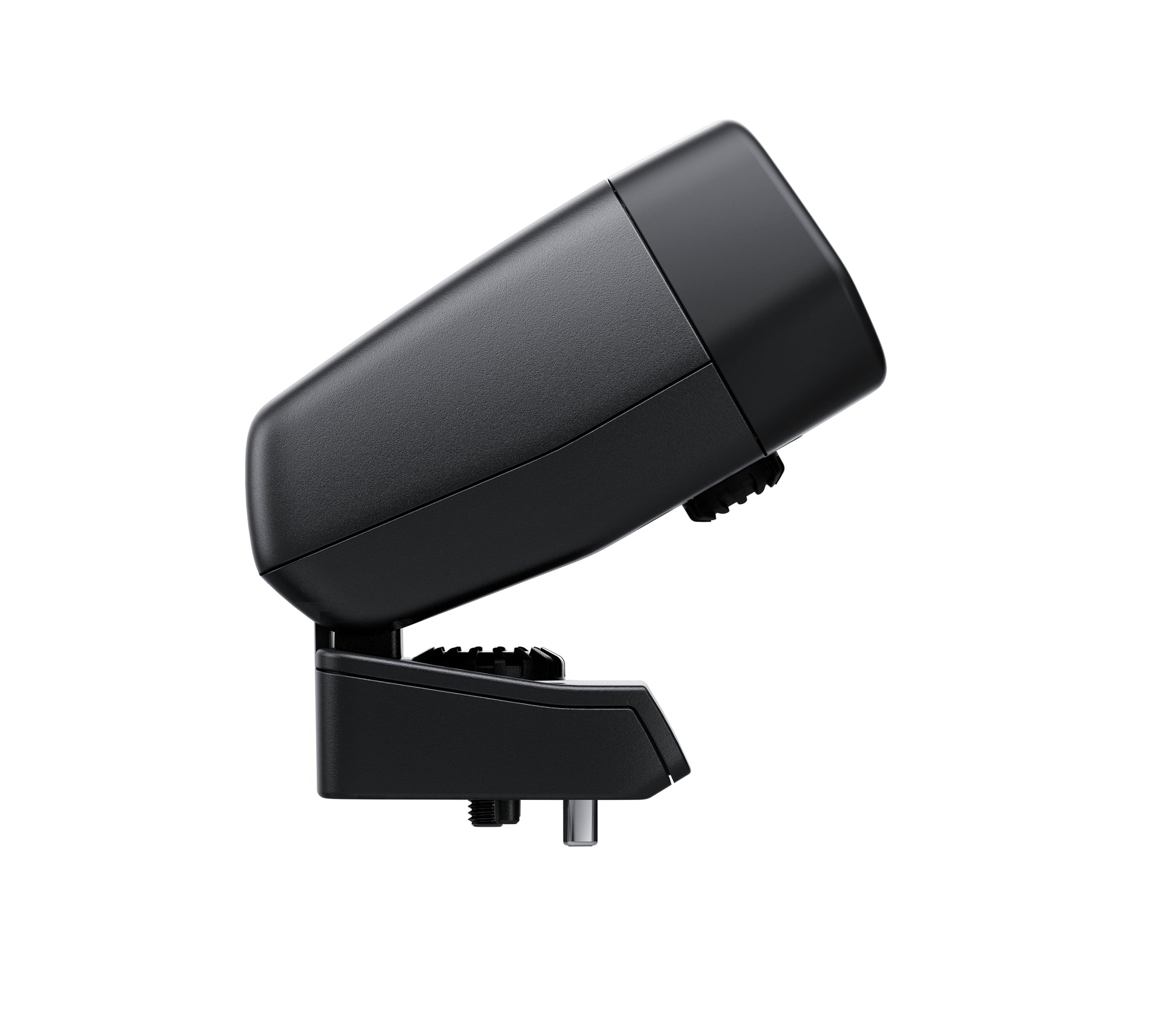

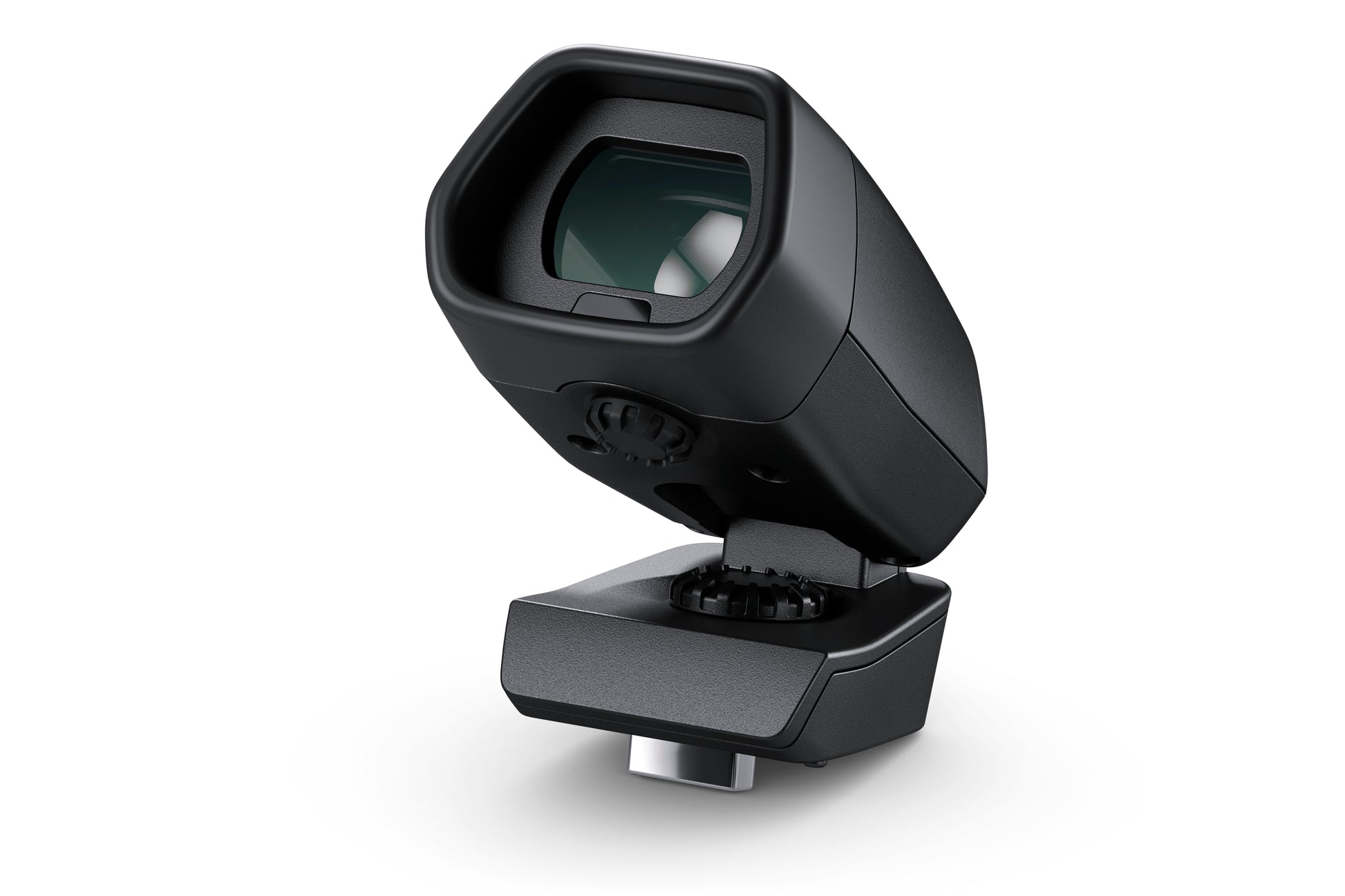

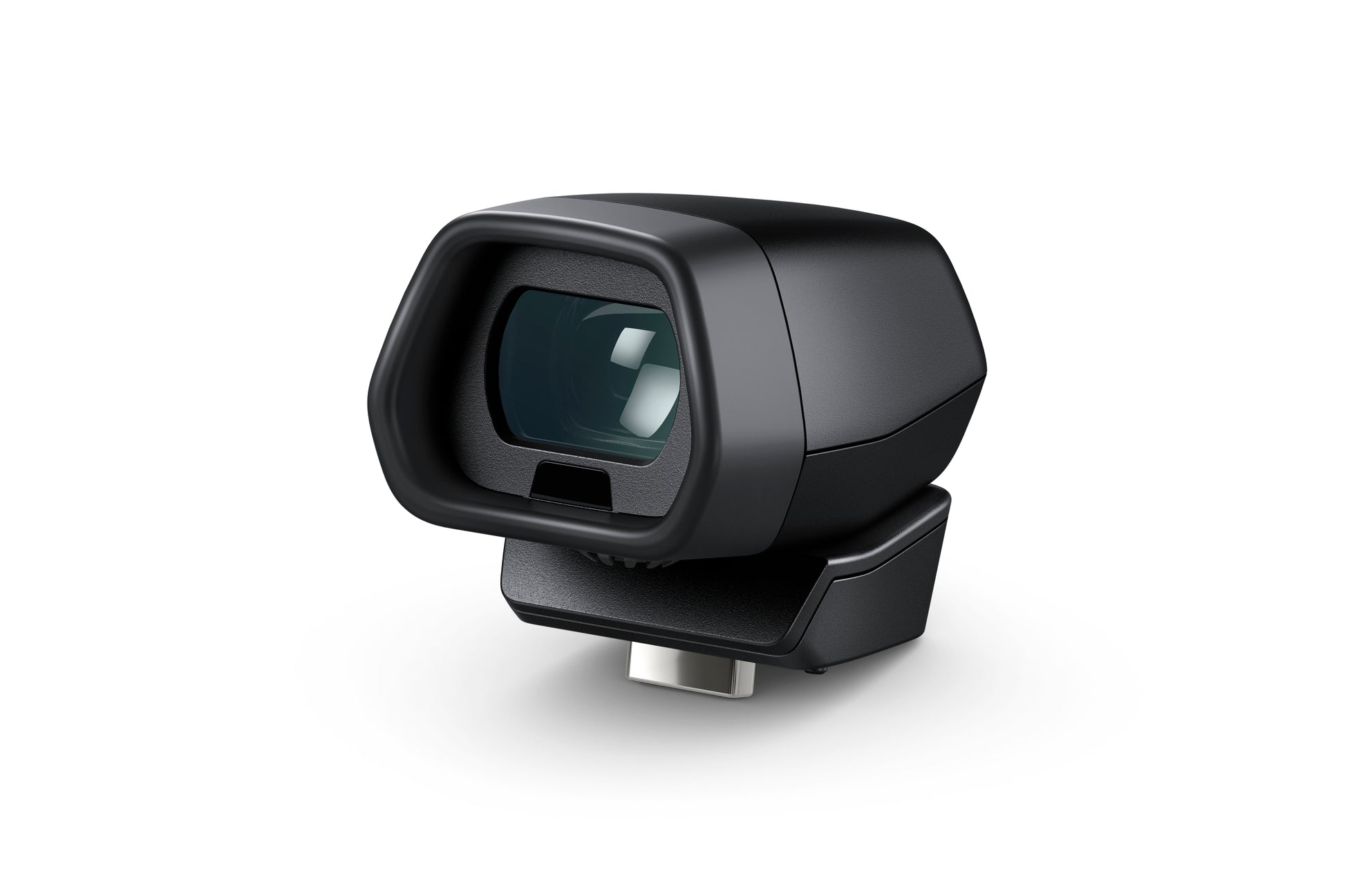

The Blackmagic Pocket Cinema Camera Pro EVF is the perfect accessory to make outdoors and handheld shooting easy! You get a high quality viewfinder with built in proximity sensor, 4 element glass diopter with an incredible -4 to +4 adjustment, built in status information, and a digital focus chart. The Pocket Cinema Camera Pro EVF connects quickly to the Blackmagic Pocket Cinema Camera 6K Pro via a single connector. The viewfinder has up to 70 degree swivel, and comes with a set of 4 eyecups including left and right eye.
Official Technical Details
Connections
Video and Power Inputs: Via Pocket Cinema Camera 6K Pro EVF connector
Fixing: Integrated M4 x 3.3 (0.7 pitch) locking screw
Features
Display Resolution: 1280 x 960
Display Pixels: 3.68 million dots
Display Type: Micro OLED
Frame Rates: Up to 60 fps
Color Precision: 24 bit RGB, 16.7 million colors
Focus: 4 element diopter.
Diopter Range: -4 to +4
Power: Auto ON/OFF controlled by inbuilt proximity sensor.
Controls: Viewfinder display configuration set via Monitor Page in camera menu settings.
Overlays: Camera settings, status and meters displayed in top and bottom blank area.
Eyepiece: Can be tilted +70° vertically.
Eye Cup: 4 x interchangeable silicone eye cups including small, medium, left eye and right eye.
Mounting Options: Compatible with Pocket Cinema Camera 6K Pro.
Metadata Support: Supports camera information from Pocket Cinema Camera 6K Pro.
Environmental Specifications
Operating Temperature: 0° to 40° C (32° to 104° F)
Storage Temperature: -20° to 60° C (-4° to 140° F)
