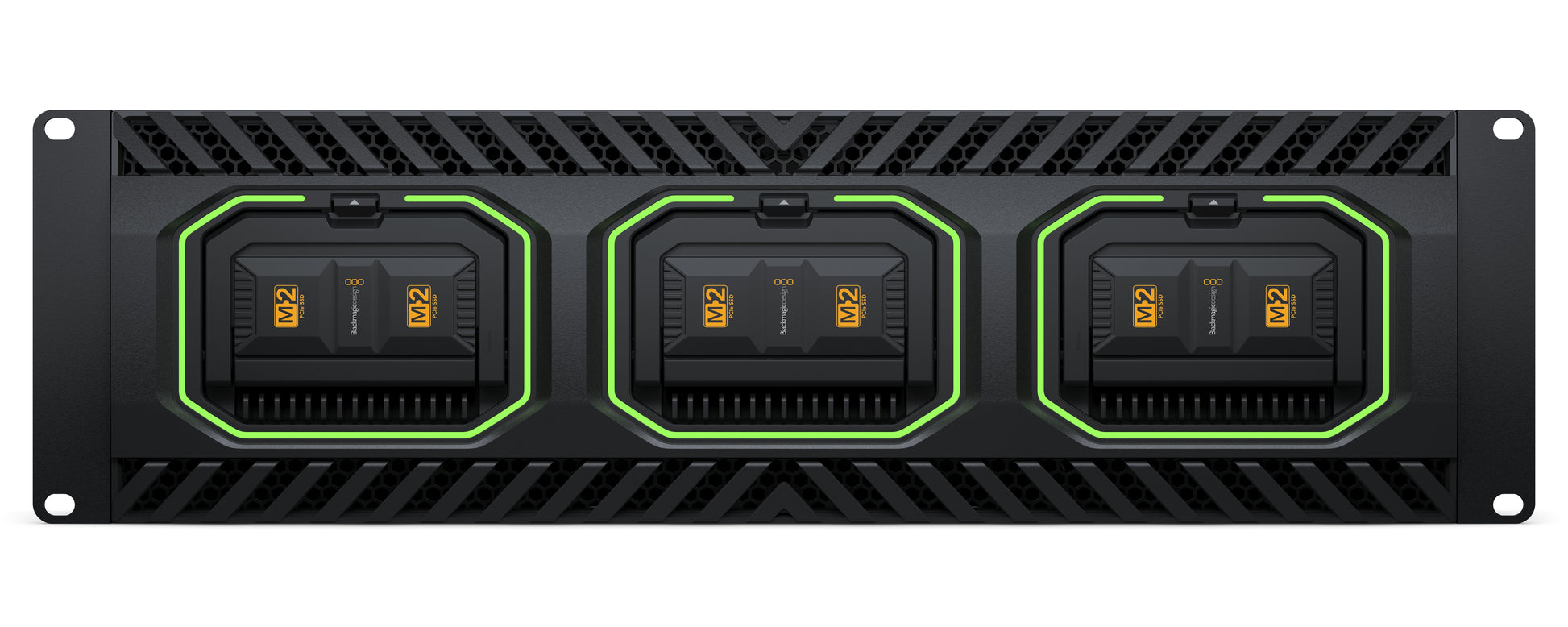

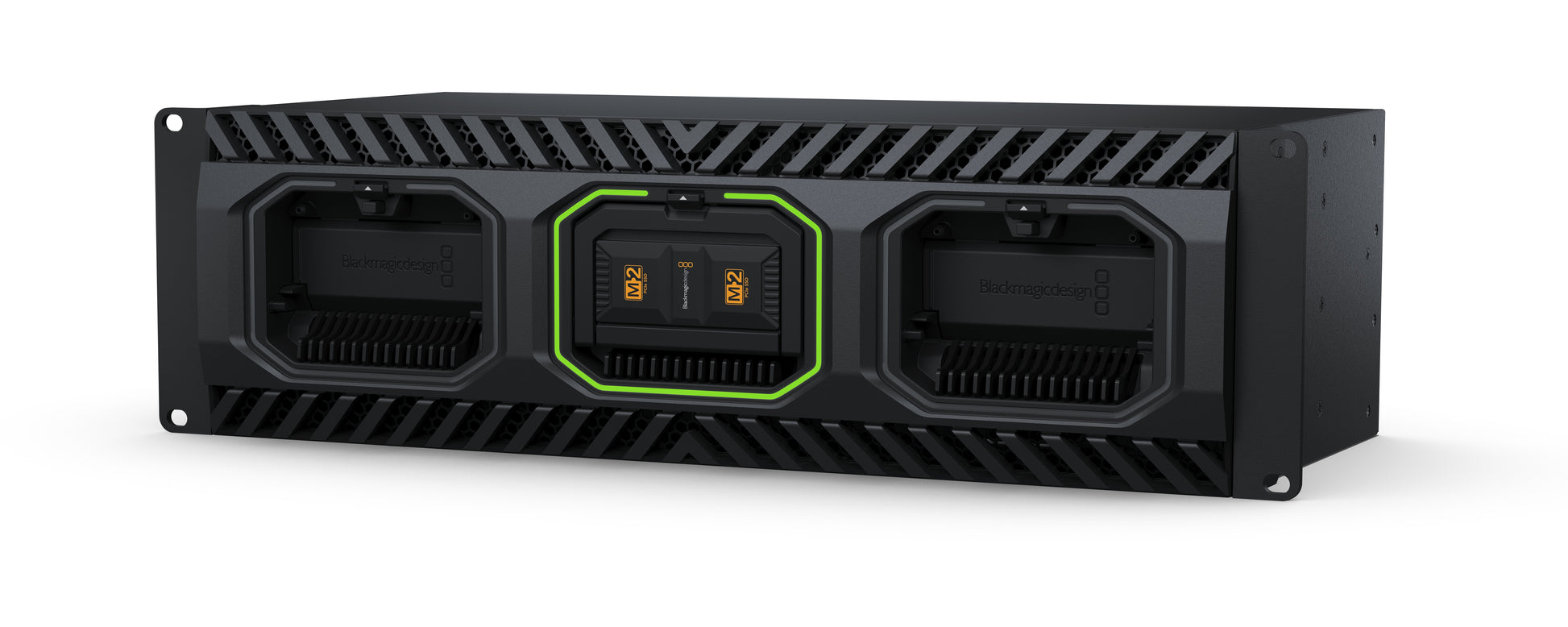

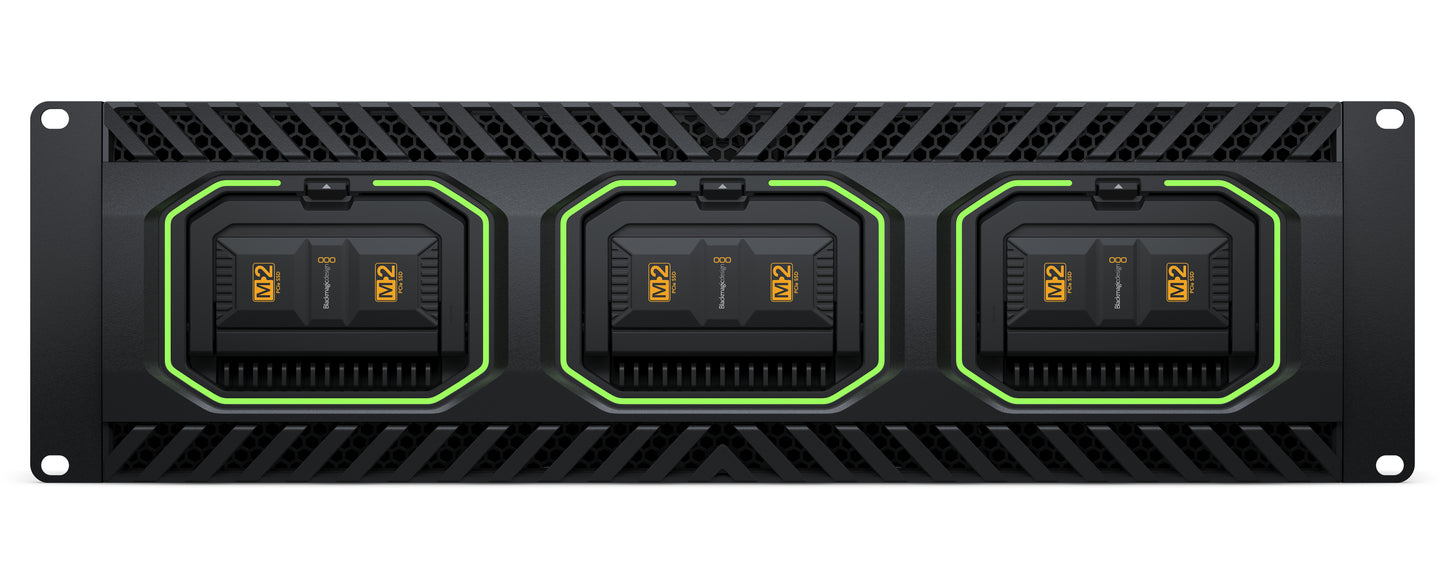

Blackmagic Media Dock Ultra

Blackmagic Media Dock Ultra accelerates your post production workflow by enabling incredibly high speed network sharing and upload from up to 3 Blackmagic Media Modules from Blackmagic URSA Cine cameras. 2 x 100G Ethernet ports allow multiple edit stations to connect and edit directly. Blackmagic Media Dock Ultra also has dual AC power inputs for redundancy and 2 x SDI and an HDMI output for live monitoring of media in real time on a TV or monitor.

Official Technical Details

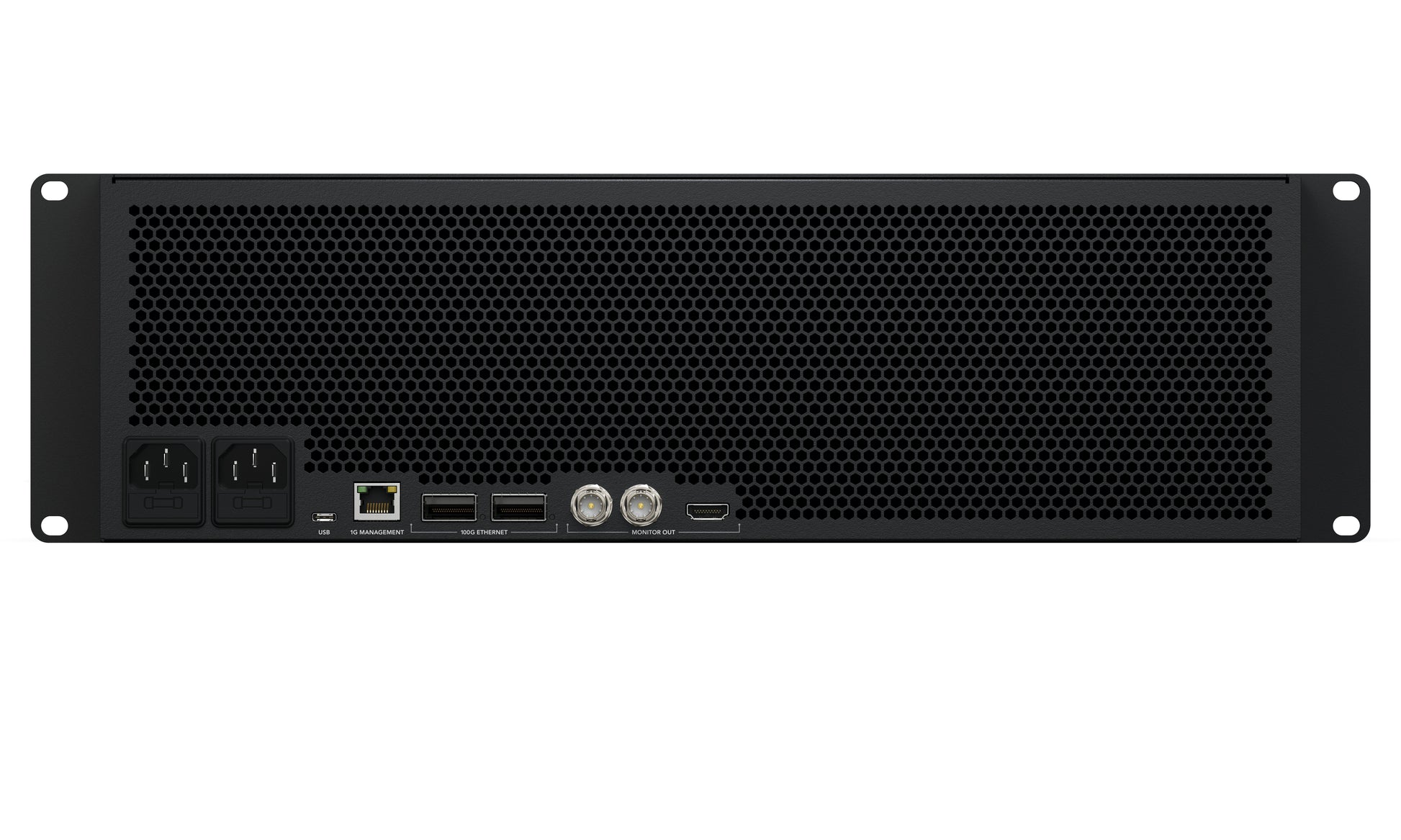

Connections

• 100G Ethernet: 2 x 100G QSFP28 connections. Each 100G port can be assigned an independent IP address and subnet mask for up to 200G bandwidth and load balancing when used with a managed switch.
• 1G Management: 1 x RJ45 Ethernet. Supports 10/100/1000 BASE-T. For Cloud Store Setup utility and software updates.
• SDI Monitor Outputs: 2
• HDMI Monitor Outputs: 1
• SDI Rates: 1.5G, 3G.
• Computer Interface: 1 x USB-C for Cloud Store Setup utility and software updates.
• Power: 2 x IEC C14 power inputs.

File Sharing Protocol

• Protocol: NFS (HFS+ formatted disks only) SMB
• Computer Connections: 50 max.

Storage

• Storage Type: Up to 3 Blackmagic Media Modules.
• External Storage Format: Blackmagic (formatted in camera)

Displays

• Status Indicator: LED bezel indicator lights around media module bays.
• Monitor Out Displays: Device Name, storage capacity and use, Cloud Sync status, User Activity, Hardware Status, storage map, network data rate graph.
• SDI Monitor Out Standards: 1080p50, 1080p59.94, 1080p60
• HDMI Monitor Out Standards: 1080p50, 1080p59.94, 1080p60

Device Control

• External Control: USB-C or Ethernet for configuration and software updates.

Software

• Software Included: Blackmagic Cloud Setup Utility Blackmagic Proxy Generator Lite Internal software upgrade via Blackmagic Cloud Setup using USB-C port

Operating Systems

• Mac 15.0 Sequoia, Mac 26.0 Tahoe or later.
• Windows 10, 64-bit. Windows 11.

Power Requirements

• Power Supply: 2 x 100 ‑ 240V AC 50/60Hz internal power supplies.
• Power Inputs: 2 x IEC C14 sockets.
• Power Usage: TBC

Physical Installation

• 3 rack units.

Environmental Specifications

• Operating Temperature: 0° to 40° C (32°to 104° F)
• Storage Temperature: -20° to 60° C (-4° to 140° F)
• Relative Humidity: 0% to 90% non‑condensing

What's Included

• Blackmagic Media Dock Ultra
• Welcome wallet with QR code for software download

Warranty

• 1 Year Limited Manufacturer’s Warranty.
