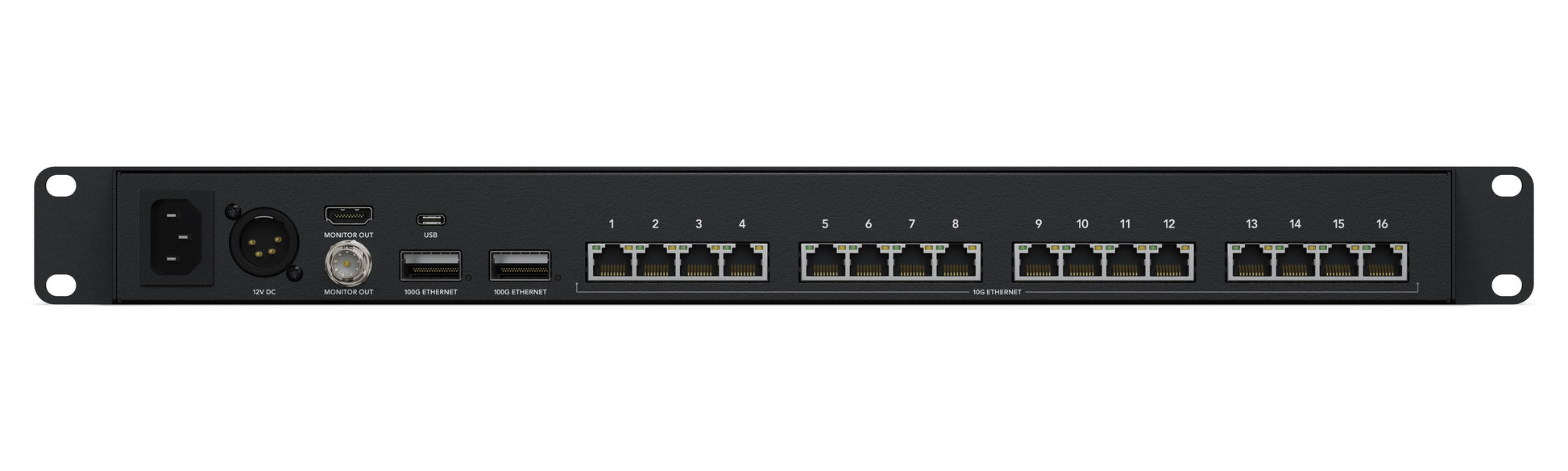

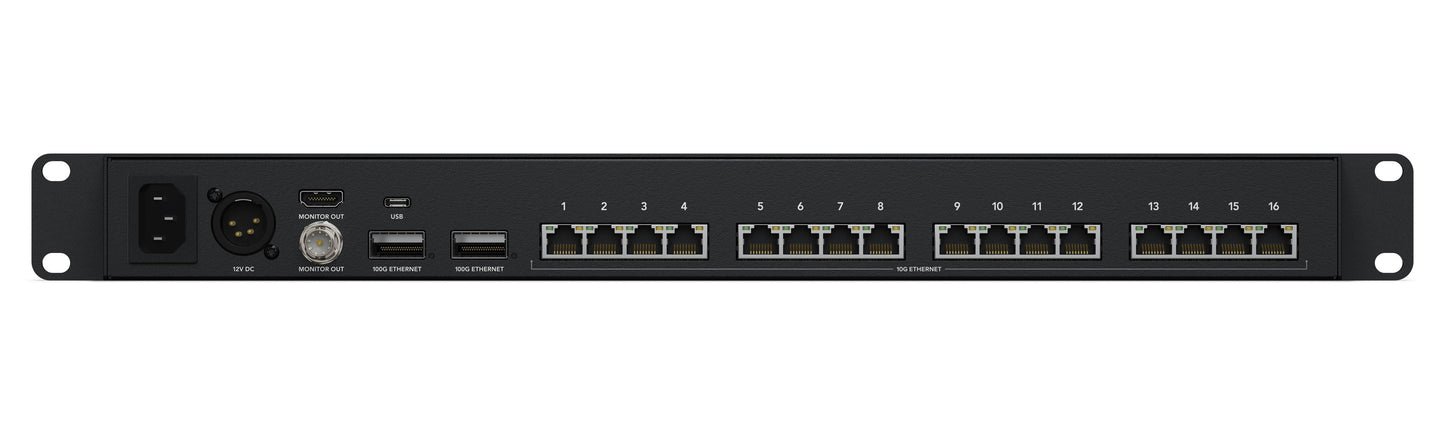

Blackmagic Ethernet Switch 360P is the first Ethernet switch designed specifically for the film and television industry. It is a high performance low latency Ethernet switch with 16 fast 10G Ethernet and 2 high speed 100G Ethernet ports, QSFP connection for high speed copper cables or longer optical fiber cables, rear Ethernet connections for better cable management and NMOS protocol for 2110 IP video workflows.
100G Ethernet Ports: 2 x 100Gb/s QSFP28 connectors. Please click here to view supported QSFP28 modules.
SDI Monitor Outputs: 1
HDMI Monitor Outputs: 1
Computer Interface: USB‑C
IP Video Compliance
Precision Time Protocol: IEEE 1588-2008 (PTP v2) ST 2059‑1 ST 2059‑2
NMOS IS-04 Discovery and Registration: v1.3.2 Peer-to-peer via mDNS/DNS‑SD
NMOS IS-05 Connection Management: v1.1.2
NMOS BCP‑002‑01: Natural Grouping
NMOS BCP‑004‑01: Receiver capabilities
Displays
SDI Monitor Out Standards: 1080p50, 1080p59.94, 1080p60
HDMI Monitor Out Standards: 1080p50, 1080p59.94, 1080p60
Monitor Out Displays: Device Name, network connections, network activity.

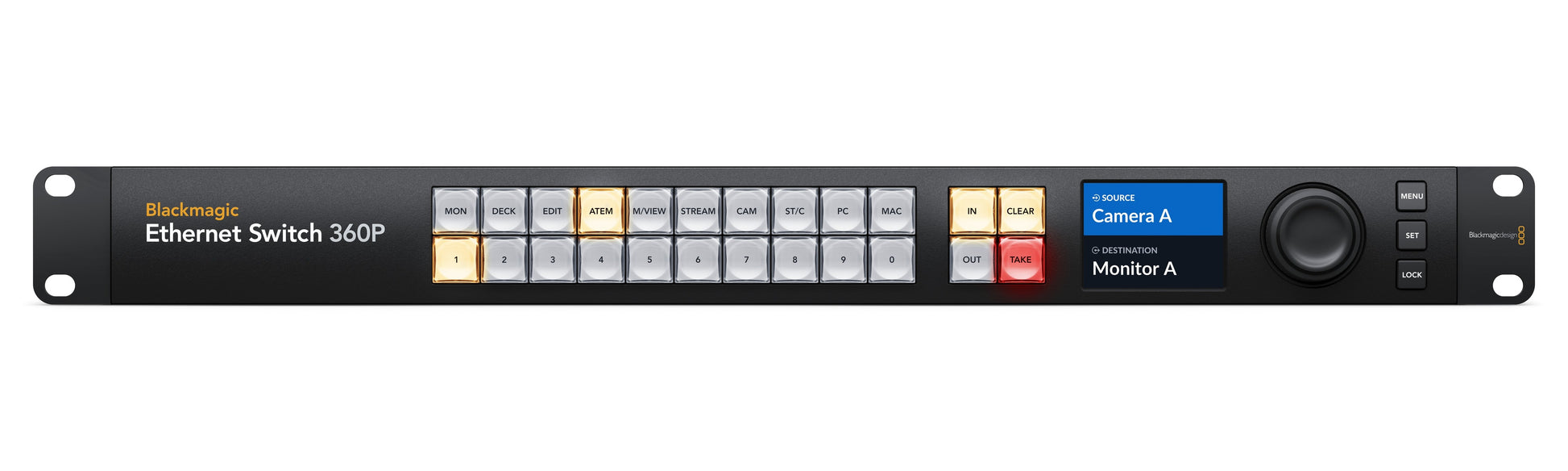

Front Panel Display: Built in 2.2 inch LCD for video and menu settings.
Control
24 buttons for local control of Blackmagic Ethernet Switch 360P with 3 buttons and search dial for video and menu settings menu control. 2.2 inch color display.
Software
Internal Software Upgrade
Via included updater application.
Operating Systems
Mac 13.0 Ventura, Mac 14.0 Sonoma or later.
Windows 10, 64-bit. Windows 11.
Power Requirements
Power Supply: Internal 100 - 240V AC 50/60Hz with IEC C14 mains input.
Power Inputs: 1 x IEC C14 mains input. 1 x 4-pin XLR +12V DC input.
Power Usage: 100 W
Physical Installation
1 rack unit.
Environmental Specifications
Operating Temperature: 5° to 40° C (41° to 104° F)
Storage Temperature: ‑20° to 45° C (-4° to 113° F)
