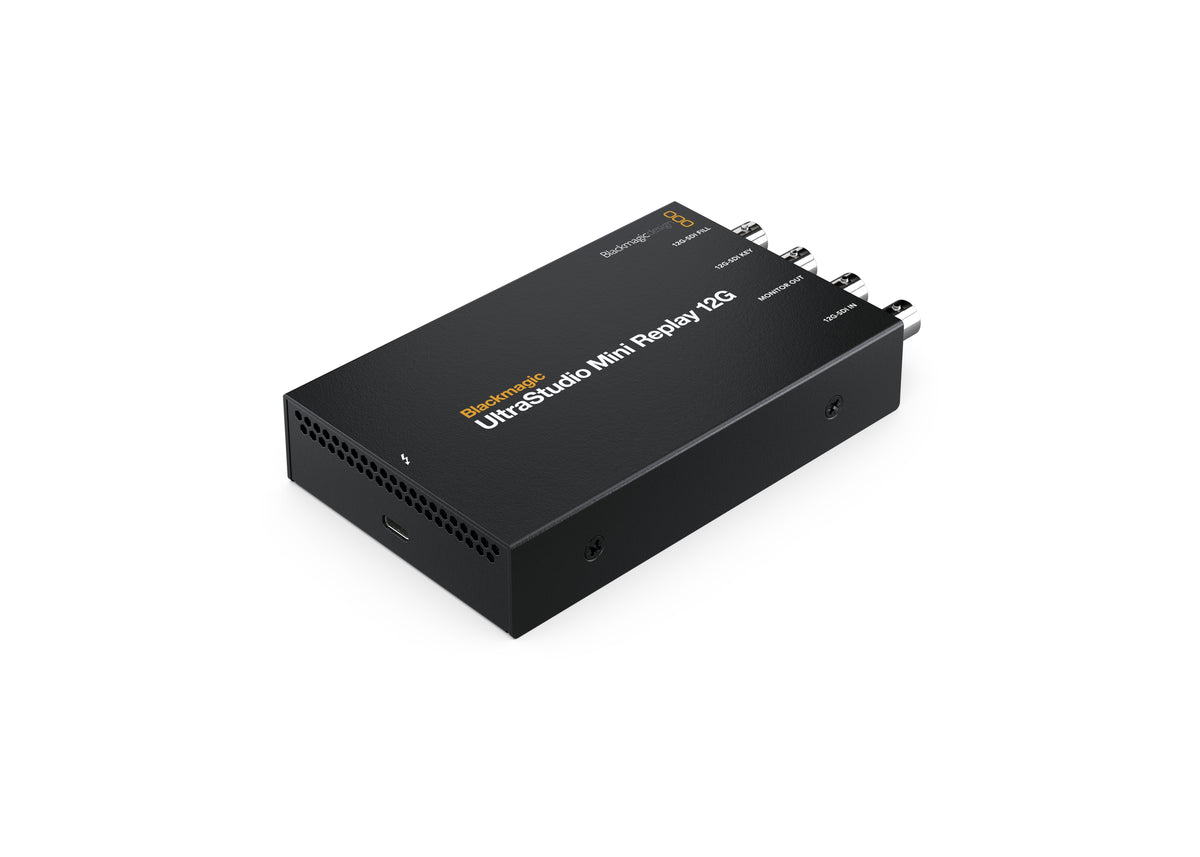

UltraStudio Mini Replay 12G is a compact capture and playback solution for Thunderbolt™ computers that’s perfect for broadcast graphics, AI image processing and live action replay! It connects using a single Thunderbolt cable and provides both capture and playback. There’s both a fill and key output for keying graphics in switchers, plus a separate output for monitoring. UltraStudio Mini Replay 12G has multi-rate 12G-SDI connections which support HD for broadcast video use as well as the latest Ultra HD video standards up to 2160p60.
Official Technical Details

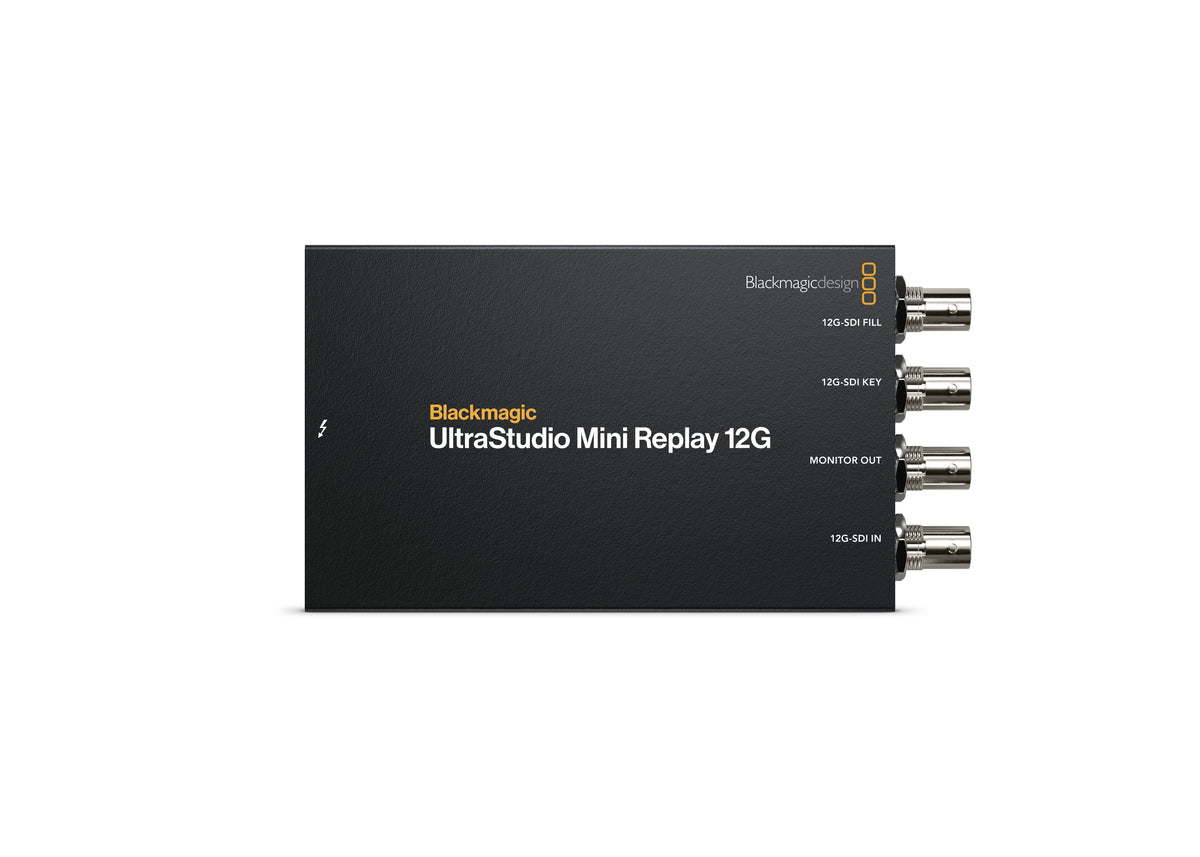

Connections

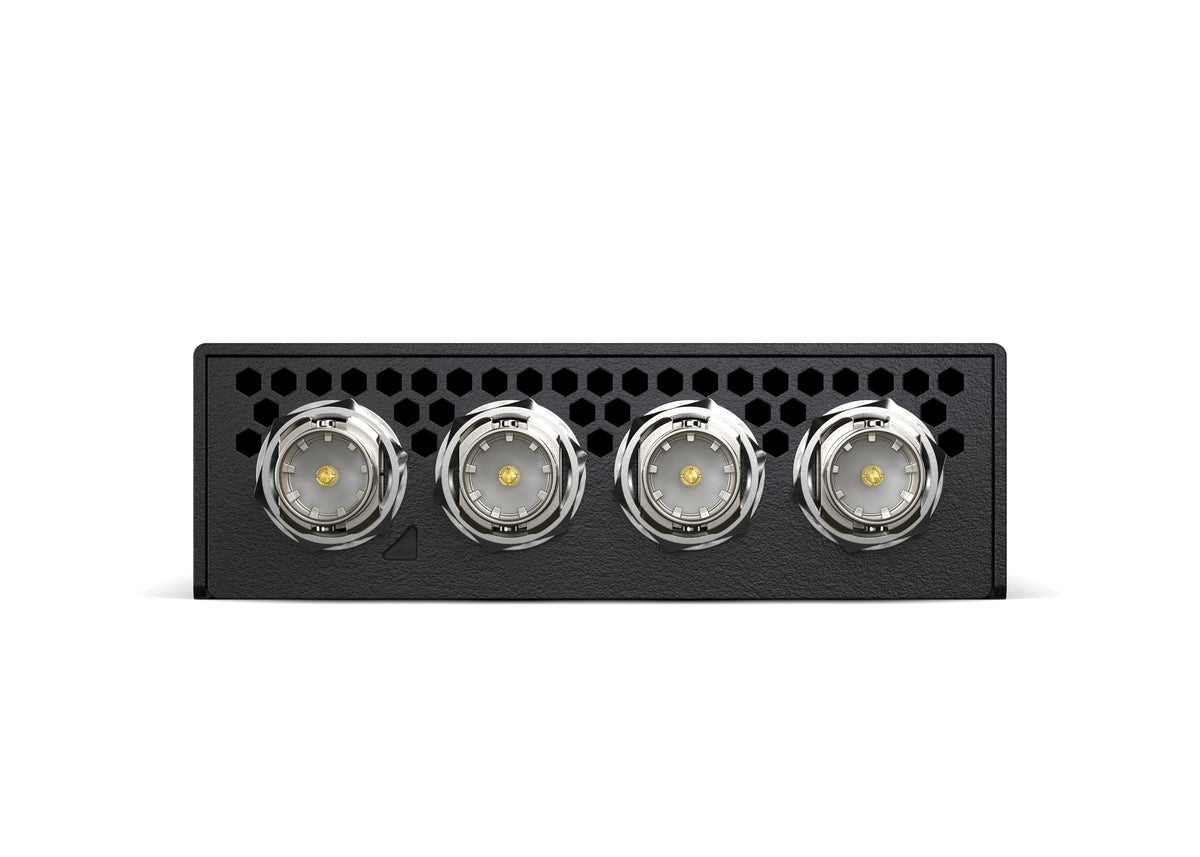

SDI Video Inputs: 1
SDI Video Outputs: 2
SDI Fill Outputs: 1
SDI Key Outputs: 1
SDI Monitor Outputs: 1
SDI Rates: 270Mb, 1.5G, 3G, 6G, 12G.
SDI Audio Inputs: 16 channels embedded audio on SDI input.
SDI Audio Outputs: 16 channels embedded audio on SDI output.

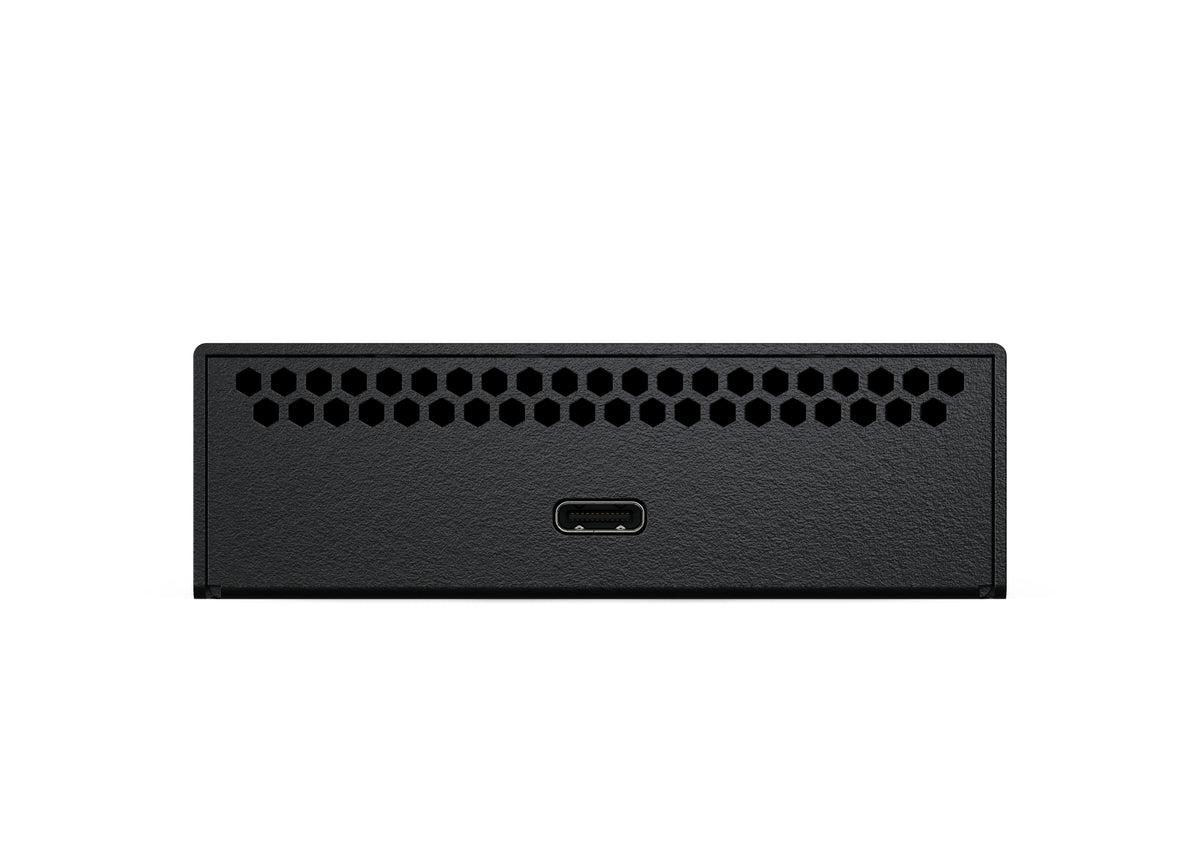

Computer Interface: Thunderbolt 4 (Mac OS Apple Silicon Macs, Windows and Linux)
Supported Codecs
Video Codecs: AVC-Intra, AVCHD, Canon XF MPEG2, Digital SLR, DV-NTSC, DV-PAL, DVCPRO50, DVCPROHD, DPX, HDV, HEVC, XDCAM EX, XDCAM HD, XDCAM HD422, DNxHR & DNxHD, Apple ProRes 4444, Apple ProRes 422 HQ, Apple ProRes 422, Apple ProRes 422 LT, Apple ProRes 422 Proxy, Uncompressed 8-bit 4:2:2, Uncompressed 10-bit 4:2:2, Uncompressed 10-bit 4:4:4.
Software
Software Included: Media Express, Disk Speed Test, LiveKey, Blackmagic Desktop Video Utility and Blackmagic driver on Mac OS and Windows. Media Express, Blackmagic Desktop Video Utility and Blackmagic driver on Linux.
Internal Software Upgrade: Firmware built into software driver. Software driver loads upgrades at system start or via updater software.
