Blackmagic Cloud Store Ultra 24TB

Blackmagic Cloud Store Ultra 24TB is an extremely high-performance network storage solution in a compact 1RU design with server-style front-to-rear cooling. Cloud Store Ultra features 24TB capacity 12-card RAID 0 flash memory core, 2 x 100G Ethernet ports, RAID 5 support for data protection, two redundant power supplies, USB-C and Blackmagic Cloud Sync for distributing files globally. It’s fast, even with lots of simultaneous users all accessing files at the same time.

Official Technical Details

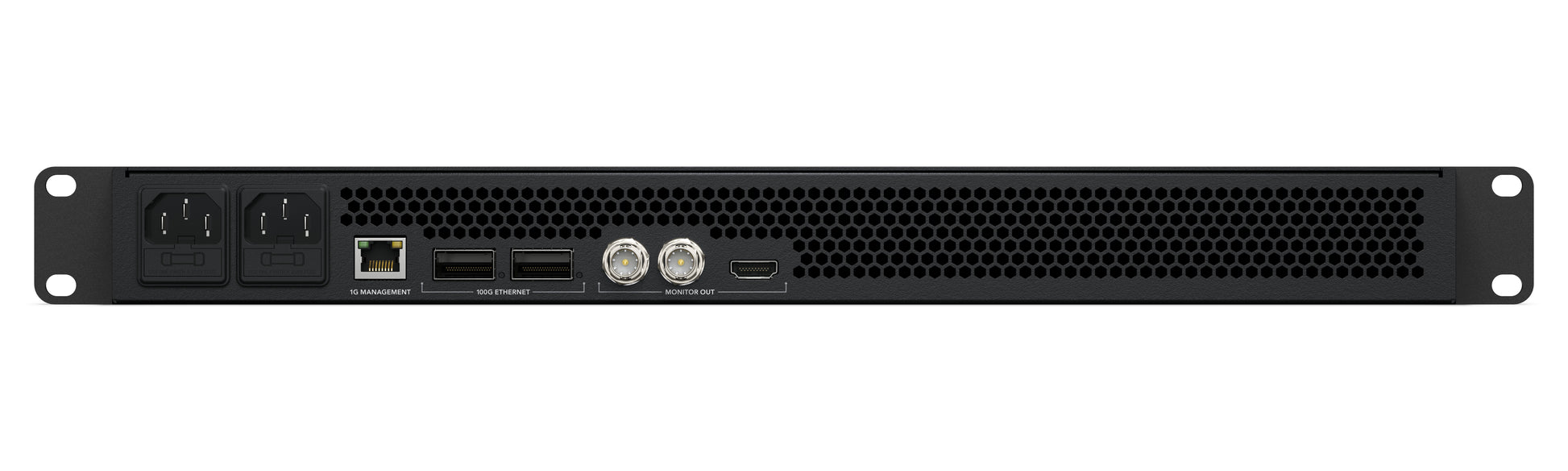

Connections

• 100G Ethernet Networks: 2 x 100G QSFP28 connections. Each 100G port can be assigned an independent IP address and subnet mask for up to 200G bandwidth and load balancing when used with a managed switch.
• 1G Management: 1 x RJ45 Ethernet. Supports 10/100/1000 BASE-T. For Cloud Store Setup utility and software updates.
• SDI Monitor Outputs: 2
• HDMI Monitor Outputs: 1
• SDI Rates: 1.5G, 3G.
• Computer Interface: 1 x USB-C for Cloud Store Setup utility and software updates.
• Power: 2 x IEC C14 power inputs.

File Sharing Protocol

• Protocol: NFS SMB
• Computer Connections: 200 max.

Storage

• Storage Type: M.2 NVMe SSD
• Total Capacity: 24TB

Displays

• Front Panel Display: Built in 2.2 inch LCD for settings plus storage name, capacity and use.
• Monitor Out Displays: Device Name, storage capacity and use, Cloud Sync status, User Activity, Hardware Status, storage map, network data rate graph.
• SDI Monitor Out Standards: 1080p50, 1080p59.94, 1080p60
• HDMI Monitor Out Standards: 1080p50, 1080p59.94, 1080p60

Control

• Built in Control Panel: 3 buttons, 2.2 inch color display and spin knob for menu settings.
• External Control: USB-C or Ethernet for configuration and software updates.

Software

• Software Included: Blackmagic Cloud Setup Utility
• Blackmagic Proxy Generator Lite: Internal software upgrade via Blackmagic Cloud Setup using USB-C or 1G Management port.

Operating Systems

• Mac 15.0 Sequoia, Mac 26.0 Tahoe or later.
• Windows 11

Power Requirements

• Power Supply: 2 x 100 ‑ 240V AC 50/60Hz internal power supplies.
• Power Inputs: 2 x IEC C14 sockets.
• Power Usage: TBC

Physical Installation

• Physical Installation: 1 rack unit.

Environmental Specifications

• Operating Temperature: 5° to 40° C (41° to 104° F)
• Storage Temperature: -20° to 45° C (-4° to 113° F)
• Relative Humidity: 0% to 90% non‑condensing

What's Included

• Blackmagic Cloud Store Ultra 24TB
• Welcome wallet with QR code for software download

Warranty

• 1 Year Limited Manufacturer’s Warranty.

Official Documentation

• Official Tech Specs PDF
• Download Manual
• Official Product Page
