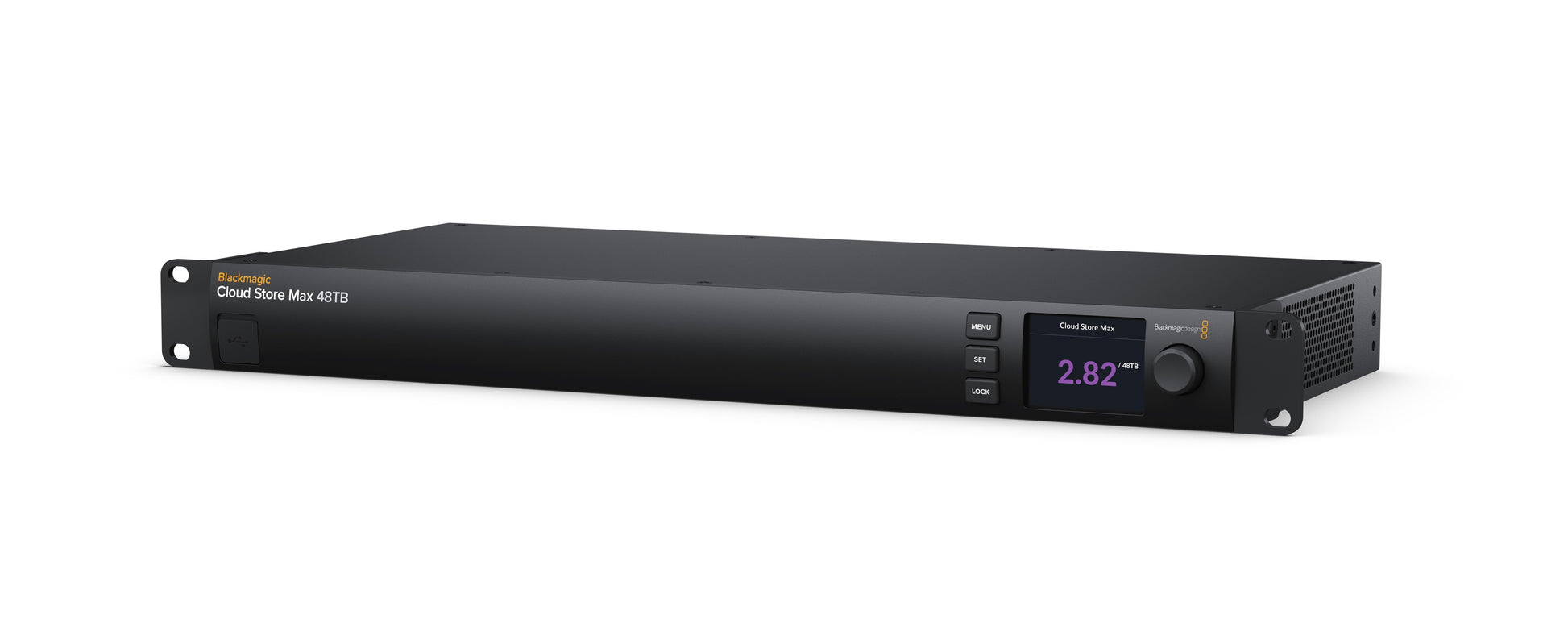

Blackmagic Cloud Store Max 48TB is an extremely high performance flash storage solution in a compact 1RU design. Cloud Store Max features 48TB capacity 12 card RAID 0 flash memory core, 4 x 10G Ethernet, 100G Ethernet, QSFP connection for high speed copper cables or longer optical fiber cables, USB-C and Blackmagic Cloud sync for distributing files globally. It’s fast, even with lots of simultaneous users all accessing files at the same time!
Official Technical Details

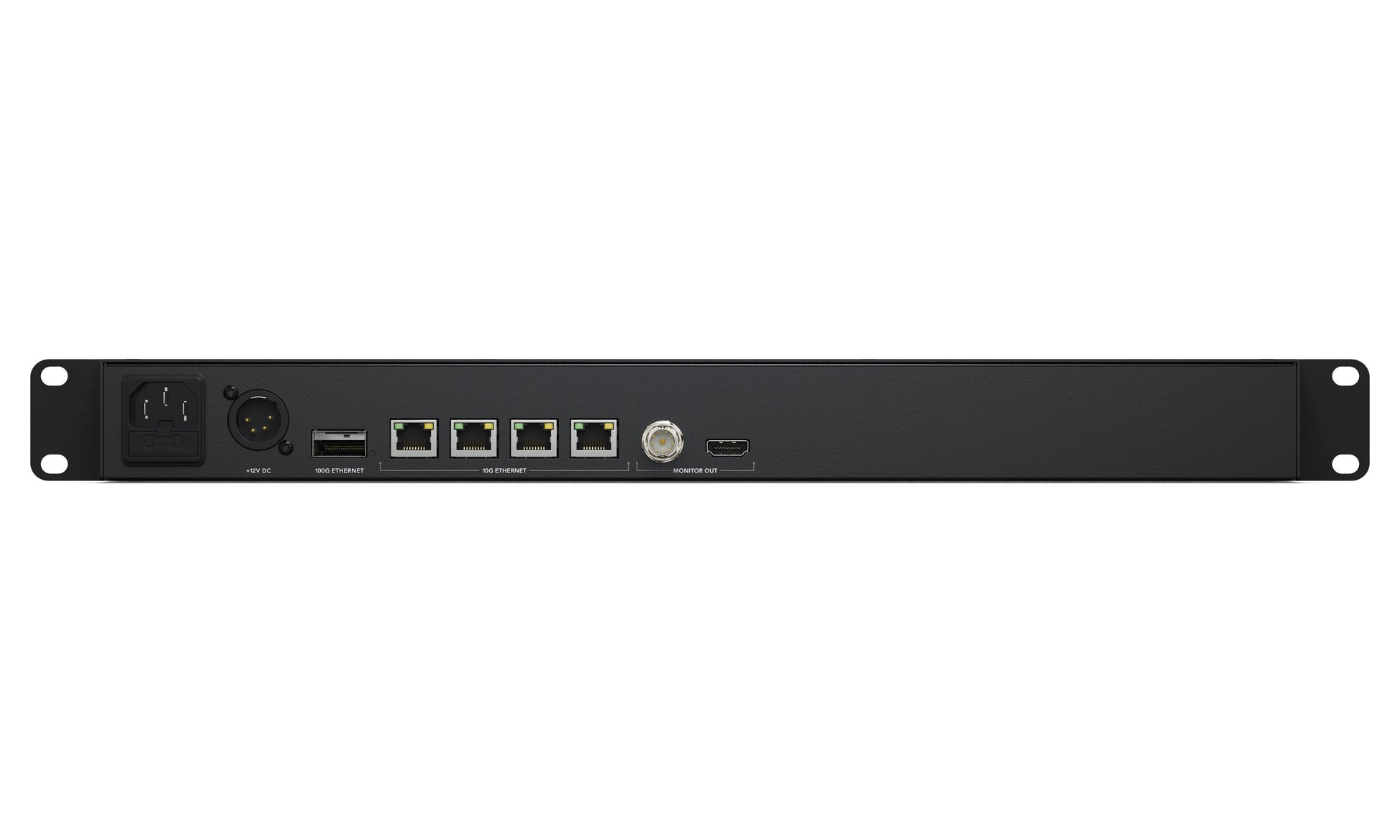

Connections
10G Ethernet Ports: 4 x RJ45 Ethernet 100/1000/10G BASE-T
100G Ethernet Ports: 1 x QSFP28 Ethernet 100G BASE-T Please click here to view supported QSFP28 modules.
USB-C Port: 1 x USB 3.0 (up to 5Gb/s). Supports Ethernet Over USB
SDI Monitor Outputs: 1
HDMI Monitor Outputs: 1
Computer Interface: USB-C or Ethernet for shared file access, configuration and software updates.
File Sharing Protocol
Protocol: NFS SMB
Computer Connections: 200 max.
Storage
Storage Type: M.2 NVMe SSD
Total Capacity: 48TB
Displays
SDI Monitor Out Standards: 1080p50, 1080p59.94, 1080p60 1080p50, 1080p59.94, 1080p60
Monitor Out Displays: Device Name, storage capacity and use, Cloud Sync status, User Activity, Hardware Status, storage map, network data rate graph.

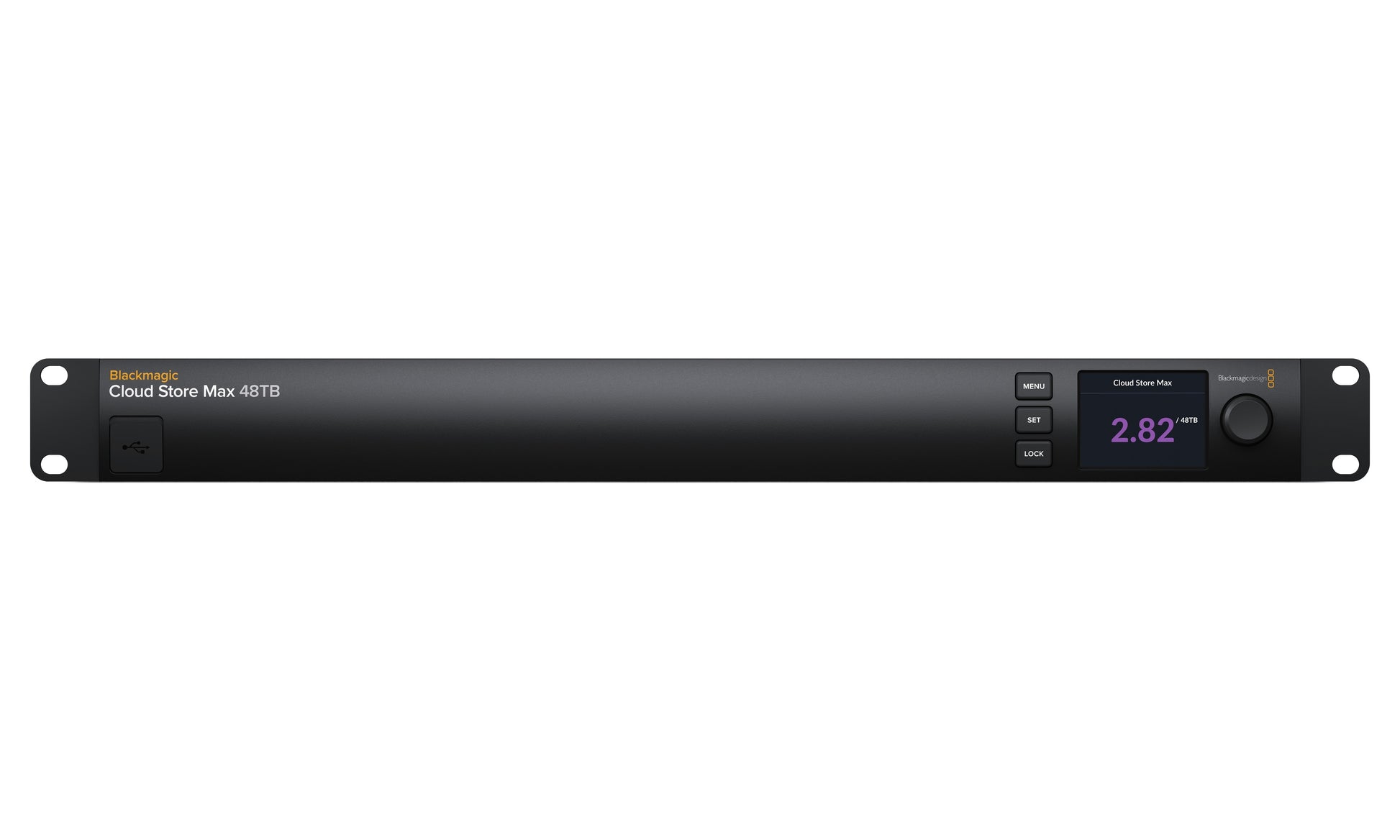

Front Panel Display: Built in 2.2 inch LCD for settings and storage name, capacity and use.
Status Indicator: Front panel LED illuminates white indicating normal operation or red indicating disk fault.
Control
Built in Control Panel: 3 buttons, 2.2 inch color display and spin knob for menu settings.
External Control: USB-C or Ethernet for configuration and software updates.
Software
Software Included: Blackmagic Cloud Setup Utility Blackmagic Proxy Generator Lite Internal software upgrade via Blackmagic Cloud Setup using USB-C port.
Operating Systems
Mac 15.0 Sequoia, Mac 26.0 Tahoe or later.
Windows 10, 64-bit. Windows 11.
Power Requirements
Power Supply: Internal 100 - 240V AC 50/60Hz with IEC C14 mains input.
Power Inputs: 1 x IEC C14 mains input. 1 x 4-pin XLR +12V DC input.
Power Usage: 150 W
Environmental Specifications
Operating Temperature: 0° to 40° C (32°to 104° F)
Storage Temperature: -20° to 60° C (-4° to 140° F)
